Wacom Cintiq 16 (2025) 創意繪圖螢幕 (2年保固) (DTK168K0C)

Product Type

Pen Display

Model Code

Wacom Cintiq 24

• DTK246

Wacom Cintiq 24 touch

• DTH246

Product Dimensions

340 x 568 x 21 mm / 13.4 x 22.4 x 0.8 in

Product Weight

Wacom Cintiq 24

• 4.8 kg / 11 lb without stand

Wacom Cintiq 24 touch

• 5 kg / 11 lb without stand

產品顏色

黑色

Built-in Stand

N/A

Productivity Boosters

• 2 buttons for Power, OSD menu, Touch On/Off (Wacom Cintiq 24 touch)

• Fan-less

• Direct bonding

• VESA 75 x 75 mm compatible

• Dedicated pan, scroll, zoom, brush size

• Precision Mode

• Radial Menu

• Display Toggle

• On-screen controls

• Pen gestures

Input Power

DC 20V 1.8A

Storage Temperature and Humidity

• Temperature: -10 to 60 degree C
• Humidity: 30 to 90% RH (non-condensing)

操作溫度與濕度

• 溫度：攝氏 5 至 40 度
• 濕度：30 至 80% 相對濕度（非冷凝）

保固

1 年

Screen Size

23.8 in / 60.4 cm

Active Area

527 x 296 mm / 20.7 x 11.7 in

顯示器技術

IPS

表面

抗眩光玻璃

Touch Technology

Wacom Cintiq 24

• N/A

Wacom Cintiq 24 touch

• Projected capacitive

Multi-touch

Wacom Cintiq 24

• n/a

Wacom Cintiq 24 touch

• Yes - 10 fingers

Display Resolution

2560 x 1440 pixels

Supported Resolution

• 640 x 480 @60Hz

• 720 x 480 @60Hz

• 720 x 576 @50Hz

• 800 x 600 @60Hz

• 1024 x 768 @60Hz

• 1280 x 720 @50/60Hz

• 1280 x 1024 @60Hz

• 1600 x 1200 @60Hz

• 1920 x 1080 @50/60Hz

• 2560 x 1440 @60Hz

均勻度補償功能

不適用

Pixel Pitch

0.2058 (H) x 0.2058 (V) mm

Display Colors

16.7 million

色彩深度

8bit x RGB = 24bit

Color Gamut Coverage Ratio

sRGB 100% (CIE1931) (typ)

Color Temperature, Custom Color

5000K/5700K/6500K/7500K/9300K

Aspect Ratio

16:9

Viewing Angle

178 deg. (89/89) H / 178 deg. (89/89) V (typ)

對比

1000:1（典型值）

Brightness

350cd/m² (typ)

反應時間

12 ms（典型值）

Color Gamut Coverage Ratio

• Native

• sRGB

Display Quality

Each LCD panel is produced under very stringent quality standards. Production techniques cannot guarantee an absolutely perfect TFT display. Wacom does not allow pixels to always white or always black. A small number of pixels are allowed to show a wrong color for some parts of the color spectrum

數位筆

Wacom Pro Pen 3

數位筆技術

電磁感應技術

數位筆感壓等級

8192 階

支援數位筆的傾斜角度

60 度

Pen Resolution

5080 LPI

數位筆類型

感壓、無線、免電池

切換按鈕

3 個側邊開關

Compatibility

• Windows 10 or later (latest service pack/build)
• macOS 13 or later
• Android 8.0 and above

Hardware Requirements

• USB-C port with DisplayPort™ Alt Mode*, or HDMI port and USB port, internet access to download driver.
• To achieve the maximum resolution and refresh rate on Wacom Cintiq 24 and Wacom Cintiq 24 touch, the host PC ports need to support 2560 x 1440 @60Hz.

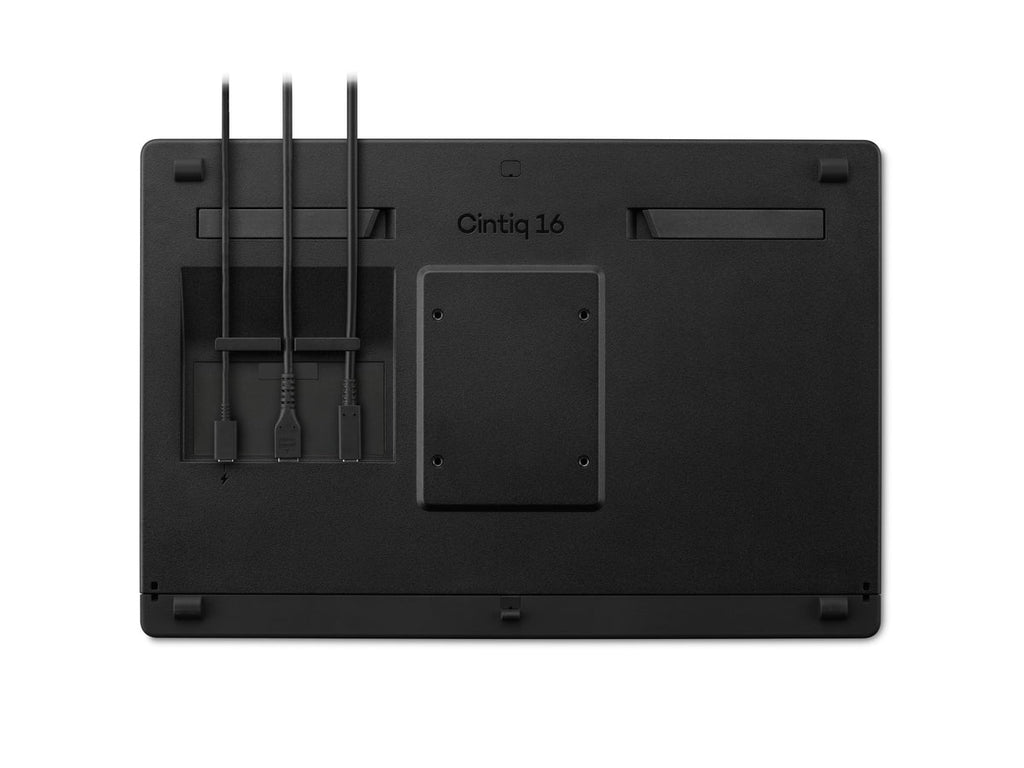

I/O Connectors

• 1x mini HDMI (HDMI Type-C)
• 1x USB-C

Wireless Connectivity

N/A

影像輸入訊號

• DisplayPort
• HDMI

Output Video Connector

N/A

安全鎖插槽

Kensington^® 安全鎖插槽

What's Included

• 1x Wacom Cintiq 24 or Wacom Cintiq 24 touch body

• 1x USB-C to C Cable (1.8m/DisplayPort Alt Mode)

• 1x Wacom Pro Pen 3

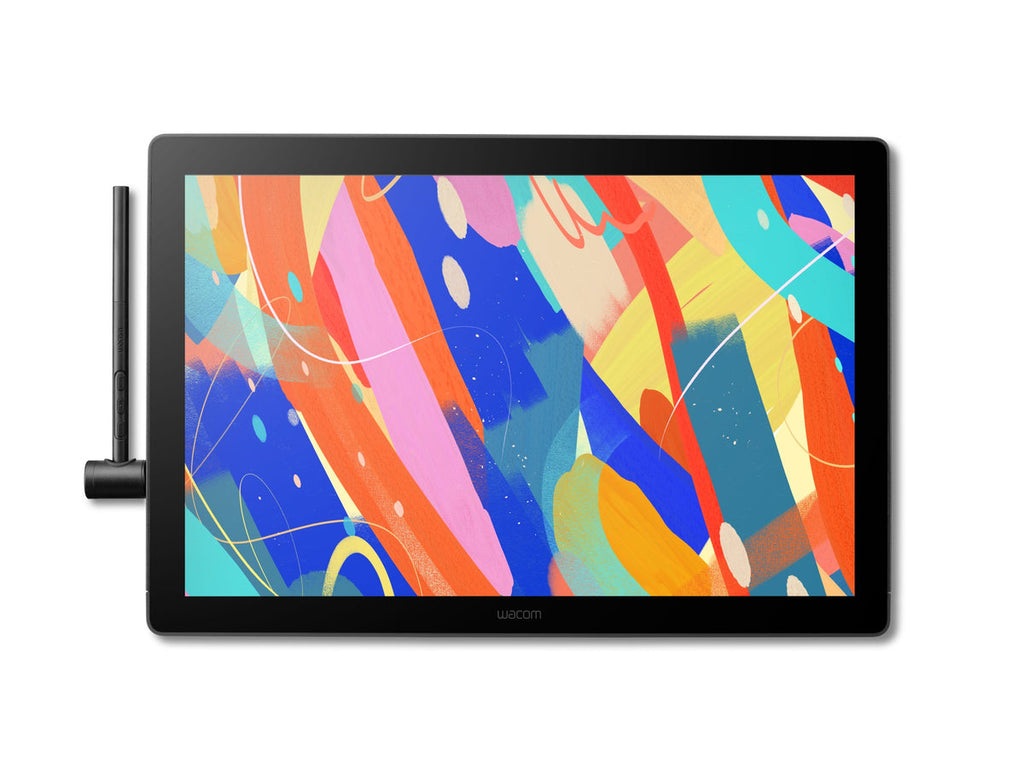

• 1x Vari-angle Pen Stand
  (incl. 1 x Standard Nib, 1 x Felt Nib)

• 1x Nib Remover

• 1x AC Power Adapter

• 1x Power Cable (1.0m)

• 1x Quick Start Guide

• 1x IPI sheet

Optional Accessories

• Wacom Pro Pen 3 (ACP50000DZ)

• Wacom Pro Pen 3 Straight Grip (ACK34801Z)

• Wacom Pro Pen 3 Flare Grip (ACK34802Z)

• Wacom Pro Pen 3 Wood Grip (ACK35304Z)

• Wacom Pro Pen 3E (ACP501E00DZ)

• Pen Tether for Pro Pen 3E (ACK42007K)

• Wacom Pro Pen 3 Standard Nibs (ACK24801Z)

• Wacom Pro Pen 3 Felt Nibs (ACK24819Z)

• Wacom Pro Pen 3 Rubber Nibs (ACK253010Z)

• Wacom Cintiq Vari-angle Pen Stand (ACK45120Z)

• Wacom Adjustable Stand (ACK651KZ)

• USB-C to C Cable 1.8M (ACK4490601Z)

• HDMI to mini HDMI Cable 1.8M(ACK45106Z)

• USB-C to A Cable 1.8M (ACK4480601Z)

• ExpressKey Remote (ACK411050)

• Wacom Pro Pen 2 (KP-504E)

• Wacom Pro Pen slim (KP-301E)

• Wacom Pro Pen 3D (KP505)

• Pro Pen (KP-503E)

• Grip Pen (KP-501E)

• Classic Pen (KP-300E)

• Art Pen (KP-701E)

• Accessory Pen Black DTK-2451/DTH-2452 (KP302E)

• Power Adapter (ACK4481401Z)

• Power Cable 1.0M, C7 Type (ACK4480601)
