Description
OVERVIEW

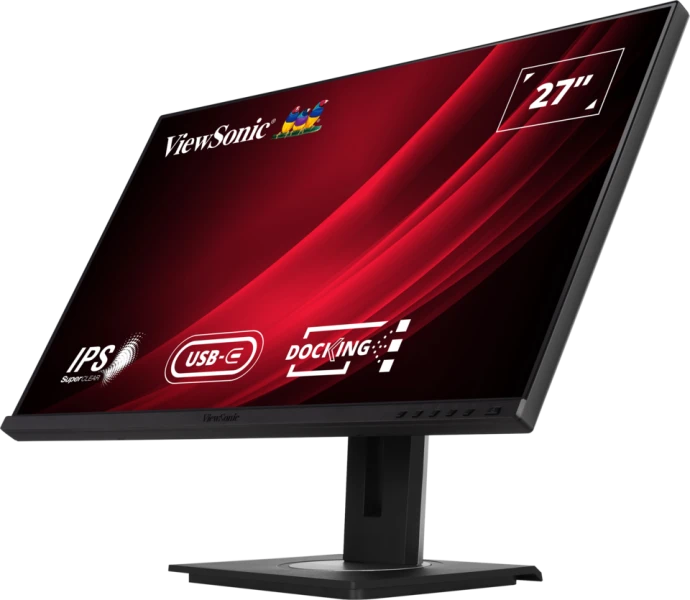

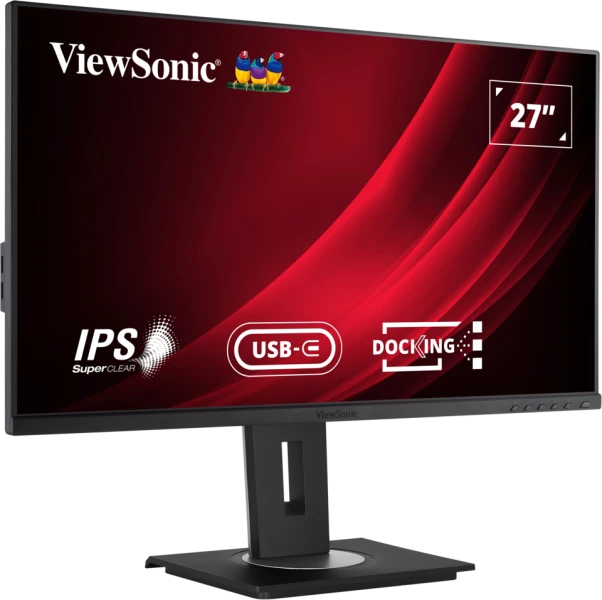

The ViewSonic VG56 docking monitor series will keep the workstation tidy and productive with USB Type-C and Ethernet connectivity that turn your monitor into a hub for charging, data, network, and devices. With a 27” display and 2560 X 1440 resolution that delivers larger and clearer images, the VG2756 QHD monitor expands your productivity. This monitor’s DisplayPort output also makes it convenient to daisy chain monitors, reducing clutter on your desk and simplifying cable management. A range of ergonomic features such as 40-degree tilt, swivel, bi-directional pivot and height adjustment, along with eye-care technology let you stay comfortable at work all day. In addition, the supported vDisplay Manager software for multi-tasking provides efficient on-screen display control. The monitor and quick release stand ship in an eco-friendly, biodegradable package, thus minimizing total cost of ownership.Integrated Docking Station
With advanced connectivity options including RJ45 and USB Type-C, this monitor can charge your laptop up to 90W; provide internet; transfer data, audio and video while connecting your laptop to multiple monitors and various peripherals such as printers, scanners and external hard drives.USB Type-C
Ethernet
Convenient to Daisy Chain Monitors
With the latest USB Type-C and DisplayPort output connectivity, this monitor can be easily daisy chained to another monitor for a productivity-boosting workstation setup. With multiple screens on your desktop, you can work smarter, faster, and more efficiently.DisplayPort Output
Free of Cable Clutter

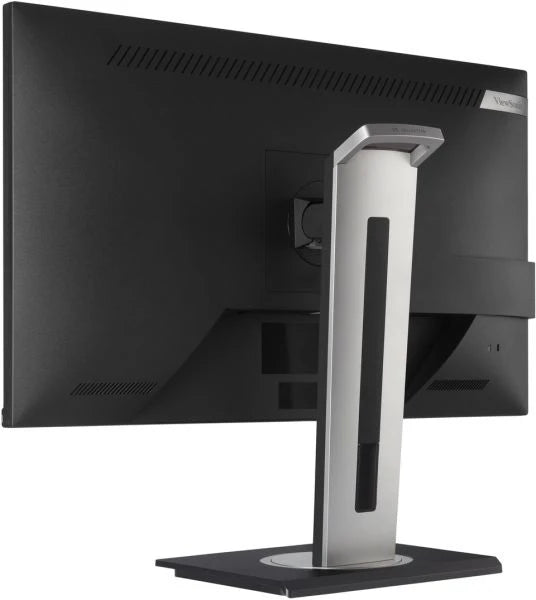

In addition to the single cable USB Type-C connectivity that reduces the reliance on multiple cables and adapters, the monitor’s stand is also designed with cable management and client mount capability to create a cleaner looking space.*Client Mount Kit must be used to attach a mini PC. Client mount kit is sold separately.
See More Details

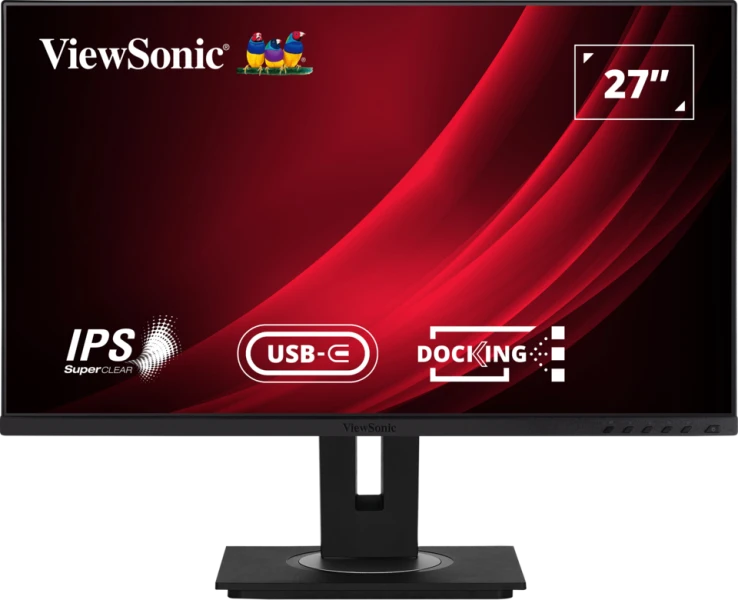

This 27” diagonal screen with QHD 2560 X 1440 resolution delivers two-times the pixels offered by FHD 1080p, benefiting detail-minded professionals.QHD
Ergonomic Workstation

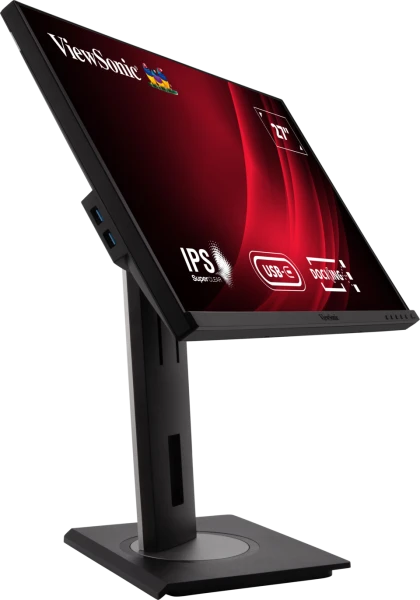

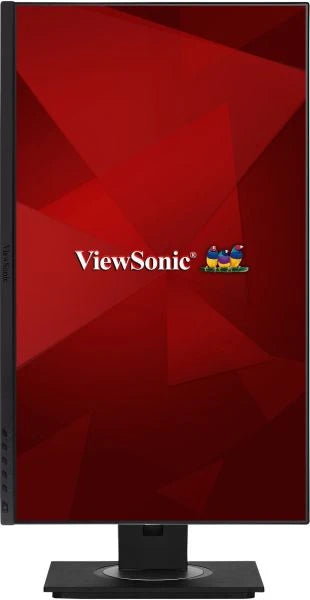

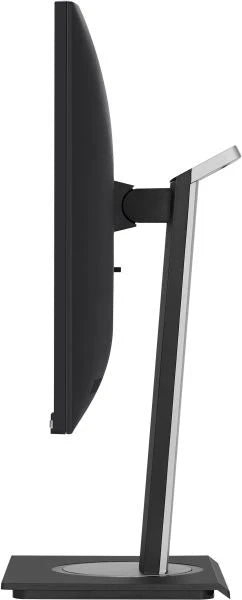

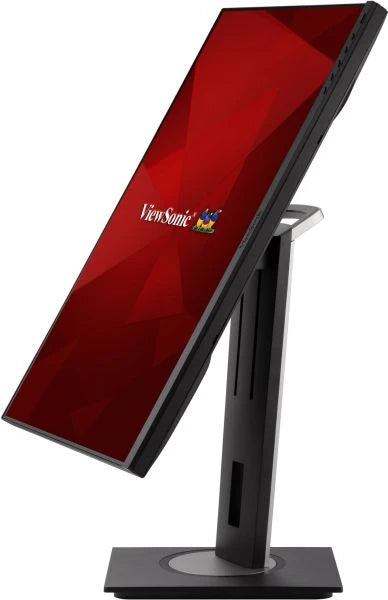

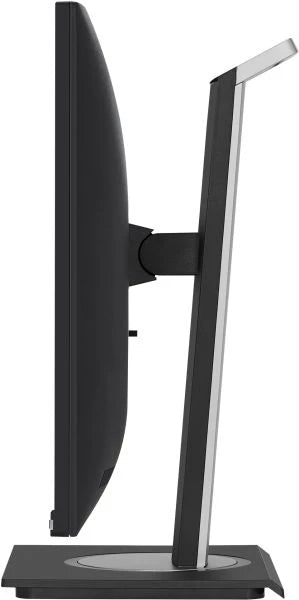

The monitor includes an ergonomic stand, which allows you to easily tilt up to 40-degrees, swivel your monitor to an ideal position, adjust the height and rotate the monitor 90 degrees for portrait viewing, making it a good fit whether used on your own or during group discussion and screen sharing.
Eco-friendly, biodegradable packaging
This monitor is shipped in paper-based packaging for easy disposal through recycling. The green thinking is reinforced with hand holes and mono color printing to avoid any plastics and pollutants.Paper-based
Efficient 4-step Assembly

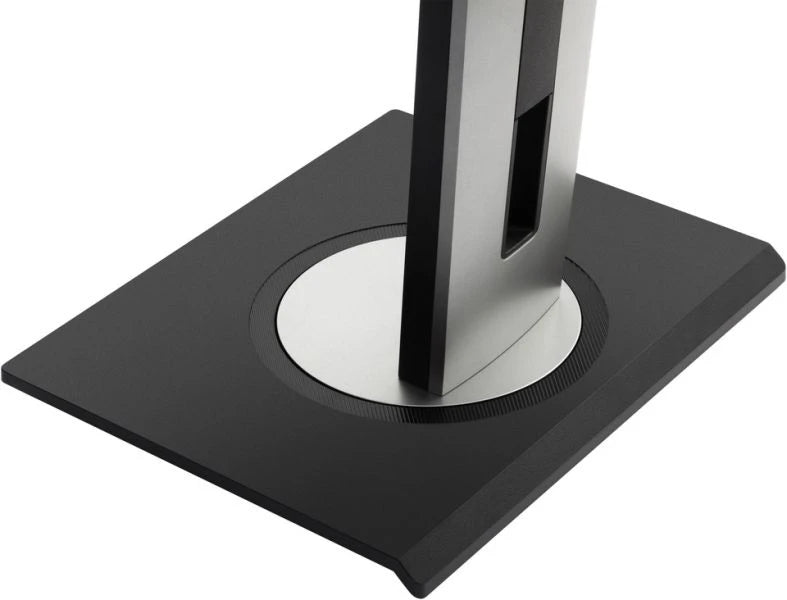

Only a few steps away from your docking monitor: simply open the green box, screw the base onto the quick release stand, snap the stand into place using the slots, and lift it up - it’s done.
Minimized Total Cost of Ownership
Designed for the busiest of office environments, this monitor helps to reduce hidden business costs and delivers an efficient end-to-end enterprise experience. From installation time and recycling concerns, to user experience and screen performance, every feature of this monitor was carefully considered to not only meet your workspace demands, but to also reduce your TCO.
Wide Viewing Angle
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear® IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the sideSuperClear® IPS
Eye Care
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce your eye fatigue after a long day of use. You can quickly access the settings via the vDisplay Manager software, and preset brightness and contrast levels for different time slots.Flicker-Free & Blue Light Filter
Certified Environmental Sustainability
The VG2756-2K is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.
Energy Star & EPEAT

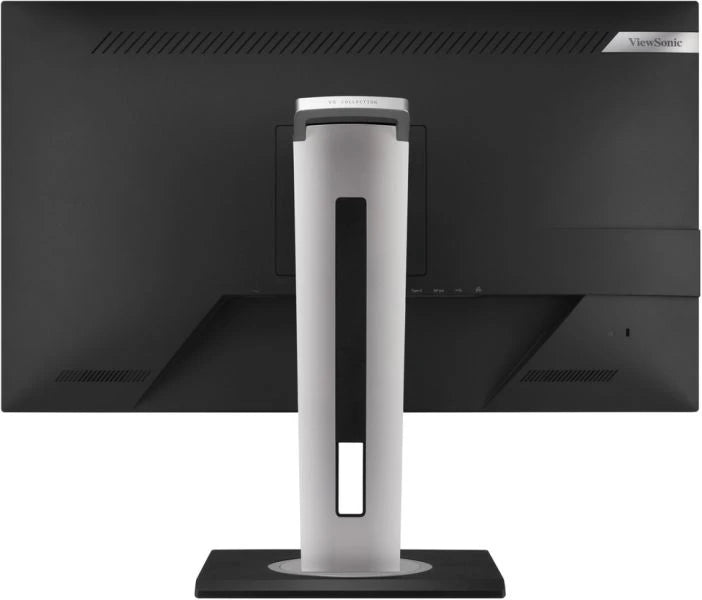

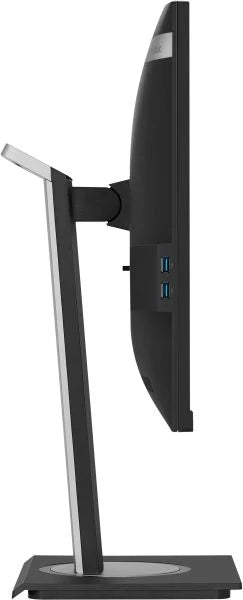

Dimension & I/O Ports
- Menu Control Panel
- VESA Compatible (Wall Mount 100 x 100 mm)
- USB Down Stream x 2
- AC In
- HDMI
- DP IN
- USB Type C
- DP out
- USB Up Stream
- LAN
SPECIFICATIONS
-
Display
Display Size (in.): 27
Viewable Area (in.): 27
Panel Type: IPS Technology
Resolution: 2560 x 1440
Resolution Type: QHD (Quad HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 350 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5.8ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 78% size (Typ)
sRGB: 110% size / 100% coverage (Typ)
Pixel Size: 0.233 mm (H) x 0.233 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
-
Compatibility
PC Resolution (max): 2560x1440
Mac® Resolution (max): 2560x1440
PC Operating System: Windows 11 certified; macOS tested
Mac® Resolution (min): 2560x1440
- Connector
-
Audio
Internal Speakers: 2Watts x2
-
Power
Eco Mode (Conserve): 16.81W
Eco Mode (optimized): 21.12W
Consumption (typical): 26.35W
Consumption (max): 35.94W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
-
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
-
Controls
Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
-
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
-
Wall Mount
VESA Compatible: 100 x 100 mm
-
Input Signal
Frequency Horizontal: 15 ~ 90KHz
Frequency Vertical: 49 ~ 75Hz
-
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
-
Ergonomics
Height Adjust (mm): 130
Swivel: 120º
Tilt (Forward/Back): -5º / 40º
Pivot (Right/Left): 90º / 90º
-
Weight (imperial)
Net (lbs): 15.2
Net Without Stand (lbs): 9.9
Gross (lbs): 22.5
-
Weight (metric)
Net (kg): 6.9
Net Without Stand (kg): 4.5
Gross (kg): 10.2
-
Dimensions (imperial) (wxhxd)
Packaging (in.): 27.2 x 16.9 x 8.6
Physical (in.): 24.1 x 15.99~20.99 x 8
Physical Without Stand (in.): 24.1 x 14.2 x 2
-
Dimensions (metric) (wxhxd)
Packaging (mm): 692 x 430 x 218
Physical (mm): 612 x 406.19~533.24 x 202
Physical Without Stand (mm): 612 x 362 x 52
-
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM
PACKAGE CONTENTS: VG2756-2K x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
