Description
Highlights
- Eight 10 Gbps Ports. 8× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity.
- Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
- Ideal for Various Scenarios. Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment.
- Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
- Low-Noise Operation. Intelligent fan speed adjustment ensures minimal noise to be non-distracting when use.
- Wide Operation Temperature. Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0–50 ℃).
- Plug and Play. Allows for easy deployment without the need for a technician.
- 3 Years Mercusys Local Manufacturer Warranty
Product Descriptions

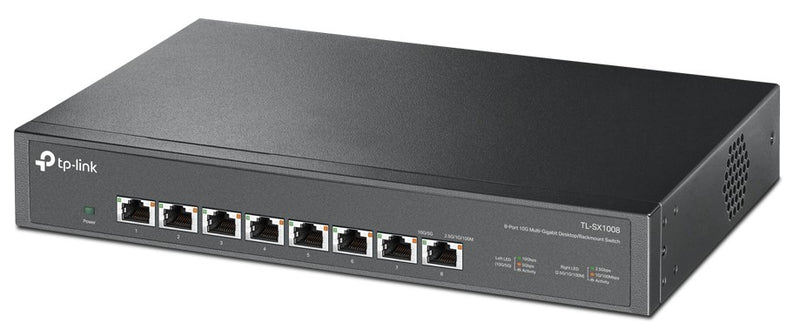

Metal Design/Smart Fan
Durable metal casing provides maximum heat dissipation for versatility. smart fan with speed adjustment ensures minimal noise when use.
Flexible Deployment
Whether on a desktop or rack mounted, you have the flexibility to place the 10G switch where you need.
Specifications
| Hardware Features | |
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Interface | 8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | 1 (Intelligent fan speed adjustment) |
| External Power Supply | 100–240 VAC, 50/60 Hz, 0.8A |
| LED Indicator | • System Power: 1 |
| • Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port | |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Max Power Consumption | 31.2 W |
| Performance | |
| Switching Capacity | 160 Gbps |
| Packet Forwarding Rate | 119.0 Mpps |
| MAC Address Table | 32K |
| Packet Buffer Memory | 2MB |
| Jumbo Frame | 10 KB |
| Software Features | |
| Advanced Features | • 802.3X Flow Control |
| • 802.1p/DSCP QoS | |
| Transfer Method | Store and Forward |
| Others | |
| Certification | CE, FCC,RoHS |

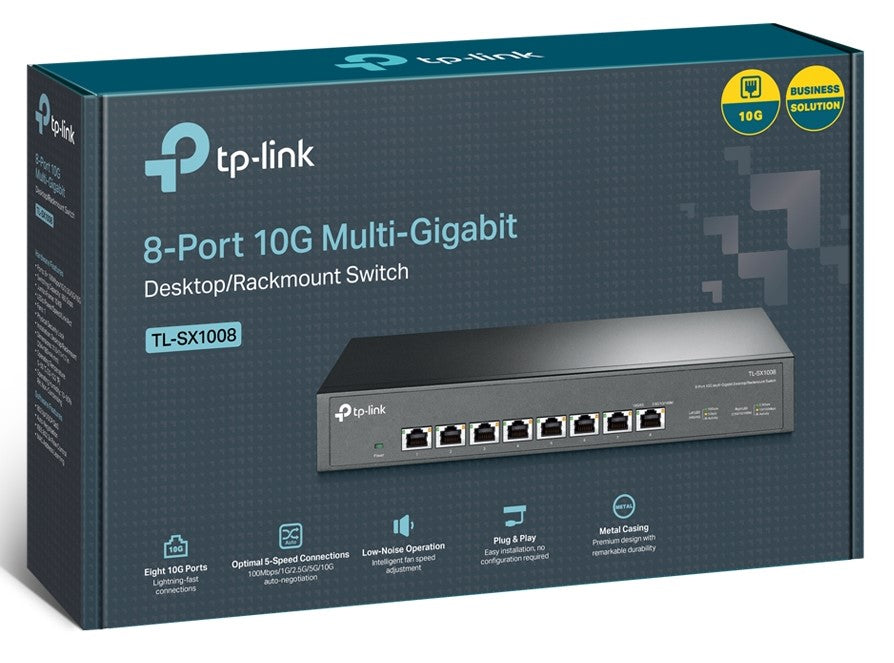

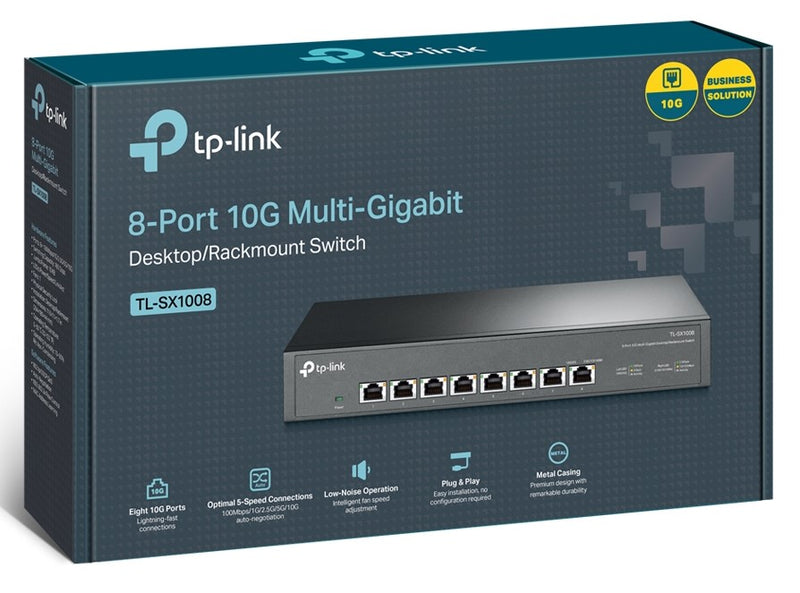

| Package Contents | • 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX1008 |
| • Power Cord | |
| • Installation Guide | |
| • Rackmount Kit | |
| • Rubber Feet | |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) |
| • Storage Temperature: -40–70 °C (-40–158 °F) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
