Description
Highlights
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.

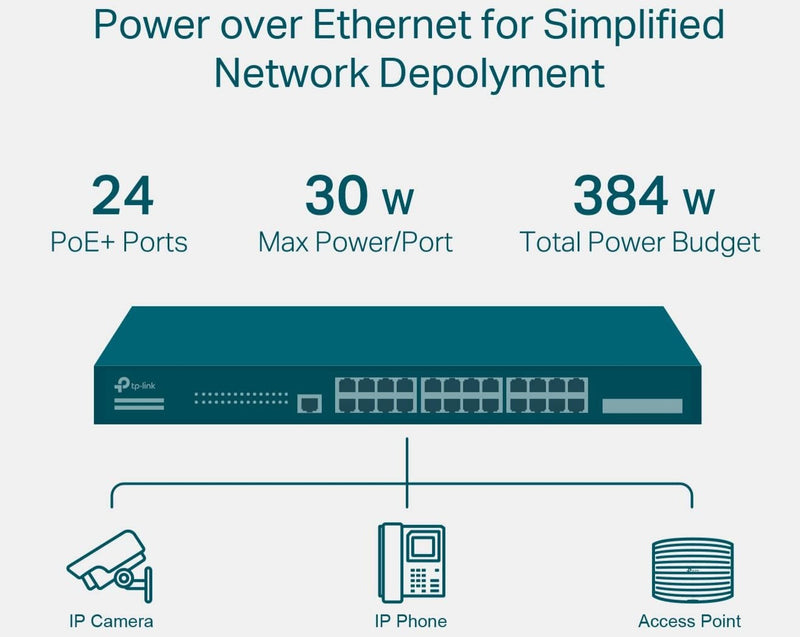

- 384 W PoE Budget : 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W * .
- Integrated into Omada SDN : Zero-Touch Provisioning (ZTP) ** , Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management : Cloud access and Omada app for ultra convenience and easy management.
- Static Routing : Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies : IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications : L2/L3/L4 QoS and IGMP snooping.
- Standalone Management : Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| Hardware Features | |
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
|---|---|
| Fan Quantity | 2 |
| Power Supply | 100-240V AC~50/60Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports, up to 30 W per port • Power Budget: 384 W |
| Dimensions (W x D x H ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 34.4 W (110V/60Hz) (no PD device connected) 465.8 W (110V/60Hz) (with 384 W PD device connected) |
| Max Heat Dissipation | 117.38 BTU/h (110 V/60 Hz) (no PD device connected) 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected) |
| Performance | |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 12Mbit |
| Jumbo Frame | 9 KB |
