Description
Highlights

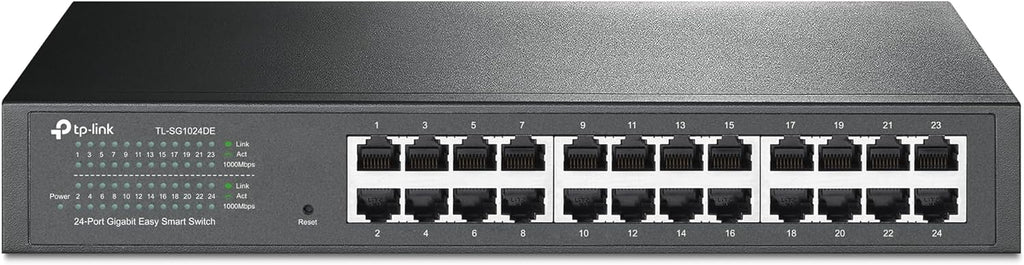

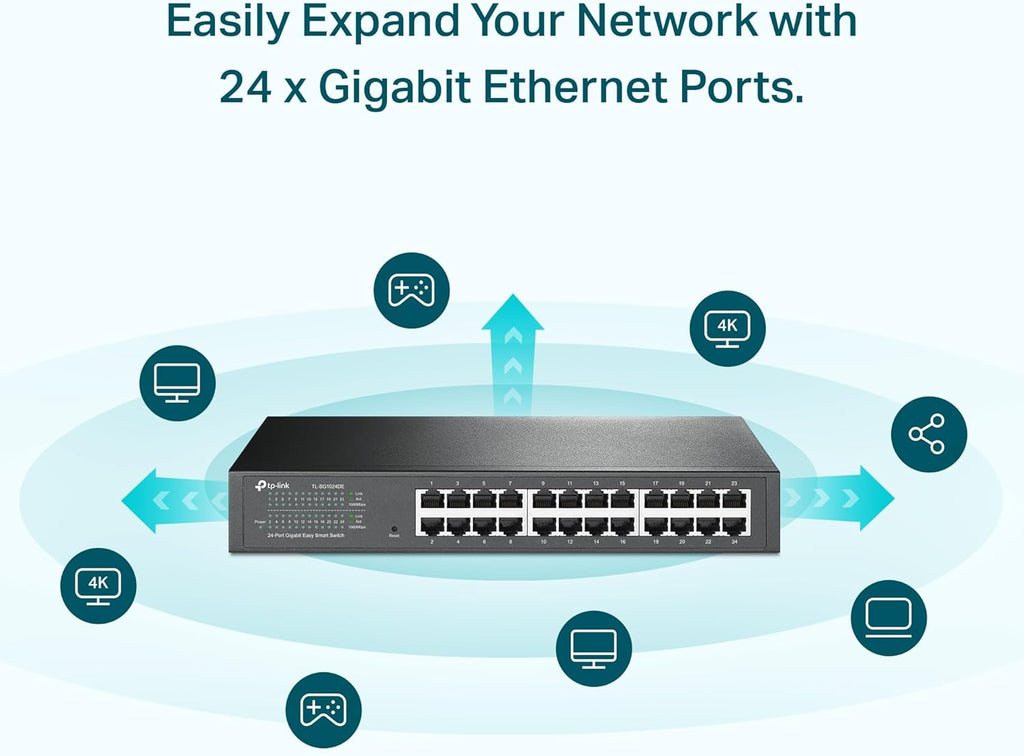

- 24 10/100/1000Mbps RJ45 ports
- Provides network monitoring, traffic prioritization and VLAN features
- Innovative energy-efficient technology reduces power output by up to 18%

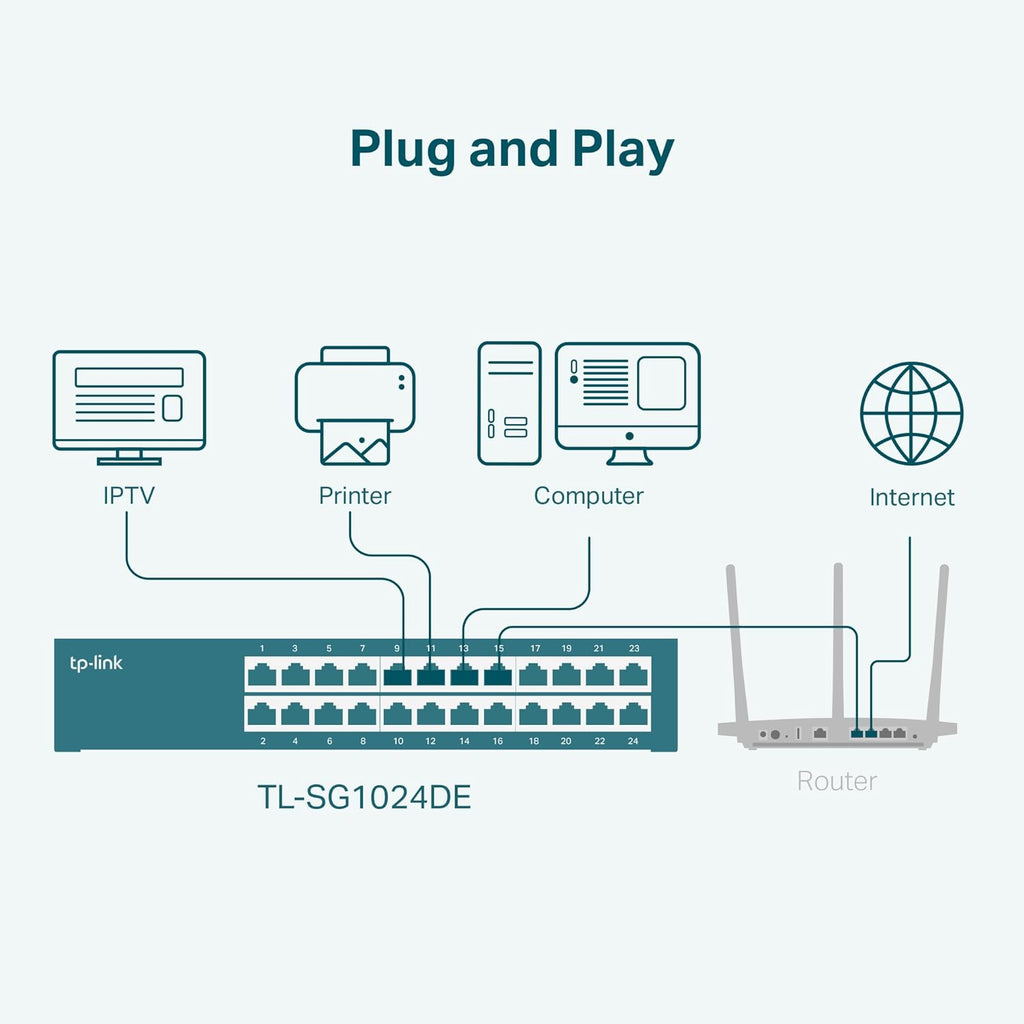

- Simple network set-up on top of plug-and-play connectivity

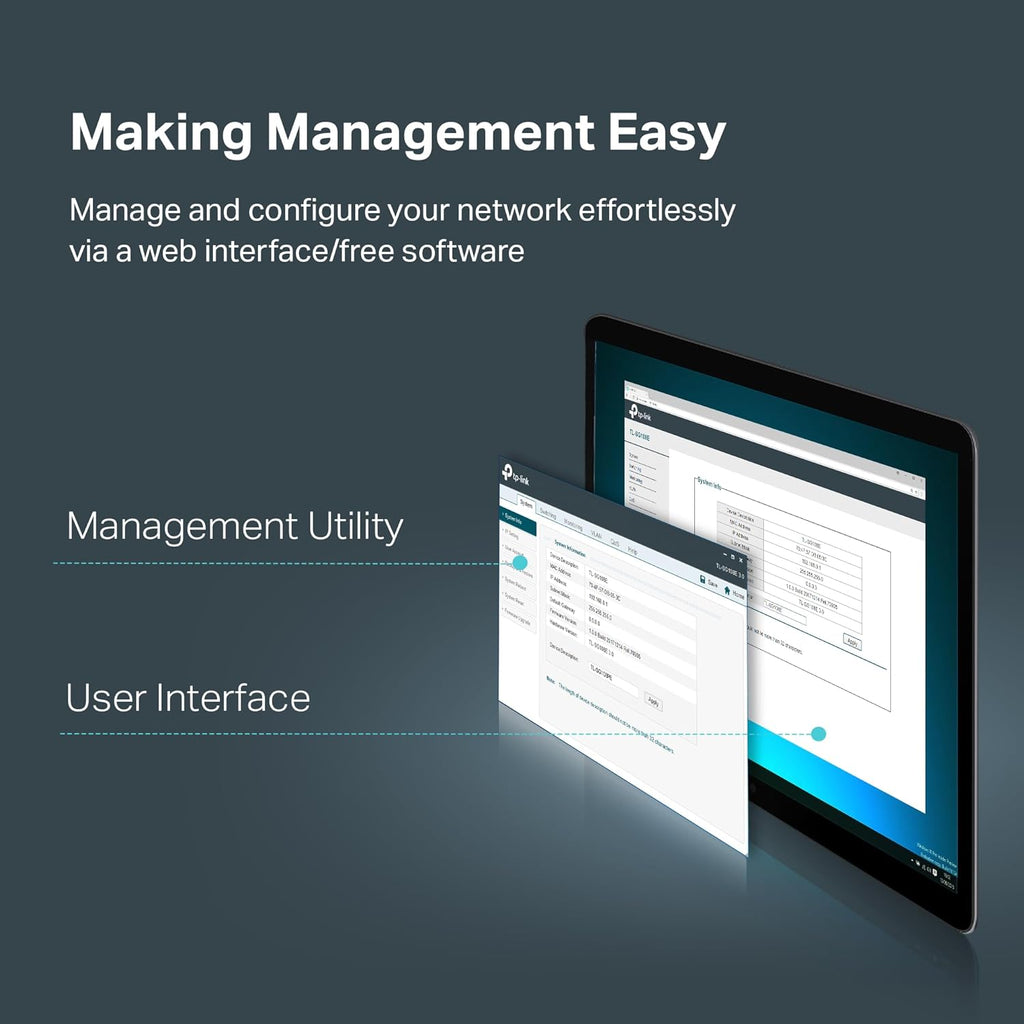

- Web-based user interface and management utility simplify configuration
- 1U 13-inch Rack-mountable Steel Case
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 33.52W (220V/50Hz) |
| Max Heat Dissipation | 114.37 BTU/h |
| PERFORMANCE | |
| Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 512KB |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
| Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |

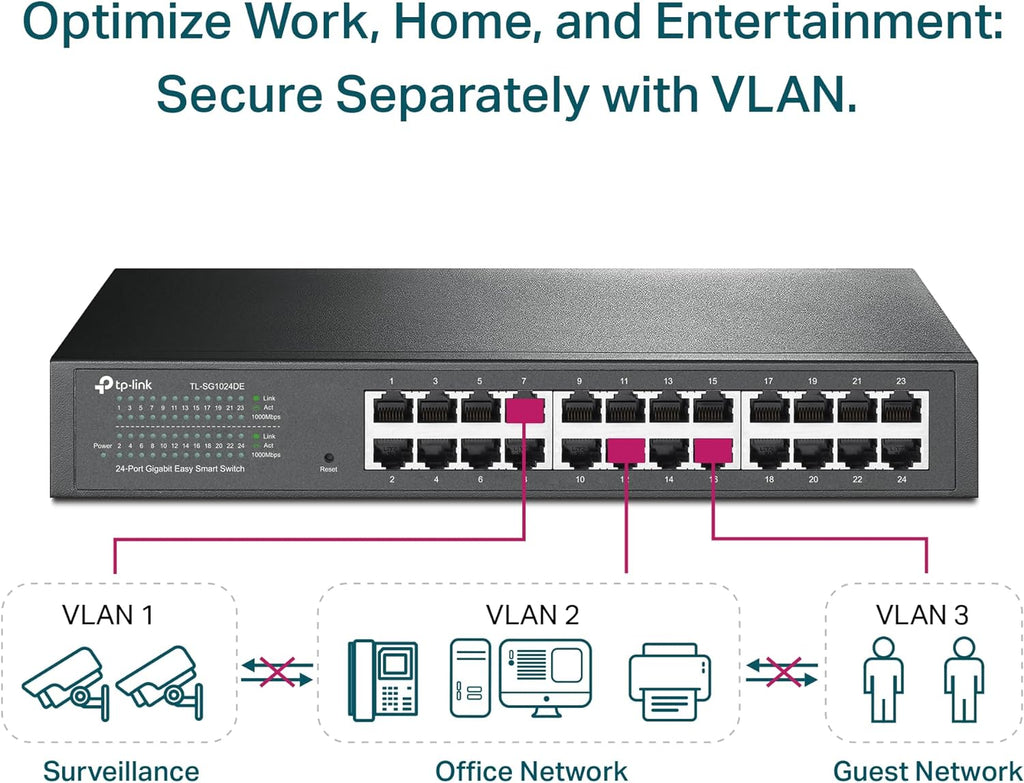

| VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
