Description
Highlights
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

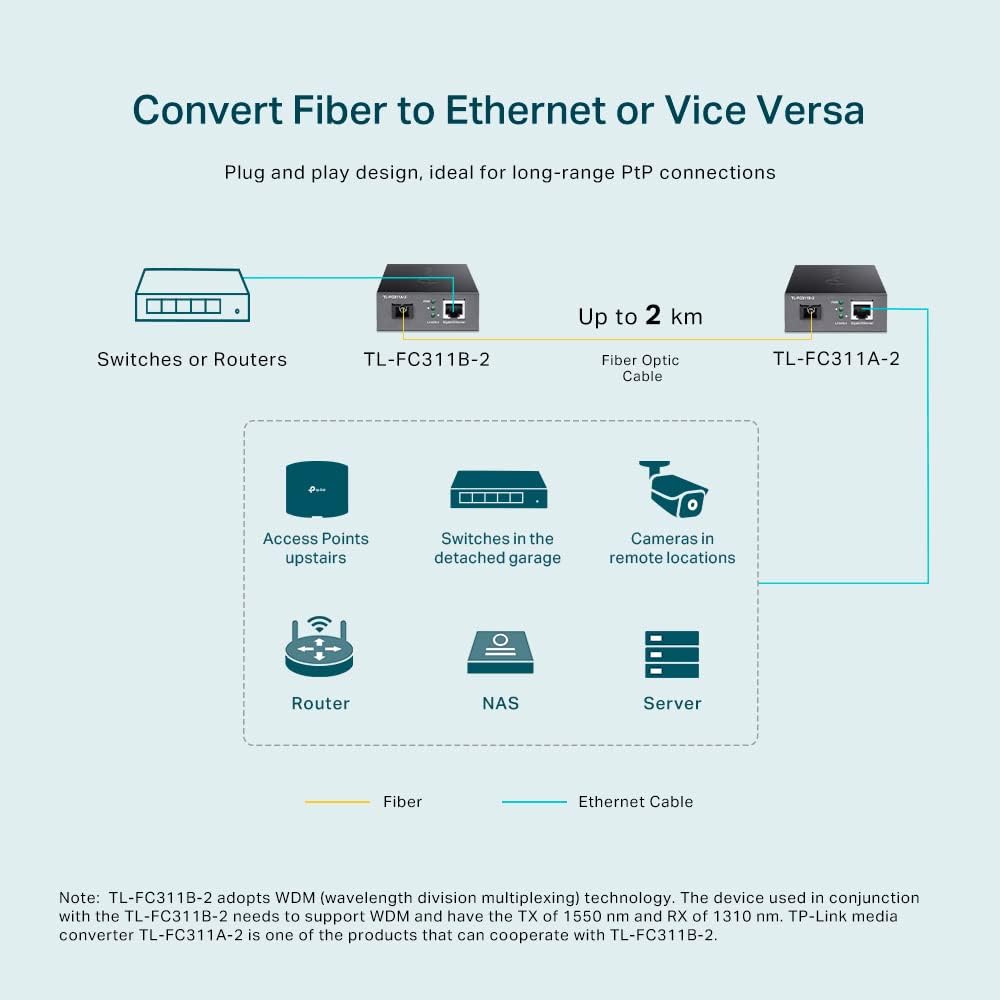

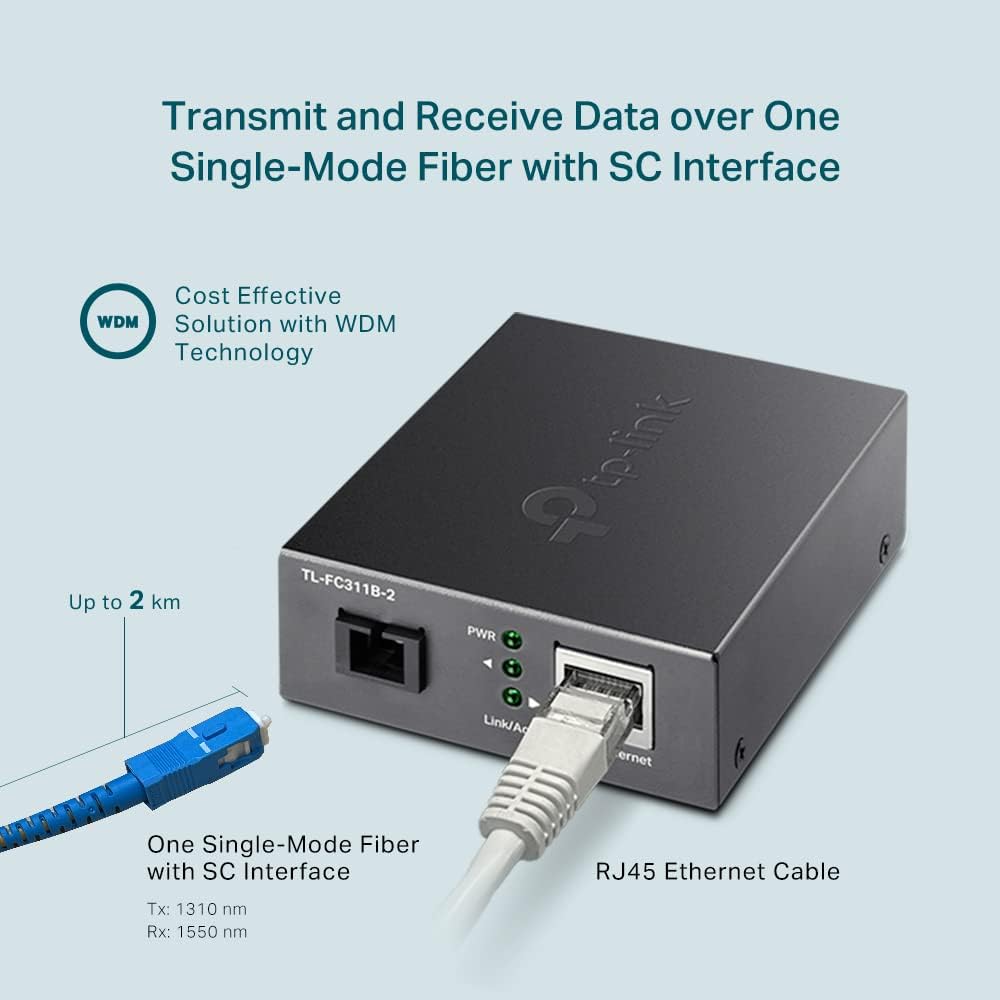

- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 2 km
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3z |
|---|---|
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |

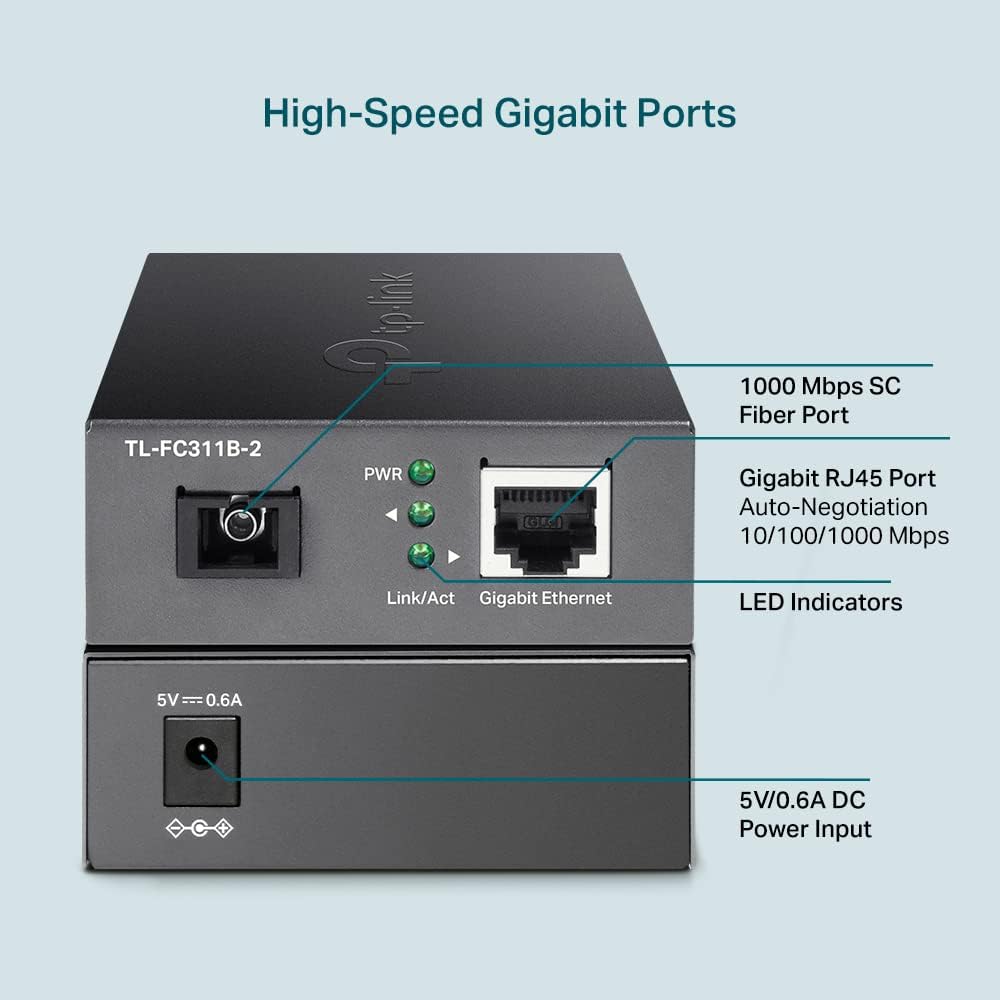

| Interface | • 1× Gigabit SC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | • Single-mode Fiber • UTP category 5, 5e cable (maximum 100m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| led | PWR, Link/Act |

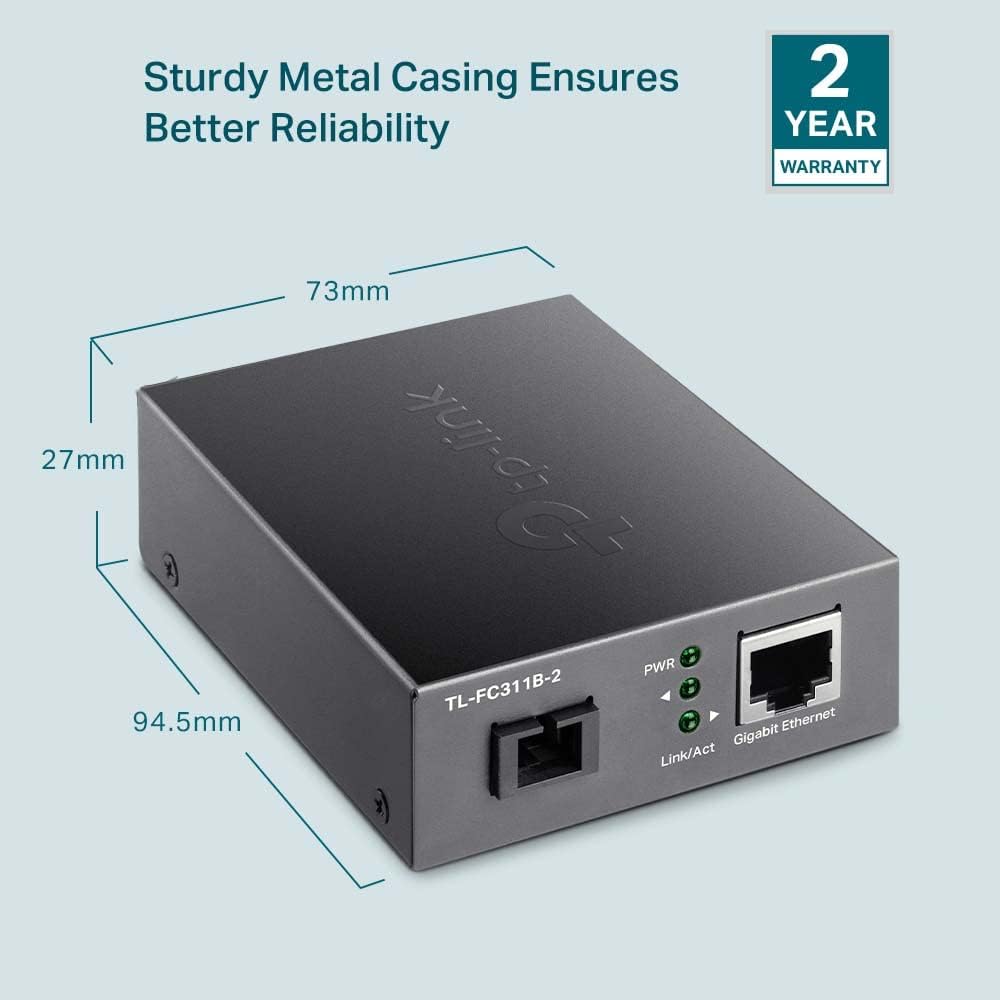

| Dimensions (W*D*H) | 3.7×2.9×1.1 in (94.5×73.0×27.0 mm) |
| Wave Length | • 1310 nm TX • 1550 nm RX |
| Fiber Type | 9/125 μm single-mode fiber (≤2 km) |
| Package Contents |
• Media Converter TL-FC311A-2 • Media Converter TL-FC311B-2 |
| Warranty | 3 Years TP-Link Local Manufacturer Warranty |
