Description
Highlights
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

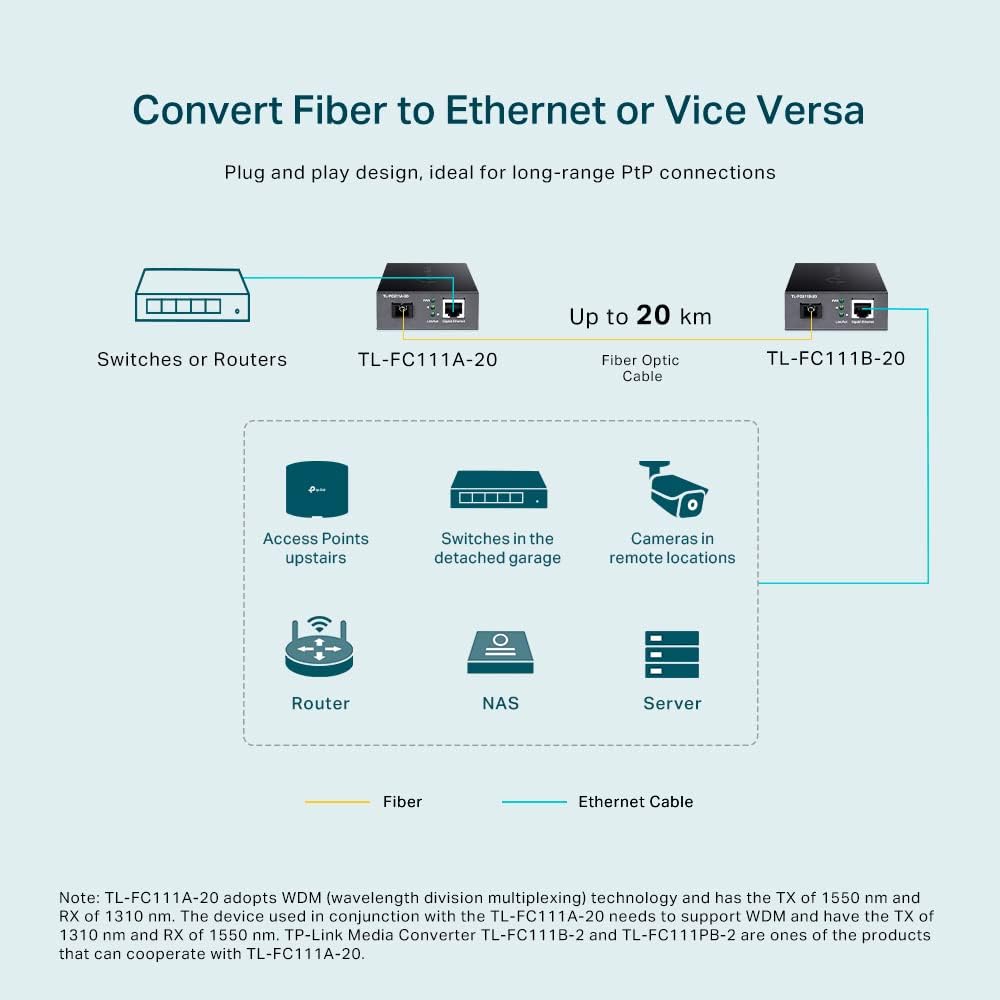

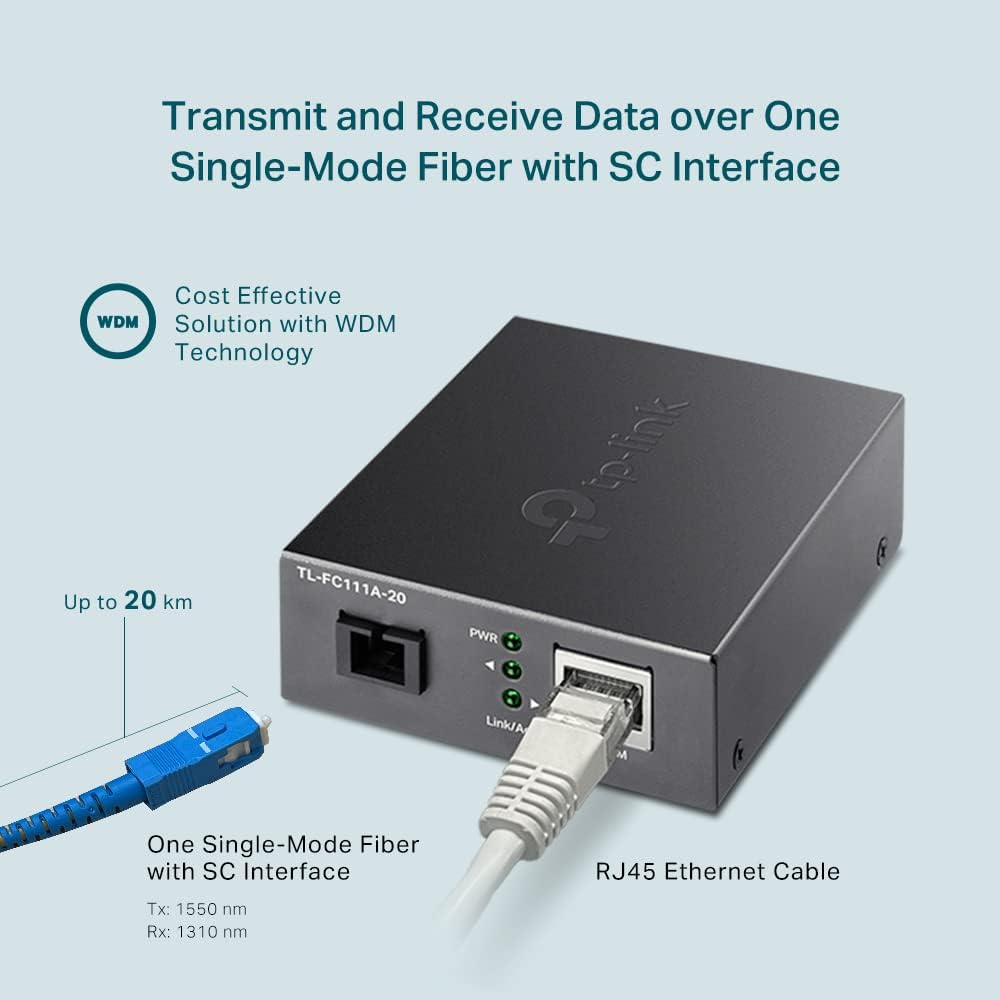

- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extend fiber distance up to 20km

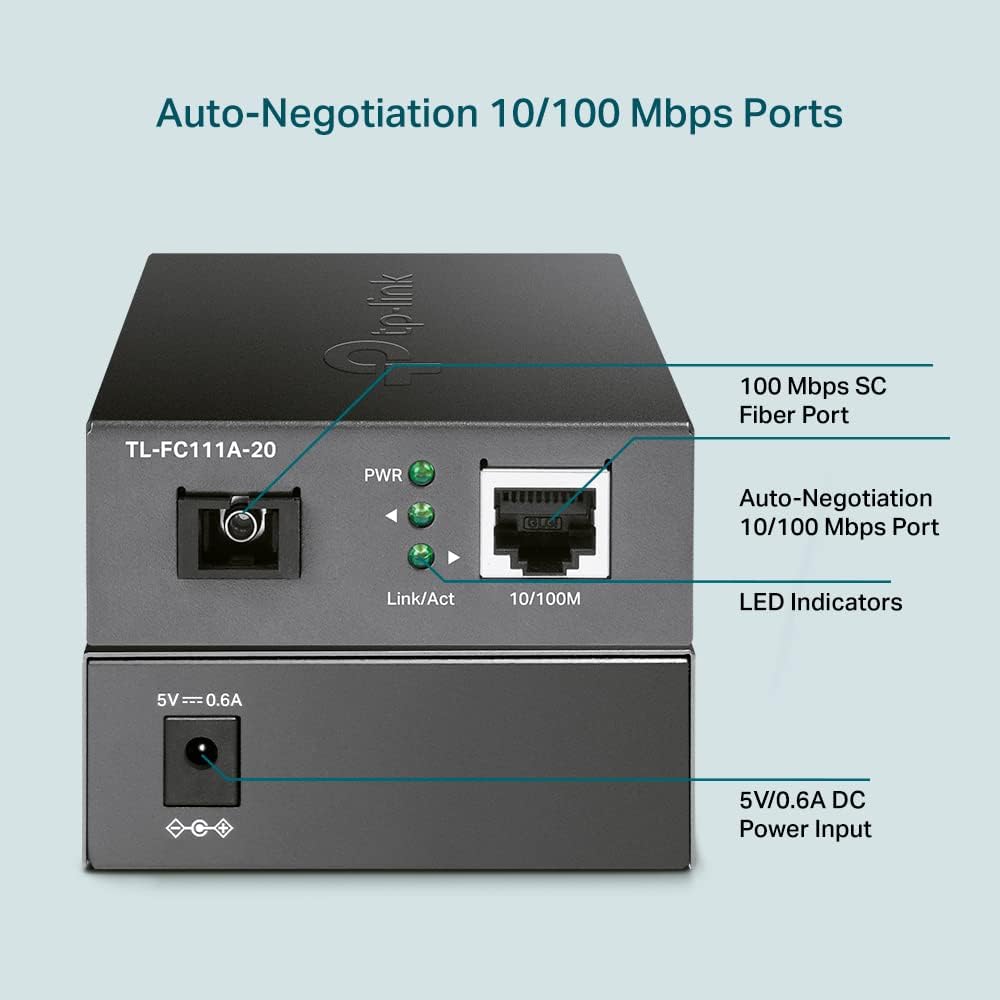

- Providing a 100M RJ-45 port and a 100M SC fiber port
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| Standards and Protocols | IEEE802.3, IEEE802.3i, IEEE802.3u |
|---|---|
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| Interface | • 1× 100 Mbps SC Fiber Port • 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| led | PWR, Link/Act |

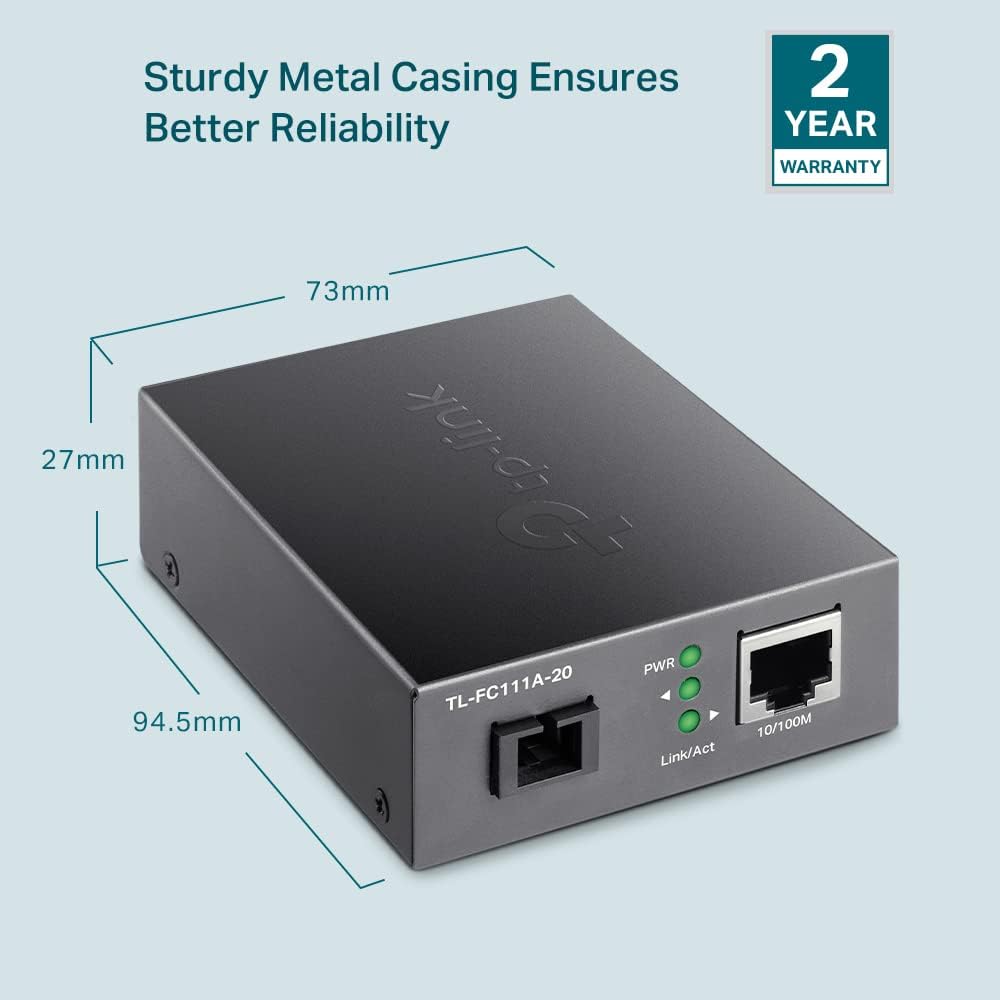

| Dimensions (W*D*H) | 94.5*73*27mm |
| Wave Length | 1550 nm TX, 1310 nm RX |
| Connector Type | 1 SC fiber optic, 1 RJ45 jack |
| Fiber Type | 9/125 μm single-mode fiber (≤20 km) |
| Package Contents | • Media Converter TL-FC111A-20 • Power Adapter • Installation Guide |
| Warranty | 3 Years TP-Link Local Manufacturer Warranty |
