Description
Highlights
- Designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa.
- Works at 100Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port
- Extends fiber distance up to 12.5 miles (20km)
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply. Wave Length: 1310nm. Max Power Consumption: 2.4W
- 3 Years TP-Link Local Manufacturer Warranty
Product Descriptions
Specifications
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extend fiber distance up to 20km |
| Ports | 1 100M SC/UPC port 1 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Single-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 2.4W |
| Safety & Emission | FCC, CE, RoHS |

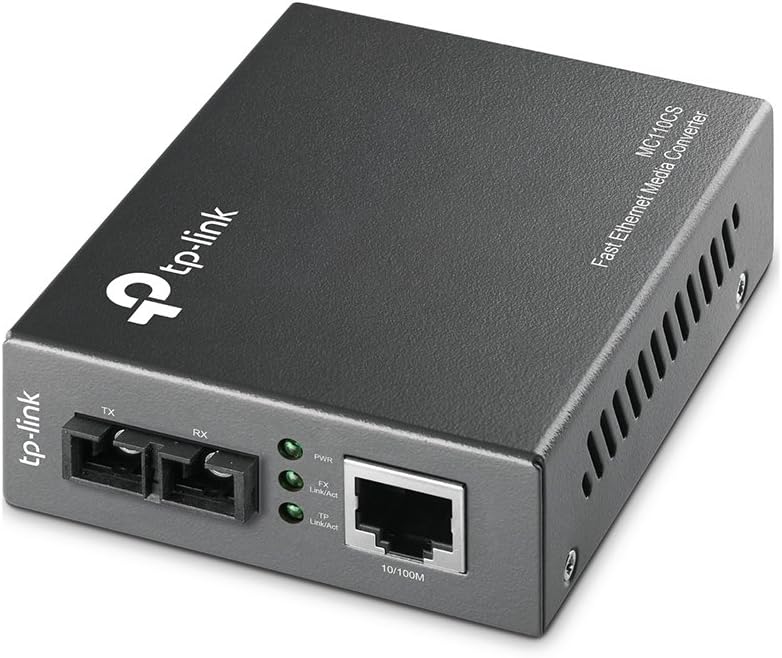

| Package Contents | • Media Converter MC110CS • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
