Description
Highlights

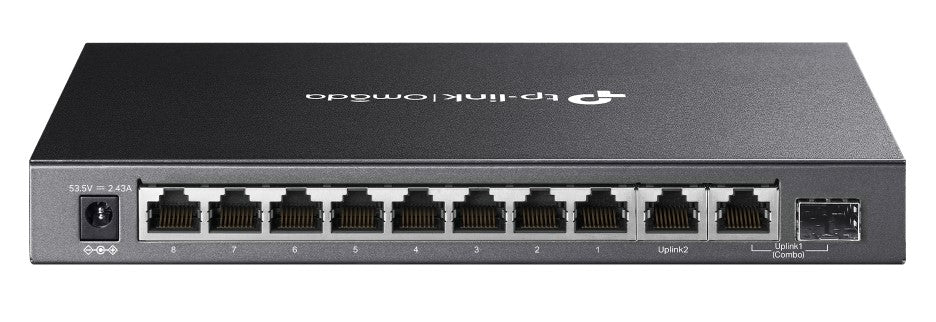

- 9 Gigabit RJ45 ports and 1 Gigabit combo SFP/RJ45 port
- 8 PoE+ ports transmit data and power over a single cable, with a total power budget of 123 W *
- This switch complies with the IEEE 802.3af/at PoE+ standard and supports up to 30 W of PoE power per PoE port.
- Data and power transmission range up to 250 m (820ft) in extended mode **

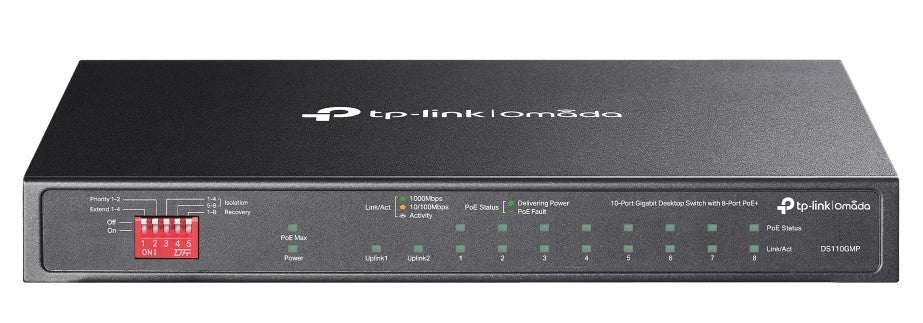

- Priority mode ensures high priority for ports 1-2 to ensure quality for sensitive applications
- Isolation mode allows one-click client traffic separation for greater security and performance
- Automatically restart dropped or unresponsive PoE powered devices using the PoE auto-resume feature.
- Plug and play. No configuration or centralized management is required. †
- Fanless design reduces power consumption and operates quietly where it belongs
Specifications
| HARDWARE SPECIFICATIONS | |
|---|---|
| Connection interface |
• 9× 10/100/1000 Mbps RJ45 Ports • 1× 1000 Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX |
| Network cable |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Number of fans | Fanless |
| Physical security lock | Yes |
| External power supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Packet forwarding rate | 14.88 Mpps |
| PoE port (RJ45) |
• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power supply: 123 W |
| MAC address table | 4K |
| jumbo frame | 16 KB |
| switching capacity | 20 Gbps |
| Dimensions (length x width x height) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
| Maximum power consumption |
• 7.93 W (220V / 50Hz with no PD connected) • 141.40 W (220V / 50Hz with 123 W PD connected) |
| Maximum heat dissipation |
• 27.04 BTU/h (220V / 50Hz with no PD connected) • 482.17 BTU/h (220V / 50Hz with 123 W PD connected) |
| SOFTWARE SPECIFICATIONS | |
|---|---|
| Transmission mode | Store-And-Forward |
| Advanced functions |
• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4 • Priority Mode: Ports 1–2 • Isolation Mode: Ports 1–4/5-8 • PoE Auto Recovery: Ports 1-8 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| OTHER SPECIFICATIONS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents |
• DS110GMP • Power Adapter • Installation Guide |
| environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
