Description

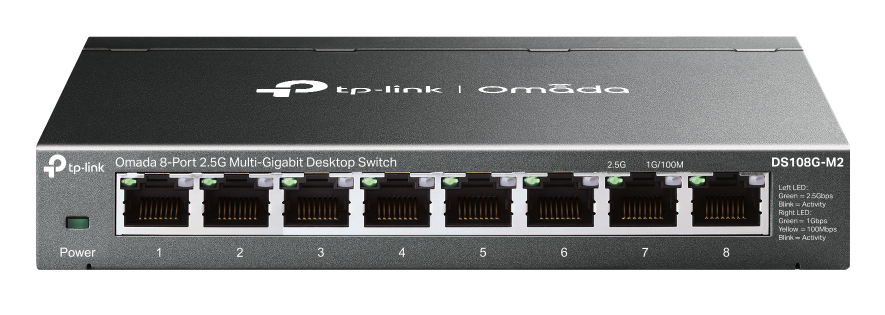

DS108G-M2 Omada 8-Port 2.5G Multi-Gigabit Unmanaged Desktop Switch
- Eight 2.5 Gbps ports . Eight 2.5 Gigabit ports unlock multi-gigabit bandwidth and maximize device performance, delivering up to 40 Gbps switching capacity.
- Super fast connection . Provides ultra-fast connections to 2.5G NAS, 2.5G servers, gaming computers, 2.5G WiFi 6 AP, 4K video, etc.
- Suitable for various scenarios . Designed for on-the-fly streaming for LAN parties, home entertainment, small and home offices, and workstations,
- Worry-free wiring . Instantly upgrade to 2.5 Gbps without upgrading to Cat6 cabling, reducing cabling cost and hassle.
- Runs silently . The industry-leading fanless design ensures quiet operation, making it perfect for any home or business.
- Plug and play . No configuration or centralized management is required.
- metal shell . The durable metal casing and desktop/wall-mounted design are ideal for different environments.
| HARDWARE SPECIFICATIONS | |
|---|---|
| standards and protocols | IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Connection interface | 8× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Number of fans | Fanless |
| External power supply | External Power Adapter (Output: 12 VDC / 1.0 A) |
| LED indicator light |
• Power • Link/Act Indicators |
| Dimensions (length x width x height) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25.4 mm) |
| Maximum power consumption | 8.87 W |
| Maximum heat dissipation | 30.158 BTU/h |
| PRODUCT PERFORMANCE | |
|---|---|
| Backplane bandwidth | 40 Gbps |
| Packet forwarding rate | 29.8 Mpps |
| MAC address table | 4K |
| jumbo frame | 12 KB |
| SOFTWARE SPECIFICATIONS | |
|---|---|
| Advanced functions |
• 802.3X Flow Control • 802.1p/DSCP QoS • IGMP Snooping |
| Transmission mode | Store and Forward |
| OTHER SPECIFICATIONS | |
|---|---|
| Certification | CE, FCC,RoHS |
| Package Contents |
• DS108G-M2 • Power Adapter • Installation Guide • Rubber Feet |
| environment |
• Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
