Description
Highlights

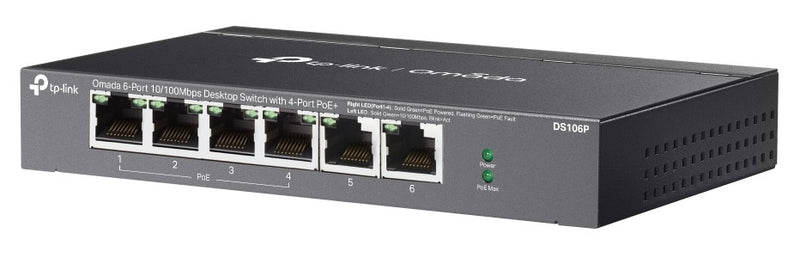

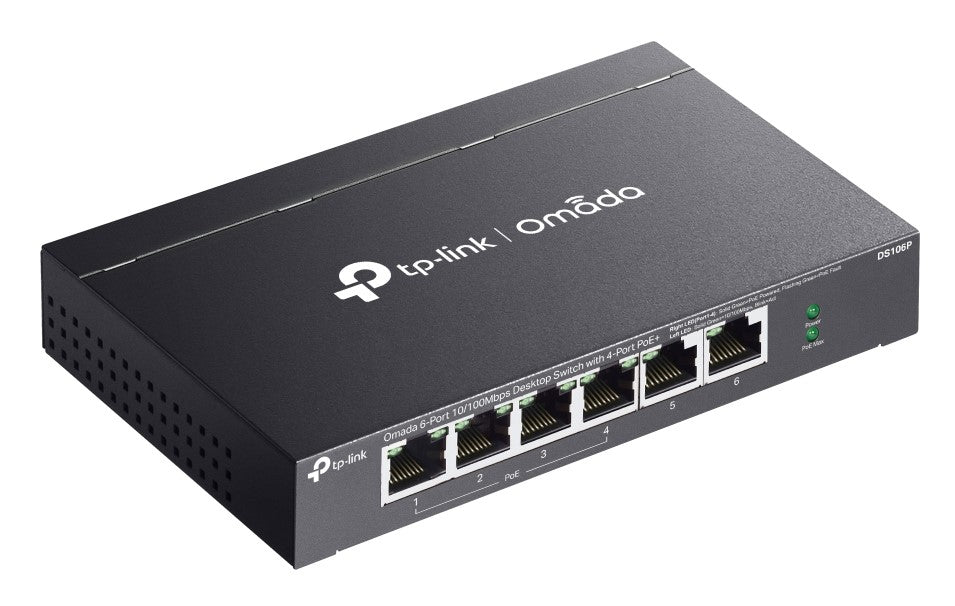

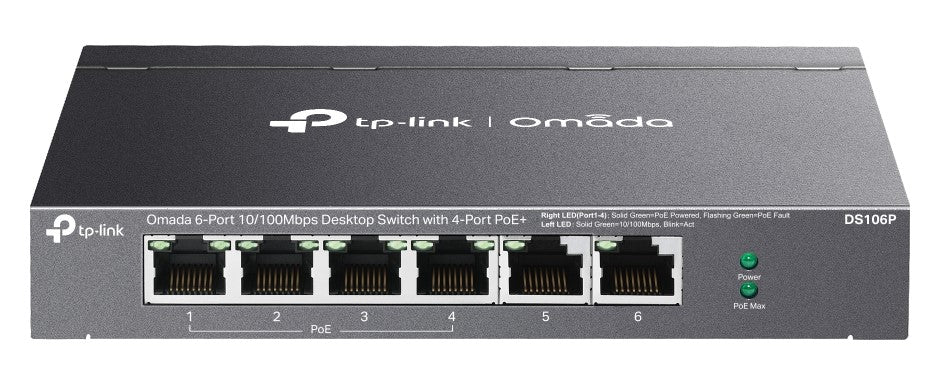

- 6 10/100 Mbps RJ45 ports
- 4 PoE+ ports transmit data and power via separate cables
- Can be used with IEEE 802.3af/at compliant PDs
- Each PoE port supports up to 30 W of PoE power
- All PoE ports support up to 67 W of PoE power*
- Data and power transmission range up to 250m (820ft)** in extended mode
- Priority mode ensures high priority for ports 1-2 to ensure quality for sensitive applications
- The PoE automatic recovery function ensures the stable operation of PoE equipment by automatically restarting PD equipment that is disconnected or unresponsive.
- Plug and play. No configuration or centralized management is required.
Specifications
| HARDWARE SPECIFICATIONS | |
|---|---|
| Connection interface |
• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
| Network cable |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Number of fans | Fanless |
| Physical security lock | Yes |
| External power supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| Packet forwarding rate | 0.8928 Mpps |
| PoE port (RJ45) |
• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W |
| MAC address table | 2K |
| jumbo frame | 2 KB |
| switching capacity | 1.2 Gbps |
| Dimensions (length x width x height) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Maximum power consumption |
• 2.52 W (220 V / 50 Hz, no PD connected) • 75.4 W (220 V / 50 Hz, with 67 W PD connected) |
| Maximum heat dissipation |
• 8.59 BTU/h (no PD connected) • 257.11 BTU/h (with 67 W PD connected) |
| SOFTWARE SPECIFICATIONS | |
|---|---|
| Transmission mode | Store-And-Forward |
| Advanced functions |

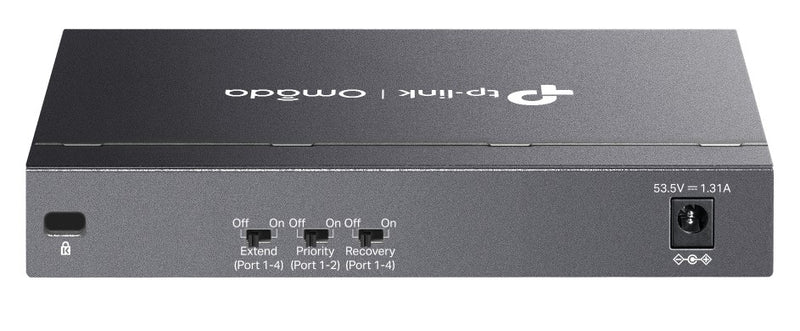

• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4 • Priority Mode: Ports 1–2 • PoE Auto Recovery: Ports 1-4 • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| OTHER SPECIFICATIONS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents |
• DS106P • Power Adapter • Installation Guide |
| environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
