Description
Highlights

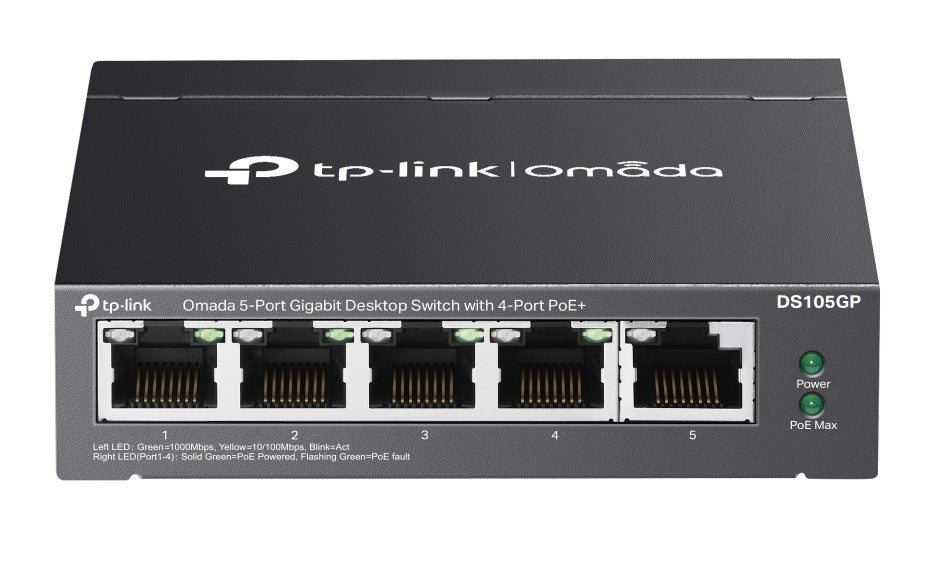

- 5 10/100/1000 Mbps RJ45 ports
- Features four PoE+ ports to transmit data and power through one cable
- Can be used with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enables smooth latency-sensitive traffic
- Each PoE port supports up to 30 W of PoE power
- All PoE ports support up to 65 W of PoE power
- Data and power transmission range up to 250m (820ft) in extended mode
- The PoE automatic recovery function ensures the stable operation of PoE equipment by automatically restarting PD equipment that is disconnected or unresponsive.
- Plug and play. No configuration or centralized management is required.
Specifications
| HARDWARE SPECIFICATIONS | |
|---|---|
| Connection interface |
• 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
| Network cable |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Number of fans | Fanless |

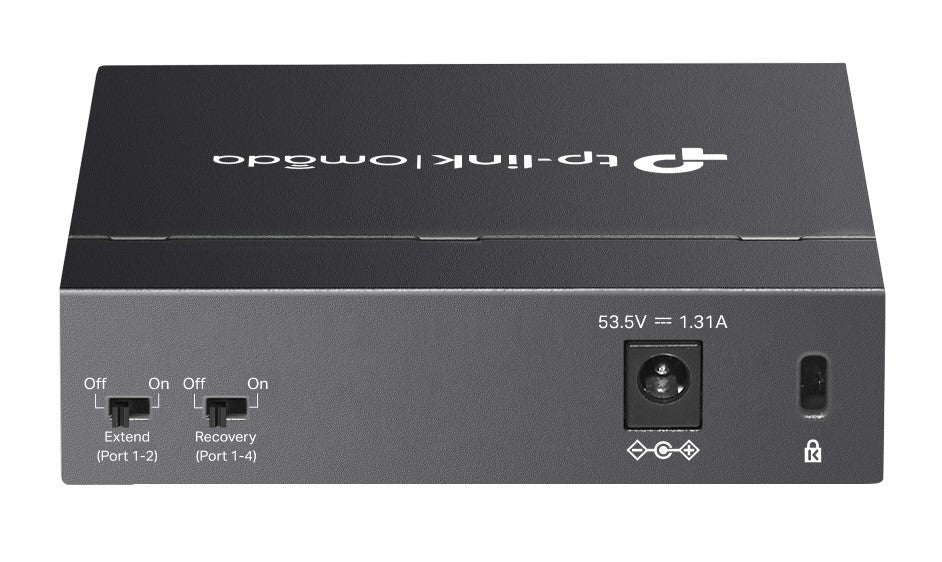

| External power supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet forwarding rate | 7.44 Mpps |
| PoE port (RJ45) |
• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W |
| MAC address table | 2K |
| jumbo frame | 16 KB |
| switching capacity | 10 Gbps |
| Dimensions (length x width x height) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Maximum power consumption |
• 3.44 W (220/50 Hz. no PD connected) • 74.49 W (220/50 Hz. with 65 W PD connected) |
| Maximum heat dissipation |
• 11.73 BTU/h (no PD connected) • 254.01 BTU/h (with 65 W PD connected) |
| SOFTWARE SPECIFICATIONS | |
|---|---|
| Advanced functions |
• Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) |
| Transmission mode | Store-And-Forward |
| OTHER SPECIFICATIONS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents |
• DS105GP • Power Adapter • Installation Guide |
| environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90 %RH non-condensing |
