Description
Highlights
- 12-Stream 22 Gbps Tri-Band WiFi – 11520 Mbps (6 GHz) + 8640 Mbps (5 GHz) + 1376 Mbps (2.4 GHz).
- Unprecedented 10 Gbps Network – 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.
- Wireless and Wired Combined Backhaul
- Multi-Link Operation (MLO)
- 320MHz Channels
- Works on the 6 GHz Band
- TP-Link HomeShield
- Universal Compatibility
- 3 Years Local Manufacturer Warranty
Product Descriptions
WiFi 7, WiFi Like Never Before
WiFi 7 includes the new 6 GHz band, which is exclusive to 6 GHz devices, eliminating interference from legacy devices. The additional 3× 320 MHz channels enable more simultaneous transmissions at the highest possible speeds. 4K-QAM brings 20% higher theoretical transmission rates than 1024-QAM. Also, Multi-RU and MLO make full use of every resource and deliver a more reliable network.
Designed for Performance
Ready for a Future of Multi-Gig Connectivity

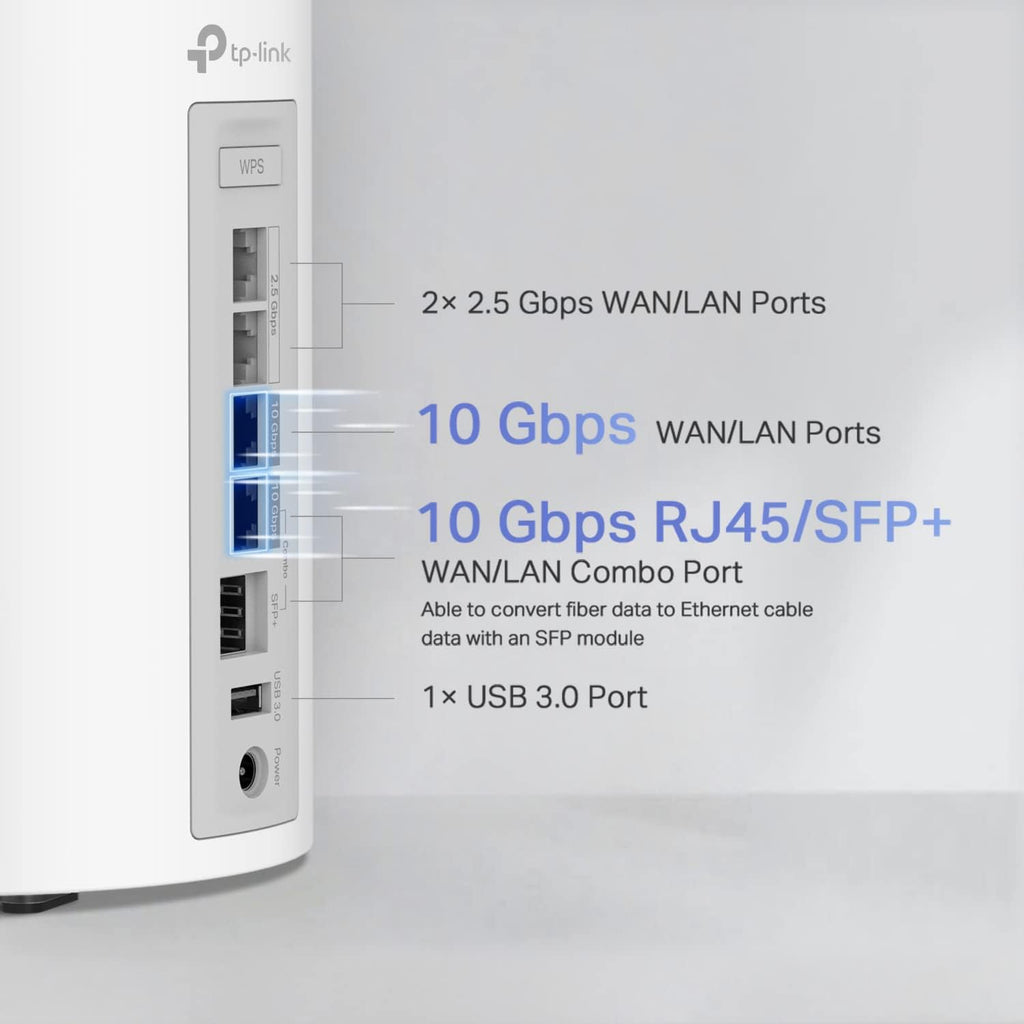

Equipped with two 10 Gbps WAN/LAN ports — one RJ45 port and an RJ45/SFP+ combo port — the Deco BE85 provides flexible support for both fiber and copper connections. The additional 2.5 Gbps ports and USB 3.0 port make it an ideal solution for future -proofing your home network.
Designed for Performance
TP-Link's in-house component research and thorough hardware selection ensure the quality and value of the entire Deco BE85 system. Everything comes together to form the perfect Mesh device.
Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the user-friendly TP-Link Deco app.
Easy Management
Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.
VPN Client and Server Support
Allow devices to access remote VPN servers without needing to install VPN software on every device. Run VPN and Internet at the same time.
All Decos Work Together
Deco BE85 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.
Specifications
| WIRELESS | |
| Standards | Wi-Fi 7 IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/b/g 2.4 GHz |
|---|---|
| WiFi Speeds | BE22000 6 GHz: 11520 Mbps (802.11be) 5 GHz: 8640 Mbps (802.11be) 2.4 GHz: 1376 Mbps (802.11be) |
| WiFi Range |
Broader Whole Home Coverage TP-Link Mesh Technology |
| WiFi Capacity |
Very High Tri-Band |
| Working Modes | Router Mode Access Point Mode |
| Advanced Functions | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • Works with Alexa and Google Assistant |
| HARDWARE | |
| Ethernet Ports | • 1×10Gbps • 1× 10 Gbps SFP+/RJ45 Combo • 2× 2.5 Gbps *Per Deco Unit Supports WAN/LAN auto-sensing |
| USB Support |
1× USB 3.0 Port FTP Server |
| Buttons | 1×Reset Button 1×WPS |
| SOFTWARE | |
| Advanced Features | • Reboot Schedule • Tapo/Kasa Onboarding • IoT network & Device Isolation • Static Route Function • Node/Band Connection Preference |
| Protocols | IPv4 IPv6 |
| Service Kits |
HomeShield |
| Parental Controls |
HomeShield Parental Controls Youtube Restriction |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service |
HomeShield QoS QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| PHYSICAL | |
| Dimensions (W×D×H) | 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm) |
| Package Contents | Deco BE85 (3-pack) 3 Deco BE85 units 1 RJ45 Ethernet cable 3 Power adapters Quick Installation Guide Deco BE85 (2-pack) 2 Deco BE85 units 1 RJ45 Ethernet cable 2 Power adapters Quick Installation Guide Deco BE85 (1-pack) 1 Deco BE85 unit 1 RJ45 Ethernet cable 1 Power adapter Quick Installation Guide |
| OTHERS | |
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
