Description
Highlights

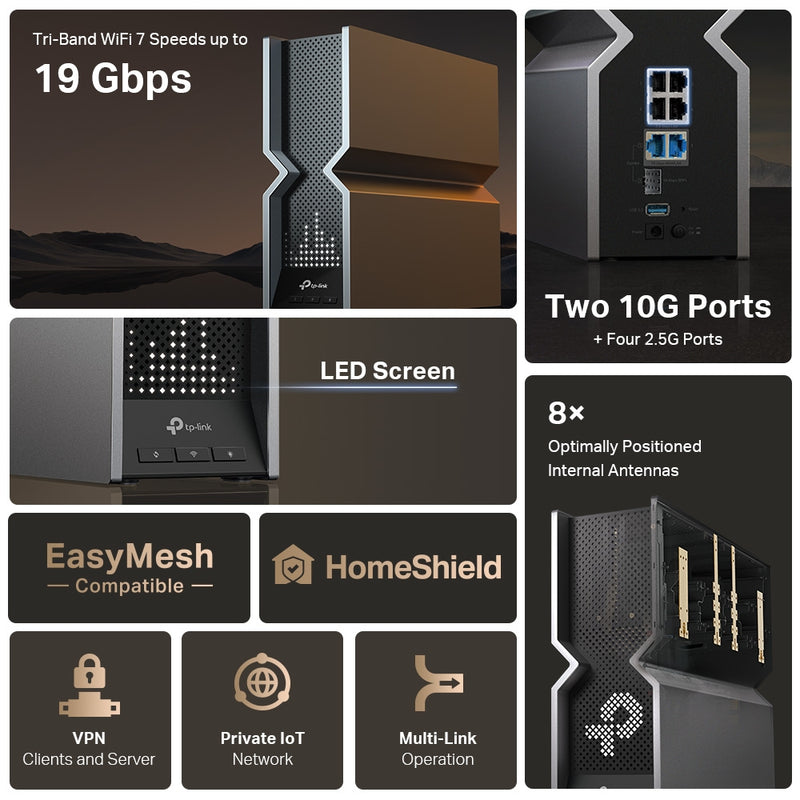

- Redefining WiFi Routers
- Lightning-Fast 19 Gbps Tri-Band WiFi 7
- Multi-Link Operation (MLO)
- Dual 10G Ports
- Maximized Coverage
- EasyMesh-Compatible
- TP-Link HomeShield
- Easy and Fun to Use
- 3 Years Local Manufacturer Warranty
Product Descriptions
Specifications
| WIRELESS | |
| WiFi Speeds | BE19000 • 6 GHz: 11520 Mbps (802.11be) • 5 GHz: 5760 Mbps (802.11be) • 2.4 GHz: 1376 Mbps (802.11be) |
|---|---|
| WiFi Range |
4 Bedroom Houses 8× Optimally Positioned Antennas |
| WiFi Capacity |
High, up to 100 Devices Tri-Band |
| Working Modes | • Router Mode • Access Point Mode |
| Advanced Functions | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
| HARDWARE | |

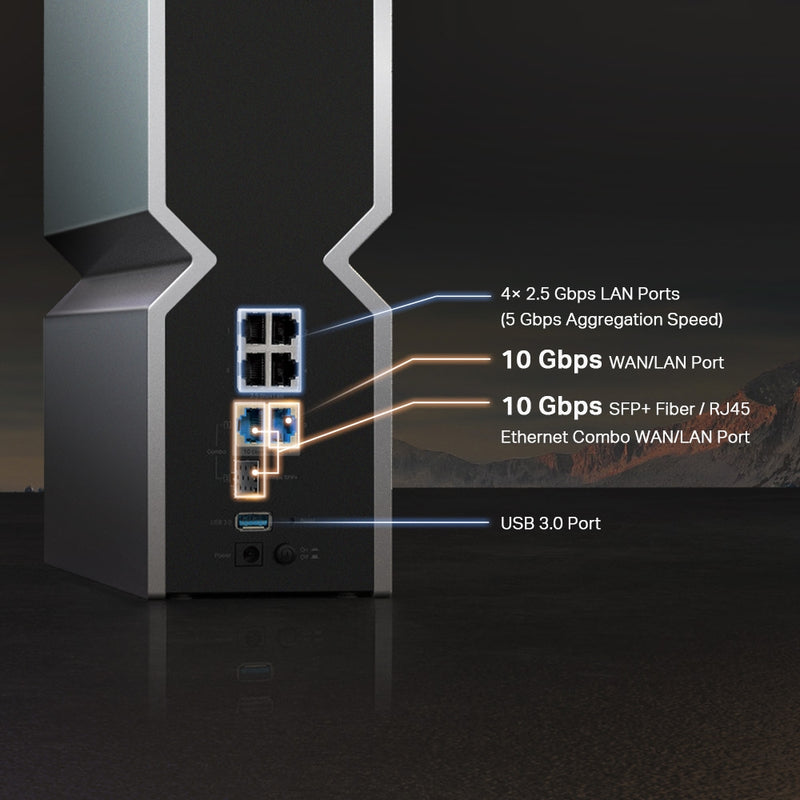

| Ethernet Ports | • 1× 10 Gbps WAN/LAN • 1× 10 Gbps SFP+/RJ45 Combo WAN/LAN • 4× 2.5 Gbps LAN |
| USB Support | 1× USB 3.0 • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
| Buttons | • WPS • LED • Wi-Fi |
| Power | 15 V ⎓ 5 A |
| Dimensions (W x D x H) | 11.9 × 10.3 × 3.8 in (302 × 262.5 × 96 mm) |

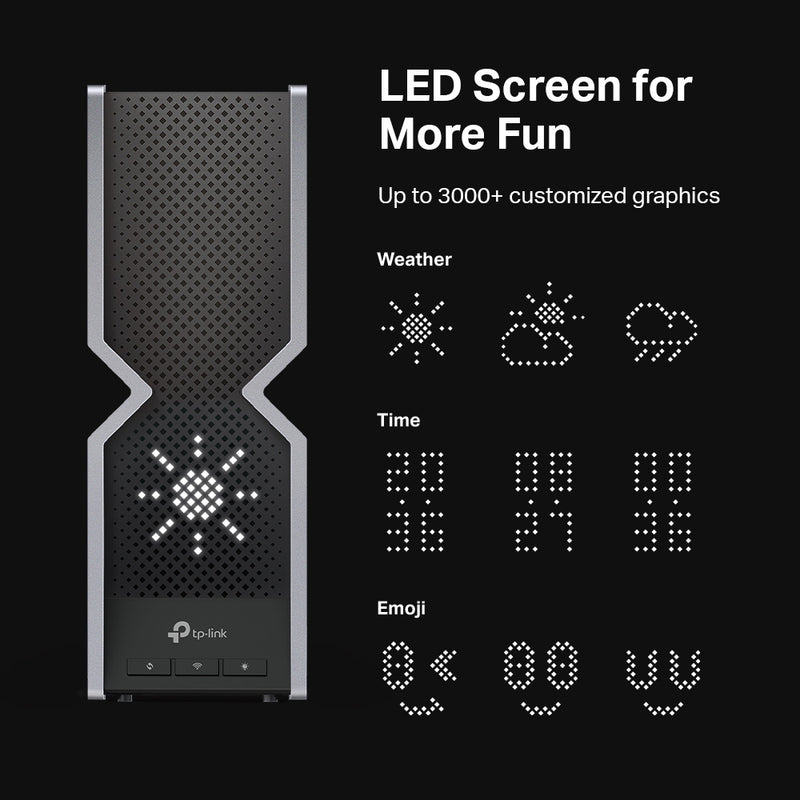

| LED Screen | Yes |
| SECURITY | |
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| Network Security |
• SPI Firewall Real-Time IoT Protection |
| Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server |
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client |
| SOFTWARE | |
| Protocols | • IPv4 • IPv6 |
| Service Kit | HomeShield |
| EasyMesh | Compatible with EasyMesh |
| Parental Controls |
HomeShield Parental Controls Custom Profiles |
| WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage |
| OTHERS | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing |
| PHYSICAL | |
| Dimensions (W×D×H) | 11.9 × 10.3 × 3.8 in (302 × 262.5 × 96 mm) |
| Package Contents | • Wi-Fi 7 Router Archer BE800 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
