Description

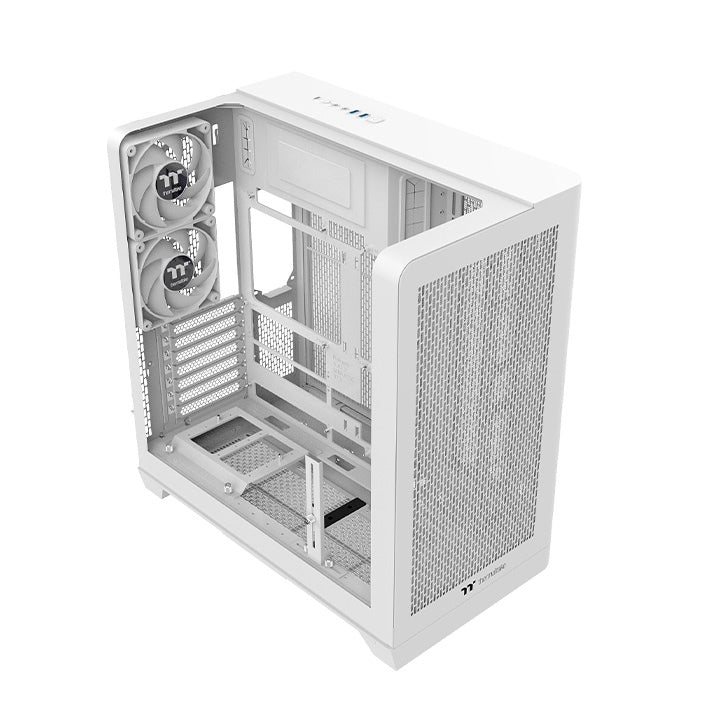

| CASE TYPE | Mid Tower |
|---|---|
| Dimension (H x W x D) | 503 x 287 x 485mm (19.80 x 11.30 x 19.1inch) |
| PANEL | 4mm Tempered Glass x 1 |
| Color | White |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear (exhaust): 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2 |
| Drive Bays | 2 x 3.5” , 1 x 2.5” or 3 x 2.5” |
| EXPANSION SLOTS | 7(Rotatable Patented Design) |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm 2 x 140mm 2 x 200mm Right: 3 x 120mm Rear: 2 x 120mm Bottom: 3 x 120mm |
| RADIATOR SUPPORT | Front Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm |
| CLEARANCE | CPU cooler height limitation: 160mm VGA length limitation: 390mm with Radiator /420mm without Radiator PSU length limitation: 200mm (with 2.5” SSD) 260mm (without 2.5” SSD) |
