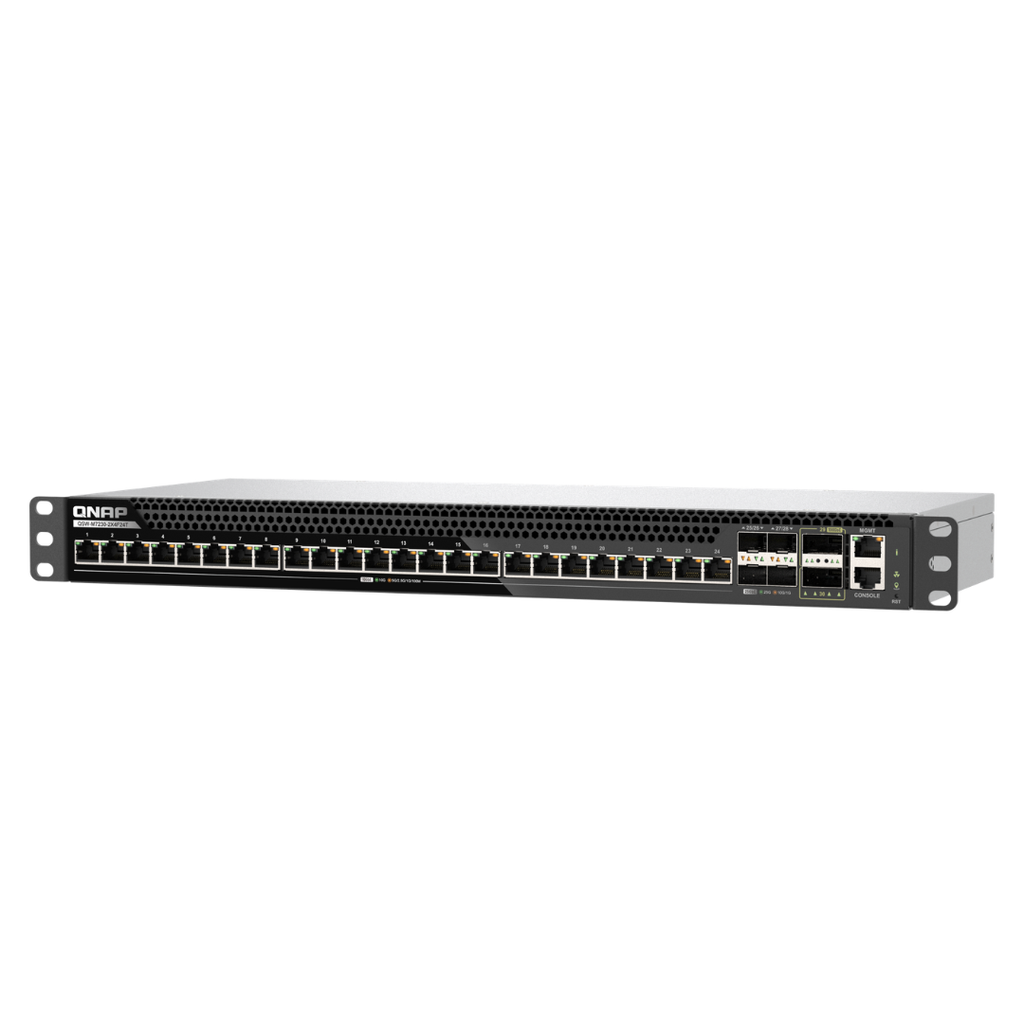

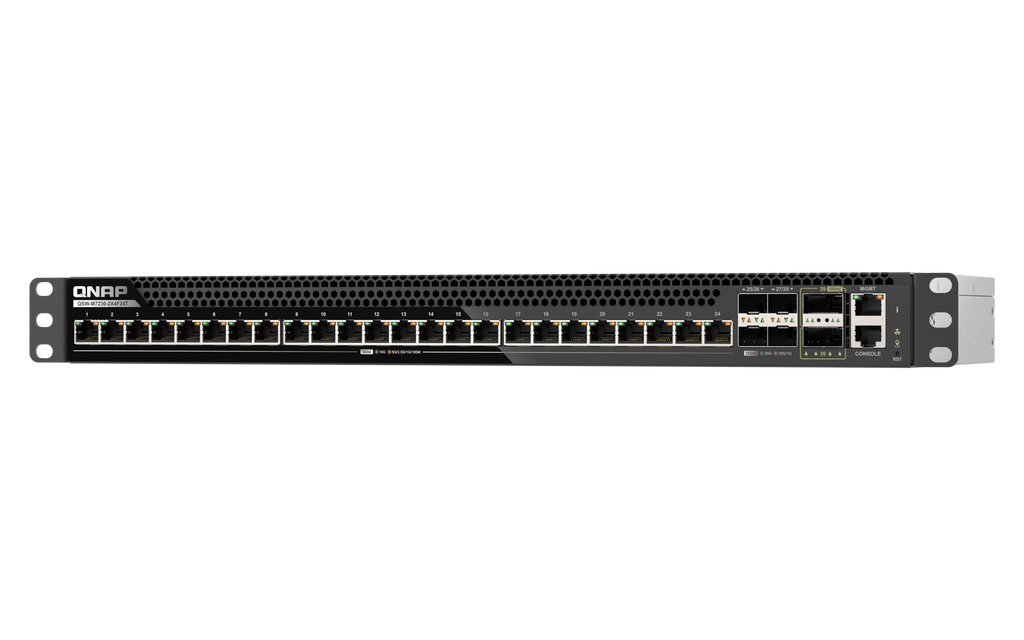

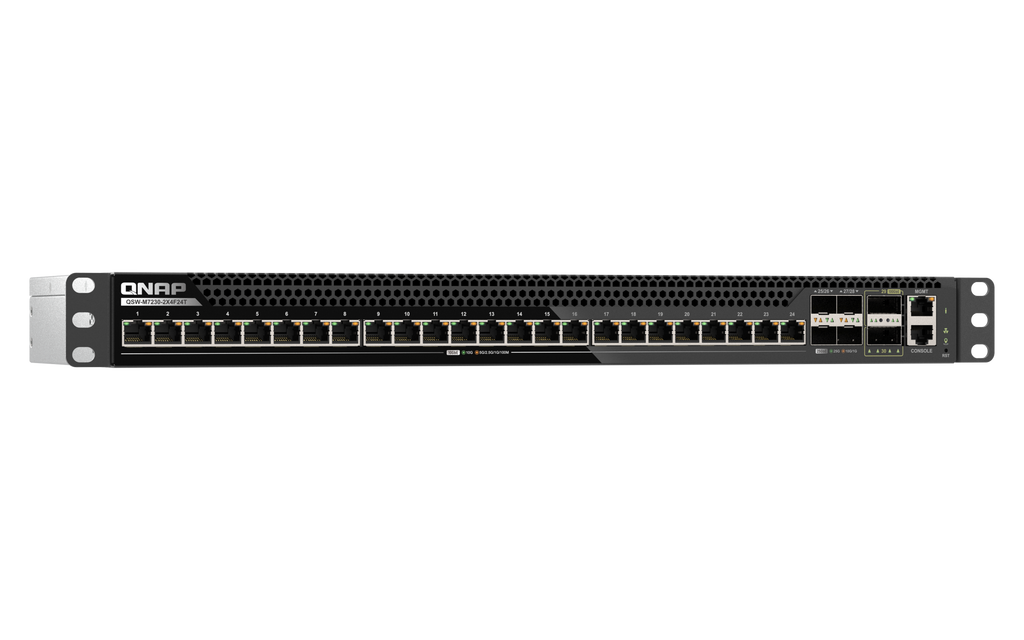

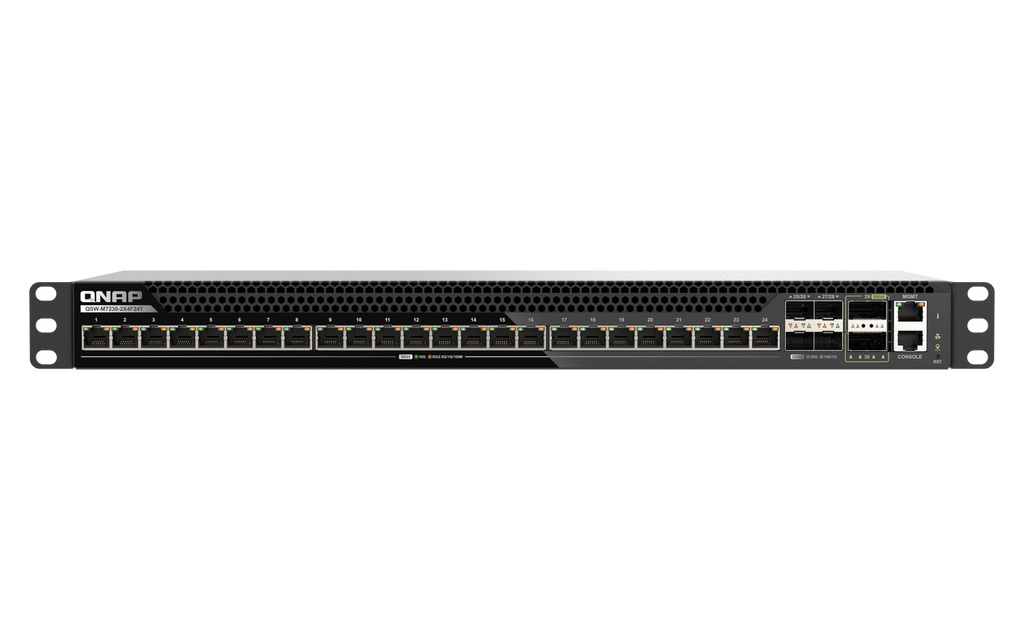

QNAP QSW-M7230-2X4F24T 30 Ports 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports L3 Lite managed 100GbE Switch
QNAP QSW-M7230-2X4F24T 30 Ports 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports L3 Lite managed 100GbE Switch
QNAP QSW-M7230-2X4F24T 30 Ports 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports L3 Lite managed 100GbE Switch
QNAP QSW-M7230-2X4F24T 30 Ports 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports L3 Lite managed 100GbE Switch
Roll over image to zoom in Click on image to zoom
QNAP QSW-M7230-2X4F24T 30 Ports 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports L3 Lite managed 100GbE Switch
QNAP QSW-M7230-2X4F24T 30 Ports 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports L3 Lite managed 100GbE Switch
QNAP QSW-M7230-2X4F24T 30 Ports 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports L3 Lite managed 100GbE Switch
QNAP QSW-M7230-2X4F24T 30 Ports 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports L3 Lite managed 100GbE Switch

QNAP QSW-M7230-2X4F24T 30 Ports 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports L3 Lite managed 100GbE Switch

QNAP
Price:
HK$19,999.00
訂貨最快一天到貨

Description

Management type L3 Lite Web Management
Number of ports 30
100GbE QSFP28 2
25GbE SFP28 4
10GbE BASE-T (RJ45) 24 (10G/5G/2.5G/1G/100M)
Management communication port 1 x 1GbE RJ45
Power Supply Description Internal power supply
Maximum power consumption 158.21W
Input power type AC
Input voltage range 100-240VAC, 50/60Hz
MAC address table 32K
Total uncongested flow 540Gbps
Switching capacity 1080Gbps
Management Interface Web page
Main console RJ45
fan PWM VAPO bearing fan x 5
Support Standards IEEE 802.3 Ethernet;
IEEE 802.3u 100BASE-T;
IEEE 802.3ab 1000BASE-T;
IEEE 802.3z 1000BASE-SX/LX ; IEEE
802.3bz 2.5G/5GBase-T ;
IEEE 802.3an 10GBASE-T;
IEEE 802.3ae 10G Fiber;
IEEE 802.3x Full-Duplex Flow Control;
IEEE 802.1Q (VLAN Tagging);
IEEE 802.1w RSTP
; IEEE 802.3ad LACP;
IEEE 802.1AB LLDP;
IEEE 802.1p Service Levels.
Appearance rack-mount
LED indicator lights Per port: Speed/Connectivity/Activity
Per system: Power/Status/Positioner
Button Reset button
Dimensions (height x width x depth) 44 x 439 x 190 mm
Weight (net weight) 3.1 kg
Weight (total weight) 4.67 kg
Operating temperature 0°C to 40°C (32°F to 104°F)
relative humidity 5%~95% Non-condensing
certificate CE, FCC, VCCI, BSMI
Electromagnetic Specifications CLASS A
Giant Frame Packets 9k
Warranty 2 years
