Description

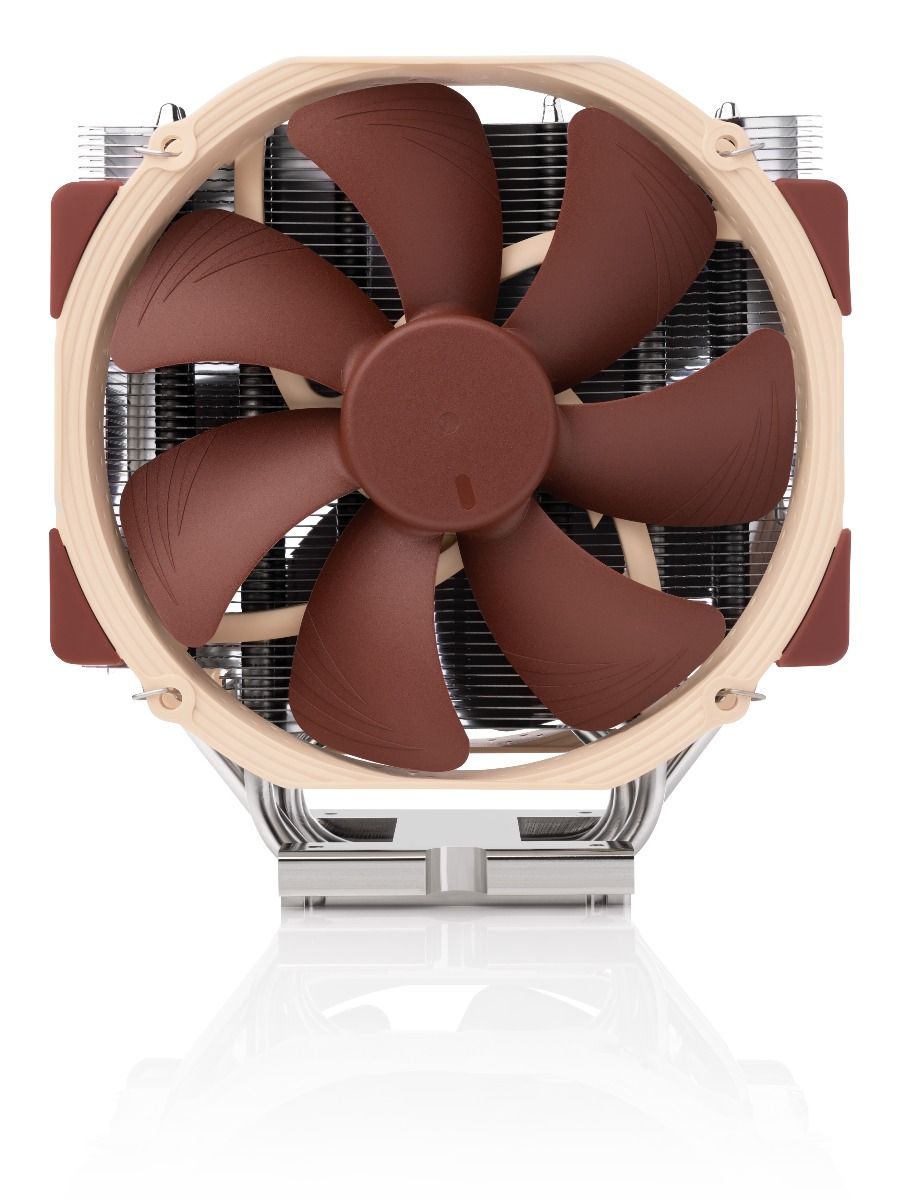

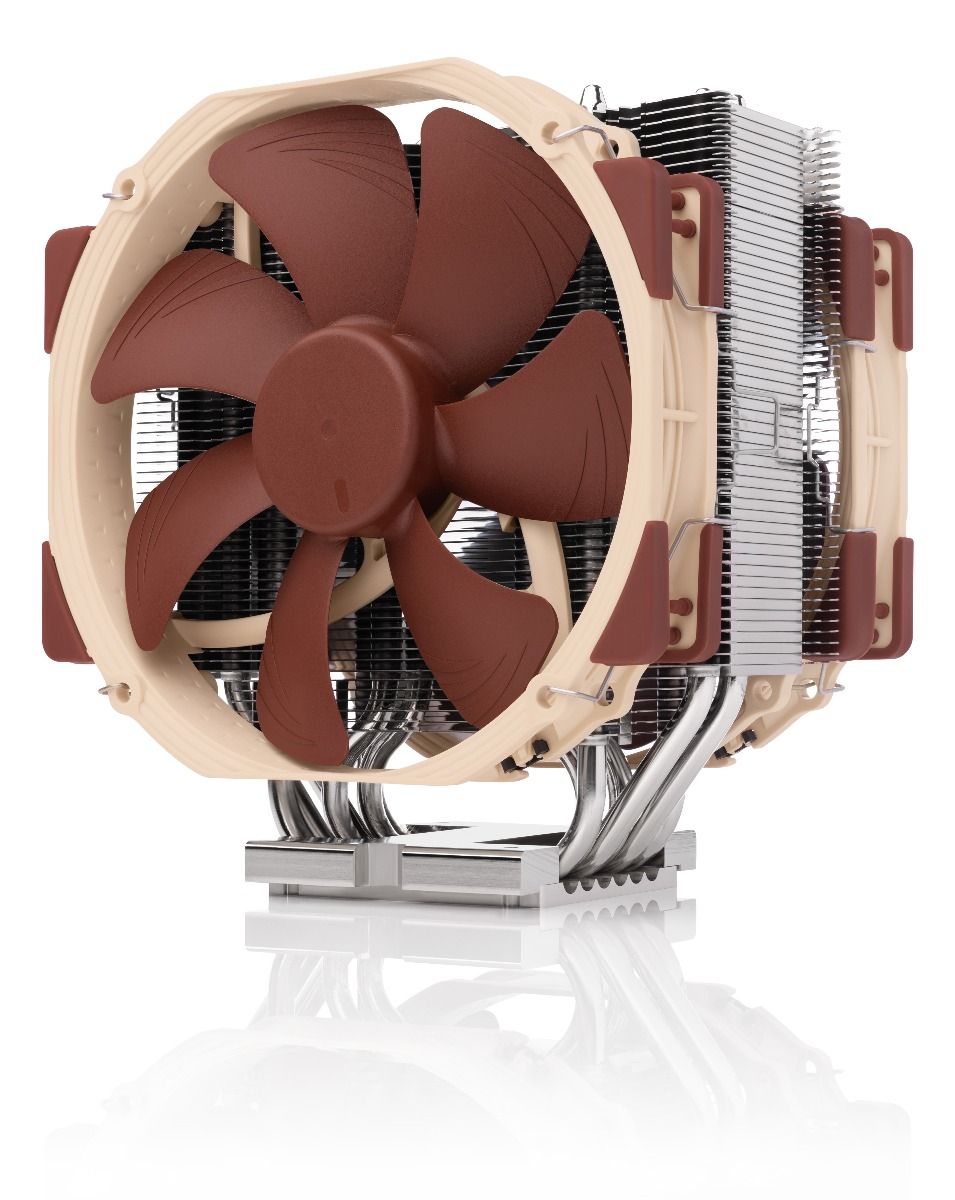

Cooler Specification
Intel Xeon LGA4677
Height (without fan)
165 mm
Width (without fan)
150 mm
Depth (without fan)
52mm
Weight (without fan)
797g
Height (with fan)
165mm
Width (with fan)
150 mm
Depth (with fan)
111 mm
Weight (with fan)
1136g
Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating
179
Max.TDP
see NSPR
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

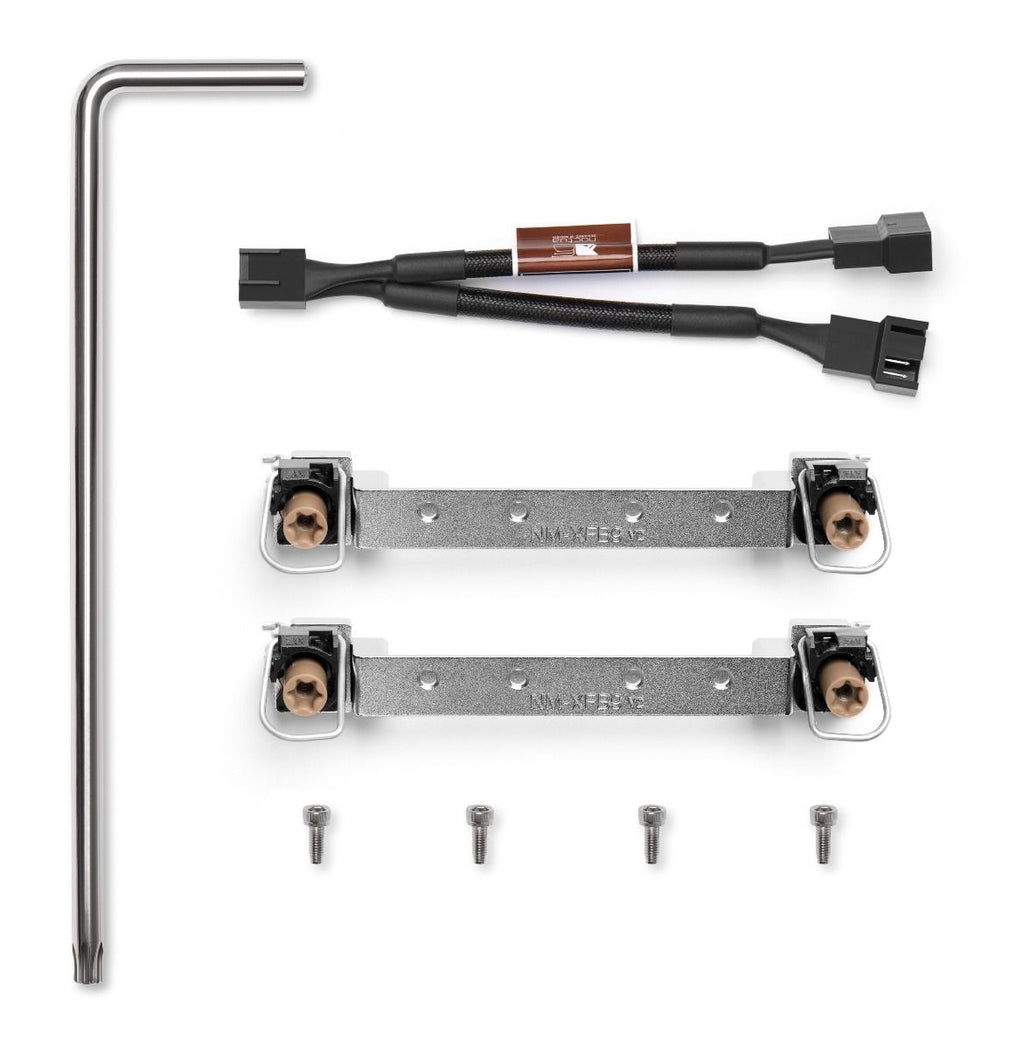

Scope of delivery
- 2x NF-A15 PWM premium fan
- NA-YC1 4-pin PWM y-cable

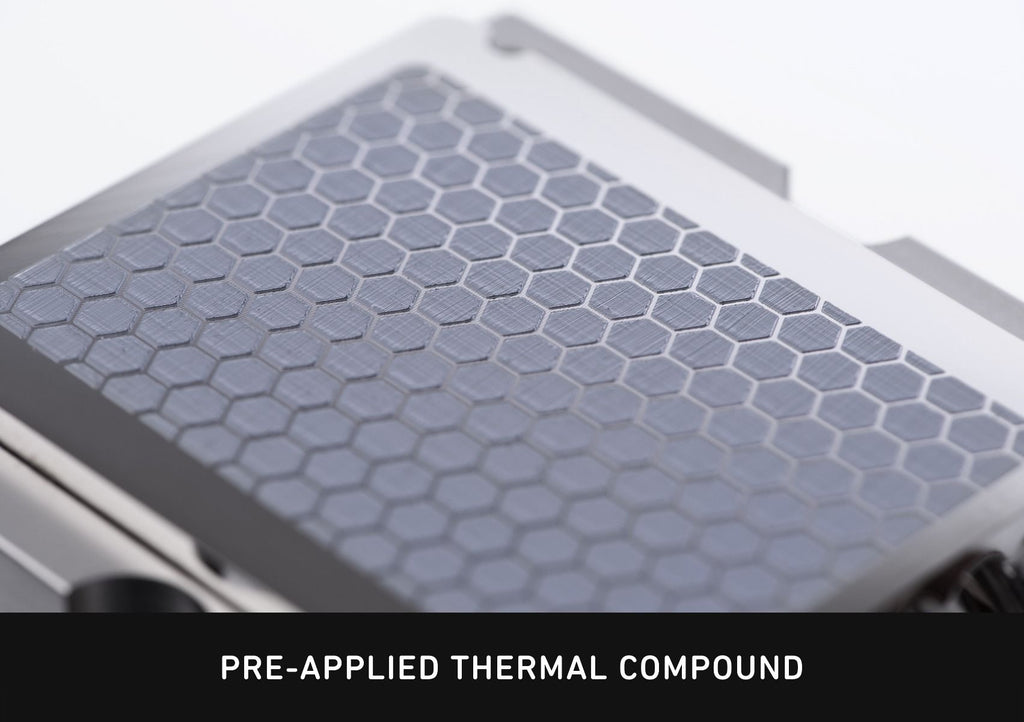

- NT-H1 high-grade thermal compound (pre-applied)

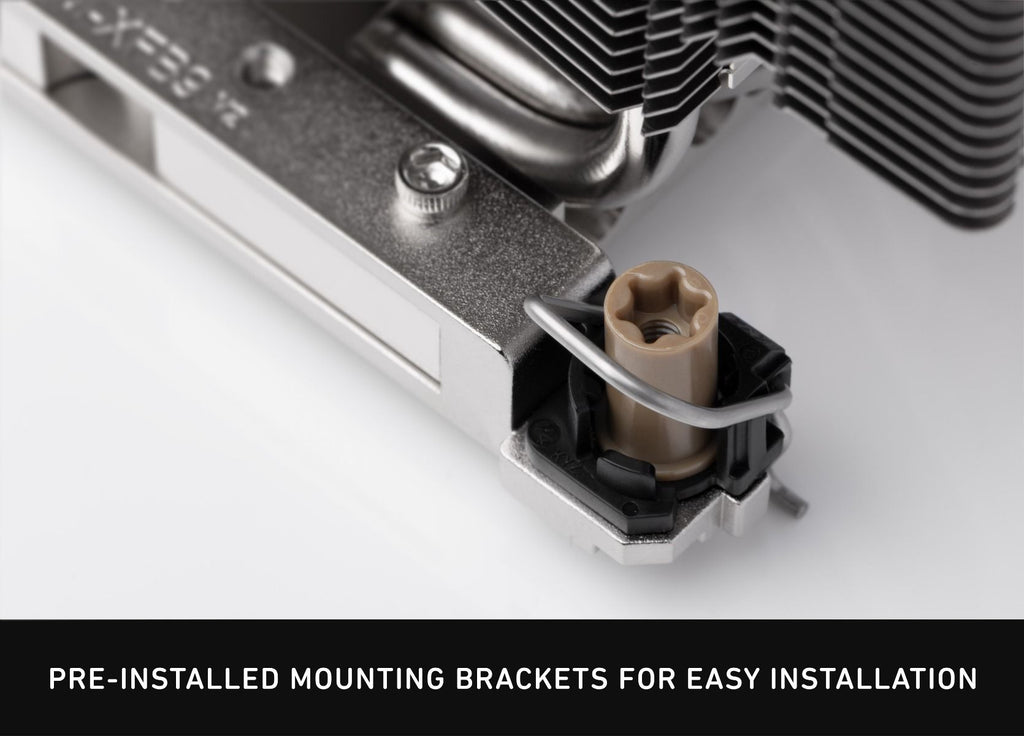

- SecuFirm2™ mounting kit for LGA4677
- NM-SMT5 Torx® T30 mounting tool
- Noctua metal case-badge
6 Years
FAN Specification
Model
2x Noctua NF-A15 HS-PWM
Bearing
Max. rotational speed (+/- 10%)
1500 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 rpm
140,2 m³/h
Max.acoustic noise
24,6 dB(A)
Input power (max.)
1,56 W
Voltage range
12V
MTTF
> 150.000 hours
