Description
Cooler Specification
Intel LGA1700 (included since Q2 2022 , older coolers require NM-i17xx-MP78 ), LGA1200 , LGA1156, LGA1155, LGA1151, LGA1150, LGA2066 , LGA2011-0 & LGA2011-3 ( Square ILM ) & AMD AM4, AM5 (included since 2019 , older coolers require NM-AM4-UxS )
Height (without fan)
165mm
Width (without fan)
150mm
Depth (without fan)
52mm
Height (with fan)
165mm
Width (with fan)
150 mm
Depth (with fan)
78mm
Weight (with fan)
935g
Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered joints & nickel plating
162
Max.TDP
see NSPR
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

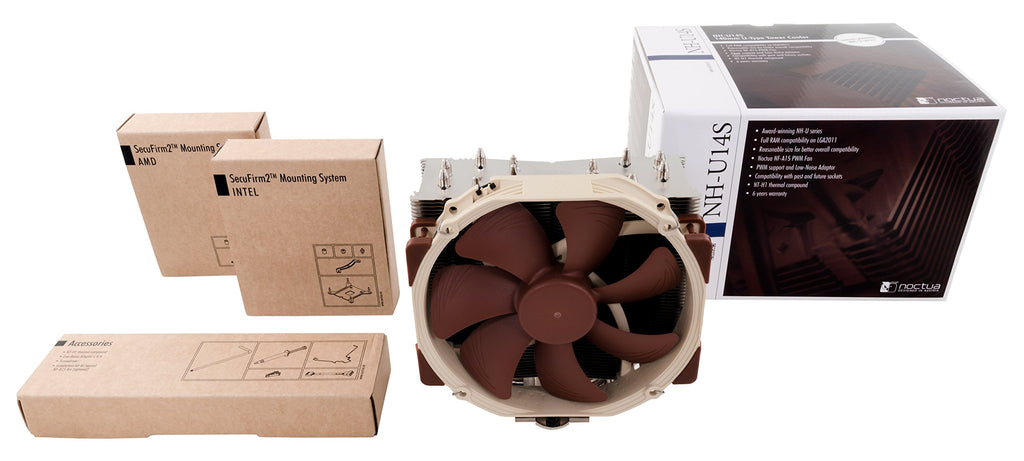

Scope of delivery
- NF-A15 PWM premium fan
- Low-Noise Adapter (LNA)
- NT-H1 high-grade thermal compound
- SecuFirm2™ Mounting Kit
- Anti-vibration pads and fan-clips for second NF-A15 (optional)
- Noctua Metal Case-Badge
6 Years
FAN Specification
Model
Noctua NF-A15 PWM
Bearing
Max. rotational speed (+/- 10%)
1500RPM
Max. rotational speed with LNA (+/- 10%)
1200RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 rpm
140,2 m³/h
115,5 m³/h
Max.acoustic noise
24,6 dB(A)
Max. acoustical noise with LNA
19,2 dB(A)
Input power (max.)
1,56 W
Voltage range
12 V
MTTF
> 150.000 hours
