Description
Cooler Specification
Intel LGA1700 (included since Q4 2021 , older coolers require NM-i17xx-MP83 ), LGA1200 , LGA1156, LGA1155, LGA1151, LGA1150, LGA2066 , LGA2011-0, LGA2011-3 ( Square ILM ) & AMD AM4, AM5 (included since 2019 , older coolers require NM-AM4 )
Height (without fan)
51mm
Width (without fan)
95mm
Depth (without fan)
95mm
Height (with fan)
65 mm
Width (with fan)
95mm
Depth (with fan)
95mm
Weight (with fan)
413g
Material
Copper (base and heat-pipes), aluminum (cooling fins), soldered
joints & nickel plating
joints & nickel plating
67
Max.TDP
see NSPR
Fan compatibility
92x92x14, 92x92x25

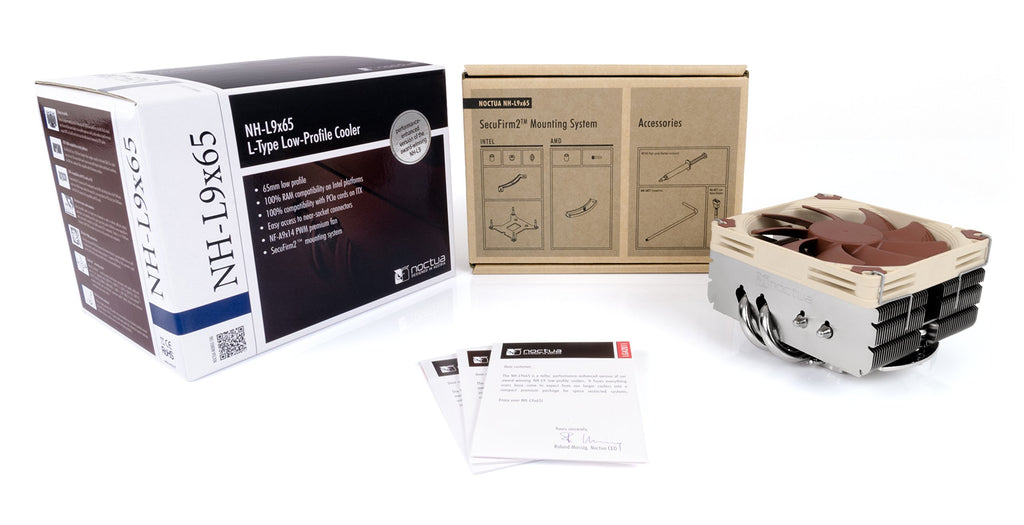

Scope of delivery
- NF-A9x14 PWM premium fan
- Low-Noise Adapter (LNA)
- NT-H1 high-grade thermal compound
- SecuFirm2™ Mounting Kit
- Noctua Metal Case-Badge
6 Years
FAN Specification
Model
Noctua NF-A9x14 PWM
Bearing
Max. rotational speed (+/- 10%)
2500RPM
Max. rotational speed with LNA (+/- 10%)
1800 RPM
Min. rotational speed @ 20% PWM (+/-20%)
600 rpm
57,5 m³/h
Max.acoustic noise
23,6 dB(A)
Max. acoustical noise with LNA
14,8 dB(A)
Input power (max.)
2,52 W
Voltage range
12 V
MTTF
> 150.000 hours
