Description

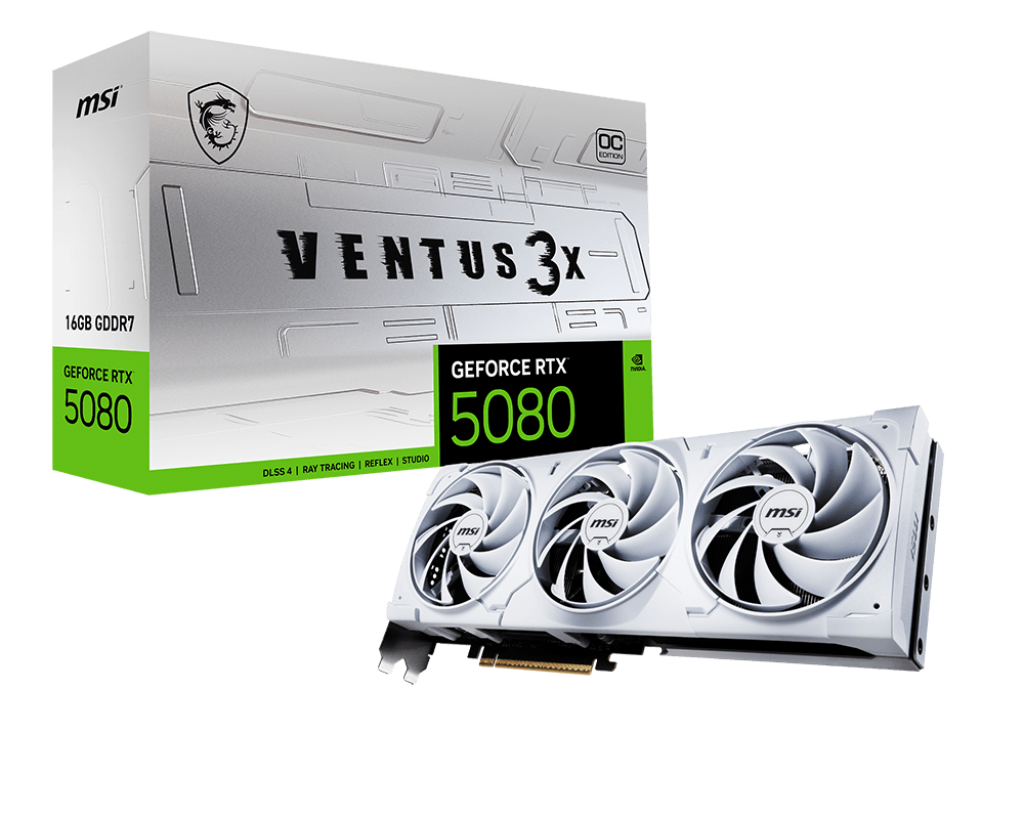

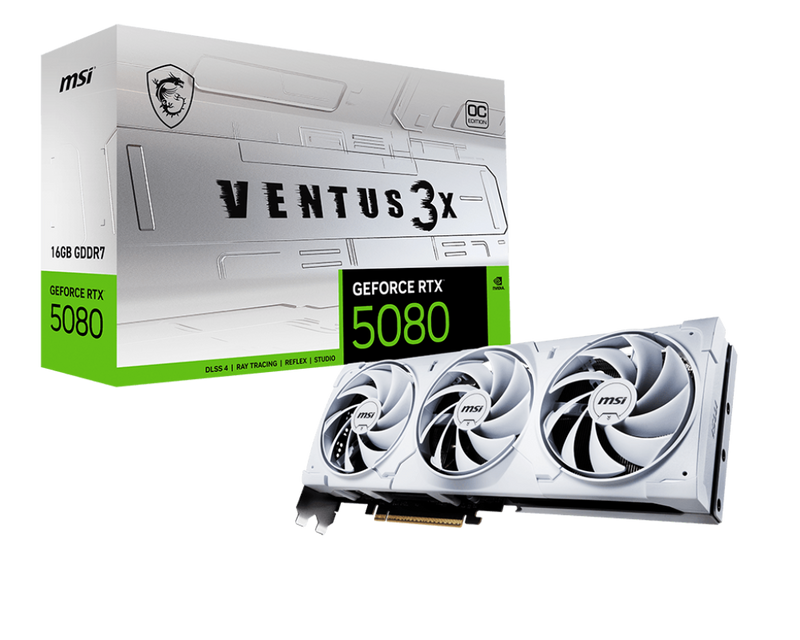

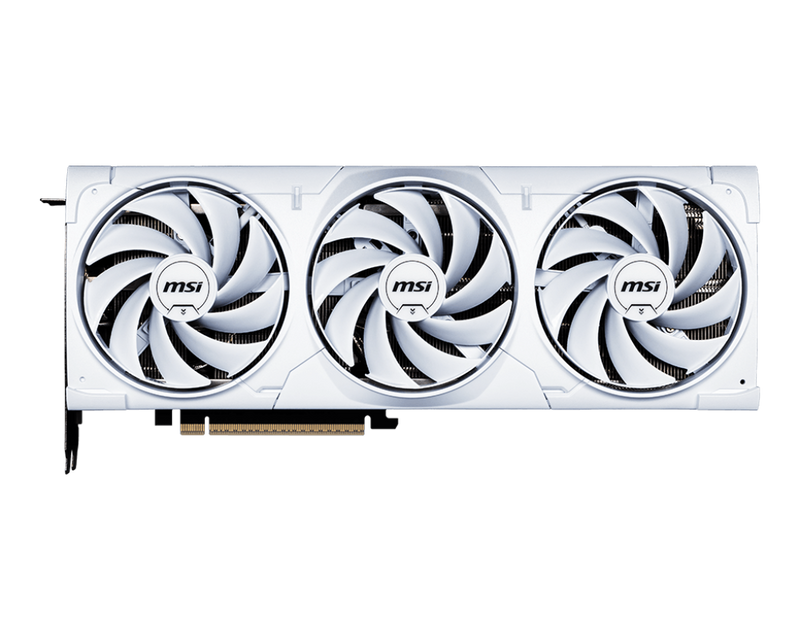

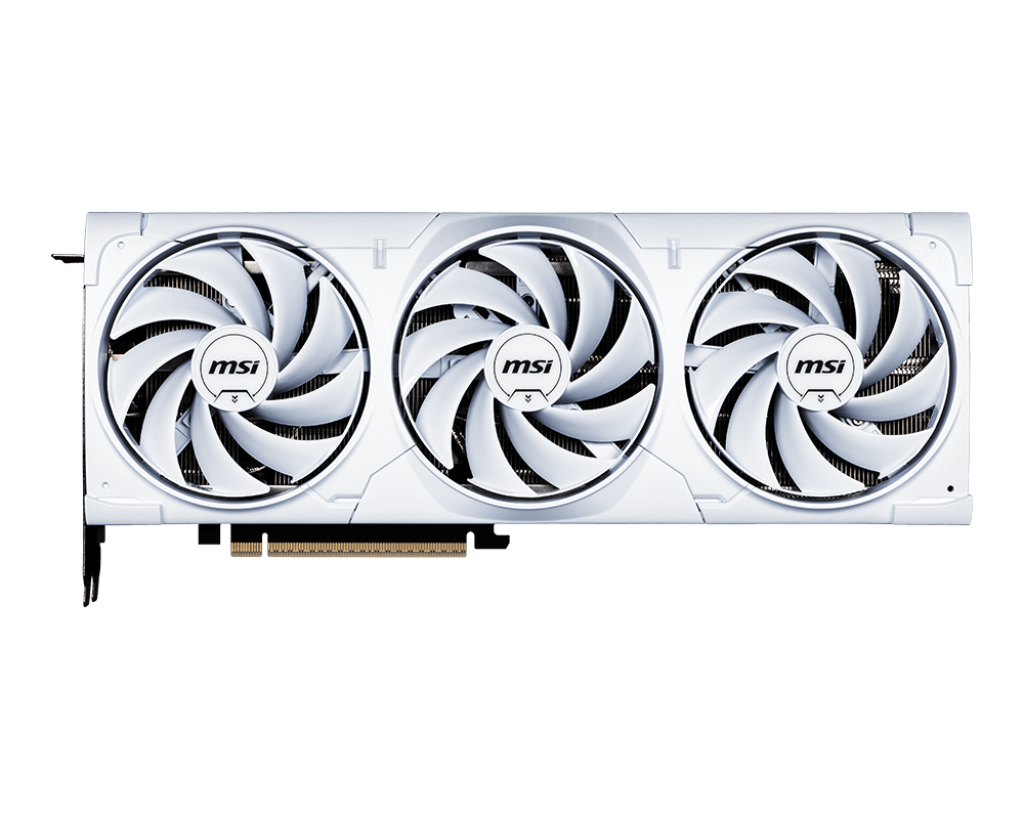

MSI GeForce RTX™ 5080 16G VENTUS 3X OC WHITE
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
-
Core Clocks:
Extreme Performance: 2655 MHz (MSI Center)

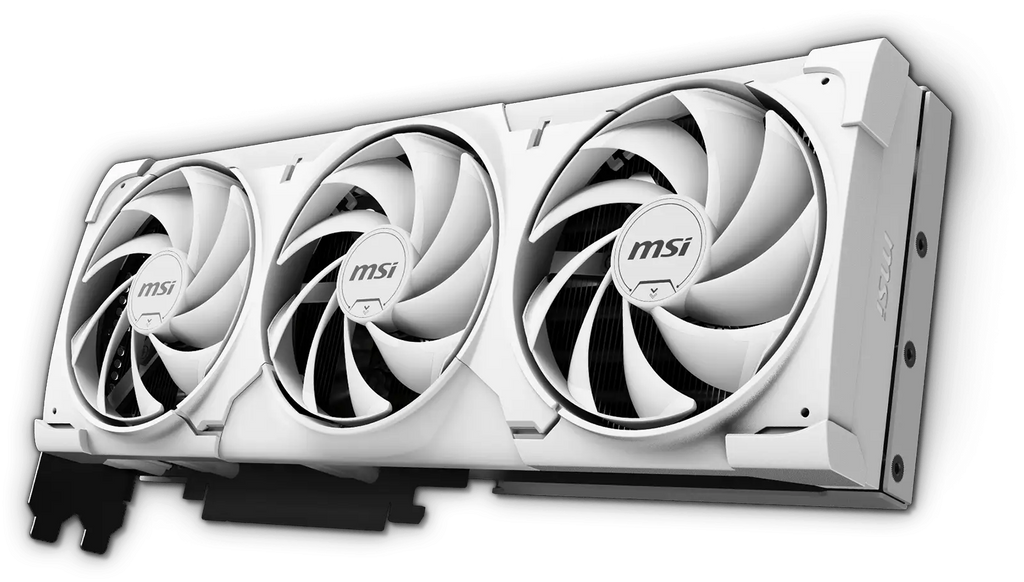

Boost: 2640 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

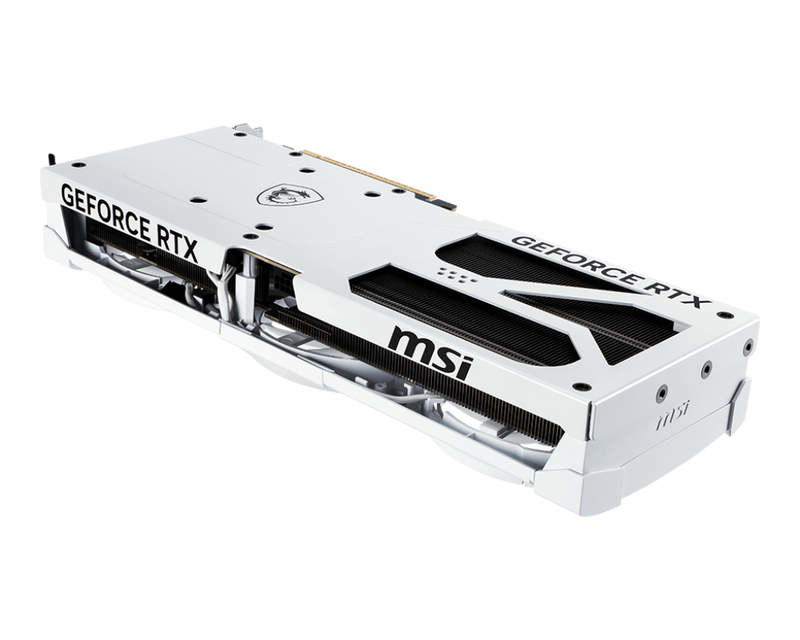

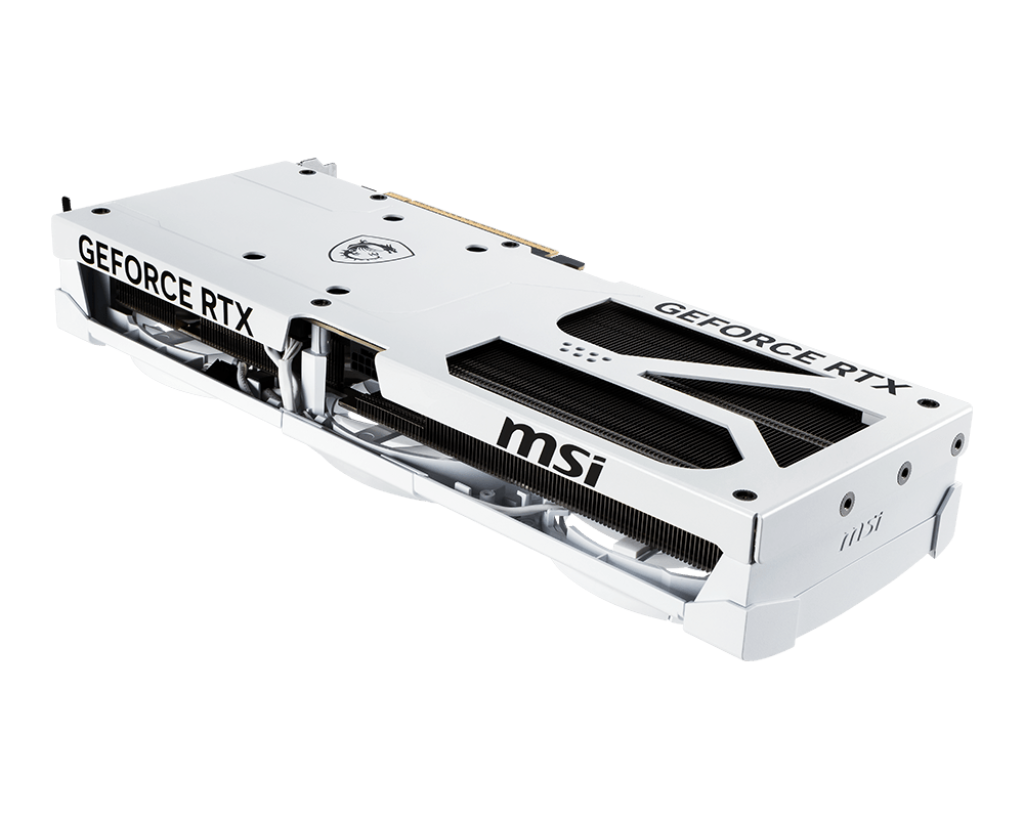

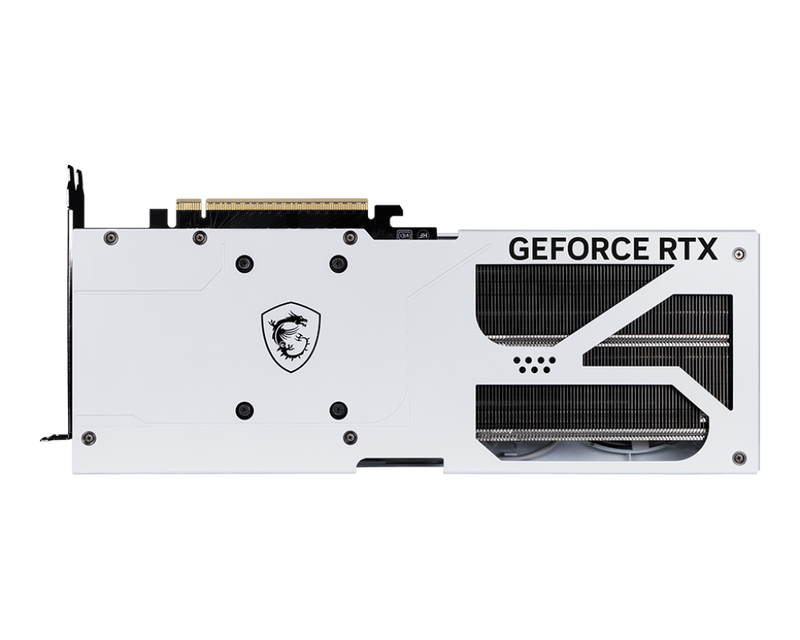

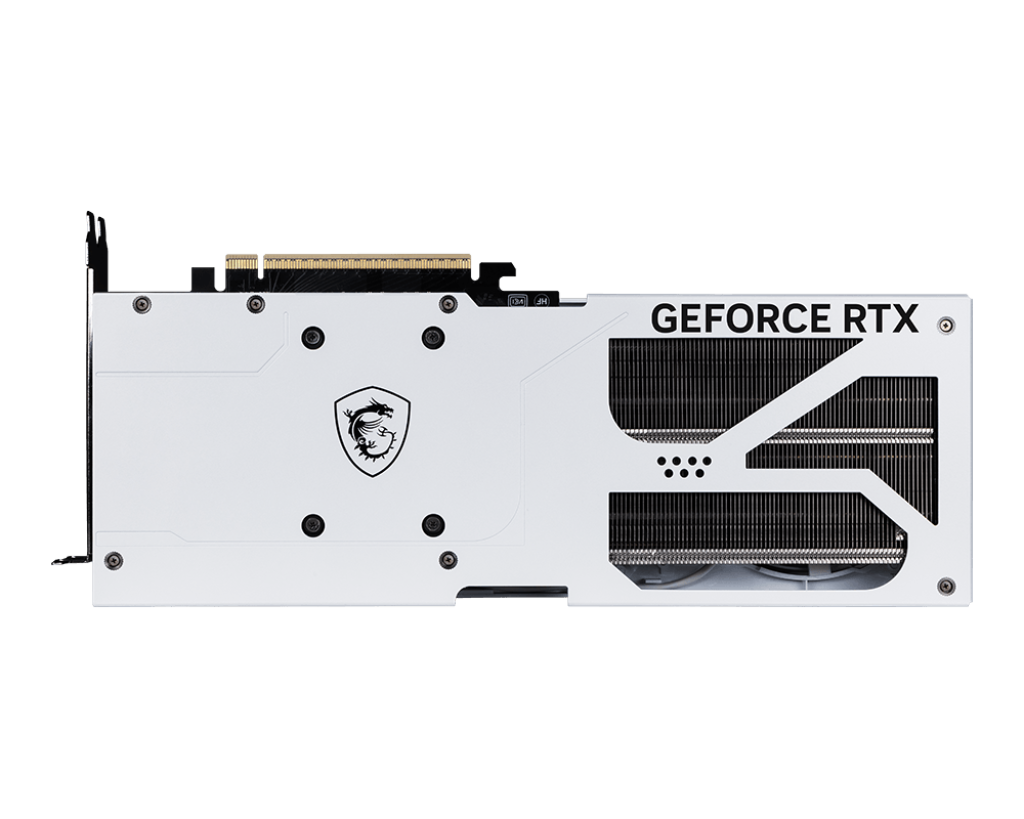

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
| Marketing Name |
GeForce RTX™ 5080 16G VENTUS 3X OC WHITE
|
| Model Name |
G5080-16V3CW
|
| Graphics Processing Unit |
NVIDIA® GeForce RTX™ 5080
|
| Interface |
PCI Express® Gen 5
|
| Core Clocks |
Extreme Performance: 2655 MHz (MSI Center)
|
| Boost: 2640 MHz | |
| CUDA® CORES |
10752 Units
|
| Memory Speed |
30 Gbps
|
| Memory |
16GB GDDR7
|
| Memory Bus |
256-bit
|
| Output |

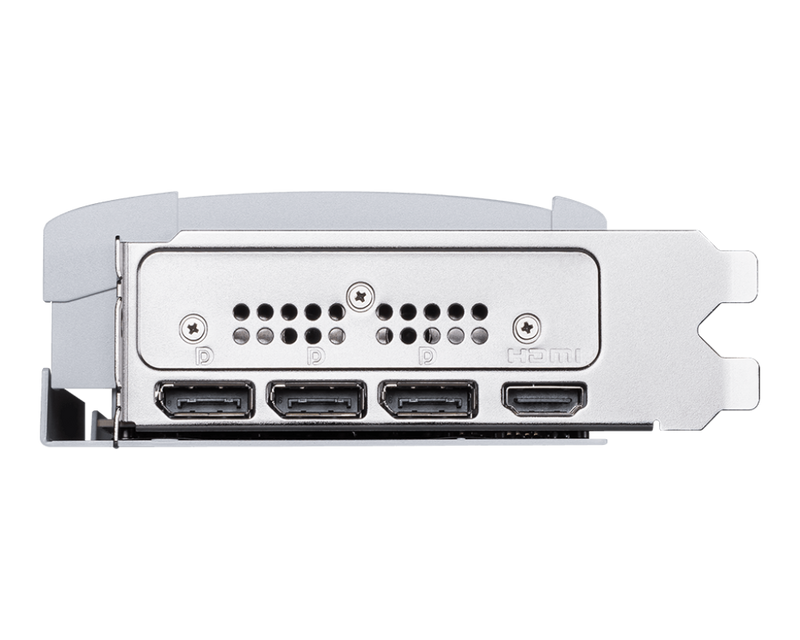

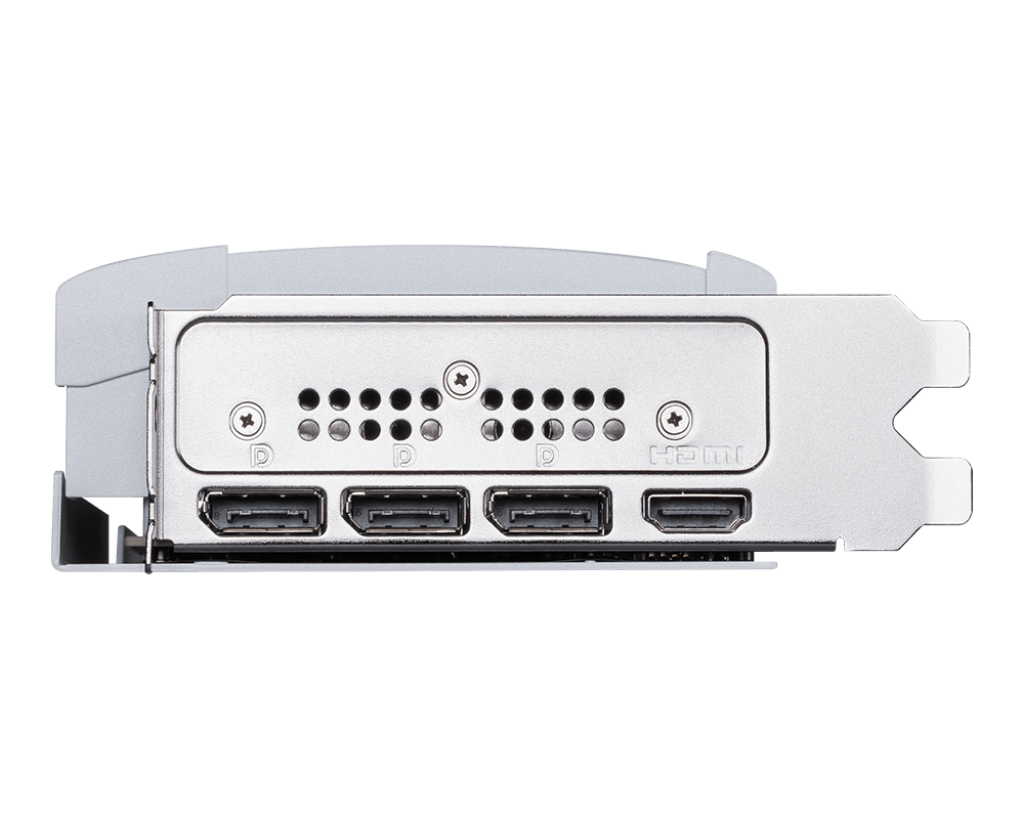

DisplayPort x 3 (v2.1b)
|
| HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) | |
| HDCP Support |
Y
|
| Power consumption |
360 W
|
| Power connectors |
16-pin x1
|
| Recommended PSU |
850 W
|
| Card Dimension (mm) |
303 x 121 x 49 mm
|
| Weight (Card / Package) |
1084 g / 1576 g
|
| DirectX Version Support |
12 Ultimate
|
| OpenGL Version Support |
4.6
|
| Maximum Displays |
4
|
| G-SYNC® technology |
Y
|
| Digital Maximum Resolution |
7680 x 4320
|
