Description
| Model | T5 Max |
| Processor | AMD Ryzen™ Al Max+ 388, 8 cores / 16 threads, turbo up to 5.0GHz, 32MB L3 Cache |
| Graphics |
Radeon 8060S Graphics (up to 2.9GHz) (40 graphics core) |
| AI Performance |
Overall : Up to 118 TOPS NPU : Up to 50 TOPS |
| Memory | Onboard 48GB LPDDR5x-6400 unified memory |
| Storage | 2 x M.2 2280 NVMe SSD Slots (PCIe 4.0 x4) (max. 8TB) Pre-installed : 1TB M.2 2280 NVMe SSD |
| LAN | 1 x 2.5Gb Ethernet RJ-45 Port |
| Wireless | - Wi-Fi 7 - Bluetooth 5.4 |
| Video Output | HDMI (2.1) x 1 DisplayPort (2.1) x 1 USB 4 Type-C x 2 Support Quad Displays |
| Audio Output | 3.5mm Audio Jack x 2 |

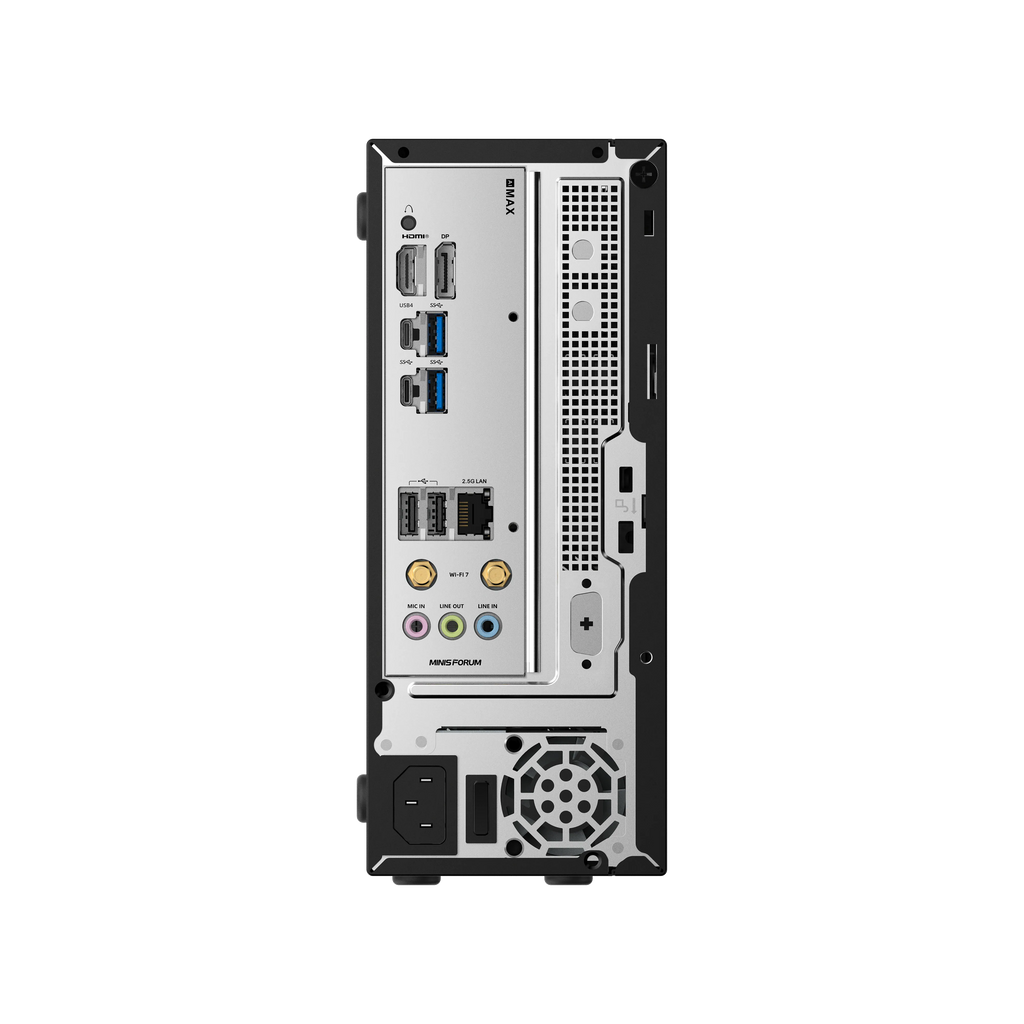

| I/O Ports | HDMI (2.1) x 1 DisplayPort (2.1) x 1 USB 4 Type-C x 2 (40 Gbps) USB 3.2 Gen 2 Type-C x 1 (10 Gbps) USB 3.2 Gen 2 Type-A x 4 (10 Gbps) USB 2.0 x 4 2.5Gb Ethernet RJ-45 Port x 1 3.5mm Headphone Jack x 2 3.5mm Microphone Jack x 2 3.5mm Line-In x 1 |
| Cooling System | High Performance CPU Fan & Heat Sink |
| Power Supply | Built-in SFF Power Supply |
| Operating System | Windows 11 Pro |
| Dimensions (W x D x H) | 230 x 93 x 288 mm |
