Description

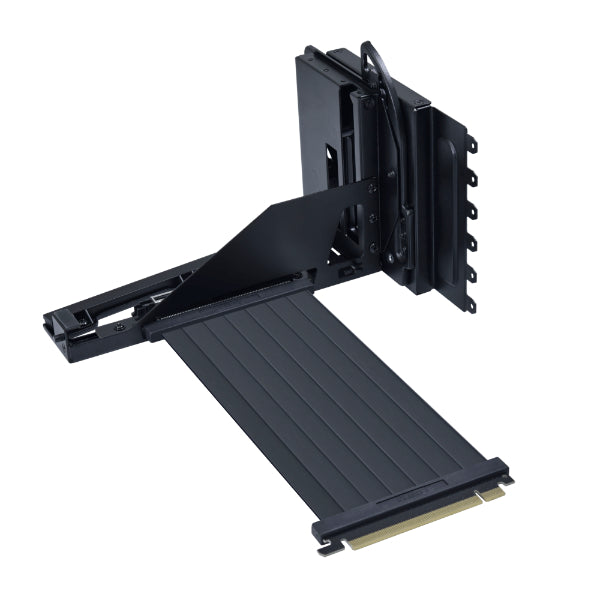

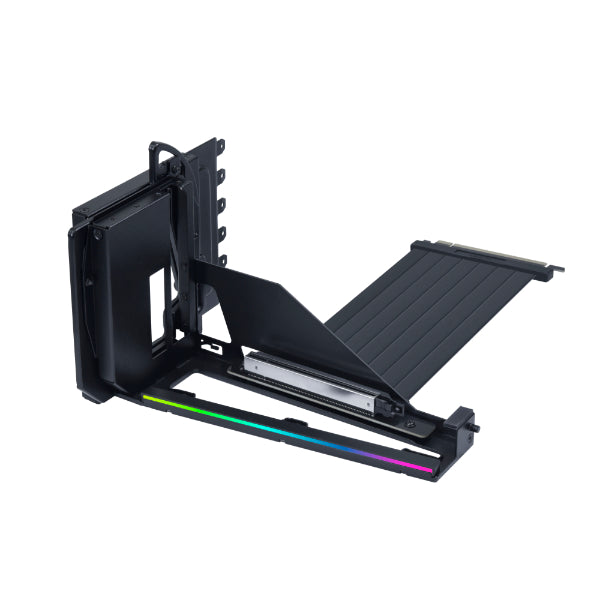

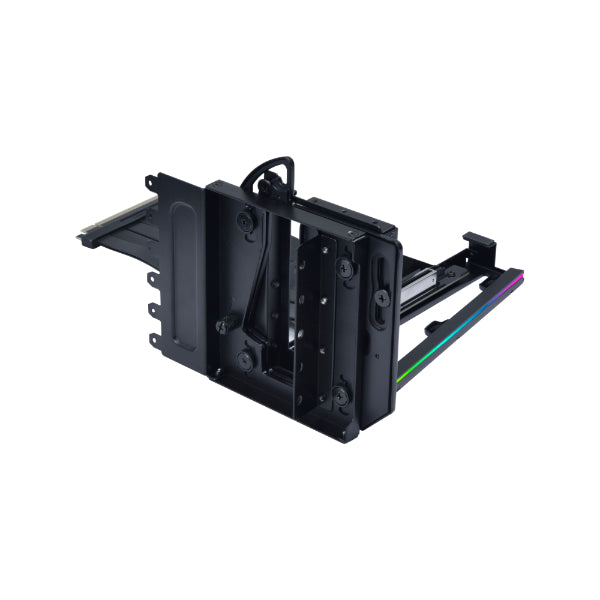

4 Slots Vertical GPU Kit (VG4v4)
Redefine Your Angle. Elevate Your Build.
Available in Two Options
BLACK
White
Note: The VG4v4 is designed to be installed with the screws already included with your case. Simply use the PCI-E bracket screws from your chassis, and up to four screws (commonly the same type as PSU screws) to secure your GPU firmly in place.
Fine-Tuned Heights,Perfected Builds
Three-Level Height Adjustment
The bracket provides three mounting heights, each adjustable in 10.16mm increments with a simple one-screw adjustment, enabling precise GPU positioning and allowing clearance for bottom fans or larger CPU coolers with ease.
Level 1
Level 2
（Elevated 10.16 mm above Level 1）
Level 3
（Elevated 20.32 mm above Level 1）
Adjusting the bracket to Level 2 or Level 3 improves compatibility with bottom-mounted fans or radiators.
Lowering the bracket to Level 1 enhances the visibility of AIO liquid coolers with built-in displays.
Note: Once the adjustment is complete, please ensure the screw is properly secured.
THREE DISPLAY ANGLES
Each height level supports forward, neutral, and backward display angles, with dedicated mounting holes on the support arm for each position. All adjustments are quick, precise, and completely tool-free.
Forward
Neutral
Backward
Forward Position
A forward tilt not only boosts airflow and
thermal efficiency but also ensures better
clearance for high-performance coolers.
(Demonstrated with LANCOOL 217)
Backward Position
A backward tilt showcases the graphics card
with a more refined and visually appealing angle.
(Demonstrated with O11 Vision Compact)
Flexible support arm placement to suit different GPU setups.
Performance, Secured with Strength
Anti-Sag Support: Rock Solid and Reliable
The anti-sag arm supports up to 10kg with out bending and mounts directly to the motherboard standoffs. Also, it offers adjustable height settings for precise alignment, working seamlessly with 4-slot GPU configurations supported by the bracket.
Users can adjust the height of the support arm based on the height settings of the bracket. Multiple height options ensure compatibility, including adjustments after rotation.
Note: Please check the GPU’s display height and tilt position, and adjust the support bracket before installation. This anti-sag bracket is not compatible with GPU brackets installed in PCIe slots 3 through 8, so ensure compatibility based on your specific setup.
Note: To adjust the anti-sag bracket height, loosen the screws first, slide the bracket along the guide slots to the desired position, and then tighten the screws.

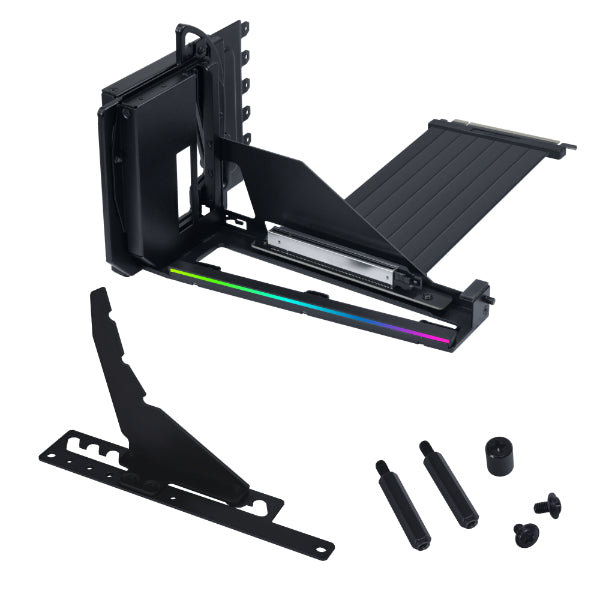

Dual Anti-Sag Support for ATX/M-ATX and E-ATX

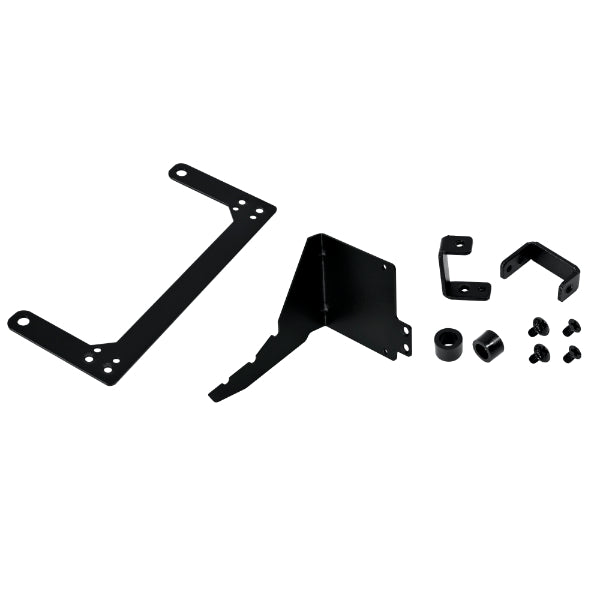

The bracket offers two anti-sag configurations for secure installation across multiple board sizes. ATX and M-ATX share a standard support arm, while E-ATX uses its own extension arm for proper alignment and clearance.
For ATX / M-ATX
For E-ATX
Note: Certain E-ATX motherboards have side accessories that may obstruct the VG4v4 anti-sag bracket. Please confirm compatibility before installation.
Note: The extension arm is required only for E-ATX installations. If your package does not include the E-ATX extension arm, please contact us through our official Contact Us page so we can assist you and arrange the necessary part.

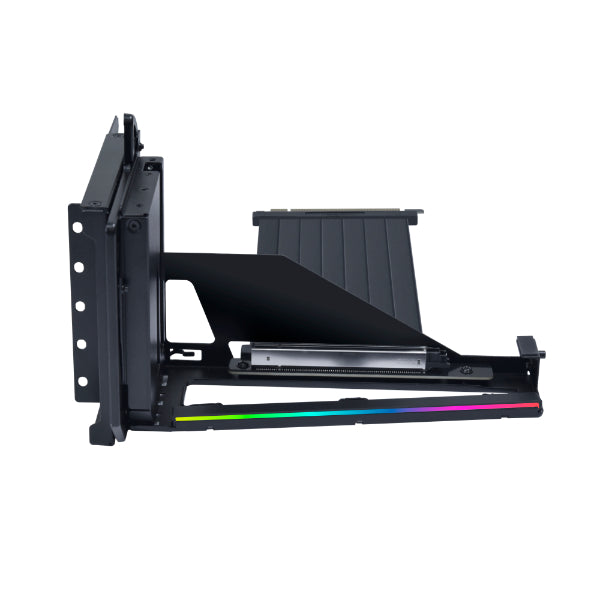

ARGB Lighting: A Touch of Brilliance
The built-in 5V ARGB lighting integrates effortlessly with major motherboard lighting software. Vivid effects bring the build to life and add visual depth to the system’s core.
Enhanced GPU Stability
The rubber pad has been refined to a slimmer profile, preventing the graphics card from being pushed upward and dislodged, ensuring a smoother and more secure installation experience.
EXPANDED REAR BRACKET FOR BETTER CASE COMPATIBILITY
The extended rear bracket design increases overall mounting length, improving compatibility with a wider range of cases.
The enlarged rear opening also provides additional clearance, making it easier to plug in thicker HDMI cables and ensuring a smoother, interference-free installation.
PCIe 5.0 Cable Built for High Speed and full compatibility
The 200mm PCIe 5.0 riser cable delivers up to 32Gb/s bandwidth, which is twice the speed of PCIe 4.0. It supports PCIe 2.0 to 4.0 devices and ensures stable signal transmission with consistently high performance across wide range of GPUs.
BIOS Update: Ensure that your motherboard’s BIOS is updated to the latest version to maintain full compatibility with PCIE 5.0.
Note: Always ensure both ends of the riser cable are securely connected to the GPU and motherboard while the system is powered off. Improper installation may cause electrical short circuits or hardware damage.
Made to Match , Built to Adapt
This bracket features an adjustable slot design, supporting up to six slots for vertical installation or seven slots for angled mounting. It accommodates GPUs up to four slots thick, ensuring a perfect and secure fit for even the most high-end graphics cards.
Note: Once installed, the bracket shifts the GPU forward by 31mm. Please ensure your case has sufficient internal depth, as more compact chassis may have limited clearance.
SUPPORTED CASES
In addition to LIAN LI cases, any chassis from other brands that meets the above specifications can also be paired with the bracket. Users can purchase it separately for flexible use, making it an easy upgrade option for most standard ATX setups.
- LANCOOL: 217INF/ 217 / 207D / 207 / 206 / 216 / III / 205 / 215
- O11 Vision Compact / O11 Vision
- O11D EVO RGB / O11D EVO RGB Lamborghini / O11D EVO / O11D EVO XL / O11D
- Vector V100
- O11D MINI V2 (limited use) – This case supports the bracket with certain restrictions. For the best experience, we recommend using the included vertical GPU kit that comes with the chassis.
