Description
Essentials
-
Product Collection Intel® Core™ i7 Processors (14th gen)
-
Code Name Products formerly Raptor Lake
-
Vertical Segment Desktop
-

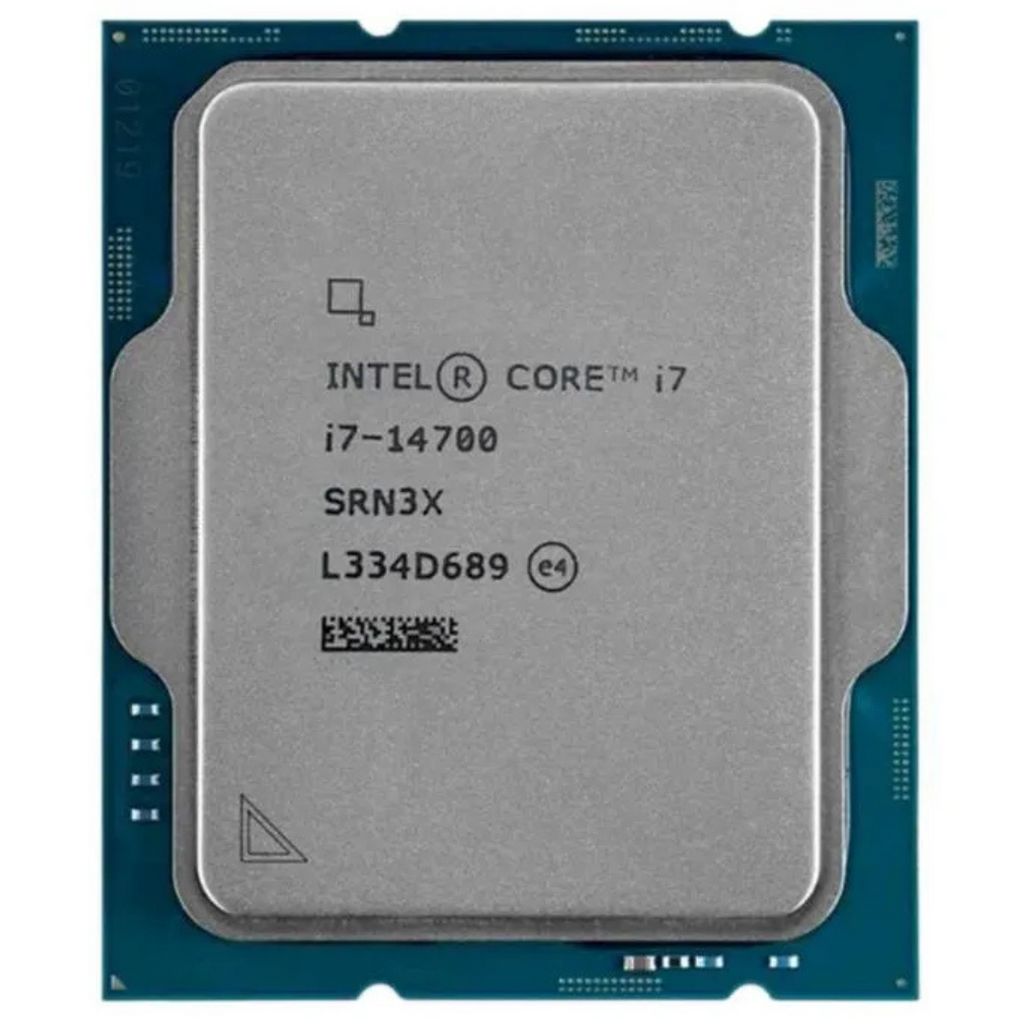

Processor Number i7-14700
-
Lithography Intel 7
- Use Conditions PC/Client/Tablet, Workstation
CPU Specifications
-
Total Cores 20
-
# of Performance-cores 8
-
# of Efficient-cores 12
-
Total Threads 28
-
Max Turbo Frequency 5.4 GHz
-
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.4 GHz
-
Performance-core Max Turbo Frequency 5.3 GHz
-
Efficient-core Max Turbo Frequency 4.2 GHz
-
Performance-core Base Frequency 2.1 GHz
-
Efficient-core Base Frequency 1.5 GHz
-
Cache 33 MB Intel® Smart Cache
-
Total L2 Cache 28 MB
-
Processor Base Power 65W
-
Maximum Turbo Power 219W
Supplemental Information
-
Marketing Status Launched
-
Launch Date Q1'24
-
Embedded Options Available Yes
Memory Specifications
-
Max Memory Size (dependent on memory type) 192 GB
-
Memory Types Up to DDR5 5600 MT/s
Up to DDR4 3200MT/s
-
Max # of Memory Channels 2
-
Max Memory Bandwidth 89.6 GB/s
-
ECC Memory Supported ‡ Yes
GPU Specifications
-
GPU Name ‡ Intel® UHD Graphics 770
-
Graphics Base Frequency 300 GHz
-
Graphics Max Dynamic Frequency 1.6 GHz
-
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
-
Execution Units 32
-
Max Resolution (HDMI) ‡ 4096 x 2160 @ 60Hz
-
Max Resolution (DP)‡ 7680 x 4320 @ 60Hz
-
Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz
-
DirectX*Support 12
-
OpenGL* Support 4.5
-
OpenCL*Support 3.0
-
Multi-Format Codec Engines 2
-
Intel® Quick Sync Video Yes
-
Intel® Clear Video HD Technology Yes
-
# of Displays Supported ‡ 4
-
Device ID 0xA780
Expansion Options
-
Direct Media Interface (DMI) Revision 4.0
-
Max # of DMI Lanes 8
-
Scalability 1S Only
-
PCI Express Revision 5.0 and 4.0
-
PCI Express Configurations ‡ Up to 1x16+4, 2x8+4
-
Max # of PCI Express Lanes 20
Package Specifications
-
Sockets Supported FCLGA1700
-
Max CPU Configuration 1
-
Thermal Solution Specification PCG 2020C
-
T JUNCTION 100°C
-
Package Size 45.0 mm x 37.5 mm
Advanced Technologies
-
Intel® Gaussian & Neural Accelerator 3.0
-
Intel® Thread Director Yes
-
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
-
Intel® Speed Shift Technology Yes
-
Intel® Turbo Boost Max Technology 3.0 ‡ Yes
-
Intel® Turbo Boost Technology ‡ 2.0
-
Intel® Hyper-Threading Technology ‡ Yes
-
Intel® 64 ‡ Yes
-
Instruction Set 64-bit
-
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
-
Idle States Yes
-
Enhanced Intel SpeedStep® Technology Yes
-
Thermal Monitoring Technologies Yes
-
Intel® Volume Management Device (VMD) Yes
Security & Reliability
-
Intel® Standard Manageability (ISM) ‡ Yes
-
Intel® Control-Flow Enforcement Technology Yes
-
Intel® AES New Instructions Yes
-
Secure Key Yes
-
Intel® OS Guard Yes
-
Execute Disable Bit ‡ Yes
-
Intel® Boot Guard Yes
-
Mode-based Execute Control (MBEC) Yes
-
Intel® Virtualization Technology (VT-x) ‡ Yes
-
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
