Description

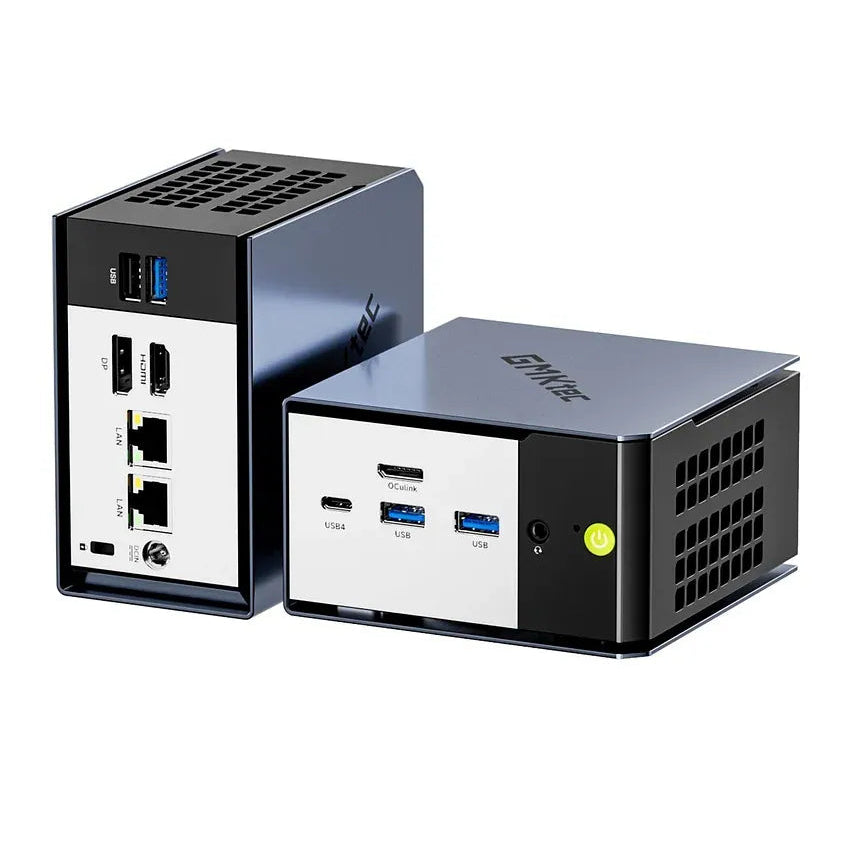

| Model | NucBox K16 |
| Processor | AMD Ryzen™ 7 7735HS, 8 cores / 16 threads, turbo up to 4.75GHz, 16MB L3 Cache |
| Graphics | AMD Radeon™ 680M (up to 2.2GHz) |
| Memory | 32GB LPDDR5 (6400MT/s) (non-upgradeable) |
| Storage |
2 x M.2 2280 PCIe 4.0 x4 SSD slots (max. 16TB) Pre-installed : 1TB SSD |
| Ethernet | 2 x 2.5Gb Ethernet RJ-45 Ports |
| Wireless | - WiFi 6E - Bluetooth 5.2 |
| Video Ports | ① HDMI (2.0) x 1 (8K@60Hz) ② DisplayPort (1.4) x 1 (8K@60Hz) ③ USB 4.0 Type-C x 1 (4K@60Hz) |
| Audio Output | HDMI (2.0) x 1 3.5mm Audio Jack x 1 |
| I/O Ports |
HDMI (2.0) x 1 DisplayPort (1.4) x 1 USB 4 Type-C x 1 (40 Gbps, PD 100W, DP 1.4) USB 3.2 Gen 2 Type-A x 3 (10 Gbps) USB 2.0 x 1 OCuLink Port x 1 (PCIe Gen 4 x4) 2.5Gb Ethernet RJ-45 Port x 2 3.5mm Audio Jack x 1 Power Button x 1 CMOS Reset Button x 1 DC-in Jack x 1 (5.5/2.5 mm) |
| Cooling System | Dual copper heat pipes _ Dual cooling fan |
| Other Feature | Three Switching Modes : Silent Mode (35W), Balance Mode (45W), Performance Mode (60W) |
| Power | DC 19V Adapter |
| Operating System | Windows 11 Pro |
