Description
| Item | Specification |
|---|---|
| CPU | AMD Ryzen™ 3000 Series; Quad-Core Eight-Thread, 12nm Process, Max Turbo 3.7GHz, 4MB L3 Cache, TDP 25W (MAX 35W) |
| CPU Model | AMD Ryzen™ 5 3500U |
| CPU Socket/Package | FP5 |
| GPU | Radeon™ Vega 8 Graphics (1200 MHz) |
| Graphics Cores | 8 |

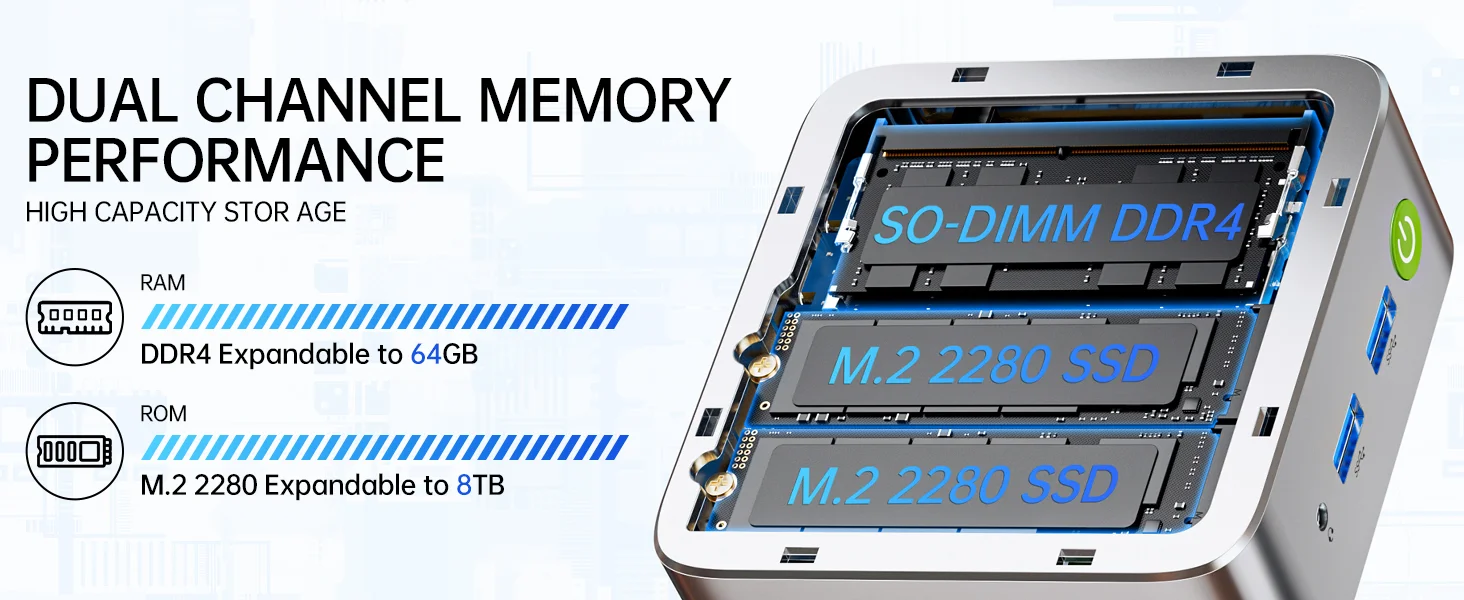

| Memory | 2×DDR4 SO-DIMM 16G/32G, 2400 MT/s (up to 64GB) |
| Storage | 2×M.2 2280 PCIe3.0x4 SSD 512G/1TB |
| Built-in Storage Expansion | M.2 2280 PCIe expansion, supports up to 8TB per drive, total expansion up to 16TB |

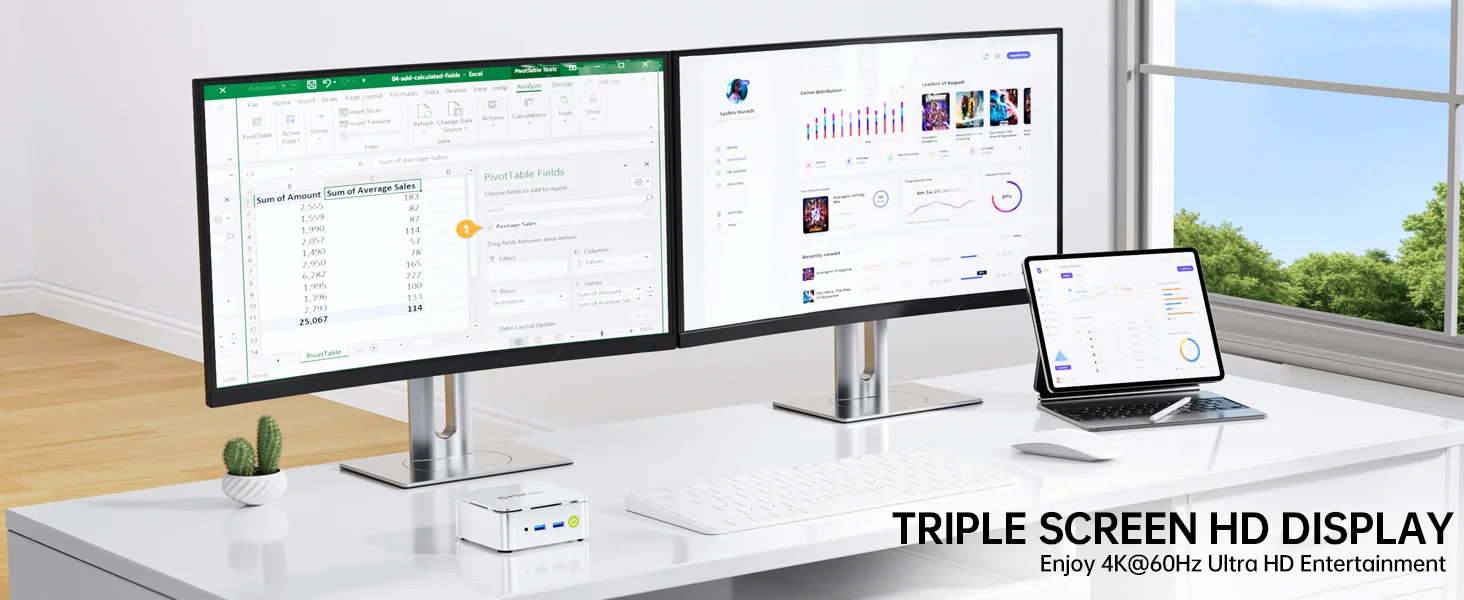

| Graphics Output | Triple output via HDMI/DP/Type-C, supports up to 8K resolution (DP interface) |
| Network | WiFi 5 (Realtek RTL8822CE, up to 866.7Mbps), Bluetooth 5.0, Gigabit LAN (supports 2500M/1000M/100M/10M, Realtek 8125BG) |
| Power | Built-in coin cell battery; Charger: Type-C, 19V/3.42A (supports both PD and non-PD chargers) |

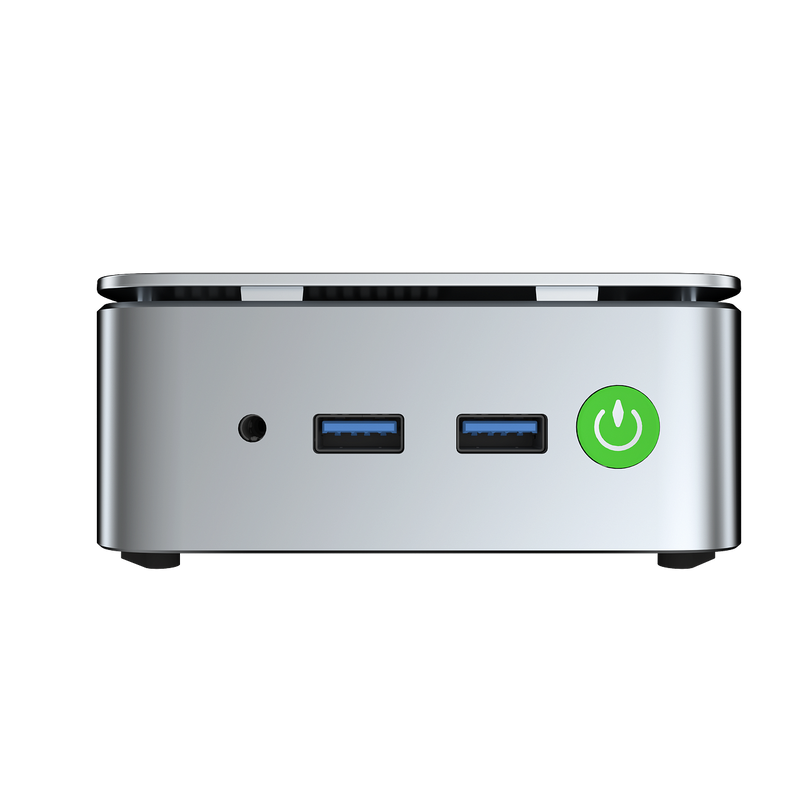

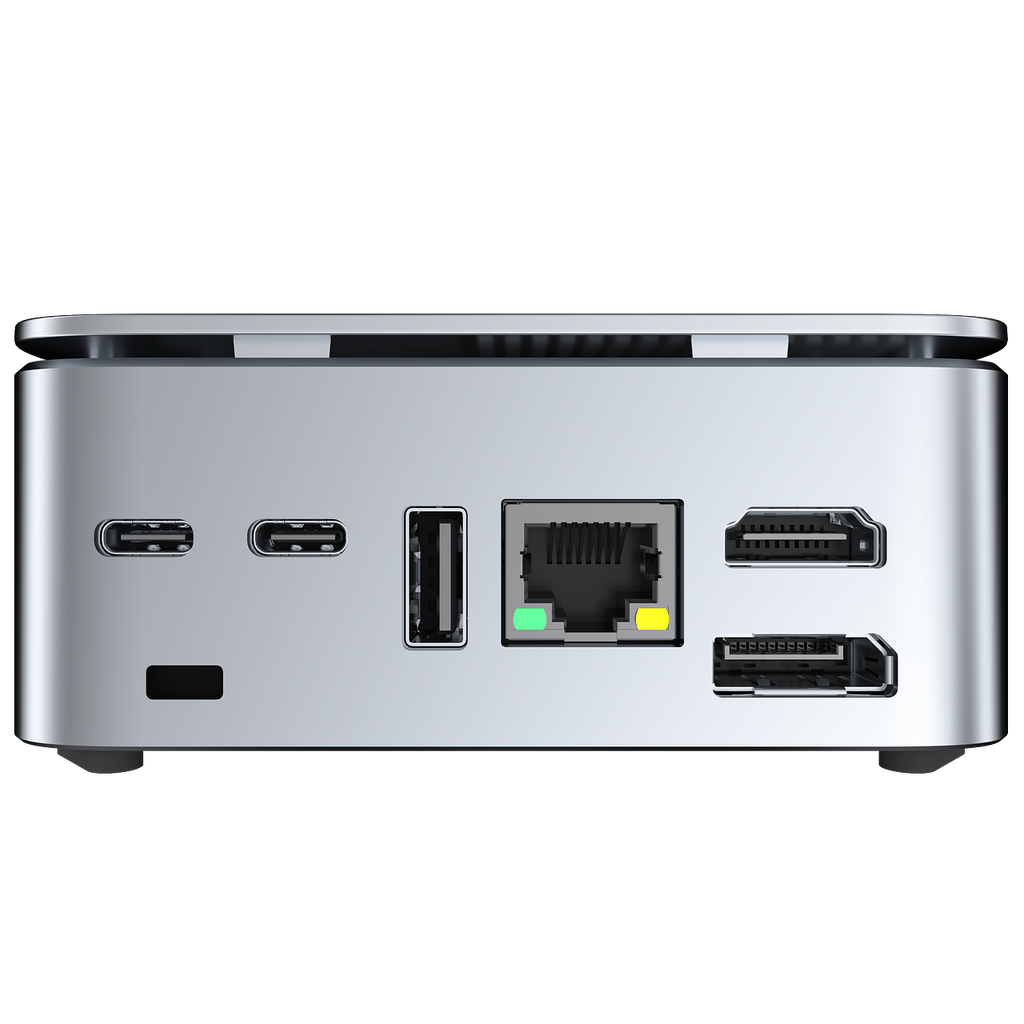

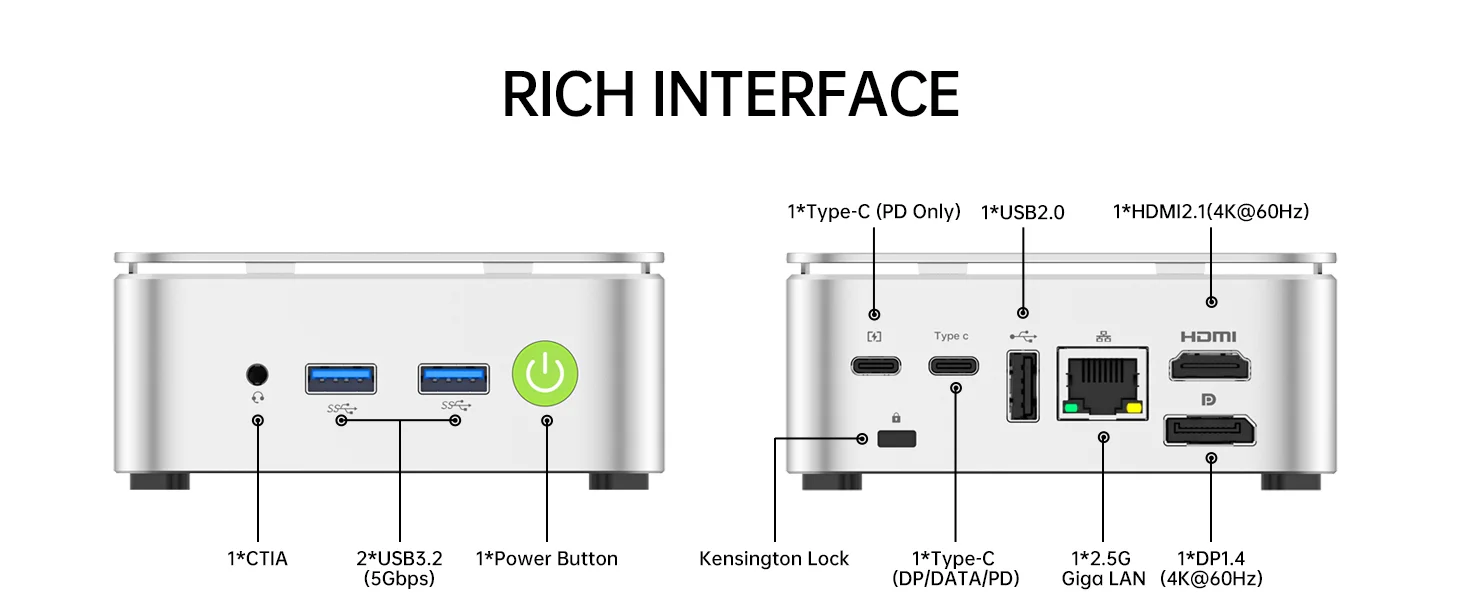

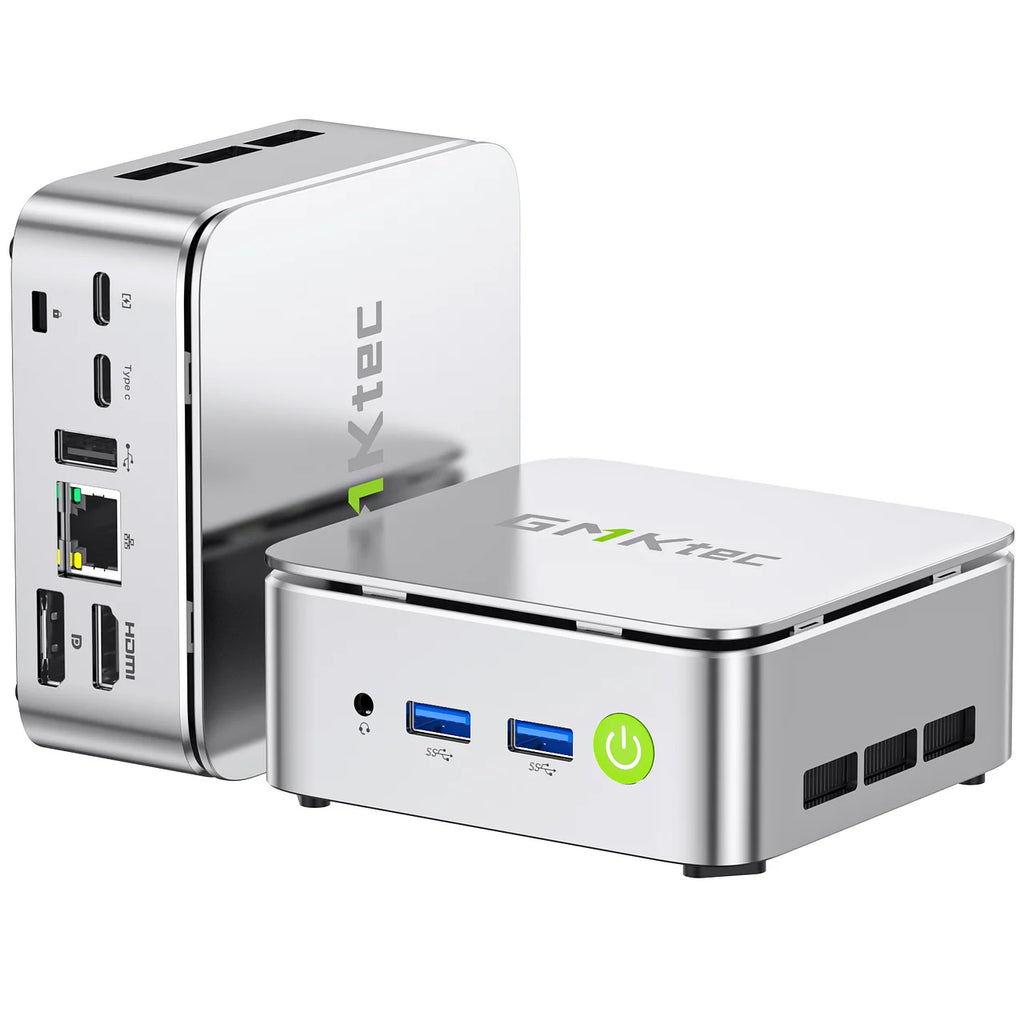

| External Ports | USB-A: 2×USB 3.2 Gen1 (5Gbps) + 1×USB 2.0 Type-C: 1 (DP1.4 4K@30Hz + USB3.2 Gen1 + PD) + 1 (PD only) HDMI: 1×Standard HDMI2.1 TMDS 4K60Hz DisplayPort: 1×DP1.4 (4K60Hz) Audio: 3.5mm CTIA RJ45: 1 (Gig LAN) Power Key |
| Chassis Dimensions | 103 × 98 × 42 mm |
| Operating System | Windows 11 Pro |
| Language Support | 14 languages (Default English; supports Simplified Chinese, Traditional Chinese, French, Dutch, Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic) |
| Packaging List | User Manual, Warranty Card, Power Adapter, VESA Stand, HDMI Cable |
