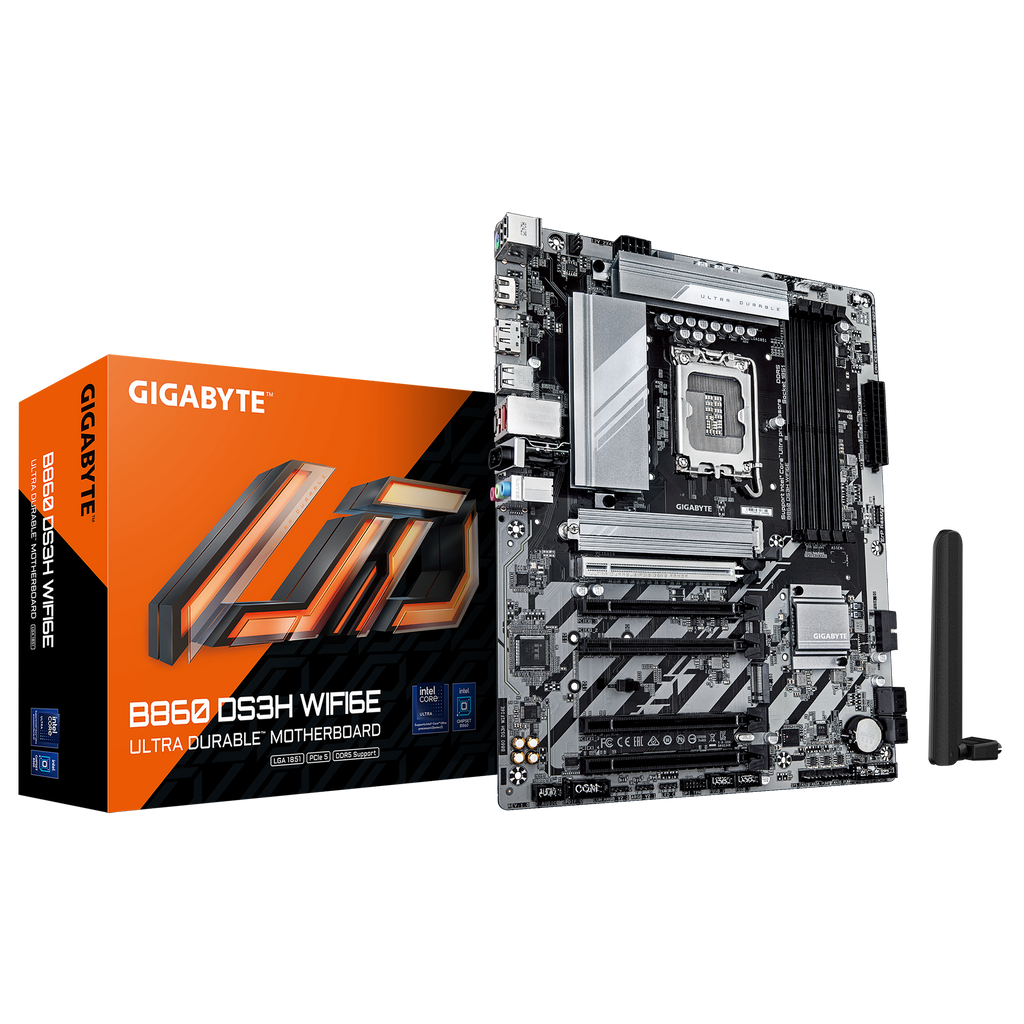

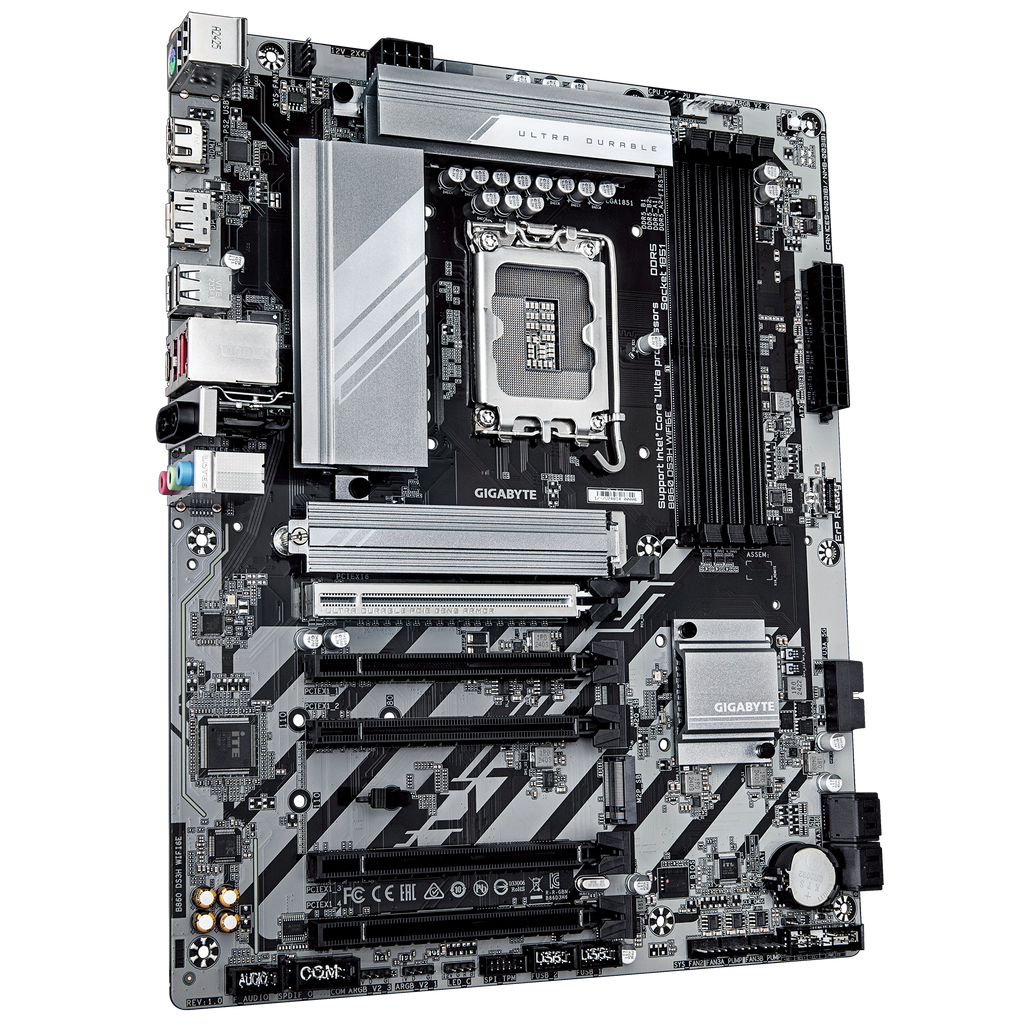

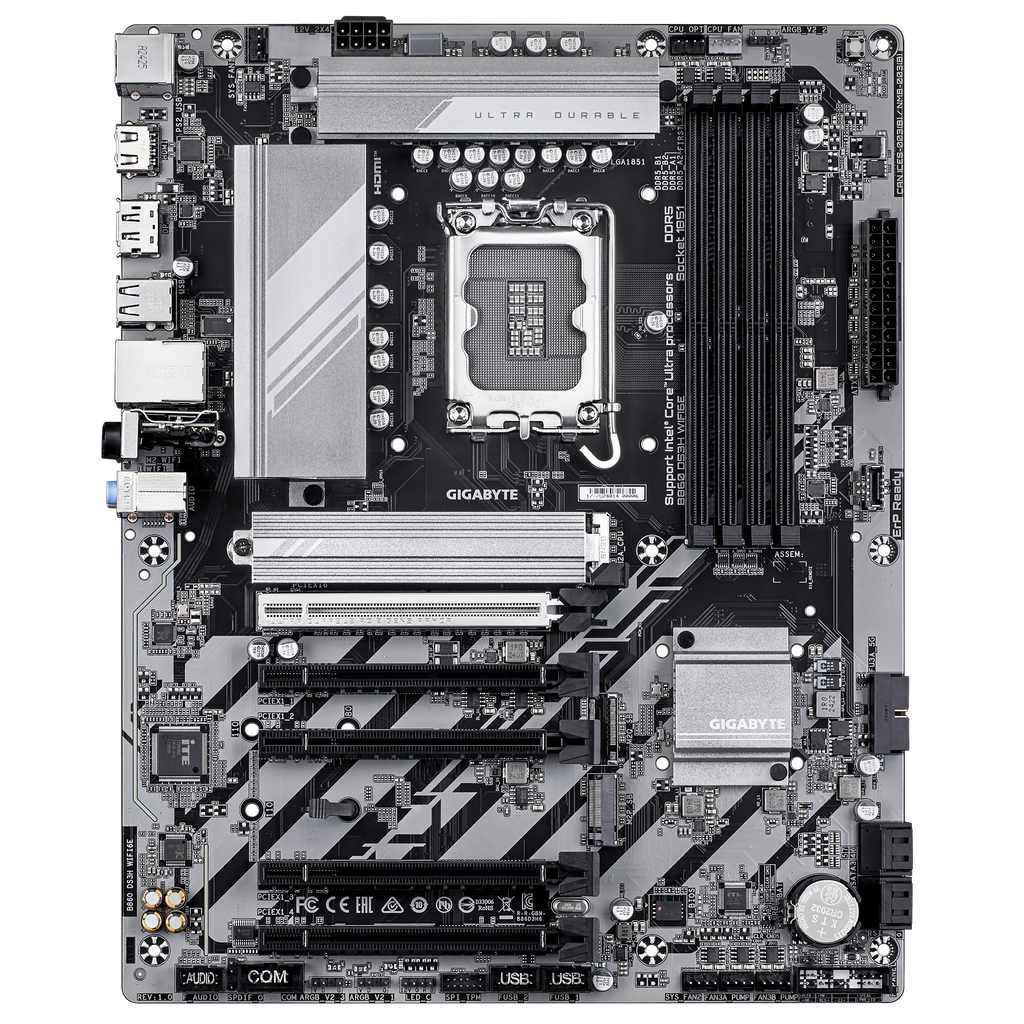

Name: GIGABYTE B860 DS3H WIFI6E DDR5,LGA 1851 ATX Motherboard
Brand: GIGABYTE
SKU: MOT000630
Price: 1290.0 HKD
Availability: InStock

GIGABYTE B860 DS3H WIFI6E DDR5,LGA 1851 ATX Motherboard

Roll over image to zoom in Click on image to zoom

Central Processing Unit (CPU)

LGA1851 socket, supports Intel® Core™ Ultra processors
(Please visit GIGABYTE website for a list of supported processors)
L3 cache memory depends on CPU
Chipset

Intel® B860 Express Chipset
Memory

Supports DDR5 9066(OC)/8800(OC) /8600(OC) / 8400(OC) /8266(OC) / 8200(OC) / 8000(OC) / 7950(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600MT/s
4 DDR5 DIMM slots, supporting up to 256 GB (single slot supports 64 GB capacity)
Supports dual channel memory technology
Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operates in non-ECC mode)
Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Memory
Supports Extreme Memory Profile (XMP) Memory
(CPU and memory configuration may affect the supported memory type, speed, and number of DRAM modules. Please visit GIGABYTE's website for a complete list of supported memory modules.)
Display functions

Integrated graphics processor - Intel® HD Graphics support:
- 1 HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Supports HDMI version 2.1 and HDCP 2.3.

- 1 x DisplayPort port, supporting a maximum resolution of 3840x2160@144 Hz

* Supports DisplayPort 2.1 version.

(The supported specifications of the display function will vary depending on the CPU used.)
Sound

Built-in Realtek® audio chip
supports High Definition Audio
and supports 2/4/5.1/7.1 channels

* The audio source jack function can be redefined through the audio software. To enable 7.1-channel audio output, please enter the audio software settings.

Support S/PDIF output
network

Built-in Realtek® 2.5GbE network chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless communication module

Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supports 2.4/5/6 GHz wireless bands
- BLUETOOTH 5.3
- supports 11ax 160MHz wireless communication standard

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supports 2.4/5/6 GHz wireless bands
- BLUETOOTH 5.3
- supports 11ax 160MHz wireless communication standard
(The actual transmission speed will vary depending on the usage environment and device.)
Expansion slot

Built-in CPU:
- 1 PCI Express x16 slot, supports PCIe 5.0 and x16 operation specifications (PCIEX16)

* The PCIEX16 slot only supports graphics cards or NVMe SSDs. If you only want to install one graphics card, be sure to install it in the PCIEX16 slot.

Chipset built-in:
- 4 PCI Express x16 slots, supporting PCIe 4.0 and x1 operation specifications (PCIEX1_1~PCIEX1_4)
Storage device interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
SATA hard disk supports RAID 0, RAID 1, RAID 5, and RAID 10
USB

Chipset:
- 1 USB Type-C® port on the back panel, supporting USB 3.2 Gen 2x2
- 1 USB Type-C® port, supporting USB 3.2 Gen 1, available through the internal USB header
- 1 USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 USB 3.2 Gen 1 ports, available through the internal USB header
- 4 USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 USB 2.0/1.1 ports, available through the internal USB header
internal socket

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED light strip headers
1 x RGB LED light strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Security Platform Module header (for GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset pin
1 x Clear CMOS pin

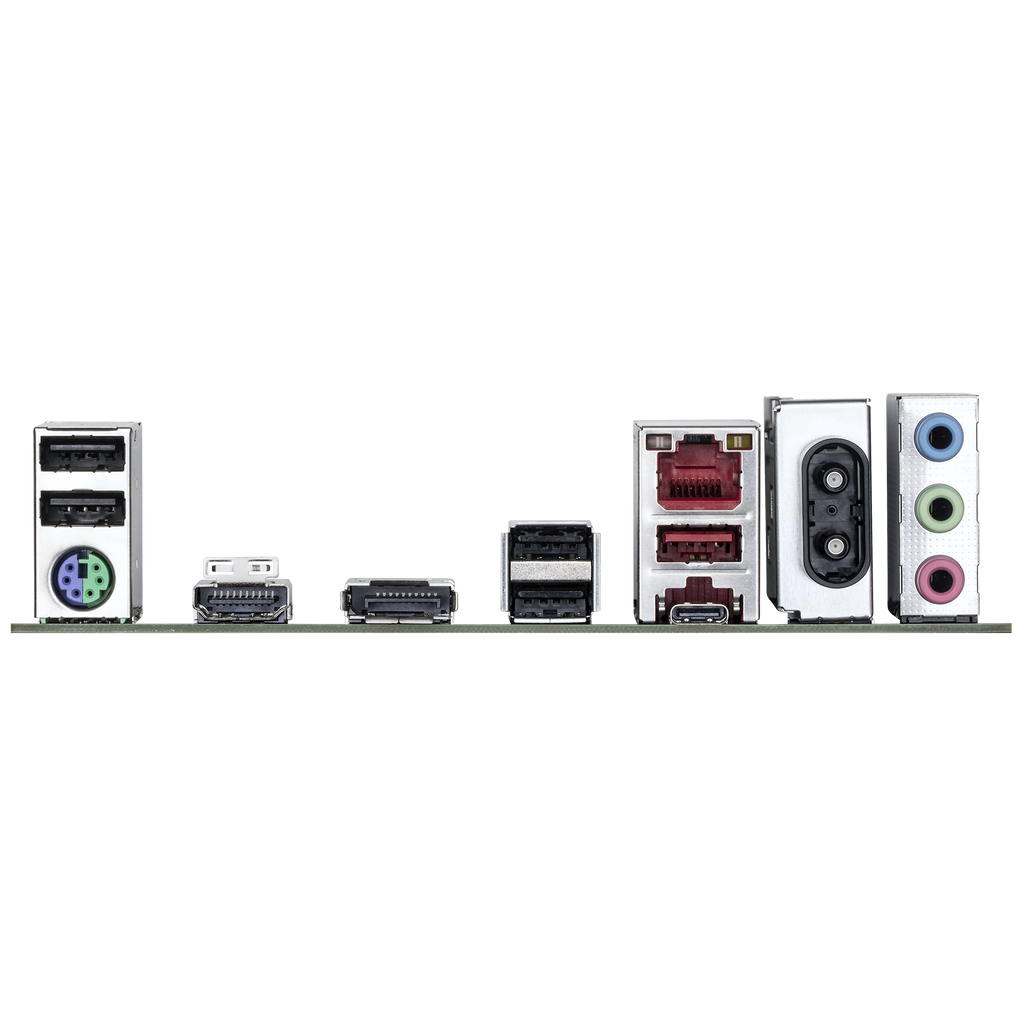

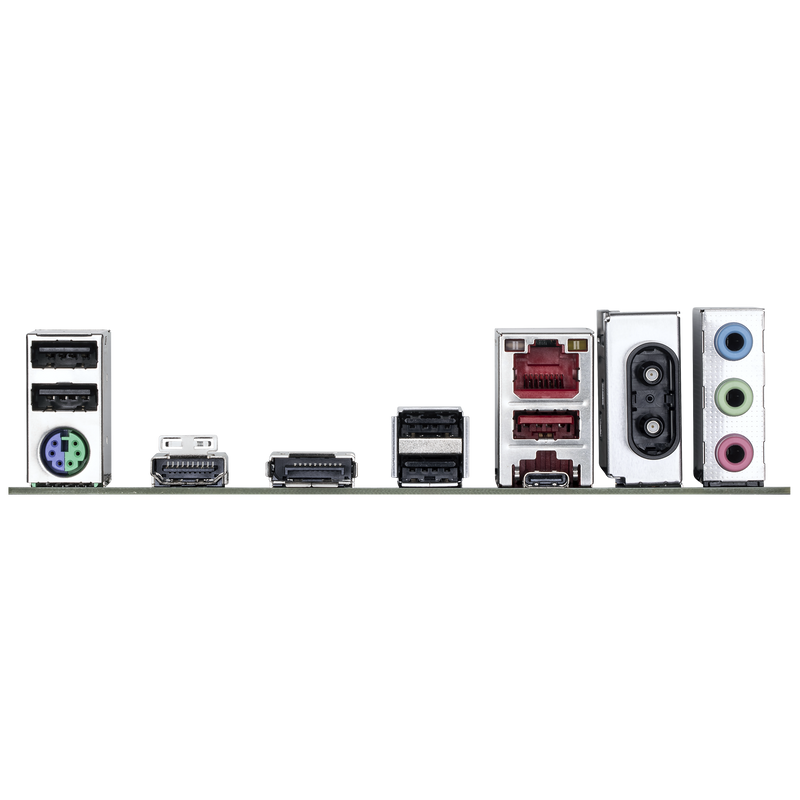

Rear panel device connection socket

1 x PS/2 keyboard/mouse port
1 x HDMI port*
1 x DisplayPort port*
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna ports (2T2R)
3 x audio jacks

* Whether this specification is supported depends on the CPU.
I/O Controller

Built-in iTE® I/O controller chip
Hardware Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling system flow rate detection
Fan failure warning
Smart fan control

* Whether the smart fan (pump) control function is supported will depend on the different cooling fans (pumps).
BIOS

1 x 256 Mbit flash
using licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Additional Tools

Supports GIGABYTE Control Center (GCC)

* The programs supported by GCC may vary depending on the motherboard; the functions supported by each program may also vary depending on the motherboard specifications.

Support Q-Flash
Support Q-Flash Plus
Support Smart Backup
Free Software

Norton® Internet Security (OEM version)
LAN bandwidth management software
operating system

Support Windows 11 64-bitSupport
Windows 10 64-bit

* The Intel® NPU driver is only supported on Windows 11.
PCB Specifications

ATX form factor; 30.5 cm x 24.4 cm
