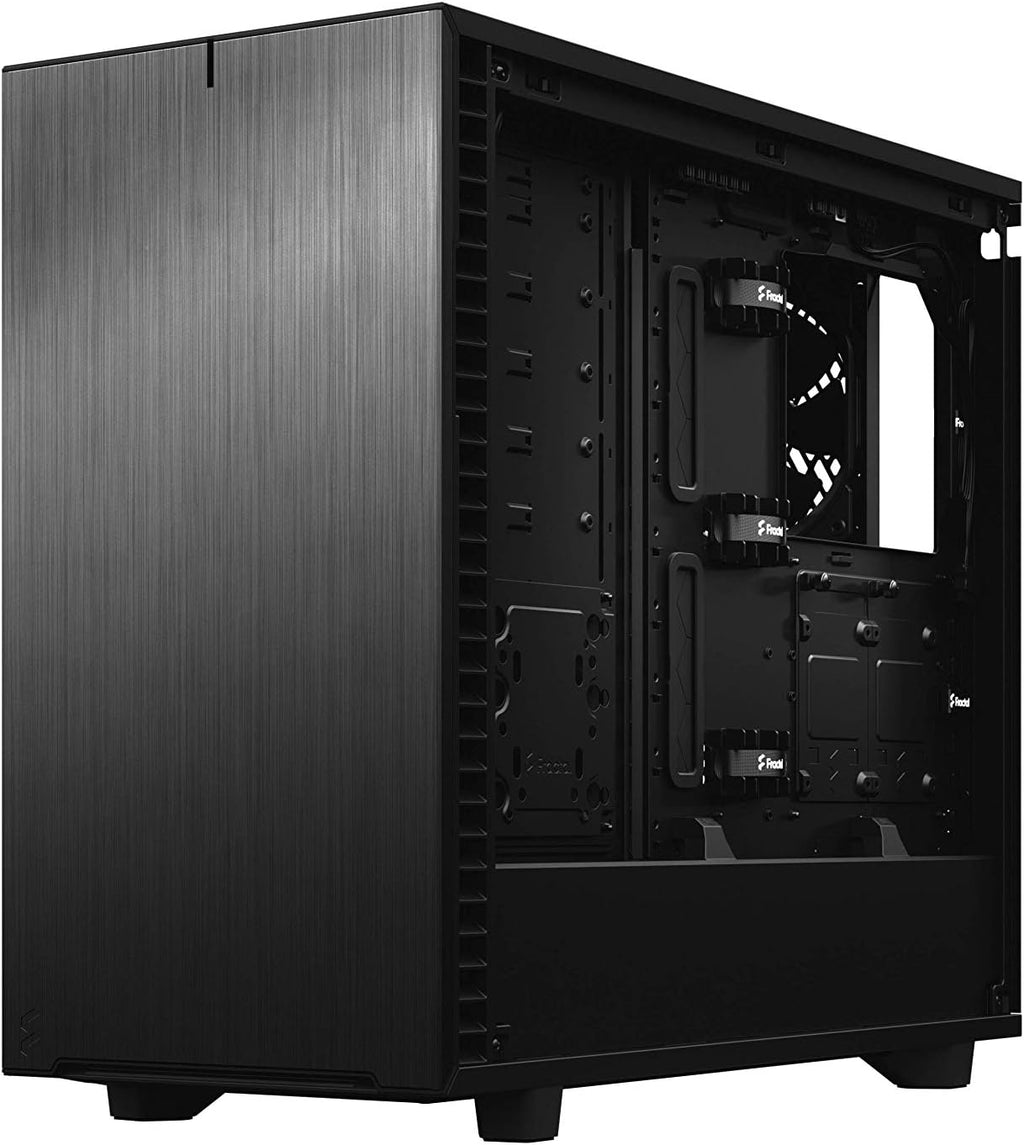

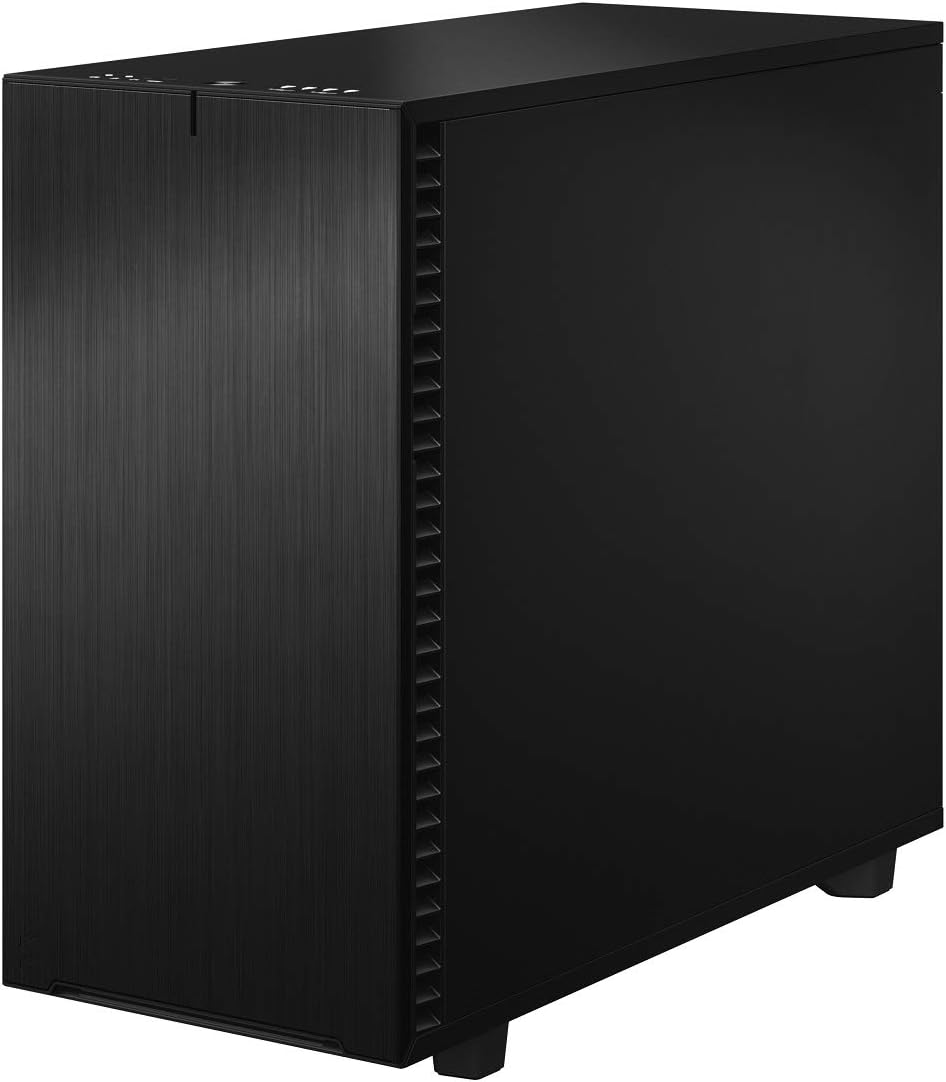

Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Roll over image to zoom in Click on image to zoom
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03
Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03

Fractal Design Define 7 Black Dark Tempered Glass ATX Case FD-C-DEF7A-03

FRACTAL DESIGN
Price:
HK$1,280.00

Description

Fractal Design Define 7
Fractal Design Define 7

Fractal Brand Logo
About Fractal Design

Fractal Design is a PC gaming hardware manufacturer based in Gothenburg, Sweden.

Since its inception in 2007, Fractal has developed gaming products which fuse Scandinavian design, user-centric innovation and premium quality. Today, Fractal offers gaming hardware to customers around the globe from its offices in Sweden, Taiwan, China and the US.

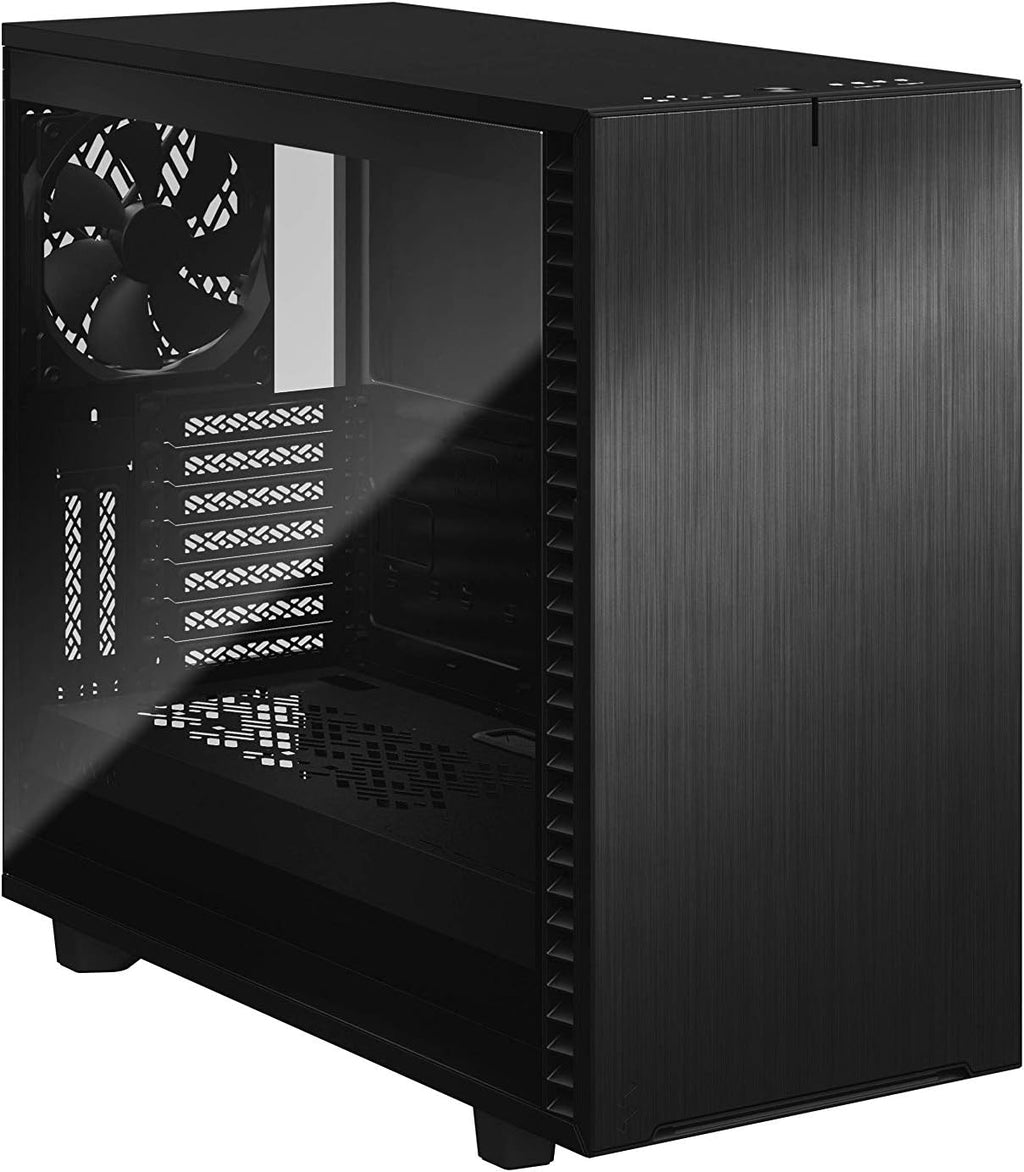

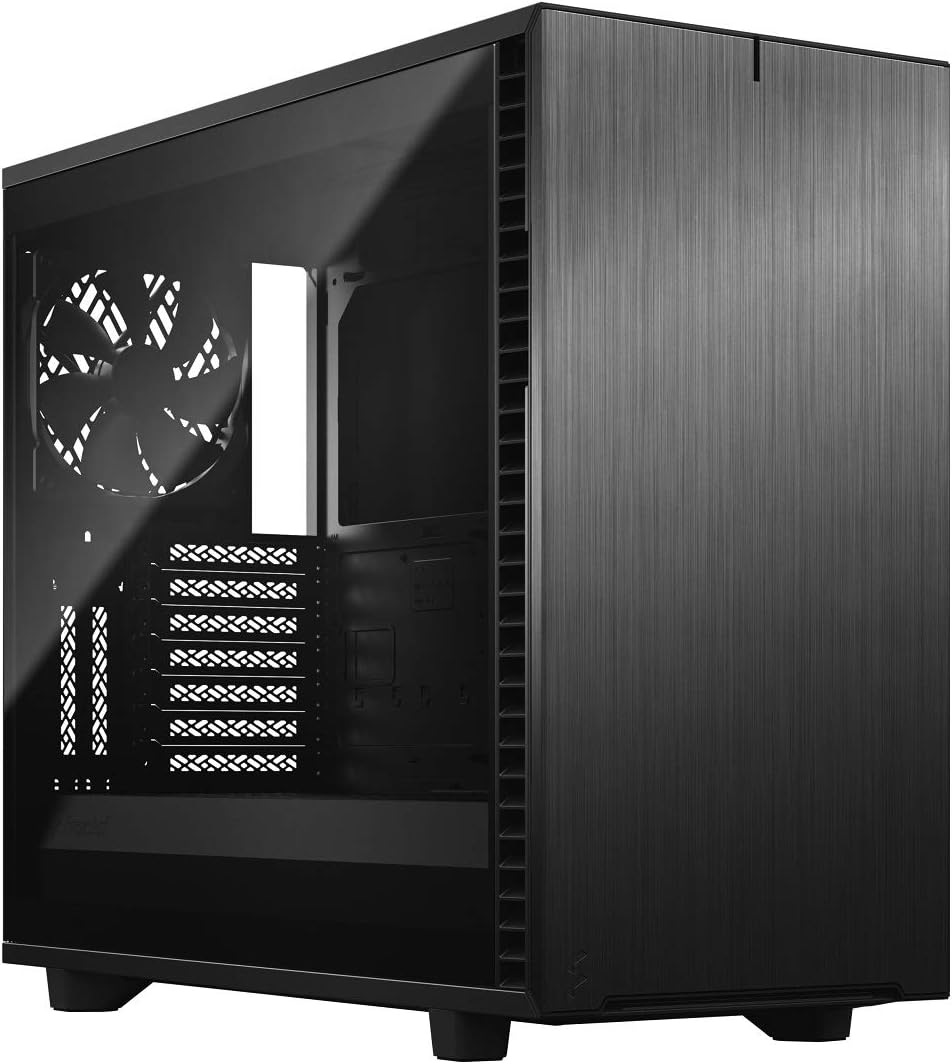

Fractal Design Define 7 Tempered Glass

Re-defining versatility

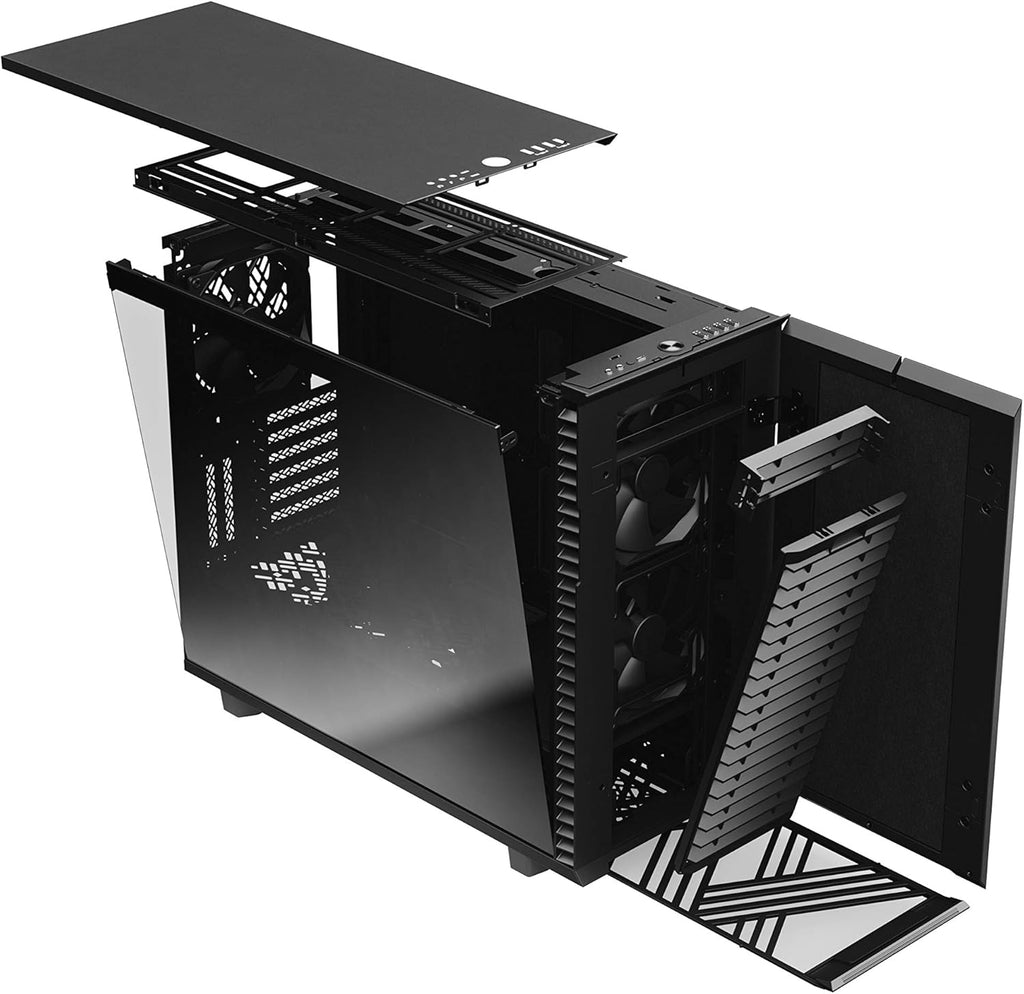

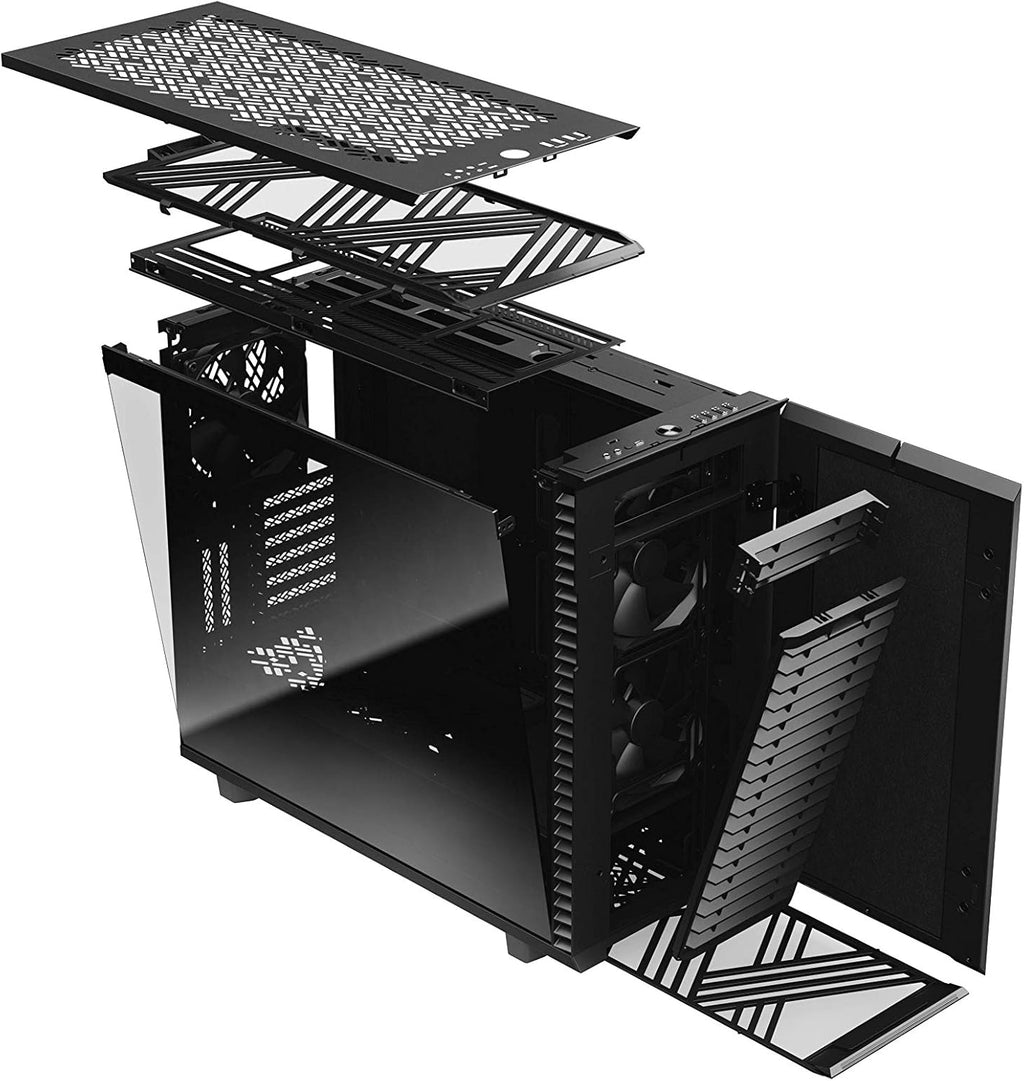

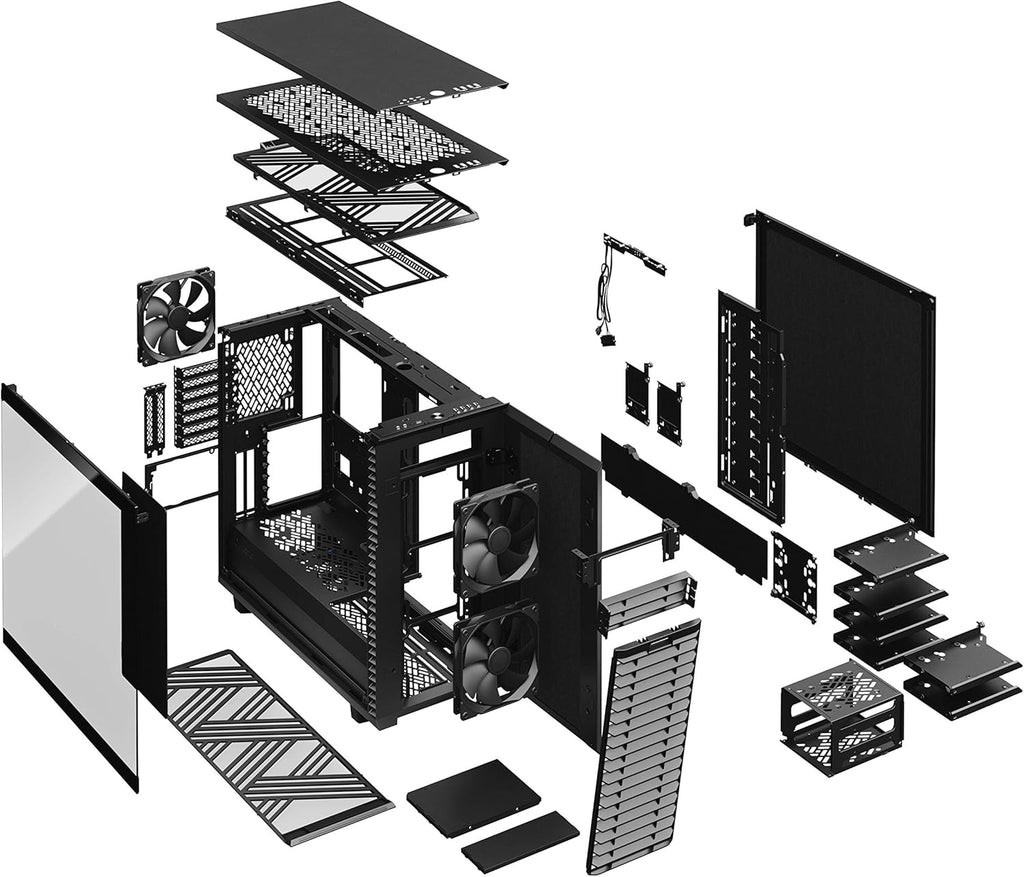

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.

The dual-layout interior, industrial sound damping, and classic styling make it an easy choice for any design-conscious PC builder in need of a versatile and dependable case that accommodates ambitious builds and leaves your room to grow.

  • Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
  • Silence-optimized construction with industrial sound-damped front, top, and side panels
  • Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount

UltraFlex feature of Fractal Ion Plus PSU

Superlative storage

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts

Fractal Design Define 7

Type-C interface

Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps

Fractal Design Define 7

Versatile new multi-brackets

The included multi-bracket lets you convert any unused fan position to an HDD, SSD or pump mount.


Fractal Design Define 7

Generous space

Define 7's roomy internal layout easily accommodates large motherboards up to and including 285 mm E-ATX

Fractal Design Define 7

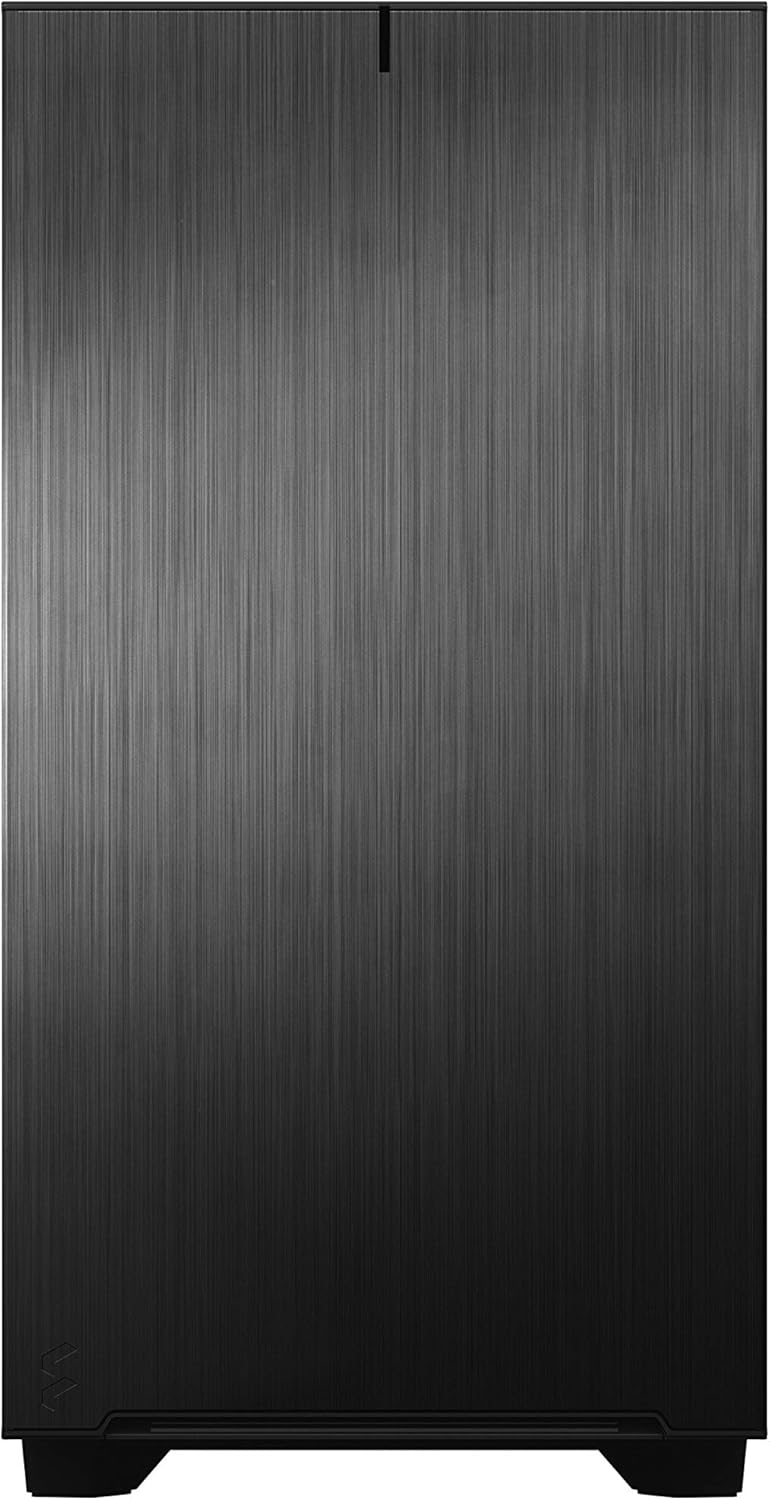

Elegant new front design

Brushed aluminum encases a refined front door design with dual-handed reversible hinges and magnetic latching.

Fractal Design Define 7

Superior airflow

You'll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

Fractal Design Define 7

Specification

  • 3.5"/2.5" hard drive cage
    6 included, can hold up to 14
  • 2.5" dedicated hard drive bracket
    2 included, can hold up to 4
  • 5.25" Hard Drive Cage
    1

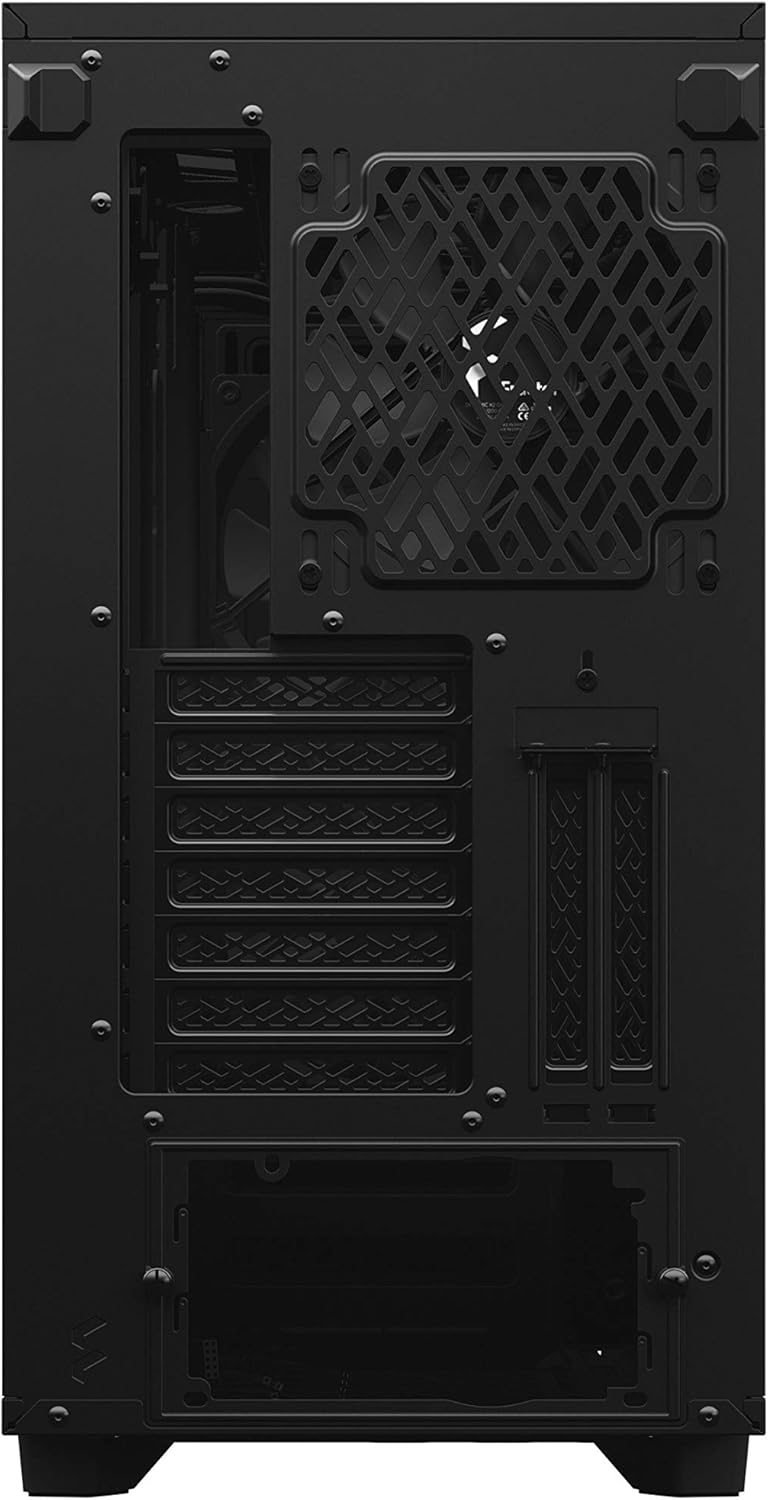

  • Expansion slot
    7+2
  • Front panel interface
    1 USB 3.1 Gen 2 Type-C port, 2 USB 3.0 ports, 2 USB 2.0 ports, audio in/out, power button, reset button
  • Total number of fans
    9 x 120/140mm fans
  • Front fan
    3 x 120/140mm fans (2 x Dynamic X2 GP-14 included)
  • Top fan
    3 x 120/140mm fans
  • Rear fan
    1 x 120/140mm fan (includes 1 x Dynamic X2 GP-14)
  • Bottom fan
    2 x 120/140mm fans
  • Filter
    1 set of top cover, 2 sets of front panels, 1 set of bottom plate (covering area including power supply)
  • Rubber cable management hole
    have
  • Velcro cable tie
    have
  • Hand-turn anti-loosening screw
    HDD hard drive rack, SSD hard drive rack

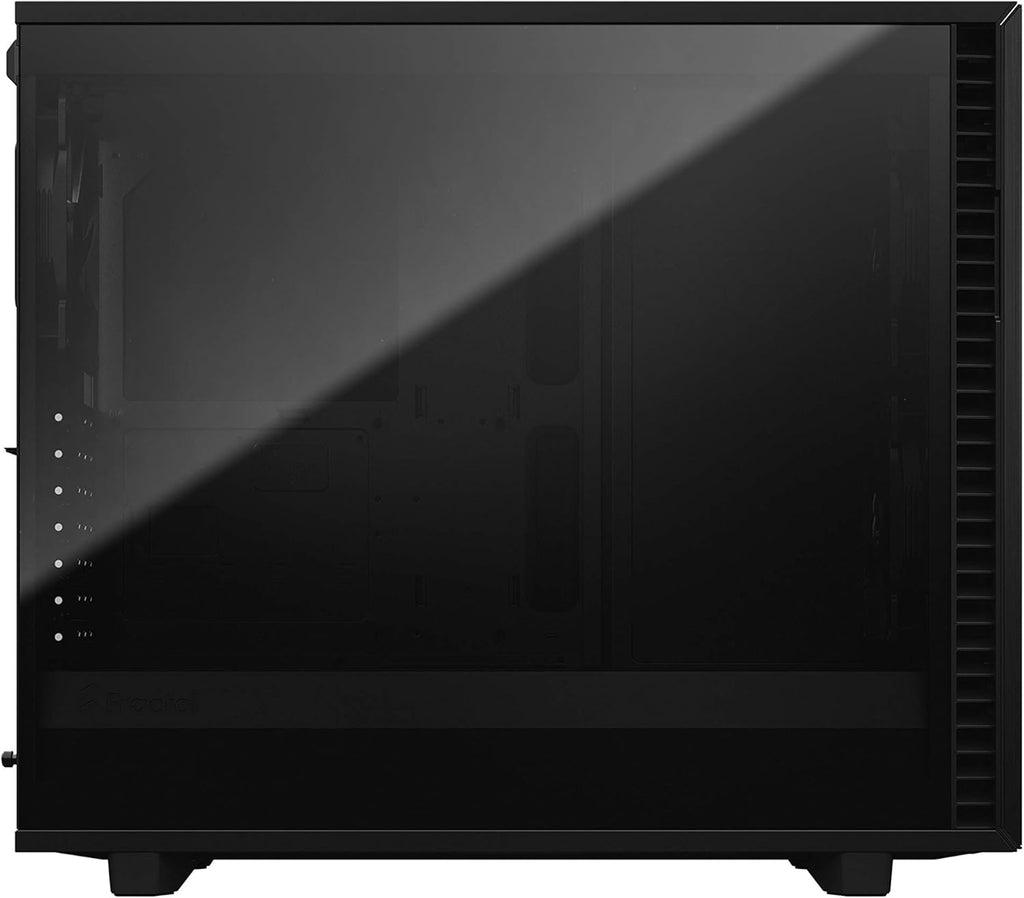

  • Left side panel
    Industrial soundproof steel plate or tempered glass
  • Right side panel
    Industrial soundproof steel

Dimensions

  • Motherboard compatibility
    E-ATX (max 285 mm) / ATX / mATX / mITX
  • Power Supply Compatibility
    ATX
  • Maximum length of power supply
    250mm (after installing HDD cage)
  • Display adapter maximum length
    Standard layout: 290mm - Open layout: 470mm (445mm; with front fan installed)
  • CPU cooler height limit
    185mm
  • Front radiator
    Maximum support 360/280mm
  • Top radiator
    Maximum support 360/420mm
  • Rear radiator
    120 mm
  • Bottom radiator
    Maximum support 240/280mm

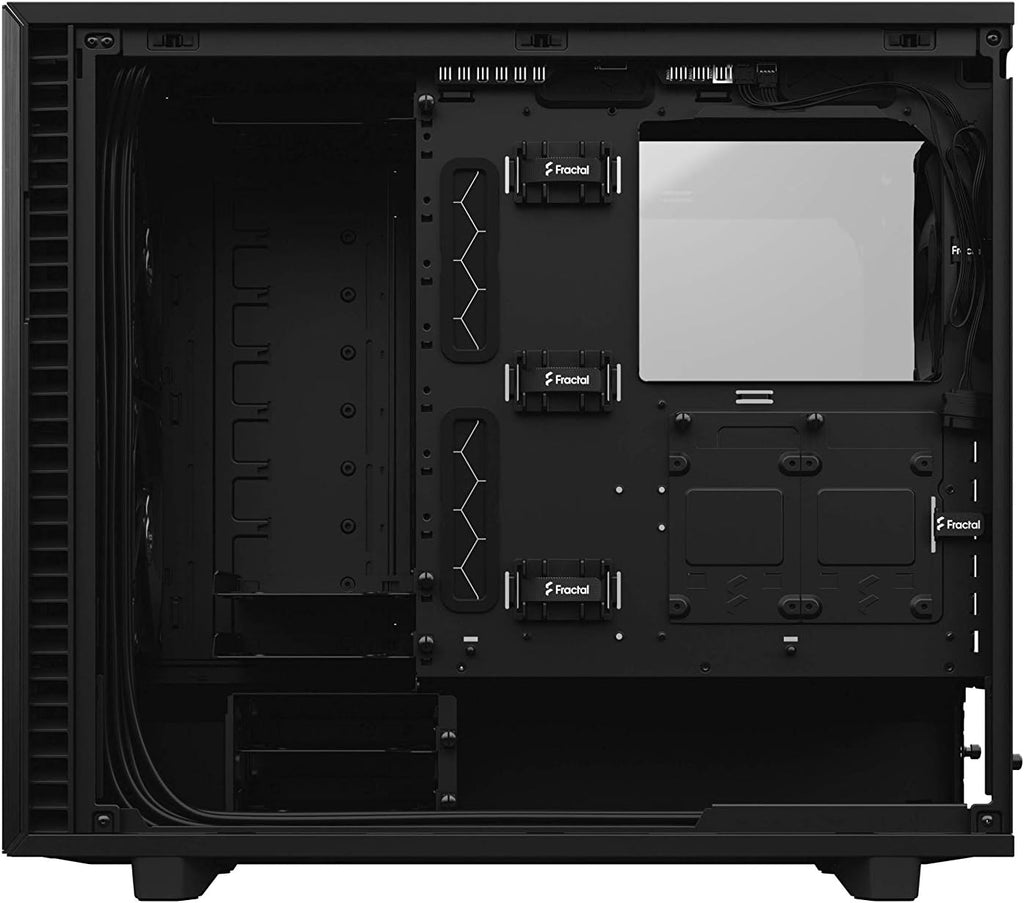

  • Wiring space
    30mm
  • Vertical GPU Support (with Flex VRC-25)
    65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling

Set Contents

  • Case size (length*width*height)
    547 x 240 x 475mm
  • Case dimensions (without feet/protrusions/screws)
    533 x 240 x 451mm
  • Packing size (length*width*height)
    558 x 363 x 641mm
  • net weight
    13.45kg
  • Total weight
    15.94kg
  • Volume
    57.7 liters
