Description
| GENERAL SPECS | |
| Operating temperature | |
| 32 °F to 104 °F (0 °C to 40 °C) | |
| Storage temperature | -4 °F to +140°F (-20 °C to °C) |
| Operating relative humidity (% RH without condensation) | 95 % (50 °F to 95 °F; 10°C to 35 °C) |
| 75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C) | |
| Vibration | Random, 2g, 5Hz-500Hz |
| Shock | 1 m drop test |
| Safety | EN 61010-1, Category: None |
| Altitude | 3000m |
| EMC | EN 61326-1, FCC Part 15 B |
| Battery type and life | 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical |
| Applications | Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cablemap function of the IntelliTone 200. |

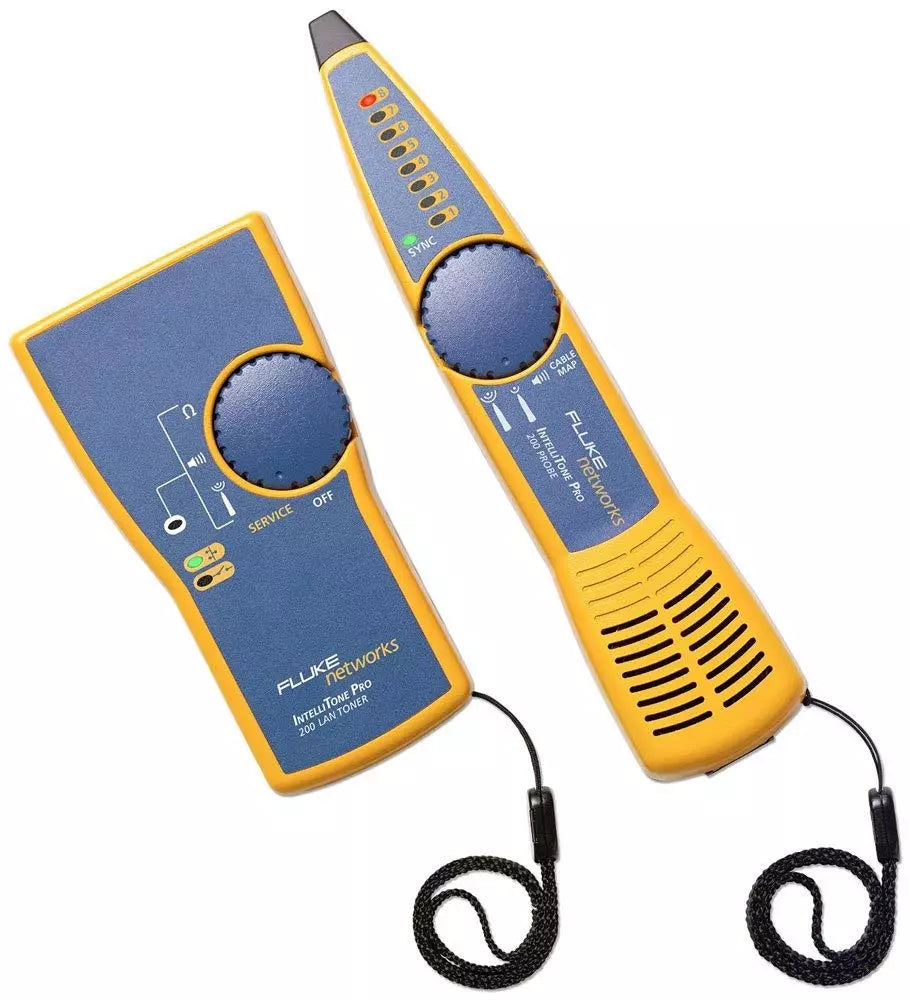

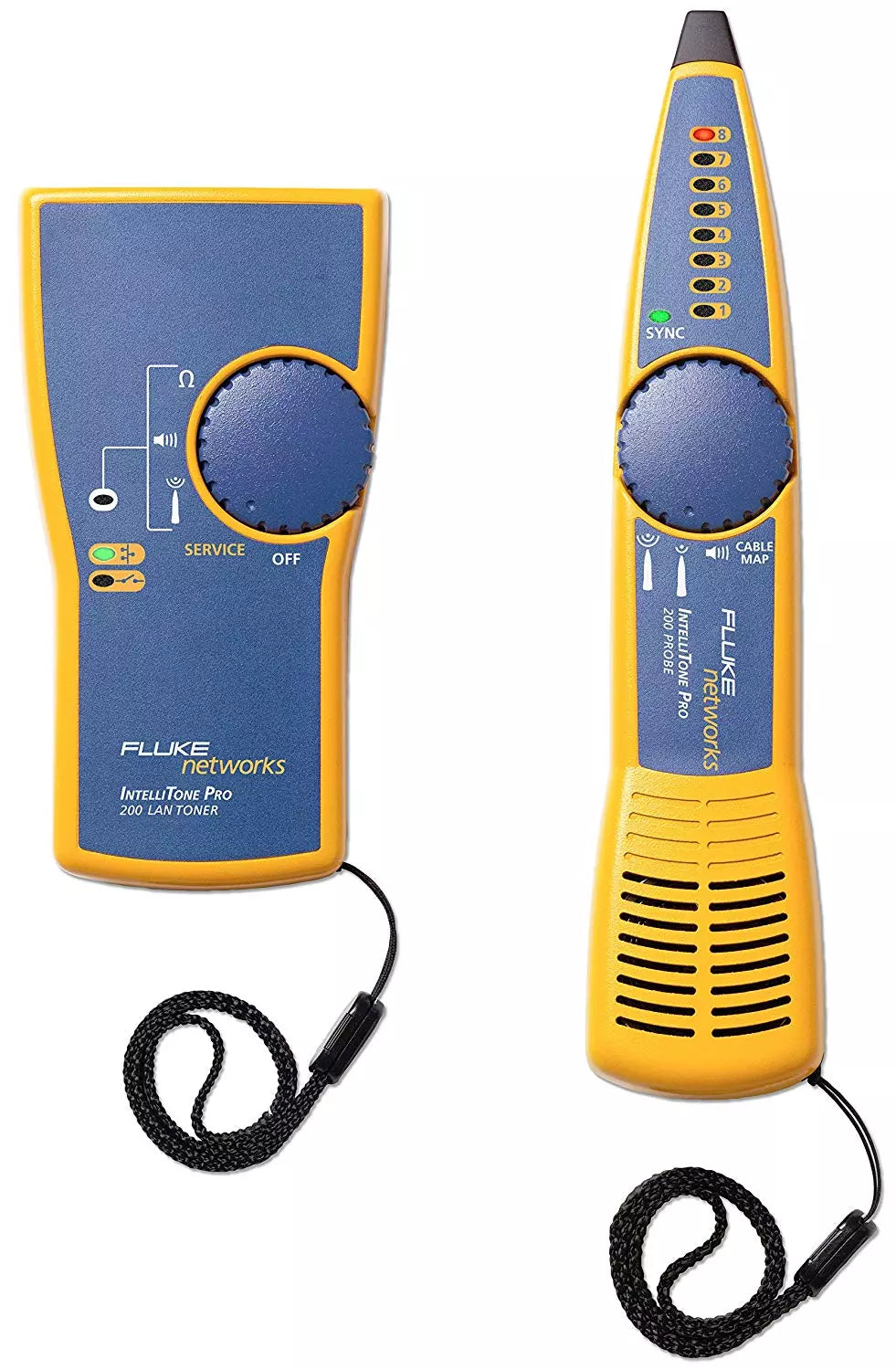

| TONER SPECS | |
| Dimensions | 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm) |
| Display | led |
| Control | Thumbwheel switch |
| Toner interface | Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring |
| Toner frequency | IntelliTone™ signal: encoded digital signal |
| Analog SmartTone signal: 500 - 1200Hz, 4 songs | |
| Ouptut power | 5Vpp |
| Auto power down | Turns off automatically after 2 1/2 hours of inactivity |

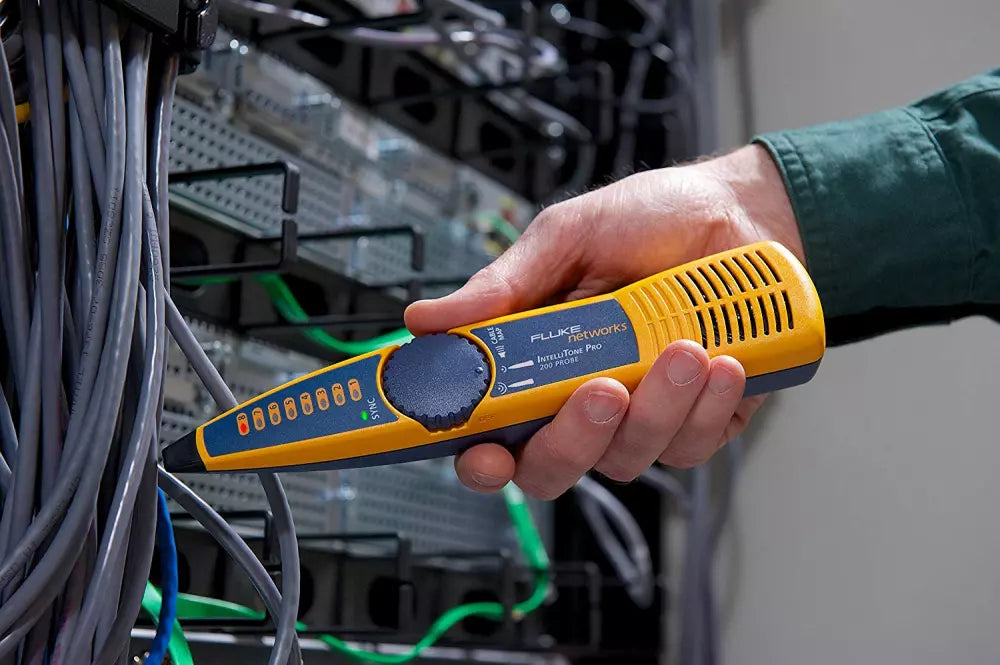

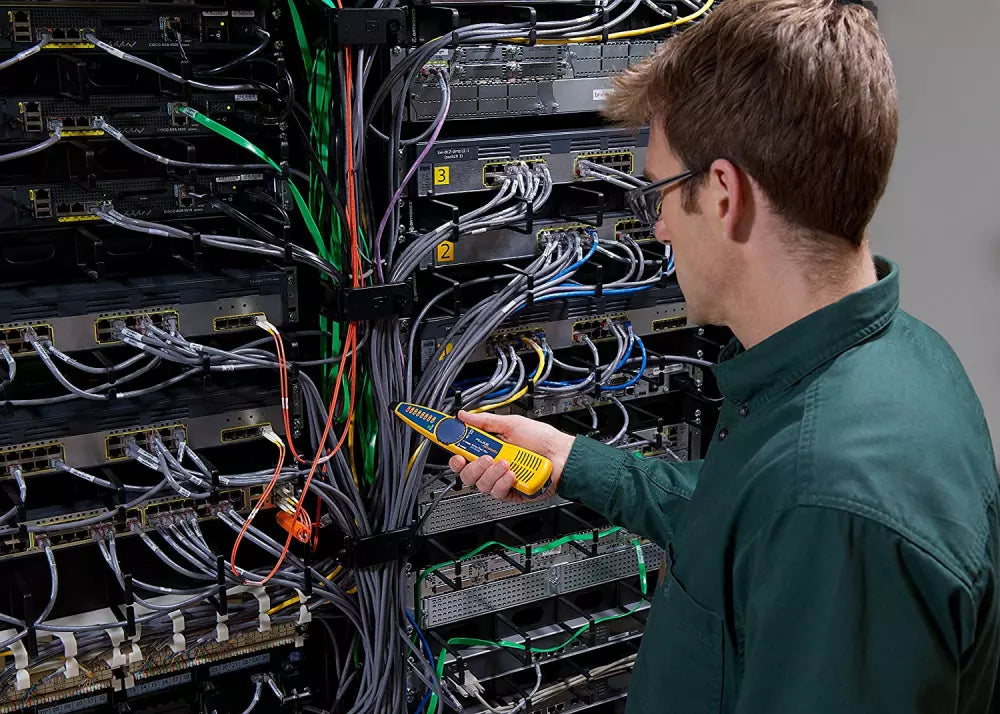

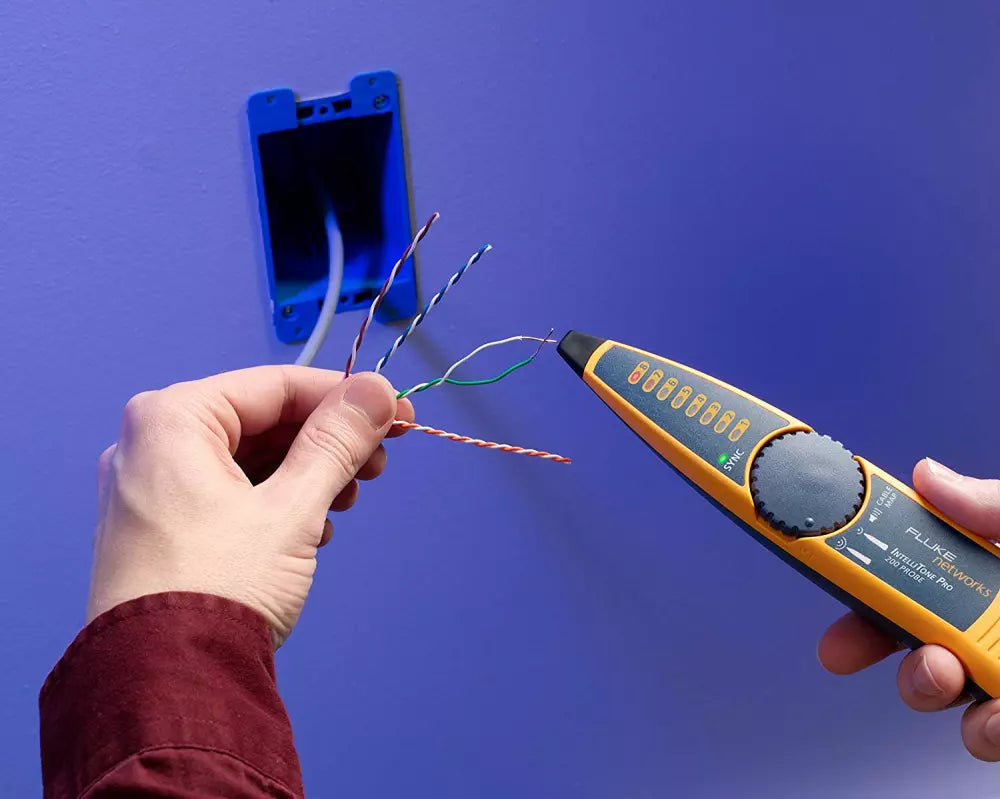

| PROBE SPECS | |
| Dimensions | 8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm) |
| Display | (8) LED indicators, Sync LED indicator |
| Audio | IntelliTone: Microprocessor controlled audio files |
| Analog: Detected toner signal | |
| Control | Thumbwheel switch, volume control wheel |
| Tone detection | Detects IntelliTone™ digital signal for Locate, Isolate, and CableMap |
| Detects analog SmartTone signal (500-1200Hz) and other analog toners. | |
| Toner interface | Main Mod8 port for cablemap on all 4 pairs of UTP / STP cabling. |
| Auto power down | Turns off automatically after 1 hour of inactivity |
