Description

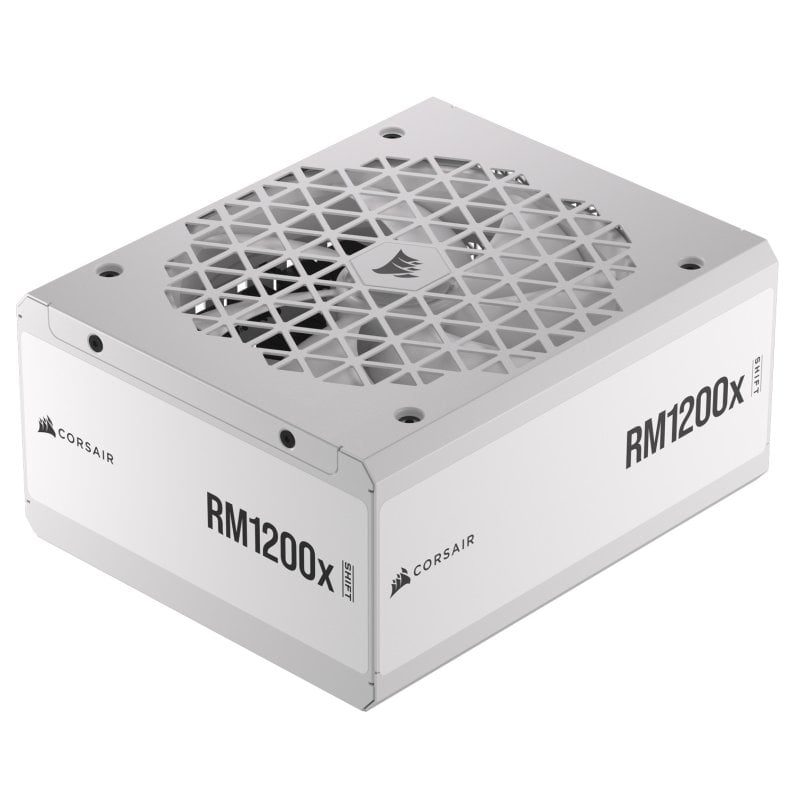

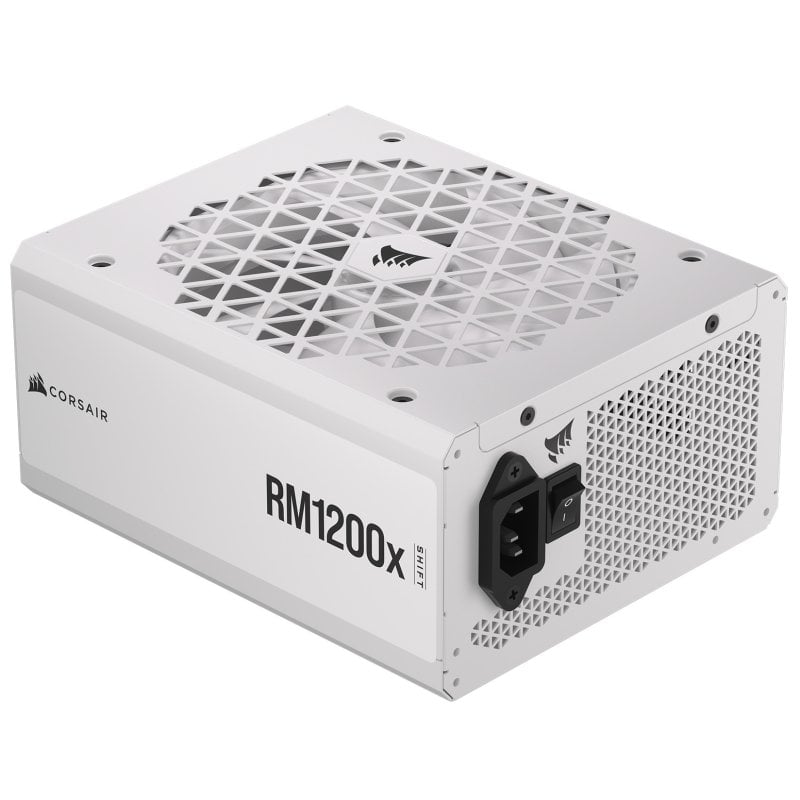

RM1200x SHIFT 80 PLUS Gold fully modular ATX power supply (CN)
The CORSAIR RMx SHIFT series of fully modular power supplies are equipped with an extraordinary side cable interface (patent pending) to ensure that all your connections are within easy reach, and the power supply is a very convenient 80PLUS Gold certified high-efficiency power supply.
RM1200X SHIFT power supply specification sheet
| model | RPS0162 | |
|---|---|---|
| Part Number | CP-9020254/75-005193 | |
| Rated AC input | ||
| AC input | 100–240V | |
| Input Current | 15A–7.5A | |
| frequency | 47~63Hz | |
| maximum load | maximum output | |
| +3.3V | 20A | 150W |
| +5V | 20A | |
| +225 | 100A | 1200w |
| +5Vsb | 3A | 15W |
| total power | 1200w | |
