Description
Features
Hardware
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17¨ or 19¨ LED-backlit LCD monitor in a Dual Rail housing
- A single console control up to 16 computers
- Daisy chain up to 15 additional KVM switches to control up to 256 computers*
- One bus for remote KVM over IP access
- Space-saving RJ-45 connectors and Cat 5e/6 cabling
- KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
- Extra console – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
- Multiplatform support: PC, Mac, Sun Serial
- Supports external USB mouse
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
- Dual Rail – LCD monitor slides independently of the keyboard/touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock – enables the console drawer to remain securely locked away in position when not in use
- LCD power button helps save energy and prolong displays´ life
- Superior Video Quality – supports input video resolutions up to 1920 x 1200 @ 60Hz** up to 30 meters, 1600 x 1200 @ 60Hz up to 40 meters, and 1280 x 1024 @ 75Hz up to 50 meters
- Optional rack mount kits available including easy installation options
* Compatible KVM switches: KH1508A / KH1516A , A CS12 08A/A CS12 16A, CS1708A / CS1716A
** With KVM Adapter Cable KA71xx or KA75xx series; please check the product label to ensure it's the FHD version.
Management - Up to 64 user accounts
- Up to 32 concurrent logins
- End session feature – administrators can terminate any running session
- Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Remote power control for attached Power Over the NET™ devices
- Integration with ATEN CC2000 Management software
- Event logging and Windows-based Log Server support
- Local Log Event
- Firmware upgradeable
- IPv6 capable
Easy-to-Use Interface - Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
- Local Console, Browser, and AP GUIs offer a unified interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
- Panel Array Mode™
- Keyboard broadcast* – keyboard input can be duplicated on all the attached servers
* Local Console only
Advanced Security - Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- Supports TLS 1.2 encryption and RSA 2048-bit certificates to secure users log in from
- Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
- IP/MAC Filter support for enhanced security protection
- Configurable user and group permissions for server access and control
Virtual Remote Desktop - Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full-screen or sizable and scalable Virtual Remote Desktop
- Message board feature allows logged in users to communicate with each other
- Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
- On-screen keyboard with support
- BIOS-level access
- Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

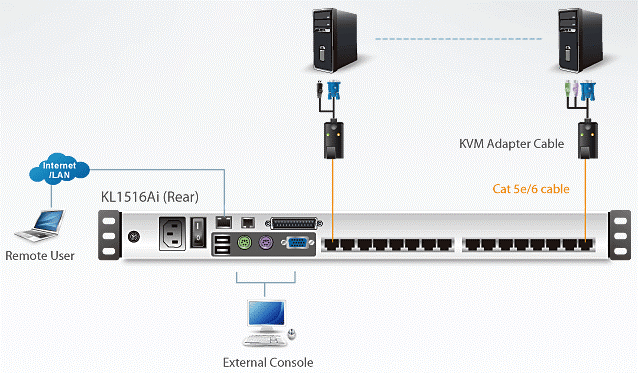

Diagram Description
Specifications
| Function | KL1516AiM | KL1516AiN |
| Console Connections | ||
| Local | 1 (Share Remote Bus) | 1 (Share Remote Bus) |
| Remote | 1 | 1 |
| Computer Connections | ||
| Direct | 16 | 16 |
| Maximum | 256 (via Daisy-chain) | 256 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbuttons | OSD, Hotkey, Pushbuttons |
| Connectors | ||
| Console Ports | 2 x USB Type-A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue) |
2 x USB Type-A Female (White) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue) |
| External Mouse Port | 1 x USB Type-A Female | 1 x USB Type-A Female |
| KVM Ports | 16 x RJ-45 Female | 16 x RJ-45 Female |
| Daisy Chain Ports | 1 x DB-25 Male | 1 x DB-25 Male |
| PON | 1 x RJ-45 Female | 1 x RJ-45 Female |
| Firmware Upgrade | 1 x RJ-11 Female | 1 x RJ-11 Female |
| LAN Ports | 1 x RJ-45 Female | 1 x RJ-45 Female |
| Power | 1 x IEC 60320/C14 | 1 x IEC 60320/C14 |
| Switches | ||
| Port Selection | 16xPushbutton | 16xPushbutton |
| Station Selection | 2xPushButton | 2xPushButton |
| Reset | 1 x Semi-recessed Pushbutton | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide | 1 x Slide |
| Power | 1 x Rocker | 1 x Rocker |
| LCD Power | 1xPushButton | 1xPushButton |
| LCD Adjustment | 4xPushButton | 4xPushButton |
| LEDs | ||
| Online | 16 (Green) | 16 (Green) |
| Selected | 16 (Orange) | 16 (Orange) |
| Station Selection | 2 x 7 Segments (Orange) | 2 x 7 Segments (Orange) |
| Link | 1 (Green) | 1 (Green) |
| 10/100/1000Mbps | non-FHD:10/100 Mbps (Orange / Green) FHD:100/1000 Mbps (Orange / Green) |
non-FHD:10/100 Mbps (Orange / Green) FHD:100/1000 Mbps (Orange / Green) |
| Power | 1 (Blue) | 1 (Blue) |
| LCD Power | 1 (Orange) | 1 (Orange) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| Video | ||
| Local | 1600 x 1200 @ 60Hz (non-FHD version) 1920 x 1200 @ 60Hz (FHD version) |
1600 x 1200 @ 60Hz (non-FHD version) 1920 x 1200 @ 60Hz (FHD version) |
| Remote | FHD: 1920 x 1200 @ 60Hz Non-FHD: 1600 x 1200 @ 60 Hz |
FHD: 1920 x 1200 @ 60Hz Non-FHD: 1600 x 1200 @ 60 Hz |
| Panel Spec | ||
| LCD Module | 17" TFT-LCD | 19" TFT-LCD |
| Resolution | 1280x1024@75Hz | 1280x1024@75Hz |
| Pixel Pitch | 0.264 mm x 0.264 mm | 0.294 mm x 0.294 mm |
| Response time | 5 ms | 5 ms |
| Viewing Angle | 170° (H), 160° (V) | 170° (H), 160° (V) |
| Support Color | 16.7M colors | 16.7M colors |
| Contrast Ratio | 1000:1 | 1000:1 |
| Luminance | 250cd/m² | 250cd/m² |
| Emulation | ||
| Keyboard/Mouse | PS/2; USB | PS/2; USB |
| Scan Interval | 1–255 sec. | 1–255 sec. |
| Maximum Input Power Rating | 100–240V AC, 50-60Hz, 1A | 100–240V AC, 50-60Hz, 1A |
| Power Consumption | AC110V:21.2W:110BTU/h AC220V:23.1W:119BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
AC110V:24.4W:125BTU/h AC220V:25.4W:130BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | ||
| Operating Temperature | 0-40°C | 0-40°C |
| Storage Temperature | -20-60°C | -20-60°C |
| Humidity | 0–80% RH, non-condensing | 0–80% RH, non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 15.24kg (33.57lb) | 15.40kg (33.92lb) |
| Dimensions (L x W x H) | 48.00 x 70.12 x 4.40 cm (18.9 x 27.61 x 1.73 in.) |
48.00 x 70.12 x 4.40cm (18.9 x 27.61 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
