Description
ATEN's high-end 4K HDMI KVMP Switch is now available!

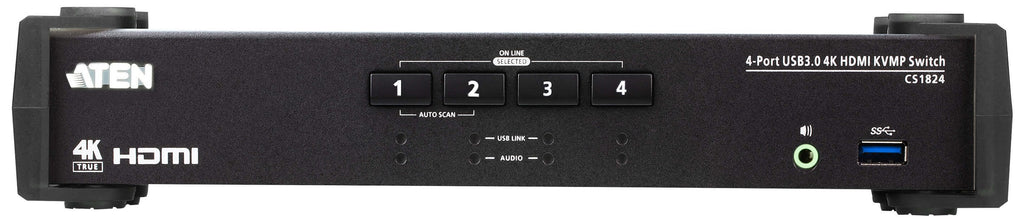

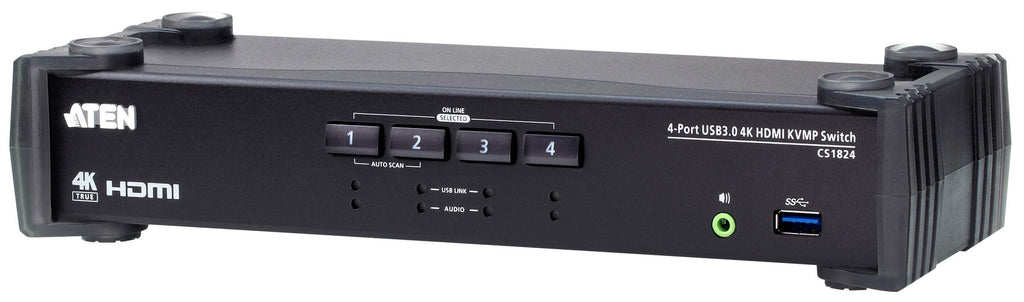

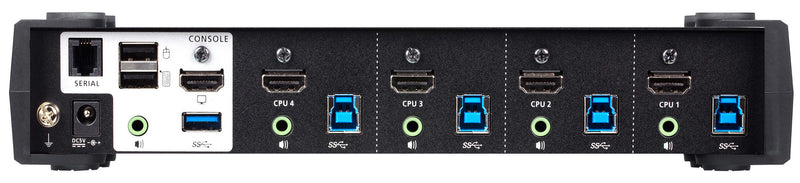

CS1822/CS1824 - 2/4 Port USB3.0 4K HDMI KVMP Switch
Efficient operation in finance / design / control room!
●4*HDMI 4K UHD/DCI@60Hz input
●Console HDMI 4K UHD/DCI@60Hz/ Keyboard / Mouse
●HDMI2.0/HDCP2.2/Video DynaSync
●HD Audio + 3.5mm Audio
● Single / dual audio source mixing processing
●2*USB 3.1/ 5Gbps extremely fast peripheral sharing
● Independent switching of KVM/USB/Audio
● Four switching methods cross-platform support

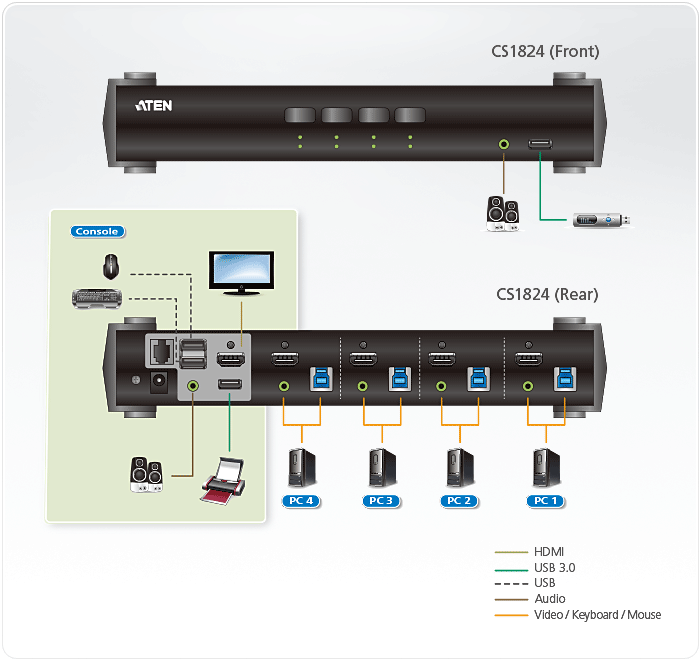

ATEN , the world's No. 1 KVM Switch brand , has continuously innovated over the years, taking into account the application needs of the professional market, and launched the latest high-end 4K HDMI KVMP Switch : CS1822/CS1824 - 2/4 Port USB3 .0 4K HDMI KVMP Switch . CS1822/CS1824 supports 2/4 computers with 4K HDMI output , and uses a set of keyboard , mouse , and 4K HDMI screen as console , providing an extremely smooth control experience at 60Hz . HDMI2.0 , HDCP2 .2 and Video DynaSync allow CS1822/CS1824 to pass protected audio and video content while ensuring that the screen can be presented at the best resolution; it supports embedded HD Audio and 3.5mm Audio , and is equipped with Audio Mixer function support Single / dual audio source mixing ; 2 USB 3.1 provide 5Gbps ultra-fast peripheral sharing. Users can switch via panel buttons, Hotkey , mouse, or RS-232 , and KVM/USB/Audio can also be switched independently . It is especially suitable for high- end complex applications such as finance / design / control rooms, etc. to comprehensively improve work efficiency.
● HDMI 4K UHD/DCI@60Hz input / HDMI 4K DCI@60Hz console
CS1822/CS1824 supports 4K UHD/DCI@60Hz HDMI output audio and video from each computer . In addition to built-in HD Audio , it can also be independently connected to 3.5mm speakers and controlled via a keyboard / mouse and 4K HDMI screen for console control. Supports up to 4K DCI@60Hz , providing a new generation of smooth control experience.
● Single / dual source mixing
CS1822/CS1824 is equipped with Audio Mixer function to support single / dual audio source mixing processing :
Standard single source processing-
You can choose to output the currently controlled source audio or any non-controlled source audio;
Dual audio source mixing processing-
Lock an audio source and mix it with the source audio currently under control;
Locks the mixed output of two audio sources, regardless of switching devices
● Exclusive Video DynaSync technology /HDCP/ USB 3.1
ATEN's exclusive Video DynaSync technology can help KVM multi-computer switches switch to different video device sources, eliminate image display problems that may occur when the device is turned on , and at the same time optimize the screen display resolution . It also supports HDCP and supports HDMI audio and video with copyright protection protocols ( such as Bluray , Set Top Box , etc. ) . Equipped with two USB3.1 to provide high-speed connection of up to 5Gbps to USB peripheral products ( such as USB finger, Printer , Scanner , etc. ) .
● Independent switching of KVM/USB/Audio
To facilitate different applications, users can independently switch the KVM/USB/3.5mm port audio connected to CS1822/CS1824 .
● Four switching methods cross-platform support
Users can use the four switching methods of CS1822/CS1824 panel buttons / hot keys / mouse wheel /RS232 to greatly improve the flexibility of computer switching. Compatible with Windows/Mac/Linux , higher flexibility of use.
