| Computer Connections |
4 |
| Port Selection |
Hotkey, Pushbutton, OSD, Mouse |
| Connectors |
| Console Ports |
2 x USB Type A Female (Black)
1 x HDB-15 Female (Blue)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink) |

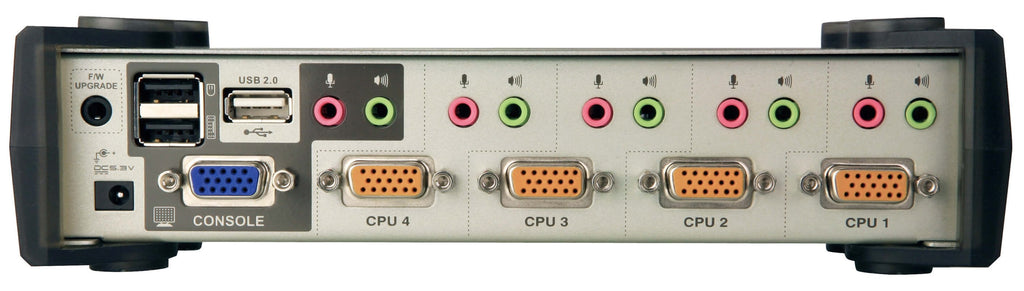

| KVM Ports |
4 x SPHD-15 Female (Yellow)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink) |
| Firmware Upgrade |
1 x 4-conductor 3.5mm Jack (Black) |
| Power |
1 x DC Jack |
| USB Hub |
2 x USB Type A Female (White) |

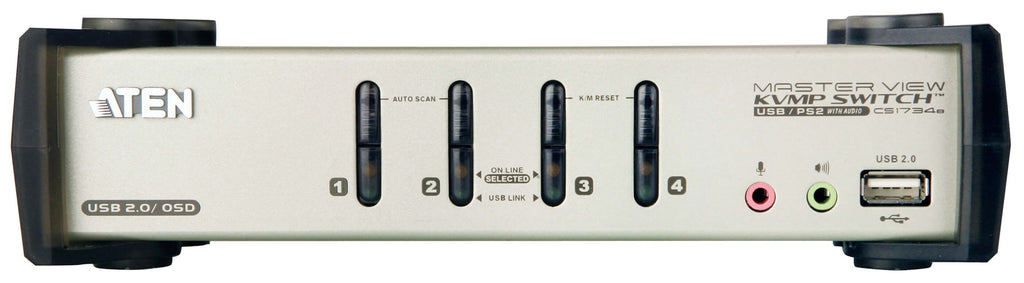

| Switches |
| Selected |
4 x Pushbutton |
| LEDs |
| Online / Selected |
4 (Orange) |
| USB Link |
4 (Green) |
| Emulation |
| Keyboard / Mouse |
PS/2; USB |
| Video |
2048 x 1536 @ 60Hz; DDC2B |
| Scan Interval |
1-255 Seconds (Default: 5 sec.) |
| Power Consumption |
DC5.3V:2.8W:39BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental |
| Operating Temperature |
0-50°C |
| Storage Temperature |
-20-60°C |
| Humidity |
0-80% RH, Non-condensing |
| Physical Properties |
| Housing |
Metal |
| Weight |
0.78 kg ( 1.72 lb ) |
| Dimensions (L x W x H) |
21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.) |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
