Description
- 消除 WiFi 訊號死角 — 三頻網狀 WiFi 系統與獨特天線配置可為住家的每個角落帶來強大的 WiFi 訊號，以提供 6600Mbps 的總體無線傳輸速度。
- 全新Mesh系統 – 輕鬆架構全屋無線訊號，可任意遊走無縫切換不斷線，更可依需求靈活擴充設備，同步支援獨家AiMesh功能
- 輕鬆簡易的控制 – 使用 ASUS Router App 只需 3 步驟即可完成設定並輕鬆管理。
- 持續更新的防護功能 — 由 Trend Micro™ 提供的終身免費網路安全功能，確保您連網裝置的隱私受到保護。
- 家長控制功能 — URL 過濾與排程功能可讓您保護家人以避免瀏覽不當的內容，以及不健康的網際網路使用方式。

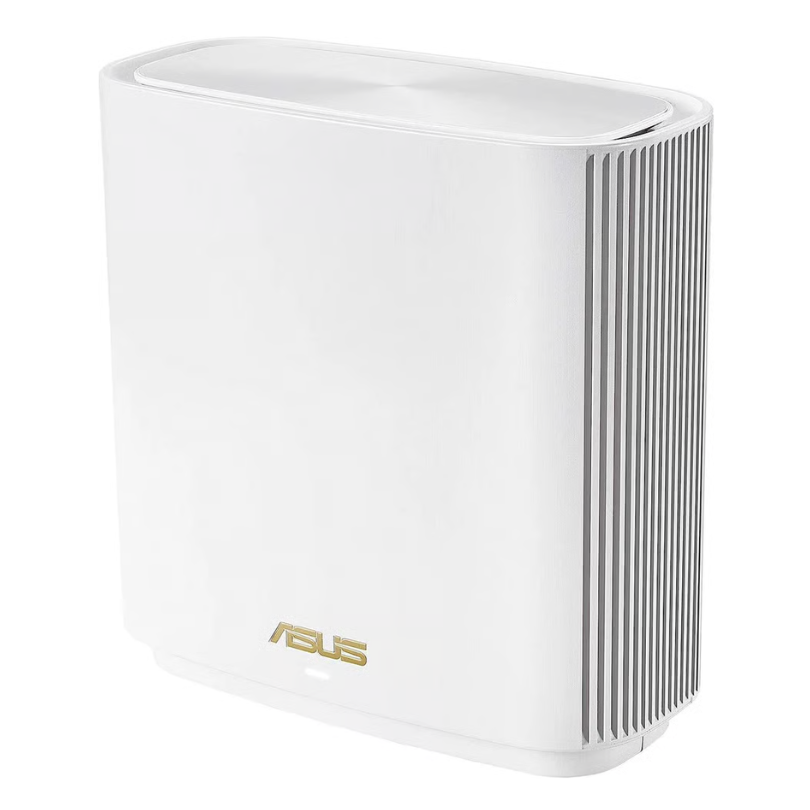

XT8 (W-1-PK)
IPv6
IPv4
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
AX6600 ultimate AX performance：574+1201+4804Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 1201 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
802.11ax (2.4GHz)：最高 450 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
802.11g : up to 54 Mbps
802.11b : up to 11 Mbps
802.11a : up to 54 Mbps
Internal antenna x 6
5GHz-2 4x4
5GHz-1 2x2
2.4GHz 2x2
256 MB Flash
512 MB RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
2.4G Hz, 5 GHz-1, 5 GHz-2
Wireless router mode
Access point mode
RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.1 Gen 1 x 1
WPS Button, Reset Button, Power Switch
Power x 1
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
DC Output : 12 V with max. 3 A current
ZenWiFi AX
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
716 g
160 x 75 x 161.5 mm
AiMesh, Primary AiMesh router, AiMesh node
Parental Control, Parental Control - Safe Browsing
ASUS Router APP
Guest Network, • Maximum Guest Network Rule : Max 9 rules
WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support, WPS, Let's Encrypt, DNS-over-TLS, Security Scan, Firewall, • Maximum Firewall Keyword Filter : Max 64 rules, • Maximum Firewall Network Service Filter : Max 32 rules, • Maximum Firewall URL Filter : Max 64 rules
AiProtection Pro, Malicious site blocking, 有, Infected Device Prevention and Blocking
VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
有, 有, 有
有, 有, DMZ, DDNS
IGMP snooping, IPTV, Wake on LAN (WOL)
UTF-8 SSID, 有, • Maximum MAC Filters : Max 64 rules, 有, 有, 有, 有, 有
File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4, 有, 有, 有, 有, 有, 有
Diagnosis tools, Feedback system, System log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
