A high-quality SDI monitor is required to quickly perform color grading and manage production workflow on the shooting scene. Accurate, true-to-life color and camera detail can be reproduced and presented to the director/client.
With the 12G-SDI input connection, creators using SDI PCIe capture cards or capture boxes can directly connect to the PA24US via SDI instead of HDMI, thereby providing 4K high-quality uncompressed video for accurate previewing. Image effects.
Ultra-high-resolution displays with wide color gamut performance are essential for 4K HDR video production. Factory pre-calibration ensures industry-leading color fidelity, wide color gamut, and Delta E <1 color difference for superior color accuracy.

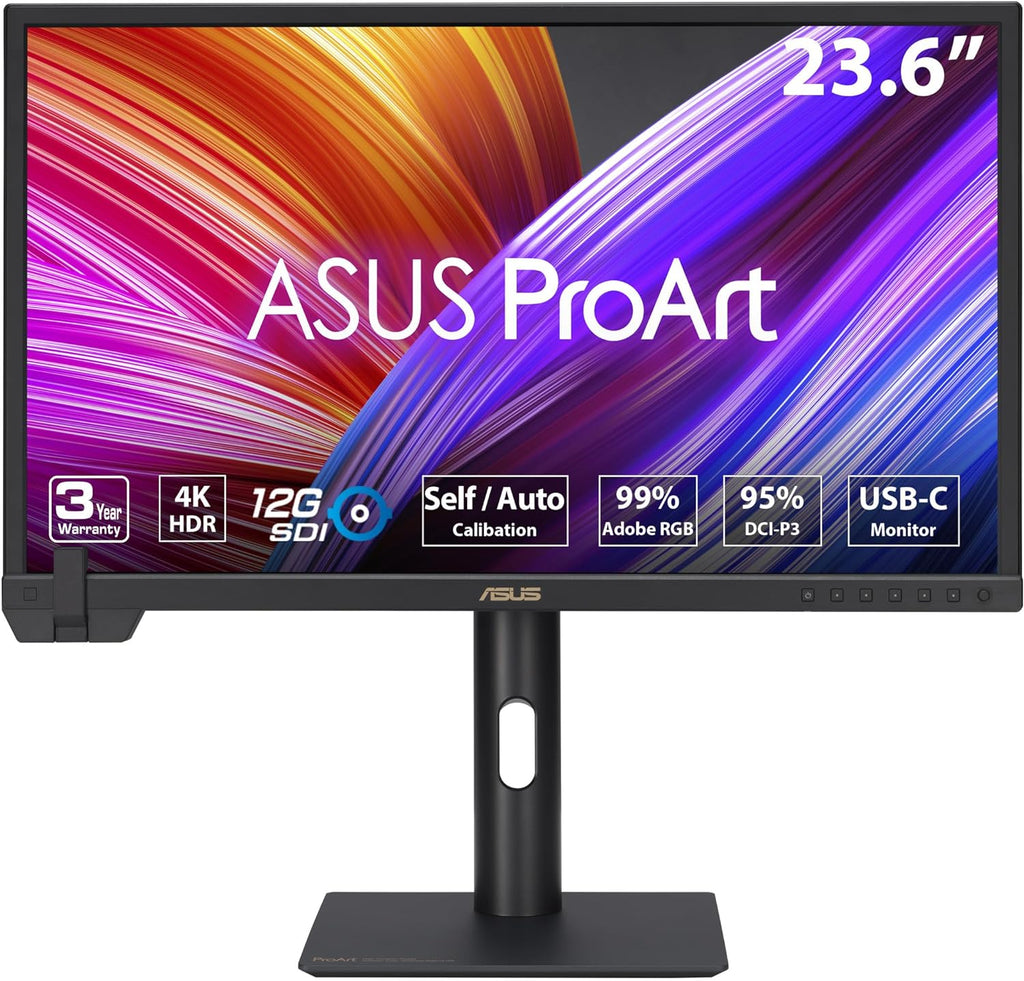

The 23.6-inch 4K UHD (3840 x 2160) panel has four times the pixel density and three times the screen space of an FHD monitor of the same size, resulting in clearer and sharper visuals and a higher level of detail.
ProArt Display PA24US features a 12G-SDI connection that can receive and transmit up to 4K@60Hz uncompressed video footage directly from the camera rig with ultra-low latency.

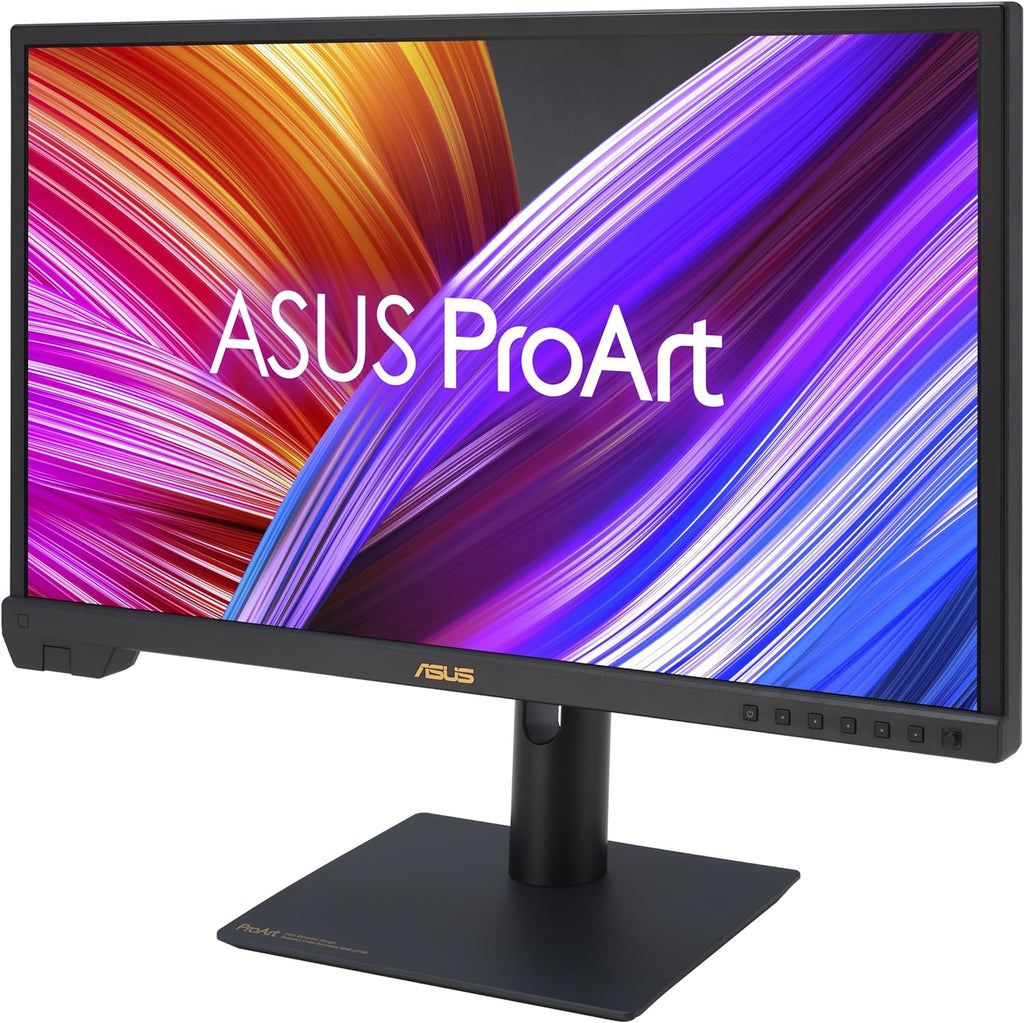

The edge-to-edge IPS panel provides 178° viewing angles (both horizontally and vertically), so you can enjoy stunning visuals from almost any angle.
ProArt Display PA24US has a brightness of up to 600 nits and is also VESA DisplayHDR 600 certified. Multiple HDR formats support HDR-10/HLG high dynamic range technology, achieving brighter whites and deeper blacks for a rich and lifelike viewing experience.

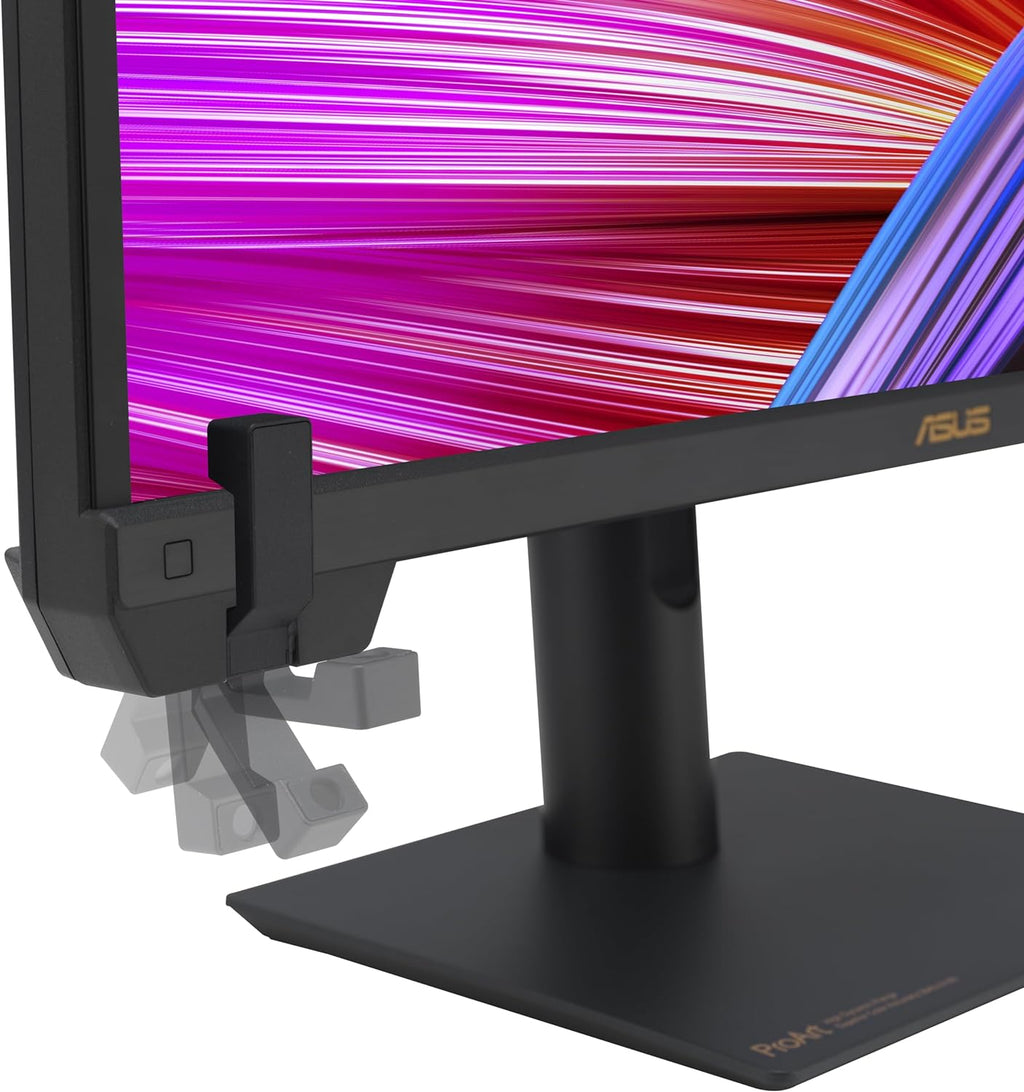

ProArt monitors now feature an innovative self-calibration feature for embedded colorimeters. The self-correction function is a stand-alone solution that does not require any software and is compatible with all operating systems. You can directly complete color correction and scheduled color correction functions through the OSD operation of the ProArt monitor. With this flexibility, you can achieve color consistency wherever you go.
>> Learn more about self-correction
Color parameter profile
ASUS ProArt color correction technology can store all color parameter profiles in the internal IC chip of the ProArt monitor instead of storing them in the computer. A monitor can be color calibrated and then the lookup table rewritten, allowing users to connect it to devices with different operating systems or applications without having to adjust settings.
*ProArt Calibration support will be available via firmware update in Q4 2023.
ProArt Color Center provides remote group control and color correction tools so you can handle important tasks from a single location. You can remotely control and group color corrections, scheduled color corrections, and customized color parameters to always maintain professional-grade accuracy and consistency.
>> Learn more about ProArt Color Center
*ProArt Color Center support will be available via firmware update in Q4 2023.
ProArt monitors are compatible with most major color correctors, including X-Rite, Datacolor, and Klein's color correctors. It can also work seamlessly with Calman and Light Illusion ColourSpace CMS professional hardware color correction software.
*Calman Ready and Light Illusion ColourSpace CMS support will be available via firmware update in Q4 2023.
Featuring 99% of Adobe RGB and 95% of DCI-P3 color gamut, PA24US exceeds industry color reproduction standards and has true 10-bit color depth that can display more than 1.07 billion colors. 600 nits peak brightness can display the deepest blacks and brightest whites, allowing PA24US to accurately display the tiniest details in shadows and highlights for extremely realistic visual effects.
99%
Adobe RGB
95%
DCI-P3
10 bits
color depth
Each ProArt monitor has been calibrated by the original factory, using a new three-level process to ensure industry-leading color fidelity, and rigorously tested using ASUS' advanced grayscale tracking technology to ensure smooth color gradients and better uniformity. , and excellent color accuracy with a color difference value of Delta E <1. Each grayscale level is carefully measured and configured to ensure accurate medical DICOM standards.
ΔE < 1
Color accuracy
With unique ASUS Smart HDR technology, ProArt Display PA24US can support multiple HDR formats, including HLG and HDR10.
HLG Allows users to view and create data from broadcast and satellite television platforms such as BBC iPlayer, Japan's NHK Television and DirecTV.
HDR10 Support ensures compatibility with existing streaming video services and the growing number of HDR games.
ASUS ProArt supports a variety of HDR10 curves, including PQ hard clipping, PQ optimized, and PQ basic, covering all the needs of content creators.
This setting retains the PQ curve until maximum brightness is displayed. Brighter brightness will correspond to the maximum brightness of the display.
This PQ curve setting reproduces precise gradations corresponding to the display's maximum brightness, thereby providing optimized HDR performance.
Presents normal HDR performance.
The HDR preview feature allows a direct connection between a camera and a monitor to view captured HDR content in its full tonal range. It can also be used in most video editing software platforms to accurately simulate the final output content, providing an easier and streamlined editing experience.
*Raw data/camera images must support HDR mode and follow PQ curve.
SDI (Serial Digital Interface) is the professional video signal of choice in imaging environments, reliably delivering longer distances without the need for video compression. BNC-style cables have specialized connectors on each end that lock to the connected device so they cannot be easily dropped or unplugged.
Compared with ordinary 3G-SDI, 12G-SDI provides up to 4 times the bandwidth and can receive and transmit uncompressed video clips up to 4K@60Hz directly from the camera device with ultra-low latency.

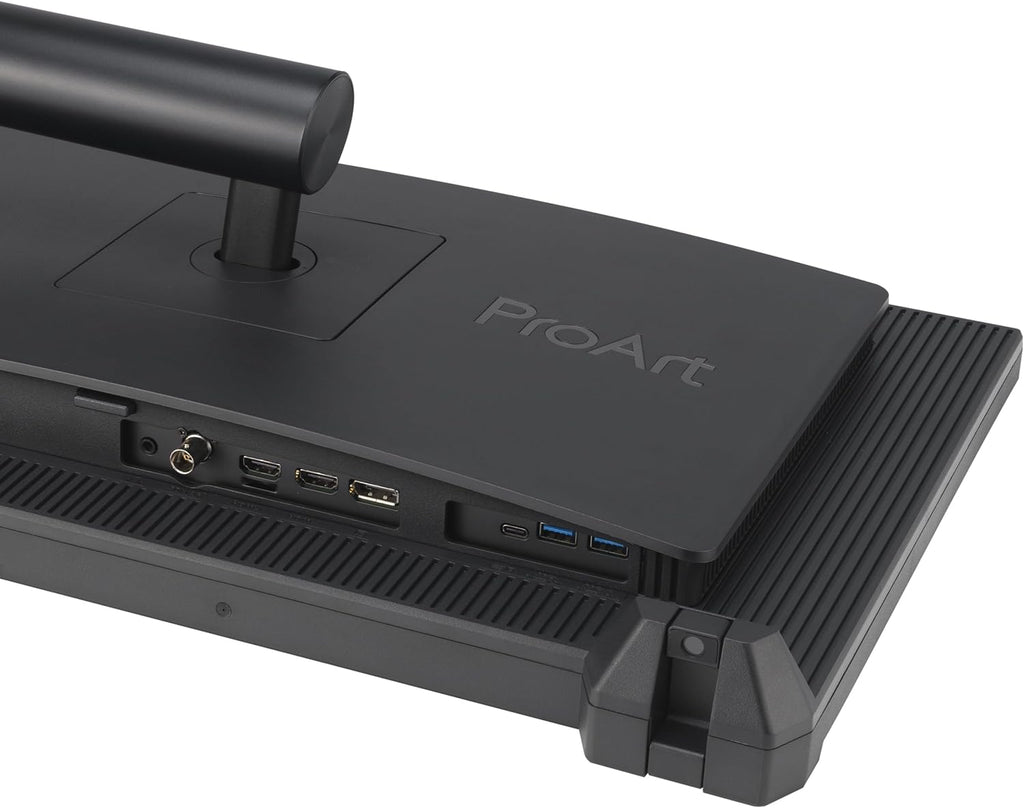

Rich connectivity features provide a full-featured USB-C port for ultra-high-speed data transmission and video signals, and support 80-watt power supply to charge laptops and other devices with a single cable. Offering DisplayPort 1.4 and dual HDMI (v2.0), it's compatible with current and future monitors and peripherals, and comes with a headphone jack and USB 3.2 hub.
Display multiple input sources side by side on the screen and set the color settings of individual windows, including sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1, 2 or 3, to view 2 to 4 sets of different setting values.
Easily place a second input source in a viewport in the corner of your monitor.
It’s time to say goodbye to tired, sore eyes. ProArt monitors feature TÜV Rheinland-certified ASUS zero-flicker technology, which reduces flickering and significantly reduces eye fatigue and other harmful illnesses, providing a comfortable viewing experience.
The TÜV Rheinland-certified ASUS Blue Light Filter protects you from harmful blue light and is easily accessible via shortcut keys. ProArt monitors have passed rigorous performance testing and been certified by TÜV Rheinland Laboratories, a global provider of technical safety certification services, to have zero flicker and low blue light technology.

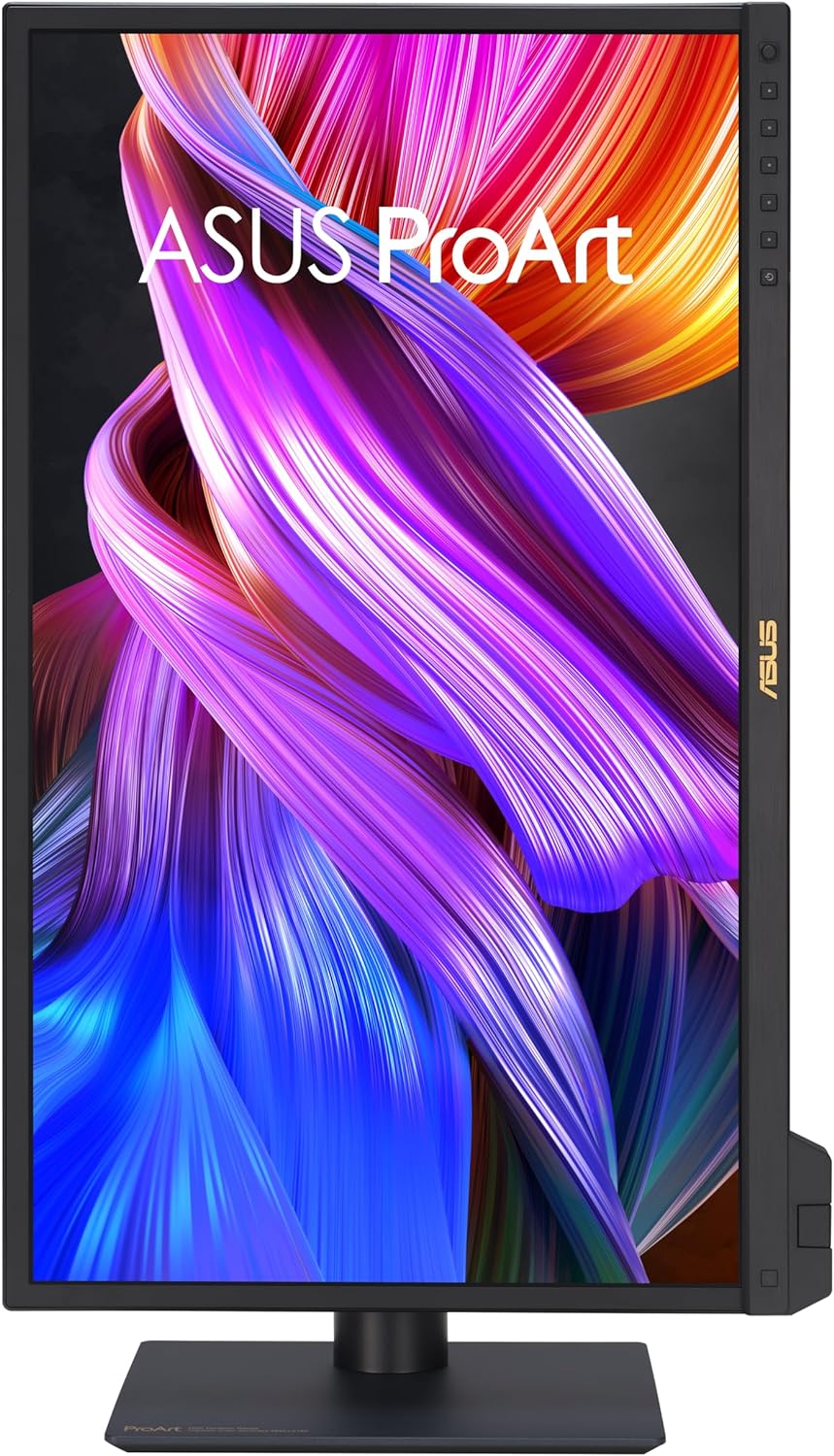

With ASUS ProArt monitors, it's easy to find a comfortable viewing position at any time. It has an ergonomically designed quick-release stand, as well as tilt, left and right rotation, rotation and height adjustment functions, providing a comfortable viewing and use experience. Plus, VESA wall mounting saves desk space.
height adjustment
0~130 mm

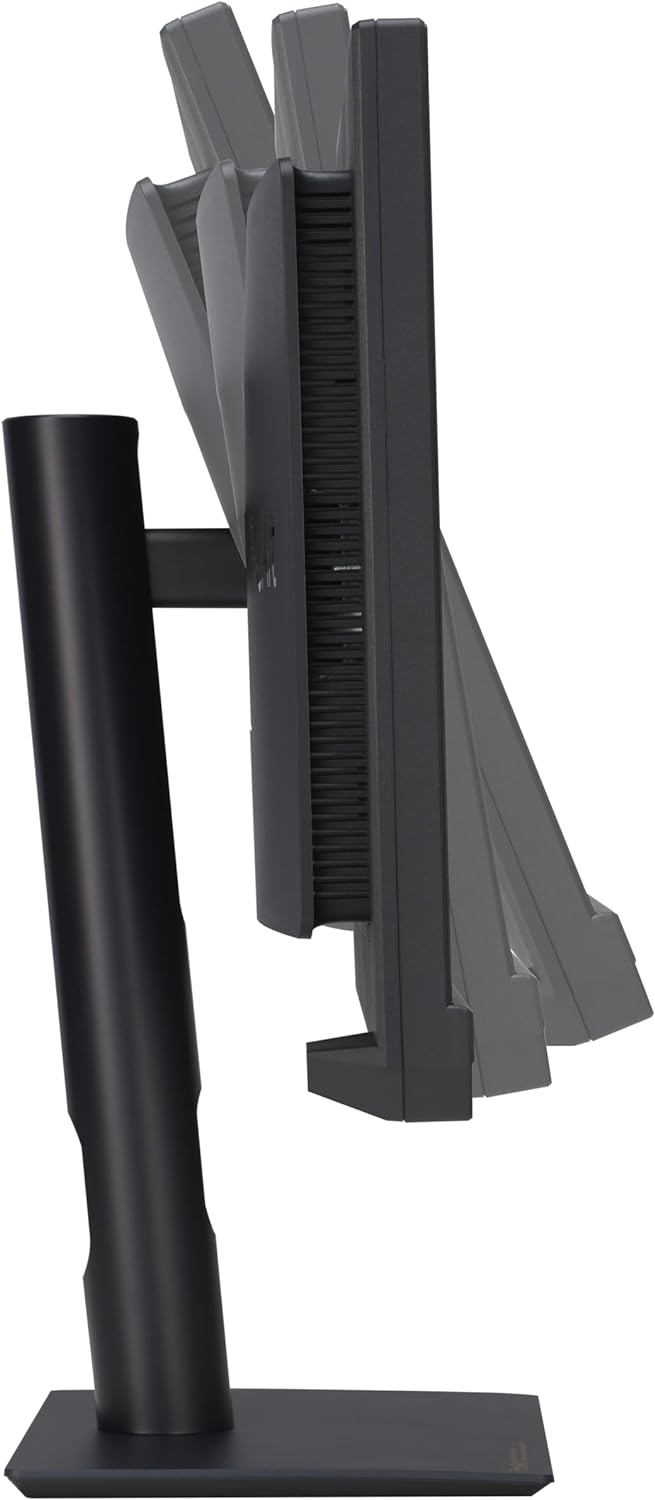

Pitch
-3°~+21°
rotate
-90°~+90°
Turn left and right
-30°~+30°
ASUS monitors pass rigorous testing and meet the world's top sustainability certification requirements. These tests include a comprehensive database of the latest standards, independent verification and a structured system of continuous improvement.
The latest ASUS monitor packaging uses 100% recyclable paper packaging. ASUS designed packaging that significantly reduces weight and volume, helping to conserve natural resources and allowing more devices to be transported in a single container.
ProArt Display PA24US has a power saving and environmental protection mode, which can achieve zero watt power consumption when the power switch (Hard Switch) is turned off.
Extensive research and development ensures that ASUS monitors are made from environmentally friendly materials, such as components such as post-consumer recycled (PCR) plastic or mercury-free panels.
