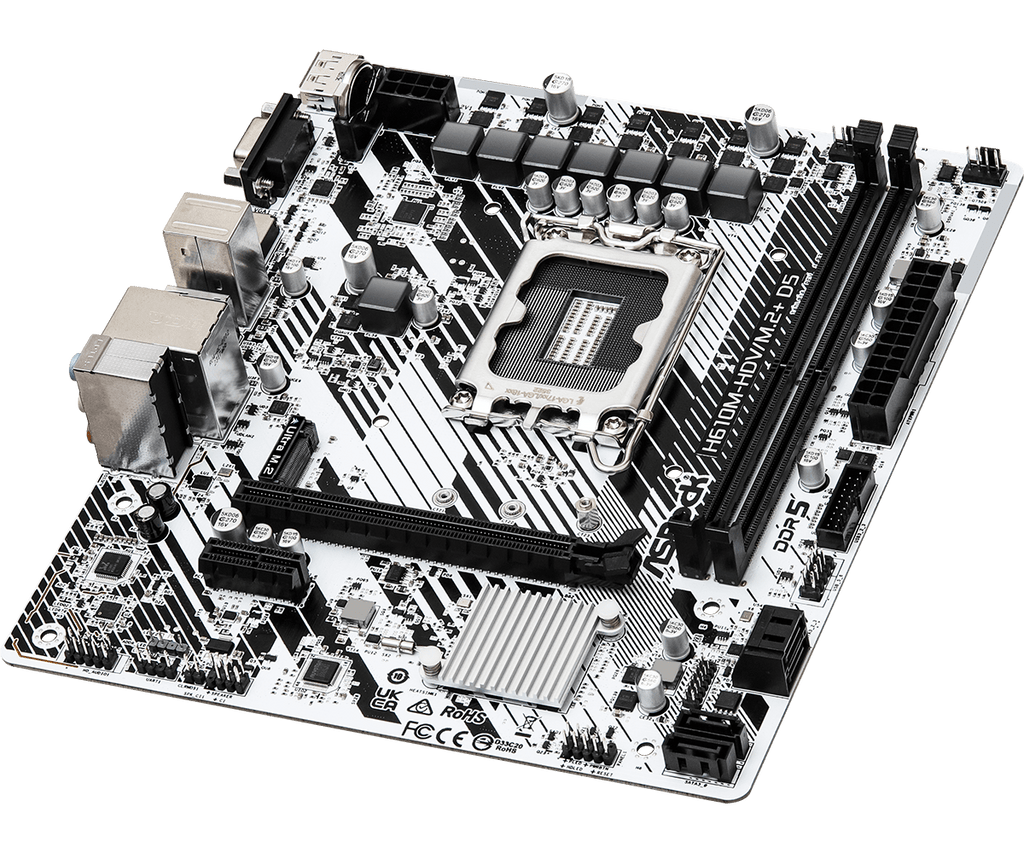

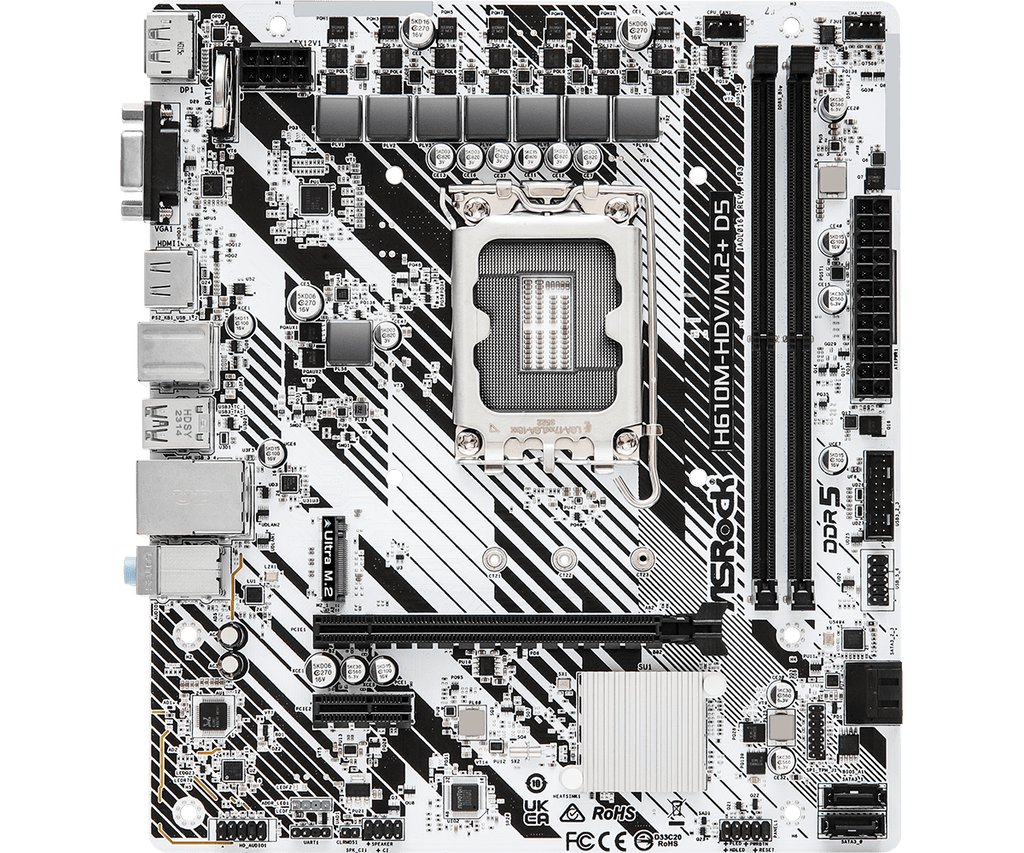

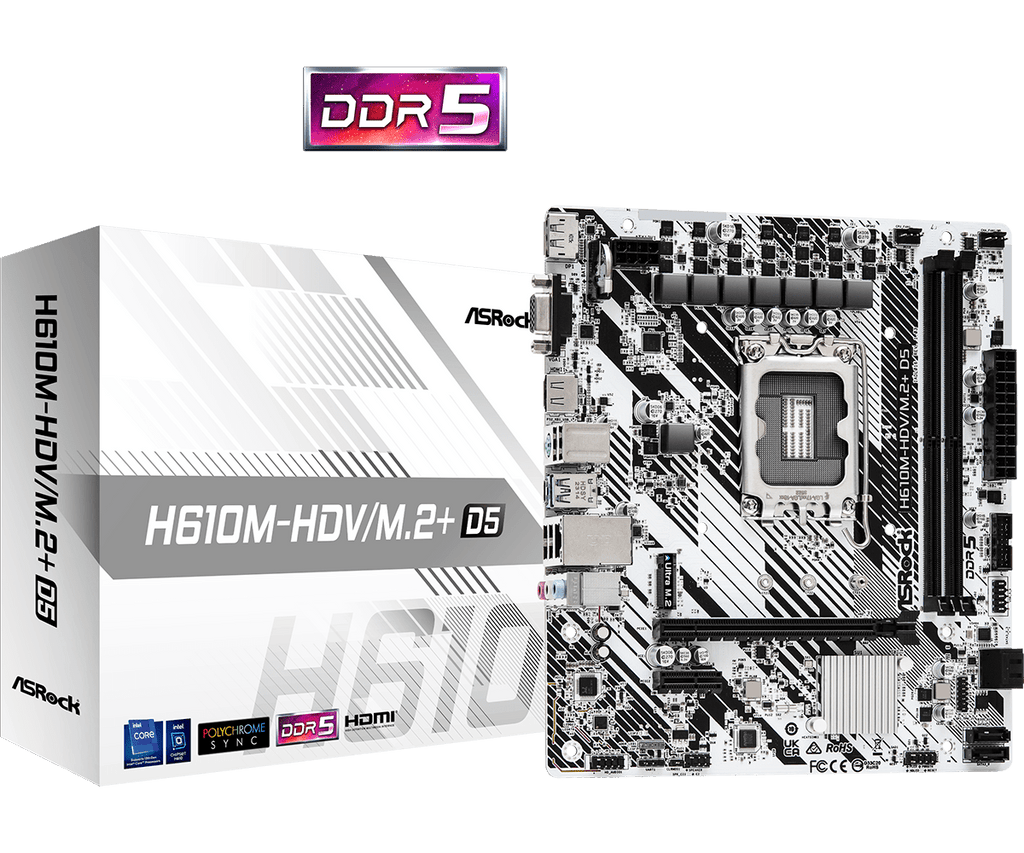

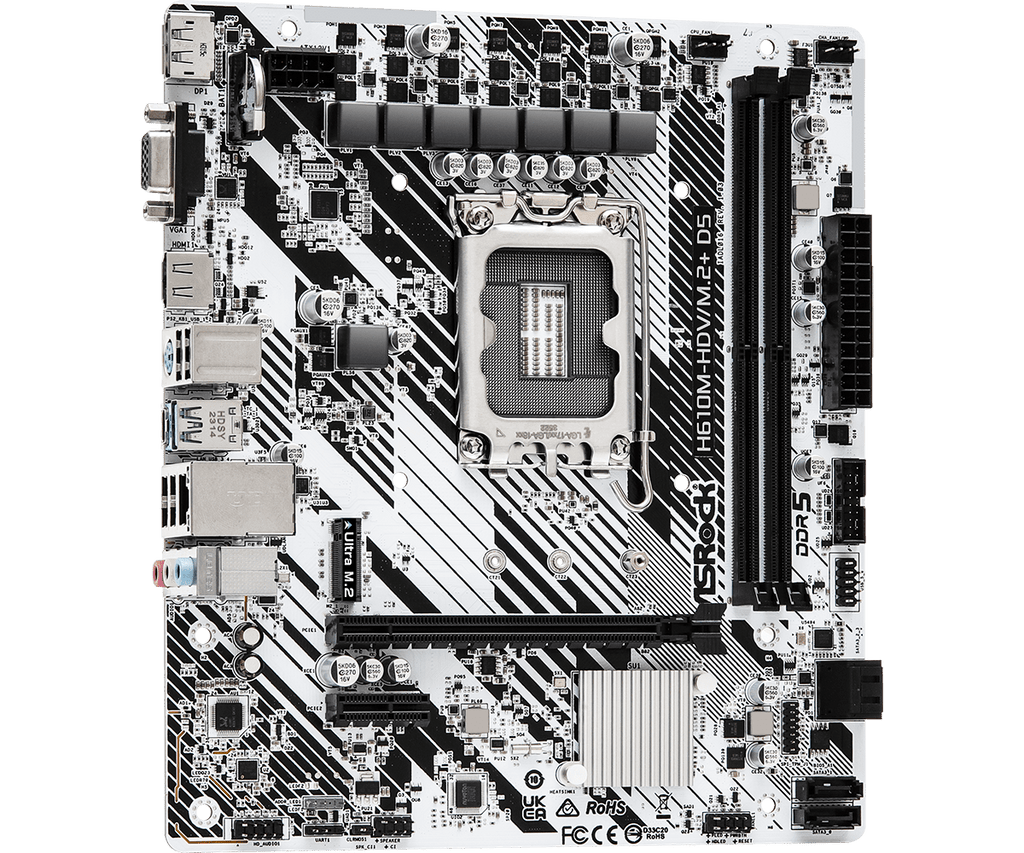

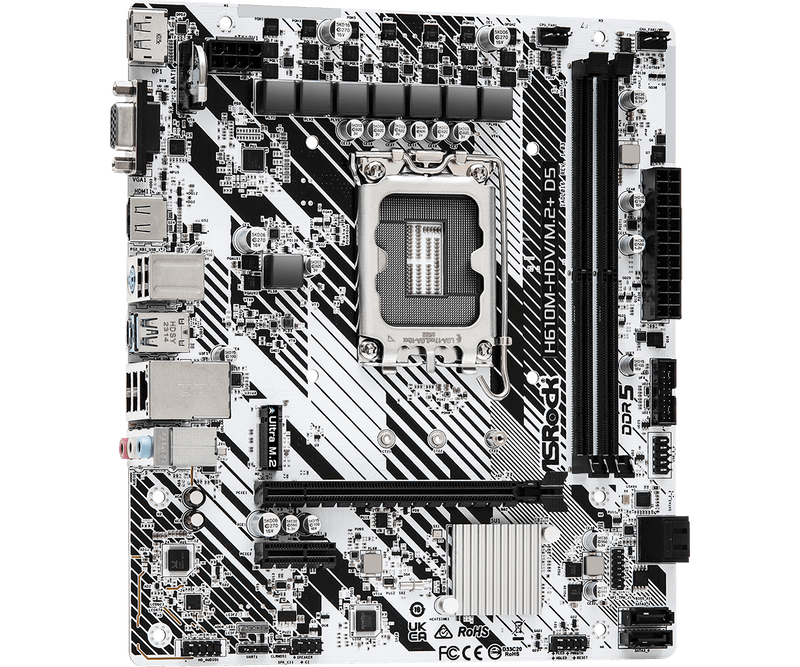

ASRock H610M-HDV/M.2+ D5 DDR5,LGA 1700 mATX Motherboard


Price:
Sale priceHK$580.00

Description

  • Unique Feature
    Superb Productivity
    -Dual Channel DDR5
    Rock-Solid Durability
    - 6+1 Power Phase
    EZ Update
    -ASRock Auto Driver Installer
  • CPU
    - Supports 13th Gen & 12th Gen and next gen Intel ® Core™ Processors (LGA1700)
    -Supports Intel® Hybrid Technology
    -Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    -Intel® H610
  • Memory
    - Dual Channel DDR5 Memory Technology
    - 2 x DDR5 DIMM Slots
    - 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600 *
    - 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800 *
    - Max. capacity of system memory: 96GB
    -Supports Intel® Extreme Memory Profile (XMP) 3.0

    * Actual support may vary by CPU.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    -Intel® Xe Graphics Architecture (Gen 12) *
    - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
    - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    -Realtek 8111H
  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode *
    Chipset:
    - 1 x PCIe 3.0 x1 Slot (PCIE2) *

    * Supports NVMe SSD as boot disks
  • Storage
    Chipset:
    - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode *
    - 4 x SATA3 6.0 Gb/s Connectors

    * Supports NVMe SSD as boot disks
  • USB
    - 1 x USB 3.2 Gen1 Type-C (Rear)
    - 3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front)
    - 6 x USB 2.0 (4 Rear, 2 Front)

    * All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x Addressable LED Header *
    - 1 x CPU Fan Connector (4-pin) * *
    - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) * * *
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    * Support in total up to 5V/3A, 15W LED Strip
    * * CPU_FAN1 supports the fan power up to 1A (12W).
    * * * CHA_FAN1/WP supports the fan power up to 2A (24W).
    CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

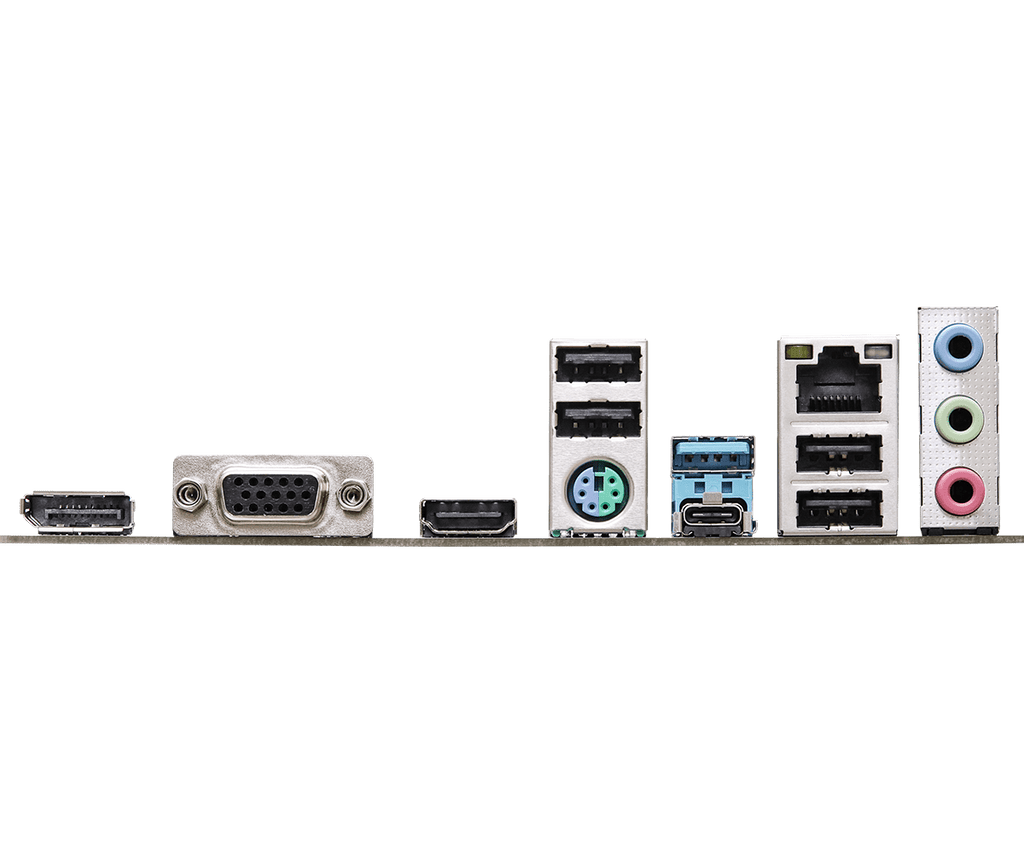

  • Rear Panel I/O
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen1 Type-C Port
    - 1 x USB 3.2 Gen1 Type-A Port
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock XFast LAN
    -ASRock Polychrome SYNC *
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    -ASRock Auto Driver Installer
    - ASRock Instant Flash

    * These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 1 x I/O Shield
    - 2 x SATA Data Cables
    - 1 x Screw for M.2 Socket
  • Form Factor
    - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
  • OS
    -Microsoft® Windows® 10 64-bit / 11 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
