Description
-
Exclusive FeaturesExcellent Productivity
- Dual-channel DDR5
rock-solid durability
- 4+1+1 power phase, VCore Dr.MOS
EZ Update
- BIOS Flashback button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Power-on Status Check -
processor- Supports AMD AM5 socket Ryzen™ 9000, 8000 and 7000 series processors *
* Please refer to the CPU support list.
Expansion slot availability may vary by CPU. Please refer to the PCIe/M.2 Bandwidth list. -
chip-AMD A620A
-
Memory- Dual-channel DDR5 memory technology
- 2 x DDR5 slots
- Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC) *
- Maximum system memory capacity: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
* Please refer to the memory support list for details. -
BIOS- 256Mb AMI UEFI Legal BIOS, supports graphical interface
-
Built-in displayIntegrated AMD RDNA™ graphics core (actual support depends on CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3, maximum resolution up to 4K 120Hz
- 1 x D-Sub, supports maximum resolution up to Full HD (1920x1080) 60Hz -
Sound- 7.1 channel high definition audio (Realtek ALC897 audio codec)
-
network- Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H -
Expansion SlotCPU:
- 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode *
Chipset:
- 2 x PCIe 3.0 x1 slots (PCIE2 and PCIE3) *
- 1 x M.2 slot (Key E), supports 2230 type WiFi/BT PCIe WiFi module
- Graphics card PCIe slot is 15μ gold-plated pin (PCIE1)
* PCIE1 will run at Gen4x16 (for 9000 and 7000 series processors), Gen4x8 (for 8000 (Phoenix 1) series processors) and Gen4x4 (for 8000 (Phoenix 2) series processors).
Supports NVMe SSD booting -
storeCPU:
- 1 x Hyper M.2 slot (M2_1, Key M), supports 2280 type PCIe Gen4x4 (64 Gb/s) mode *
Chipset:
- 1 x Ultra M.2 slot (M2_2, Key M), supports 2260/2280 type SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) mode *
- 2 x SATA3 6.0 Gb/s ports
* M2_1 is the first priority for M.2 installation
to support NVMe SSD boot -
RAID- Supports RAID 0 and RAID 1 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices *
* Requires additional M.2 NVMe expansion cards to support RAID 10 -
USBCPU:
- 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34))
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front)
- 8 x USB 2.0 (4 Front, 4 Rear)
* All USB supports ESD protection -
Connectors- 1 x Power LED and speaker header
- 1 x RGB LED header *
- 3 x Addressable LED headers **
- 1 x CPU fan connector (4-pin) (Smart fan speed control) ***
- 3 x Chassis / Water Pump fan connector (4-pin) (Smart fan speed control) ***
- 1 x 24-pin ATX power port
- 1 x 8-pin 12V power port (High-density power port)
- 1 x Front panel audio port
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 header (support 2 USB 3.2 Gen1 ports)
- 1 x Front Type C USB 3.2 Gen1 header
* Supports up to 12V/3A, 36W LED strip
** Supports up to 5V/3A, 15W LED strip
*** CPU_FAN1 supports fan power up to 1A (12W).
CHA_FAN1~3/WP supports fan power up to 3A (36W).
CHA_FAN1~3/WP can automatically detect 3-pin or 4-pin fans. -

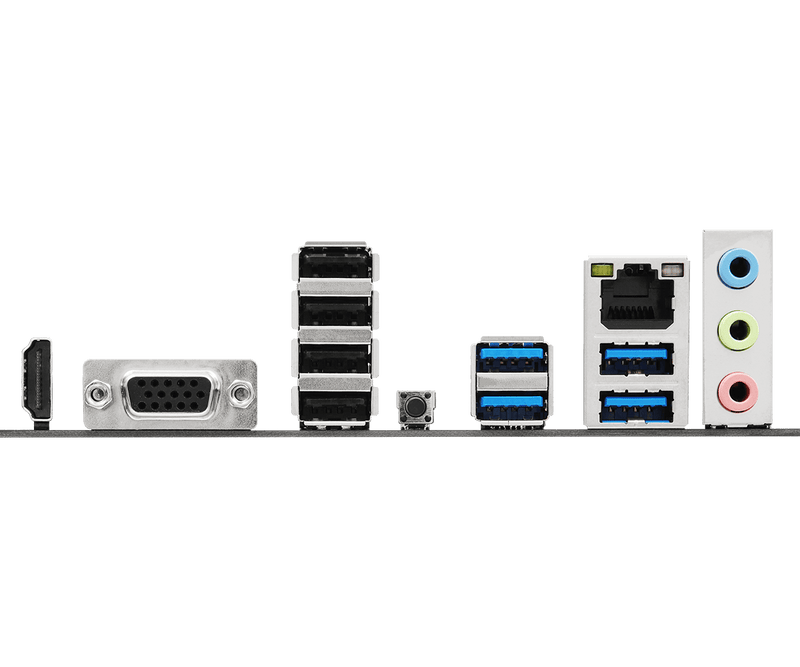

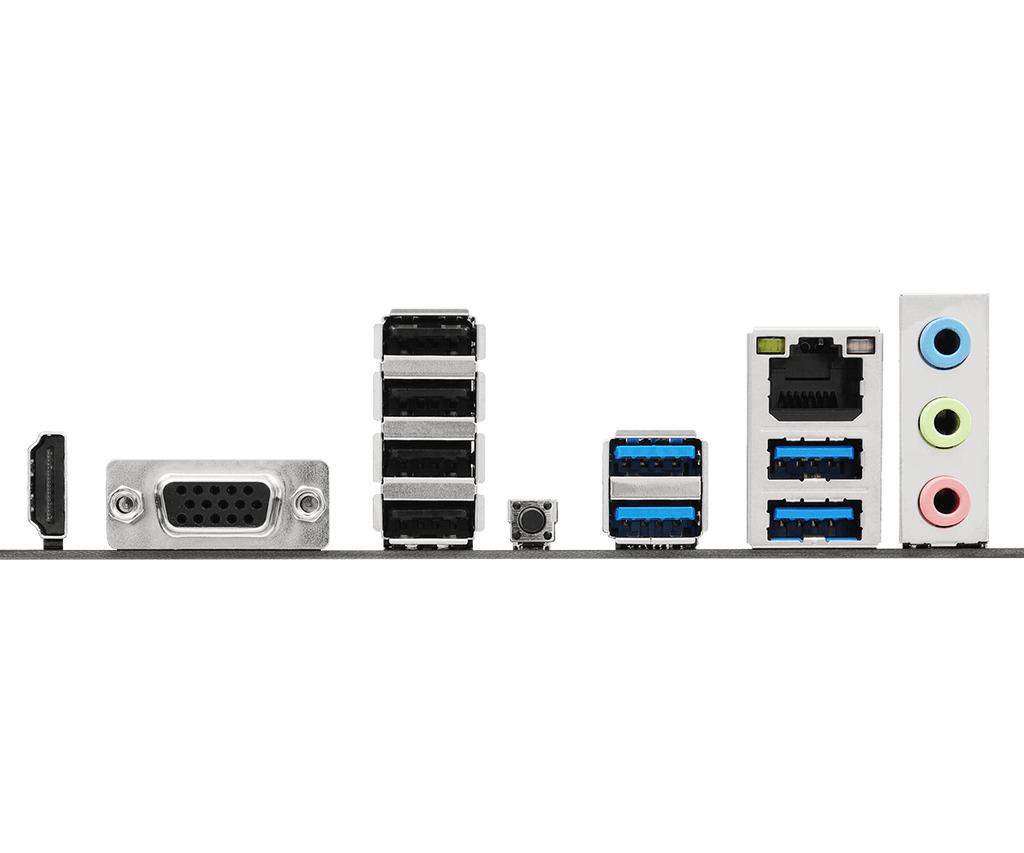

Back panel input/output interface- 2 x Antenna Mounting Points-
1 x D-Sub Port-
1 x HDMI Port-
4 x USB 3.2 Gen1 Type-A Ports-
4 x USB 2.0 Ports-
1 x RJ-45 LAN Port-
1 x BIOS Flashback Button-
HD Audio Jack: Line-in/ Front Speaker/ Microphone -
Software and UEFISoftware - ASRock Motherboard Utility
(A-Tuning)
- ASRock Polychrome SYNC *
UEFI
- ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
* These apps can be downloaded from ASRock APP Shop. -
appendix- 1 x I/O shield-
2 x SATA data cables-
1 x M.2 slot screw -
Specification- Micro ATX form factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
- 2 oz copper circuit board -
operating system- Support Microsoft ® Windows 10 64-bit / 11 64-bit
