Description
Specifications

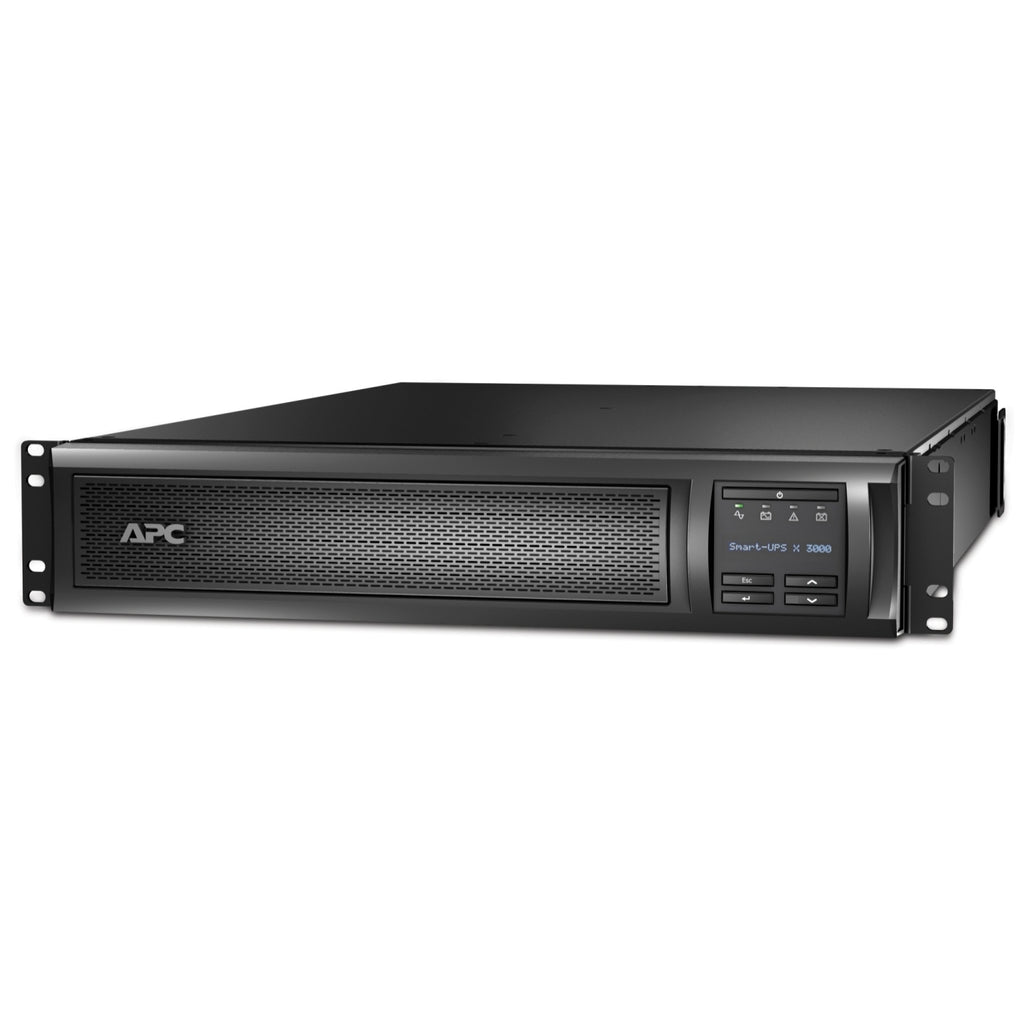

| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
|---|---|
| Lead time | Usually in sufficient supply |
|
Run time for load
W Min-max: 270-2700 W
|
6min 15s |
|---|---|
|
|
|
| Main Input Voltage | 208 V 230 V |
| Other Input Voltage | 220 volts 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 208 V 220 V 240 V |
| Rated power [W] | 2700W |
| Rated power [VA] | 3000VA |
| Input Connection Type | IEC 320C20 Schuko CEE 7/EU1-16P BS1363A UK |

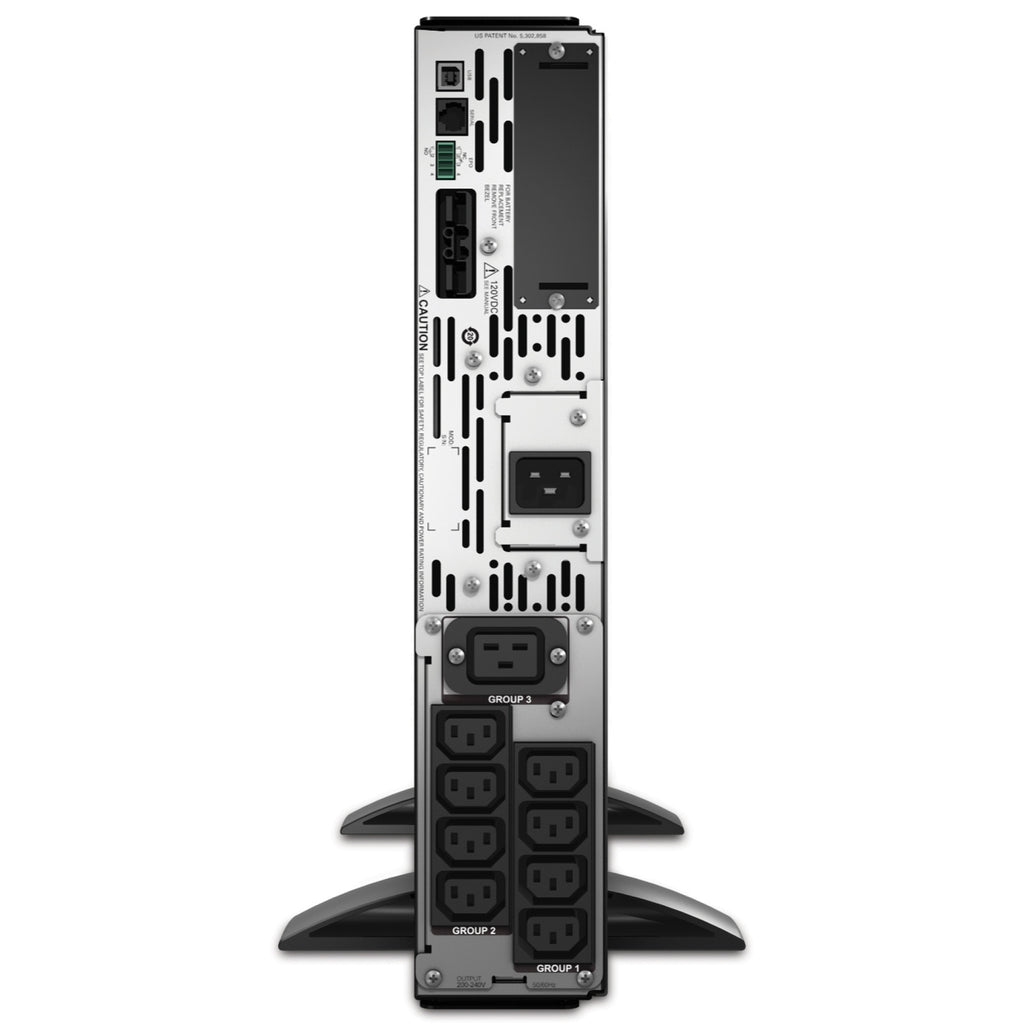

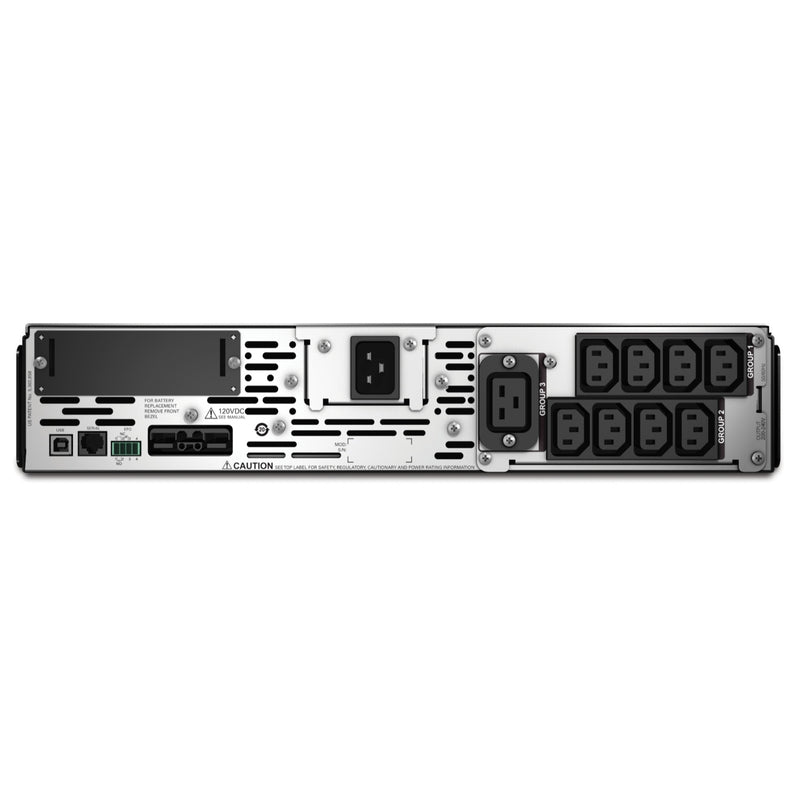

| output connection type | 8 IEC 320 C13 2 IEC Jumpers 1 IEC 320 C19 |
| Number of rack units | 2U |
| cable length | 1.83m |
| Cable quantity | 1 |
| Battery Type | sealed battery |
| Equipment provided | CD that comes with the software Documentation CD Smart UPS RS-232 Data Cable User Manual USB cable rack mount bracket |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Extended operating time | 1 |
| Pre-installed battery | 0 |
| Empty battery slot | 0 |
| Typical charging time | 3 hours |
| RBC™ quantity | 1 |
| battery life | 3…5 years |
| Venturi Pipe | APCRBC117 |
| Battery charging power (watts) | 245 W rated |
| Number of power modules | 2400 |
|---|---|
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family | Extended run |
| Redundant | No |
| color | black |
|---|---|
| high | 8.5 cm |
| width | 43.2 cm |
| depth | 66.7 cm |
| product weight | 37.32kg |
| Installation location | front |
| Mounting preference | Lower |
| Installation type | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Efficiency at full load | 140...280V |
|---|---|
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Crest coefficient | 3:1 |
|---|---|
| harmonic distortion | less than 5% |
| Maximum configurable power in VA | 3000VA |
| Maximum configurable power (W) | 2700W |
| transmission time | 2-4ms Normally 0.6 seconds: Maximum 1 second |
| topology | Online interactive |
| Wave type | sine wave |
| Output frequency (synchronized with mains) | 50/60 Hz +/- 3 Hz synchronized with mains |
| Product certification | CE CSA EAC IRAM RCM VDE |
|---|---|
| standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| sound level | 55 dBA |
|---|---|
| heat dissipation | 184 Btu/h |
| operating height | 0...10000ft |
| Working temperature | 0…40°C |
| Storage environment temperature | -15…45 °C |
| Storage height | 0.00…15240.00 m |
| Relative humidity | 0…95% |
| relative storage humidity | 0…95% |
| Alarm function | Multifunctional LCD status and control console |
|---|---|
| Emergency power off (EPO) | Yes |
| free slot | 1 |
| control panel | LED status display with on line : on battery : replace battery and overload indicators |
| alarm | Alarm when on battery: distinctive low battery alarm: configurable delays |
| surge absorption capacity | 645J |
|---|---|
| filter | All-weather multi-column noise filtering: 0.3% ieee surge limit: zero clamp response time: UL 1449 compliant |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.3 cm |
| Package 1 Width | 59.6cm |
| Package 1 Length | 86.9 cm |
| Package 1 Weight | 45.36kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 113 cm |
| Package 2 Width | 100cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 362.88kg |
| Pallet unit layers | 2 |
| Pallet layers | 4 |
| maintainance | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
|---|
