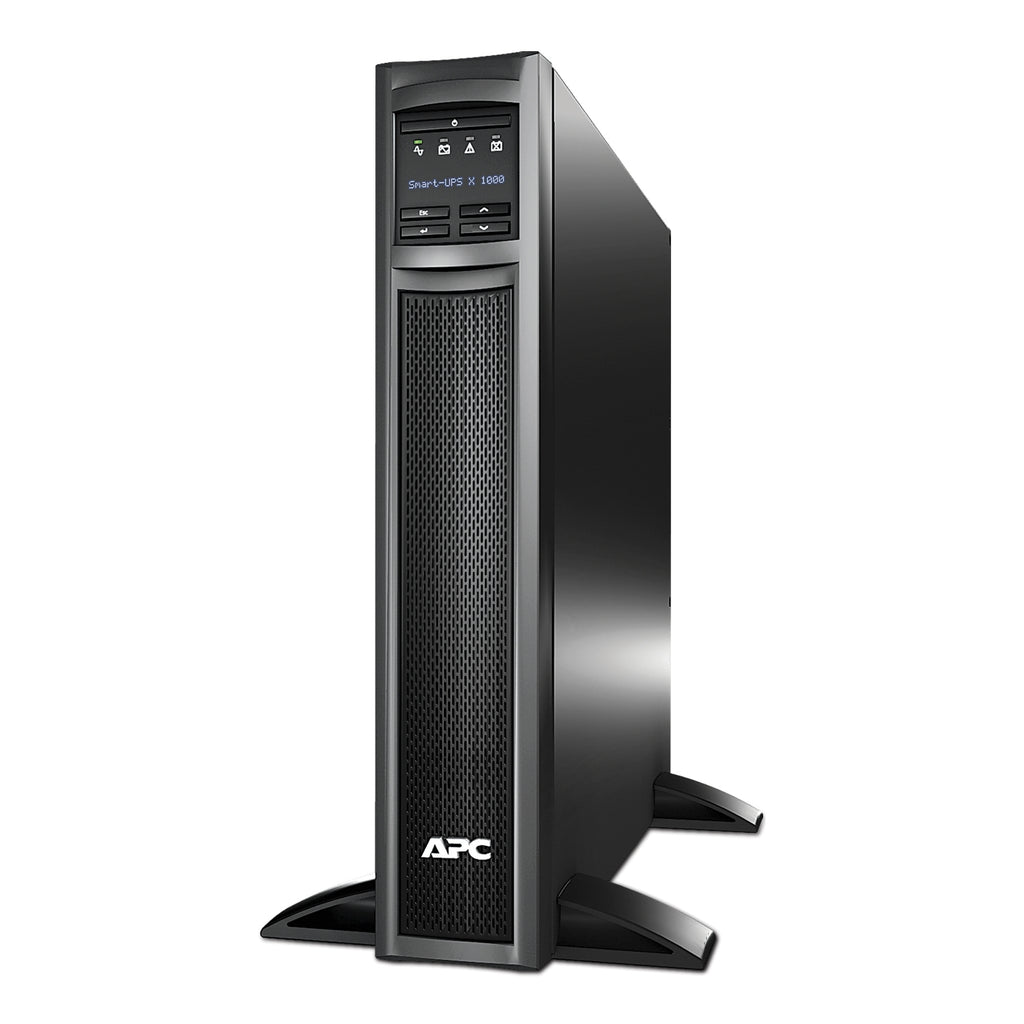

APC Smart-UPS SMX1000I 1000VA Rack/Tower LCD 230V

Specifications

Overview

Presentation	Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time	Usually delivered within 2 weeks

host

Run time for load W information_stroke Min-max: 80-800 W	8min 6s
Max. Capacity Used information_stroke	100%
Main Input Voltage	230 V
Main Output Voltage	230 V
Rated power [W]	800W
Rated power [VA]	1000VA
Input Connection Type	IEC 320 C14

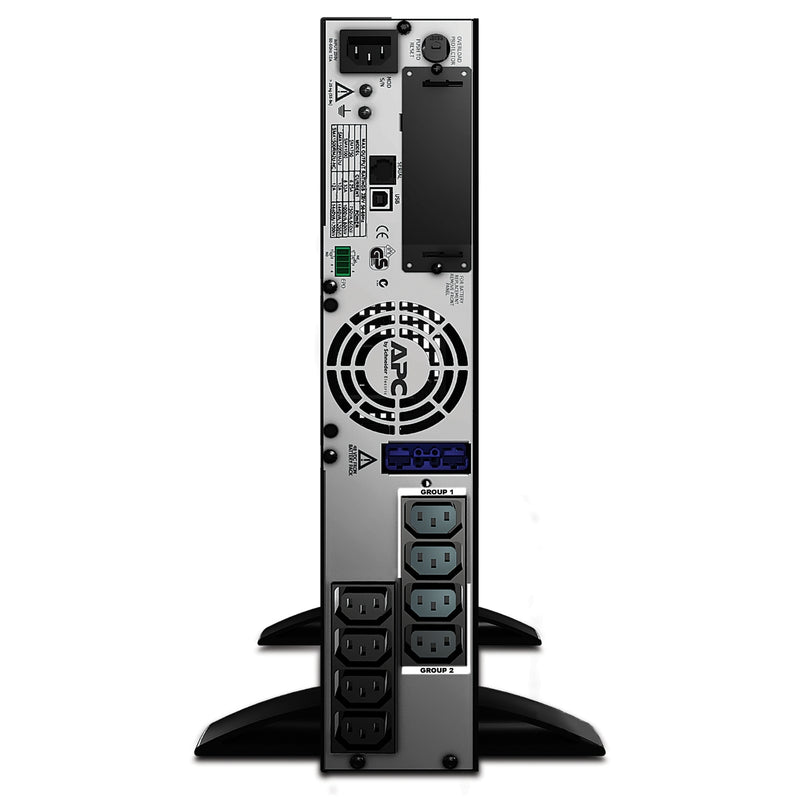

output connection type	8 IEC 320 C13 2 IEC Jumpers

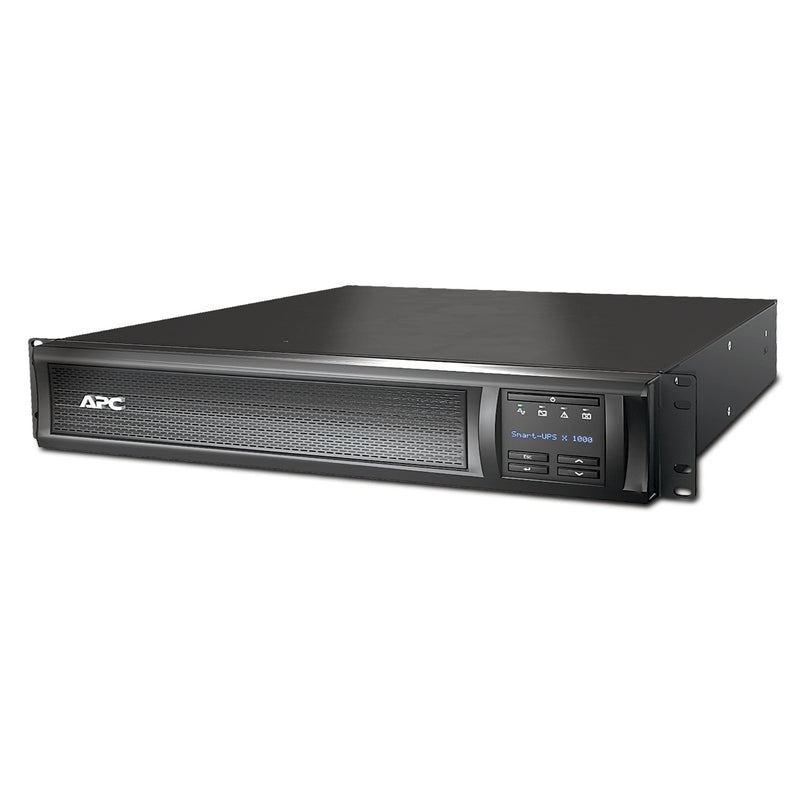

Number of rack units	2U
cable length	1.83m
Cable quantity	1
Battery Type	sealed battery
Equipment provided	CD that comes with the software Documentation CD Installation Guide Rack Mount Bracket Removable Support Feet Smart UPS RS-232 data cable USB cable

Battery and run time

Run Time	View Runtime Graph action_new_window
Efficiency	View Efficiency Graph action_new_window
Extended operating time	0
Pre-installed battery	0
Empty battery slot	0
Typical charging time	3 hours
RBC™ quantity	1
DC overcurrent protection	60A
battery life	3…5 years
Venturi Pipe	APCRBC116 action_new_window
Battery charging power (watts)	99 W rated

Universal

Number of power module filled slots	0
Number of power module free slots	0
product web sub-family	Extended run
Redundant	No

entity mark

color	black
high	8.9cm
width	43.2cm
depth	49cm
product weight	22.86kg
Mounting preference	Lower
Installation type	Rack-mounted with kit
Two post mountable	1
USB compatible	No

enter

Efficiency at full load	151...302 V adjustable 160...286V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing

output

harmonic distortion	less than 5%
Maximum configurable power in VA	1000VA
Maximum configurable power (W)	800W
topology	Online interactive
Wave type	sine wave
Output frequency (synchronized with mains)	50/60 Hz +/- 3 Hz synchronized with mains

Certification and Warranty

Product certification	CE RCM VDE EAC
standard	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

environment

sound level	40 dBA
heat dissipation	82 Btu/h
operating height	0...10000ft
Working temperature	0…45°C
Storage environment temperature	-15…45 °C
Storage height	0.00…15240.00 m
Relative humidity	0…95%
relative storage humidity	0…95%

Communication and management

Alarm function	Multifunctional LCD status and control console
Emergency power off (EPO)	Yes
free slot	1
alarm	Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Surge protection and screening

surge absorption capacity	600 J
filter	All-weather multi-column noise filtering: 5% ieee surge limit: zero clamp response time: UL 1449 compliant

Packing units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	24.6cm
Package 1 Width	62 cm
Package 1 Length	58.9 cm
Package 1 Weight	27.32kg

Contractual guarantee

maintainance	3 years repair or replace (excluding battery) and 2 years for battery
