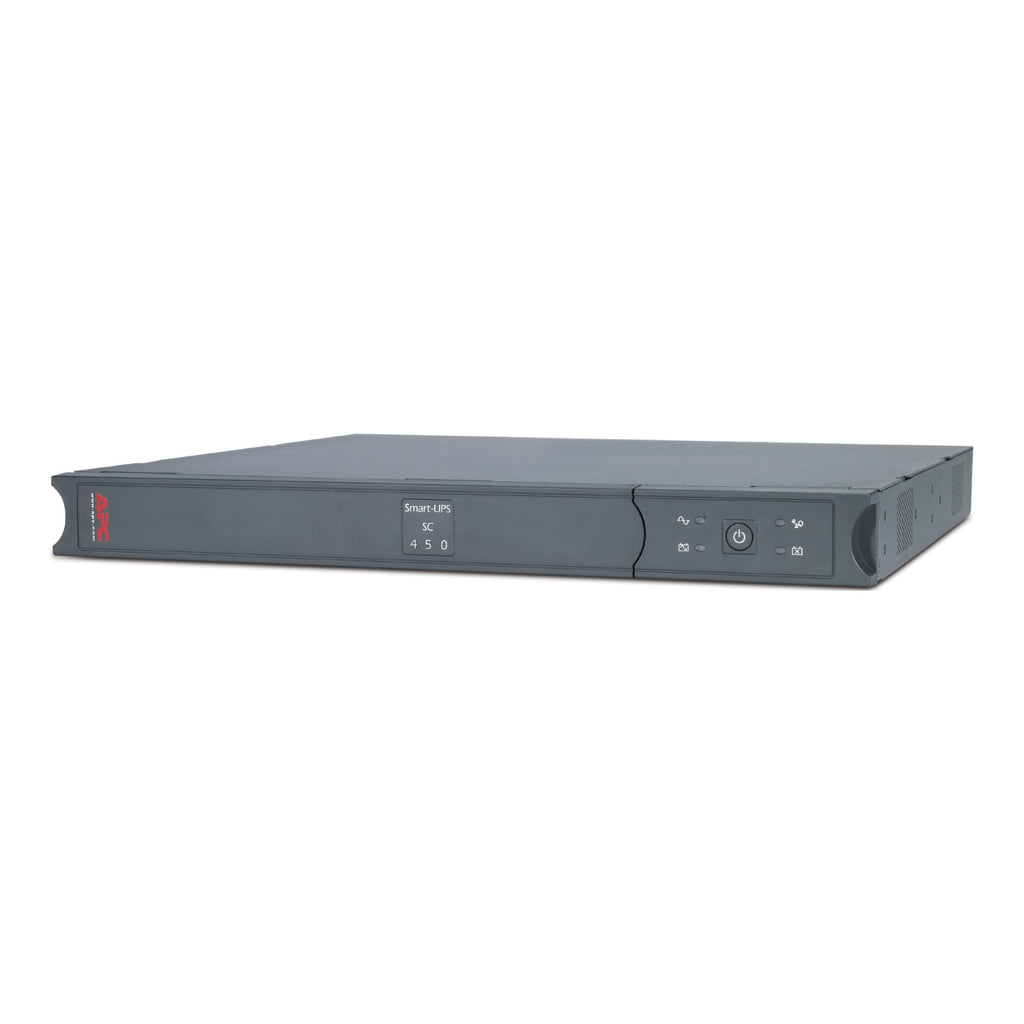

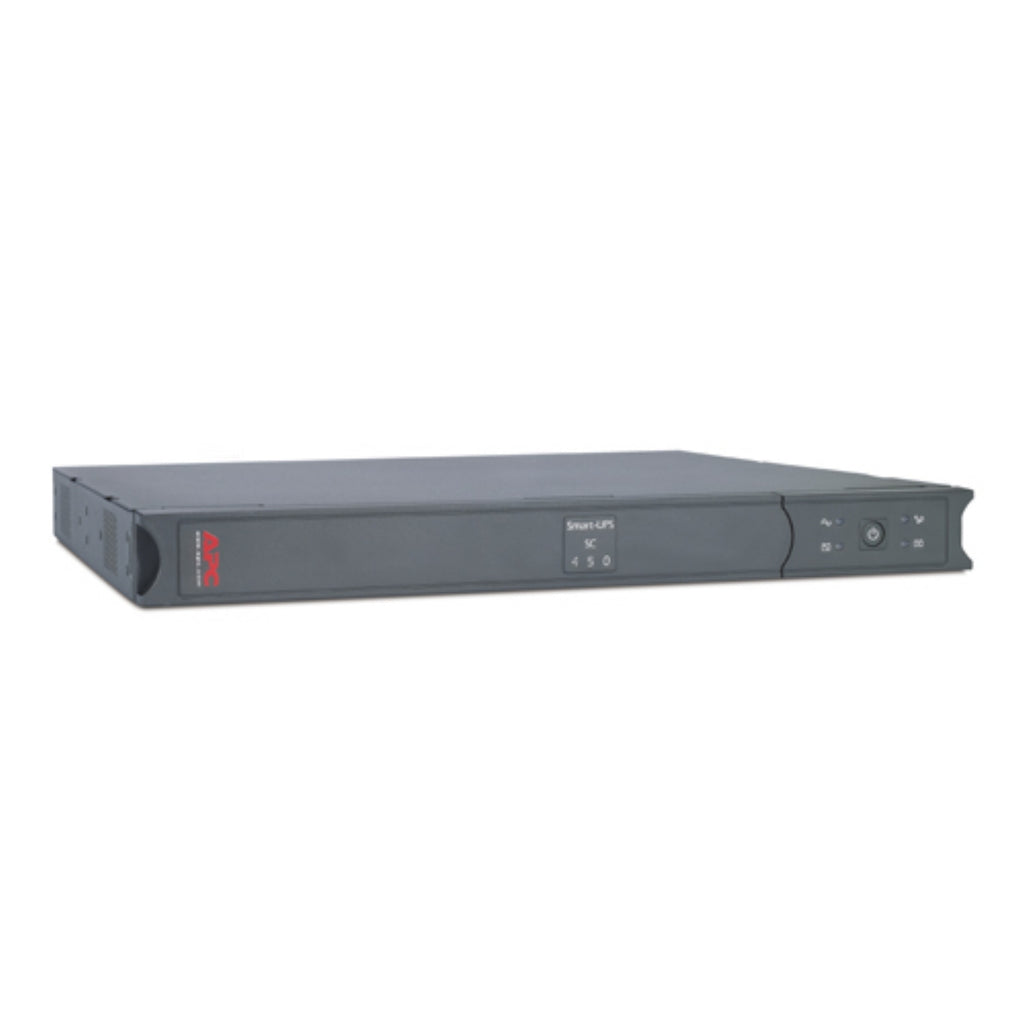

APC SMART-UPS SC450RMI1U 450VA 230V (RS-232 interface), 1U Rackmount

Specifications

Overview

Presentation

APC Smart-UPS SC is ideal for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages. The Smart-UPS SC features network grade protection, hot swap batteries, and built- in data line protection for worry free uninterruptible power protection for increased availability. Built on the same standards as the award-winning Smart-UPS, Smart-UPS SC provides the basic features and manageability needed to protect entry-level applications

Lead time

Usually in sufficient supply

host

Run time for load W information_stroke Min-max: 28-280 W	5min 54s
Max. Capacity Used information_stroke	100%
Main Input Voltage	230 V
Main Output Voltage	230 V
Rated power [W]	280W
Rated power [VA]	450VA

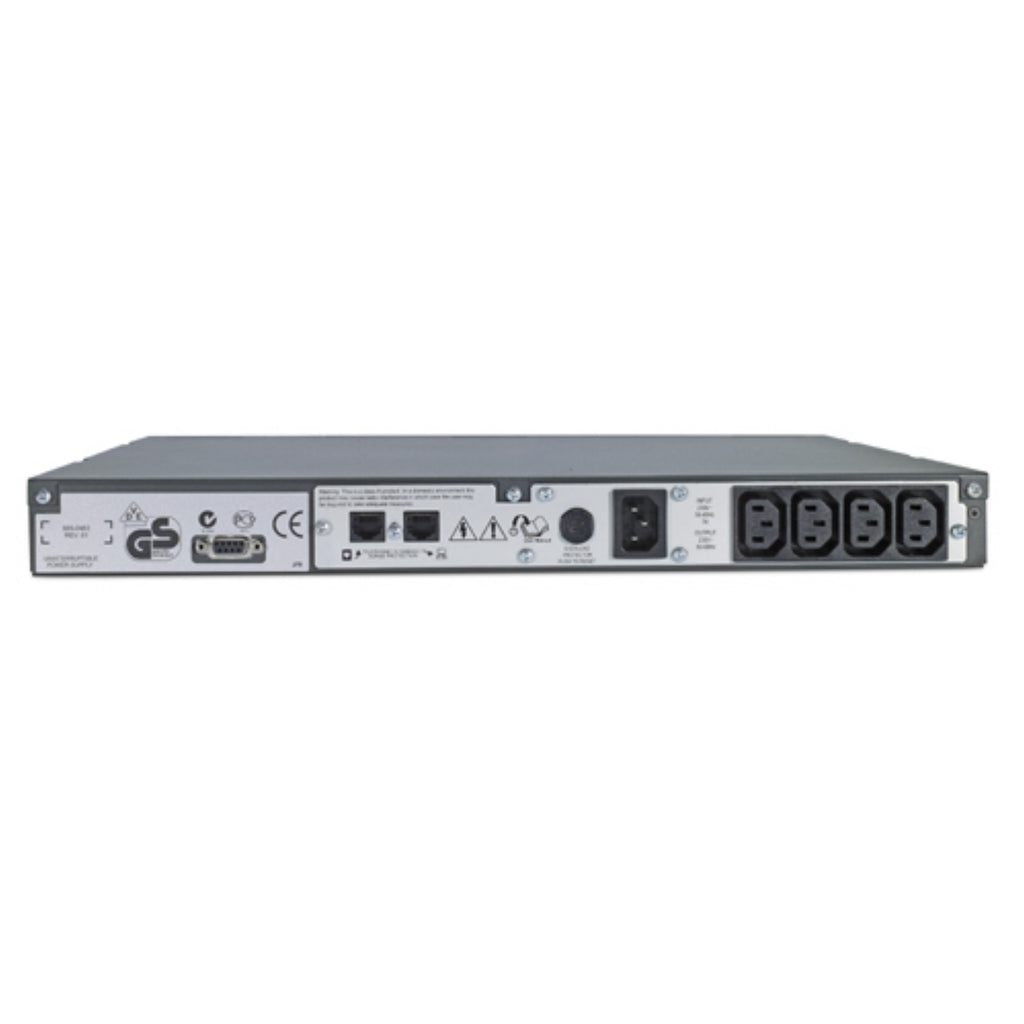

Input Connection Type	IEC 320 C14
output connection type	4 IEC 320 C13 2 IEC Jumpers
Number of rack units	2U
Battery Type	sealed battery
Equipment provided	User Manual Rack Mount Stand CD included with Smart UPS RS-232 data line software

Battery and run time

Run Time	View Runtime Graph action_new_window
voltage	12 V
Extended operating time	0
Battery capacity	9.0 Ah
Pre-installed battery	0
Empty battery slot	0
Typical charging time	5 hours
RBC™ quantity	1
battery life	3…5 years
Venturi Pipe	RBC18 action_new_window
Battery charging power (watts)	22W rated

Universal

Number of power module filled slots	0
Number of power module free slots	0
product web sub-family	Entry level
Redundant	No

entity mark

color	grey
high	4.4 cm
width	43.2cm
depth	38.3cm
product weight	10.18kg
Installation location	front
Mounting preference	Lower
Installation type	Rack-mounted
Two post mountable	0
USB compatible	No

enter

Efficiency at full load	151...302 V adjustable 195...265 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing

output

harmonic distortion	Less than 5% at full load
Maximum configurable power in VA	450VA
Maximum configurable power (W)	280W
transmission time	Typically 4 ms: Maximum 8 ms
topology	Online interactive
Wave type	Gradually approach the sine wave
Output frequency (synchronized with mains)	47...53 Hz for 50Hz nominally synchronized with mains 57...63 Hz for 60Hz nominally synchronized with mains

Certification and Warranty

Product certification	C-Tick CE EAC GOST TISI VDE
standard	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

environment

sound level	38 dBA
heat dissipation	38 Btu/h
operating height	0...10000ft
Working temperature	0…40°C
Storage environment temperature	-15…45 °C
Storage height	0.00…15240.00 m
Relative humidity	0…95%
relative storage humidity	0…95%

Communication and management

Emergency power off (EPO)	Optional
free slot	0
control panel	LED status display with on line : on battery : replace battery and overload indicators
alarm	Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Surge protection and screening

Data line protection	RJ45 10/100 Base-T Ethernet Protection
data line protection	RJ11 2-Way Modem/Fax/DSL splitter with protection (four wire dual line)
surge absorption capacity	320 J
filter	All-weather multi-column noise filtering: 0.7% ieee surge limit: zero clamp response time: UL 1449 compliant

Packing units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	16.4cm
Package 1 Width	47.6cm
Package 1 Length	58.9cm
Package 1 Weight	11.73kg
Unit Type of Package 2	PAM
Number of Units in Package 2	32
Package 2 Height	143.8cm
Package 2 Width	100 cm
Package 2 Length	120 cm
Package 2 Weight	403.2kg

Contractual guarantee

maintainance	2 years repair or replace
