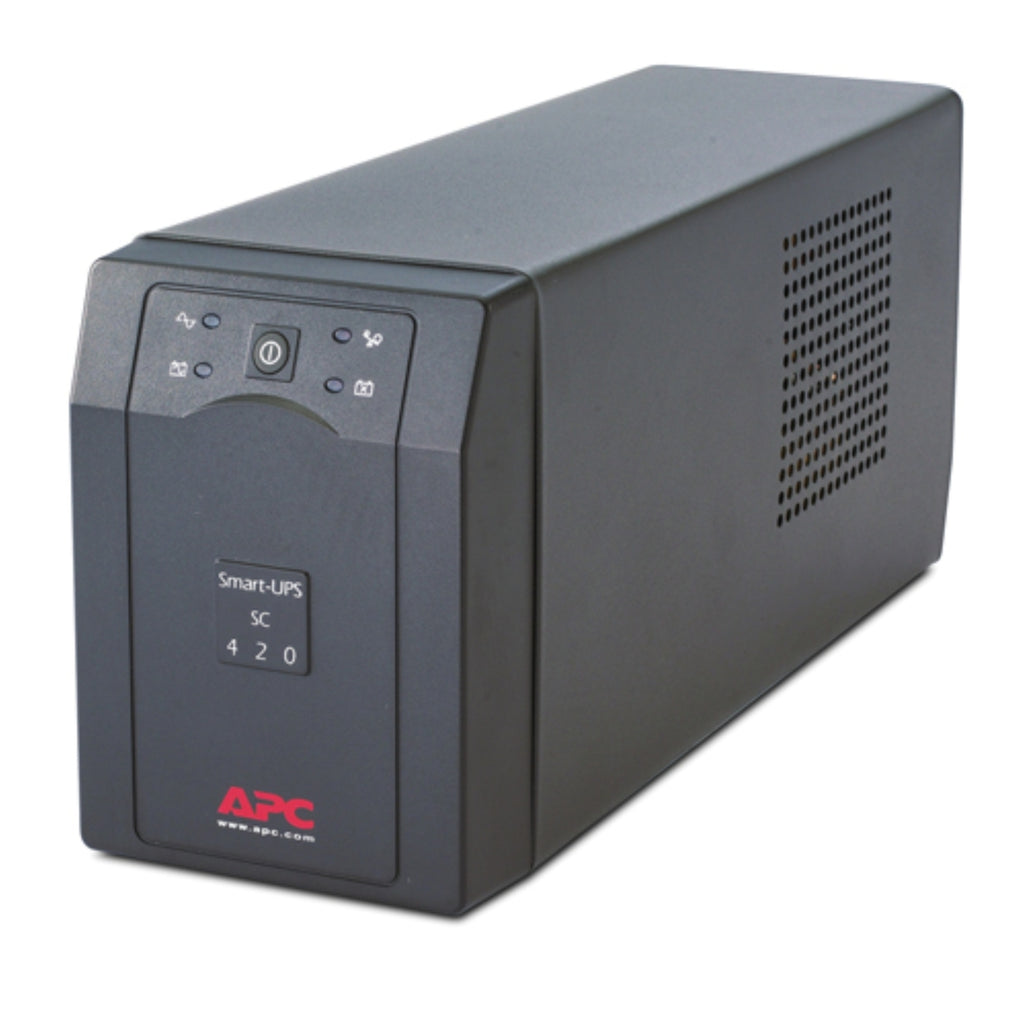

APC SMART-UPS SC420I 420VA 230V (RS-232 interface), Tower

Specifications

Overview

Presentation

APC Smart-UPS SC is ideal for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages. The Smart-UPS SC features network grade protection, hot swap batteries, and built- in data line protection for worry free uninterruptible power protection for increased availability. Built on the same standards as the award-winning Smart-UPS, Smart-UPS SC provides the basic features and manageability needed to protect entry-level applications

Lead time

Usually in sufficient supply

host

Run time for load W information_stroke Min-max: 26-260 W	5min 27s
Max. Capacity Used information_stroke	100%
Main Input Voltage	230 V
Main Output Voltage	230 V
Rated power [W]	260W
Rated power [VA]	420VA

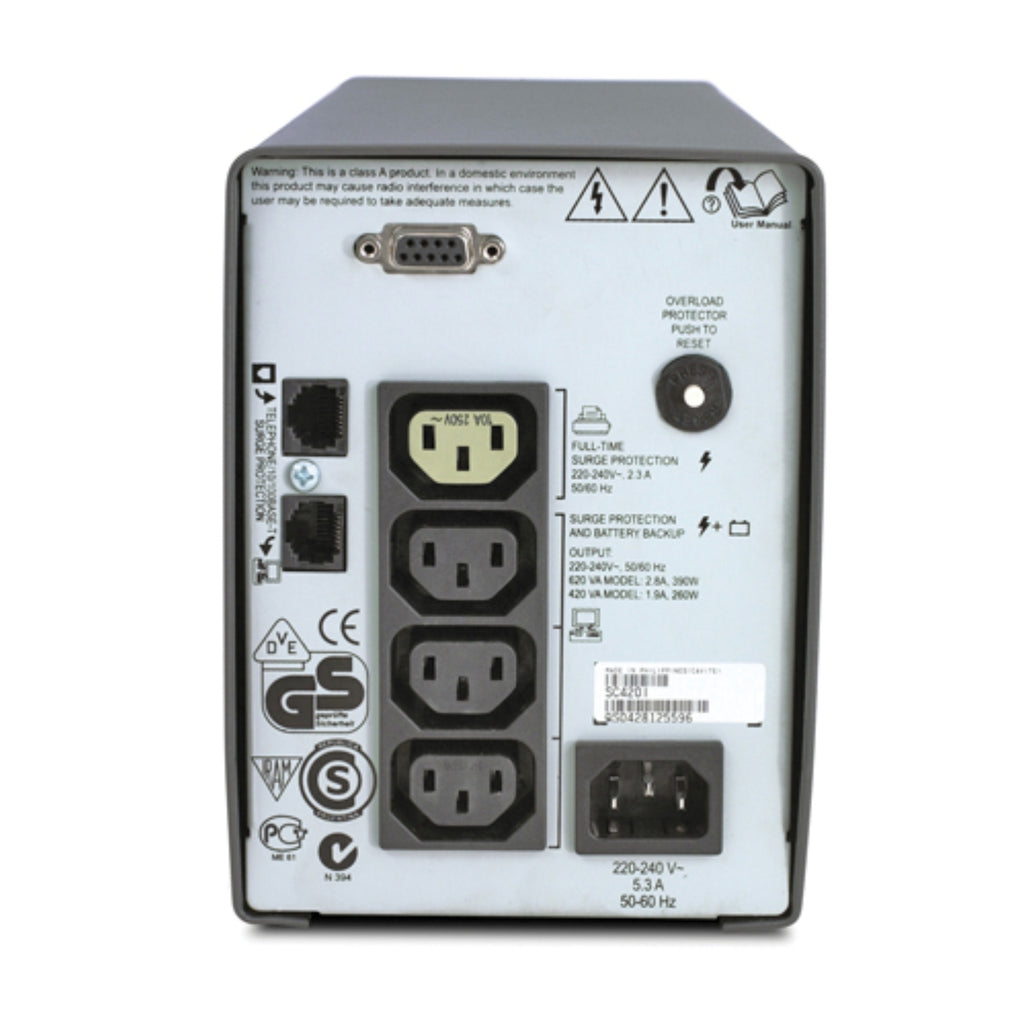

Input Connection Type	IEC 320 C14
output connection type	3 IEC 320 C13 1 IEC 320 C13 surge 2 IEC Jumpers
Number of rack units	0U
Battery Type	sealed battery
Equipment provided	User Manual CD included with Smart UPS RS-232 data line software

Battery and run time

Run Time	View Runtime Graph action_new_window
voltage	12 V
Extended operating time	0
Battery capacity	7.0Ah
Pre-installed battery	0
Empty battery slot	0
Typical charging time	3 hours
RBC™ quantity	1
battery life	3…5 years
Venturi Pipe	RBC2 action_new_window
Battery charging power (watts)	28 W rated

Universal

Number of power module filled slots	0
Number of power module free slots	0
product web sub-family	Entry level
Redundant	No

entity mark

color	grey
high	16.8 cm
width	11.9cm
depth	36.8 cm
product weight	9.09kg
Installation location	front
Mounting preference	No preference
Installation type	Not rack-mountable
Two post mountable	0
USB compatible	No

enter

Efficiency at full load	195...265V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing

output

harmonic distortion	Less than 5% at full load
Maximum configurable power in VA	420VA
Maximum configurable power (W)	260W
transmission time	Normally 0.6 seconds: Maximum 1 second
topology	Online interactive
Wave type	Gradually approach the sine wave
Output frequency (synchronized with mains)	47...53 Hz for 50Hz nominally synchronized with mains 57...63 Hz for 60Hz nominally synchronized with mains

Certification and Warranty

Product certification	CE EAC GOST NOM VDE VCCI
standard	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

environment

sound level	45 dBA
heat dissipation	50 Btu/h
operating height	0...10000ft
Working temperature	0…40°C
Storage environment temperature	-15…45 °C
Storage height	0.00…15240.00 m
Relative humidity	0…95%
relative storage humidity	0…95%

Communication and management

free slot	0
control panel	LED status display with on line : on battery : replace battery and overload indicators
alarm	Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Surge protection and screening

Data line protection	RJ45 Modem/Fax/DSL/10-100 Base-T Protection
surge absorption capacity	320 J
filter	All-weather multi-column noise filtering: 0.7% ieee surge limit: zero clamp response time: UL 1449 compliant

Packing units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	31.8cm
Package 1 Width	26.2cm
Package 1 Length	50.8cm
Package 1 Weight	10.23kg
Unit Type of Package 2	PAL
Number of Units in Package 2	32
Package 2 Height	141cm
Package 2 Width	100 cm
Package 2 Length	120cm
Package 2 Weight	339.3kg

Contractual guarantee

maintainance	2 years repair or replace
