Description
Specifications
| Lead time | Usually in sufficient supply |
|---|
|
Run time for load
W
Min-max: 39-390 W
|
2min 44s |
|---|---|
|
|
|
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power [W] | 390W |
| Rated power [VA] | 650VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C13 |

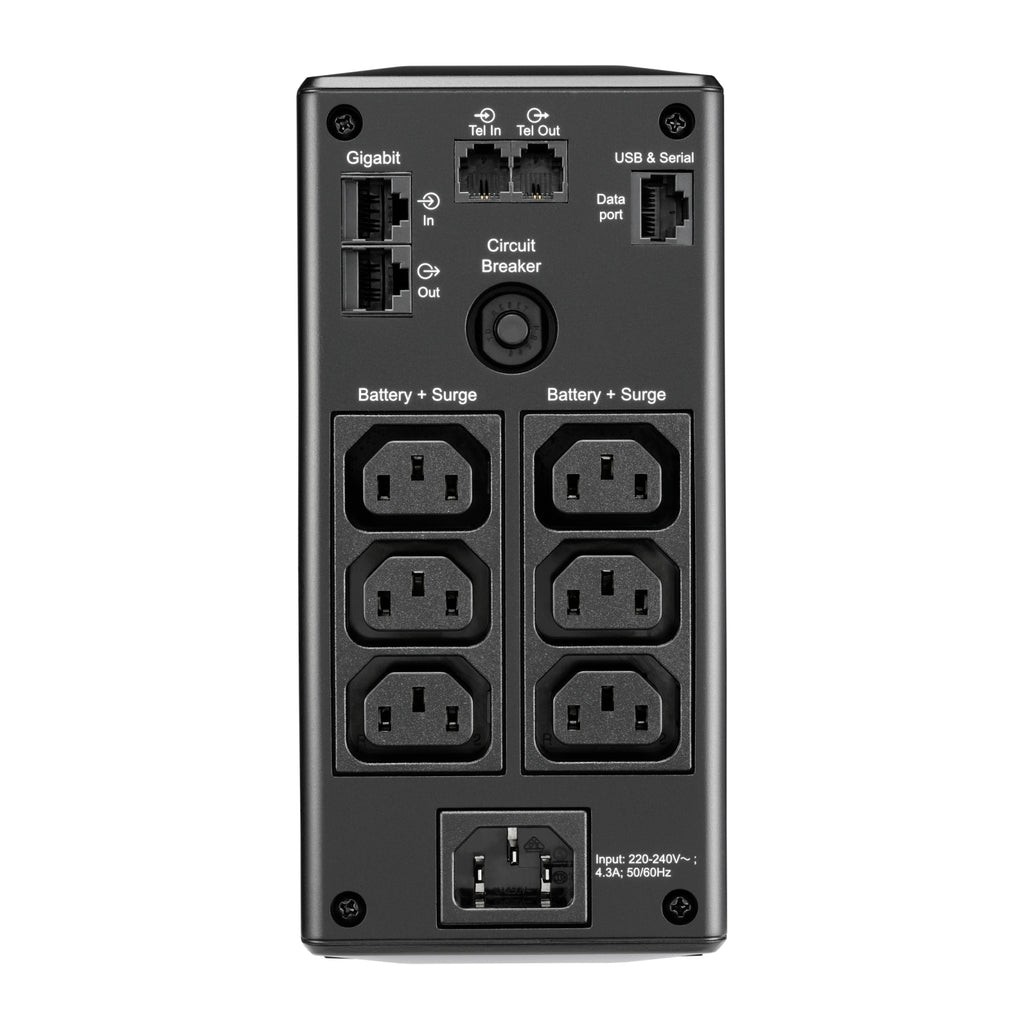

| output connection type | 6 IEC 60320 C13 |
| Battery Type | sealed battery |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Pre-installed battery | 0 |
| Empty battery slot | 0 |
| Typical charging time | 12 hours |
| RBC™ quantity | 1 |
| voltage | 12 V |
| Battery capacity | 7.0 Ah |
| Battery charging power (watts) | 6 W rated |
| battery life | 3…5 years |
| Venturi Pipe | APCRBC110 |
| Extended operating time | 0 |
| Equipment provided | User Manual USB cable |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| high | 19 cm |
|---|---|
| width | 9.1cm |
| depth | 31cm |
| product weight | 6.4kg |
| Mounting preference | No preference |
| Installation type | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
|---|---|
| Efficiency at full load | 176...294V |
| Maximum input current | 10A |
| Switching current capability | 10A |
| Maximum configurable power (W) | 390W |
|---|---|
| Output frequency (synchronized with mains) | 50/60 Hz +/- 1 Hz synchronized with mains |
| topology | Online interactive |
| Wave type | Gradually approach the sine wave |
| Maximum configurable power in VA | 650VA |
| transmission time | Typical value is 10 ms: Maximum value is 12 ms |
| Product certification | A-Tick C-Tick CE EAC RCM TISI |
|---|---|
| logo | GS mark |
| standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Working temperature | 0…40°C |
|---|---|
| Relative humidity | 0…95% |
| operating height | 0...10000ft |
| Storage environment temperature | -15…45 °C |
| relative storage humidity | 0…95% |
| Storage height | 0.00…15240.00 m |
| sound level | 45 dBA |
| heat dissipation | 13.3 Btu/h |
| Alarm function | Multifunctional LCD status and control console |
|---|---|
| alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
| filter | Full-time multi-pole noise filtering: 10% IEEE surge pass-through, zero lag Response time: Instantaneous |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.5 cm |
| Package 1 Width | 14.3cm |
| Package 1 Length | 44cm |
| Package 1 Weight | 7.4kg |
| SCC14 | 10731304346934 |
| maintainance | 2 years repair or replace, 3 years repair or replace for European Union countries |
|---|
