Description

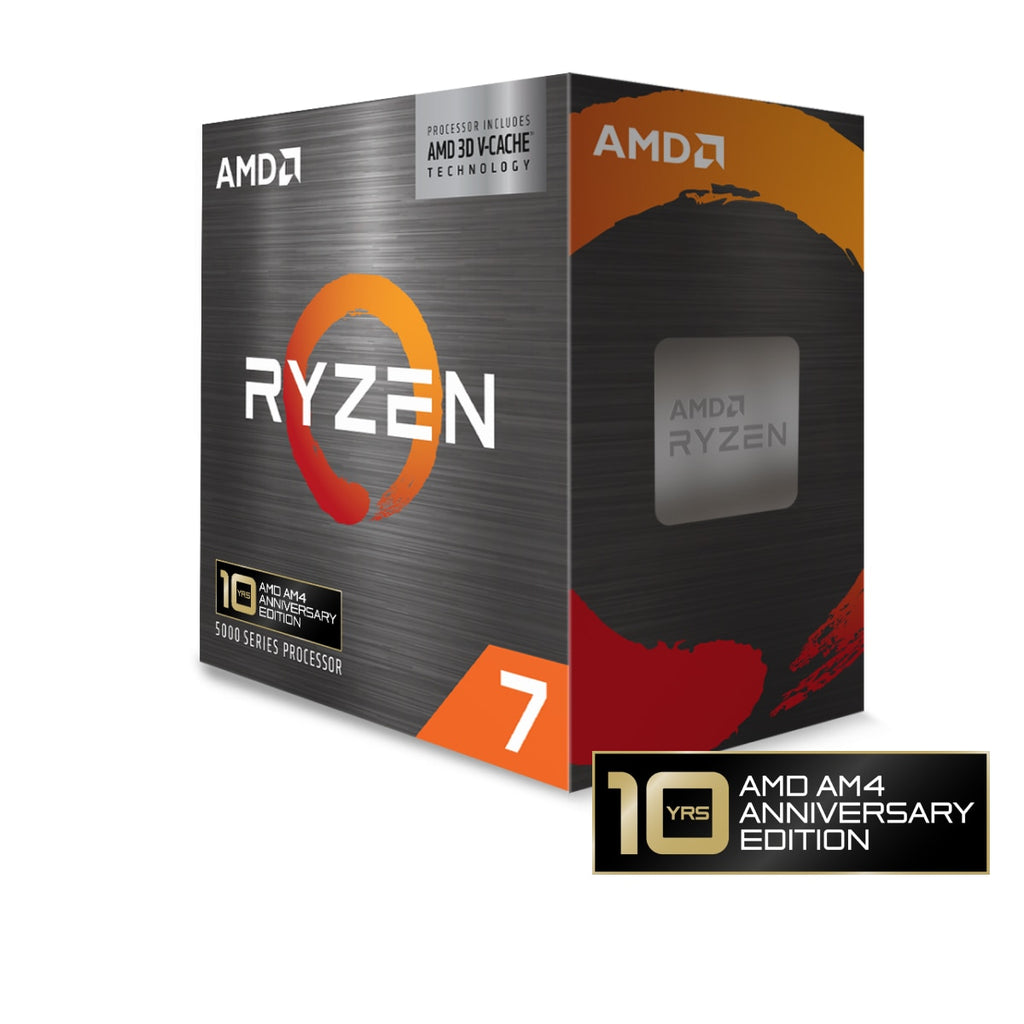

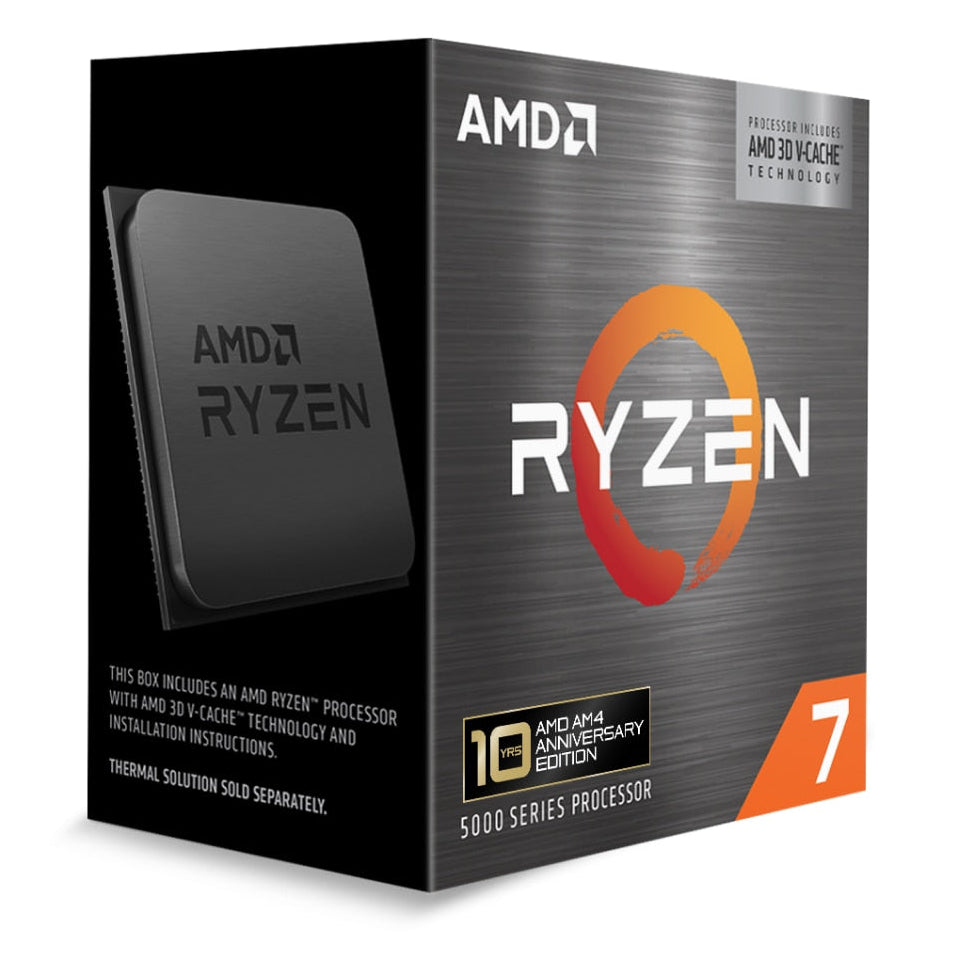

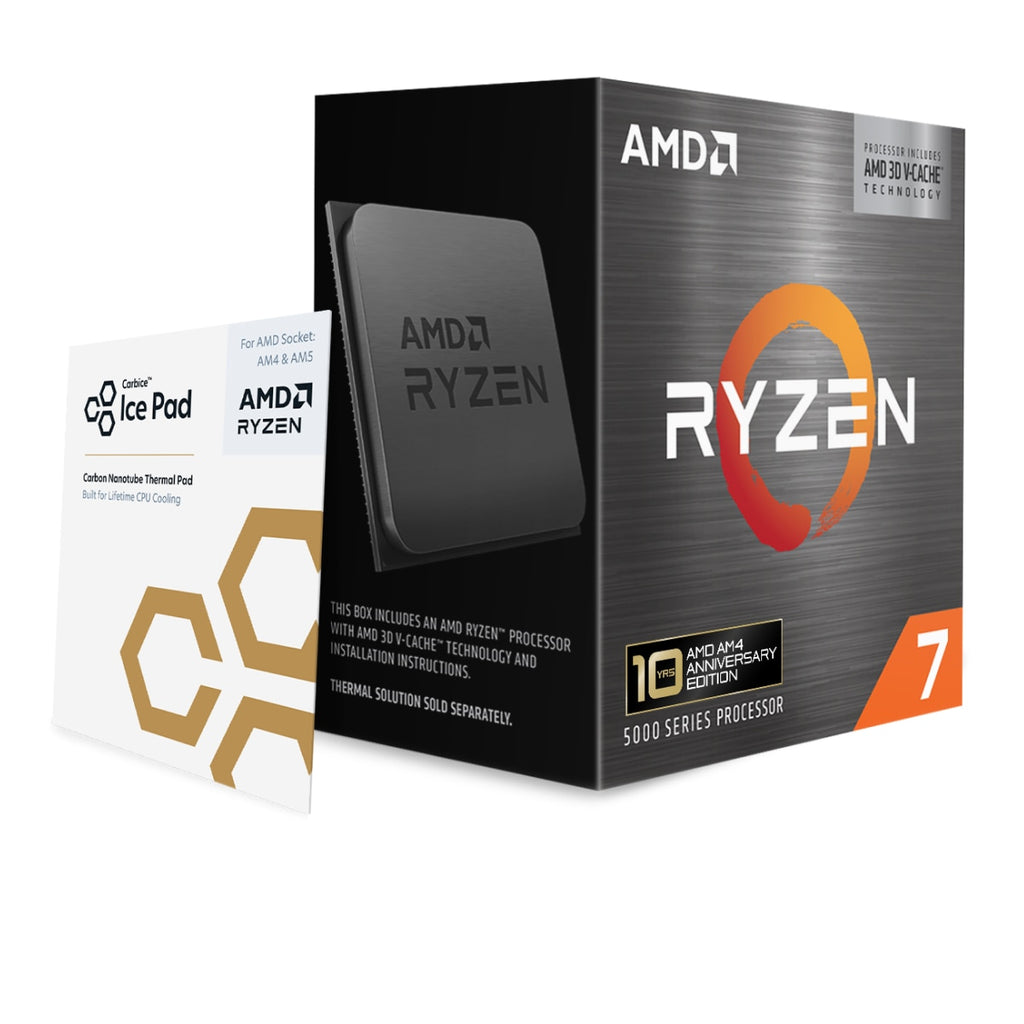

NameAMD Ryzen™ 7 5800X3D
FamilyRyzen
SeriesRyzen 5000 Series
Form FactorDesktops , Boxed Processor
Market SegmentEnthusiast Desktop
Regional AvailabilityGlobal , China , NA , EMEA , APJ , LATAM
Former CodenameVermeer
Processor ArchitectureZen 3
# of CPU Cores8
Multithreading (SMT)Yes
# of Threads16
Max. Boost Clock Up to 4.5 GHz
Base Clock 3.4 GHz
L1 Cache512 KB
L2 Cache4 MB
L3 Cache96 MB
Default TDP105W
Processor Technology for CPU CoresTSMC 7nm FinFET
Processor Technology for I/O Die12nm (Globalfoundries)
CPU Compute Die (CCD) Size74mm²
I/O Die (IOD) Size125mm²
Package Die Count2
CPU SocketAM4
Supporting ChipsetsX570 , X470 , B550 , B450 , A520
CPU Boost TechnologyPrecision Boost 2
Instruction Setx86-64
Supported ExtensionsAES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)Not Included
Recommended CoolerLiquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)90°C
Launch Date4/20/2022
*OS SupportWindows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
