Description
ThundeRobot
MIX STATION Mini AI PC (ACSH395A8)
AMD Ryzen™ AI Max+ 395 | Radeon 8060S | 128GB LPDDR5X | Wi-Fi 7
Flagship AI ProcessorRyzen™ AI Max+ 395 (16 Cores / 32 Threads)
Powerful Integrated GraphicsAMD Radeon 8060S
High-Capacity Memory128GB LPDDR5X High-Speed Memory
Ultra-Fast NetworkingWi-Fi 7 + Dual 2.5G Ethernet Ports
📋 Basic Model & Appearance Specifications
| Brand / Product Series | ThundeRobot / STATION Mini AI PC |
| Product Model / Part Number | ACSH395A8 |
| Color | Classic Black |
| Dimensions | 159.5 × 159.5 × 153 mm (Refined, square design) |
🧠 Processor & Platform (CPU Platform)
| Processor Model | AMD Ryzen™ AI Max+ 395 (Strix Halo architecture) |
| Process Technology | TSMC 4nm FinFET advanced process technology |
| Cores & Threads | 16 Cores / 32 Threads |
| Clock Speed | Base Clock 3.0 GHz / Max Boost Clock 5.1 GHz (Official Theoretical Value) |
| Cache | 64MB L3 Smart Cache |
| Official Theoretical Power Consumption | 55W TDP (Official Theoretical Value) |
🎮 Integrated Graphics
| Graphics Model | AMD Radeon™ 8060S Graphics (Flagship integrated graphics) |
💾 Memory & Storage (RAM & Storage)
| Memory (RAM) | 128GB LPDDR5X onboard high-capacity, high-speed memory |
| Preinstalled Solid-State Drive (SSD) | 1TB M.2 2280 PCIe 4.0 NVMe SSD × 1 |

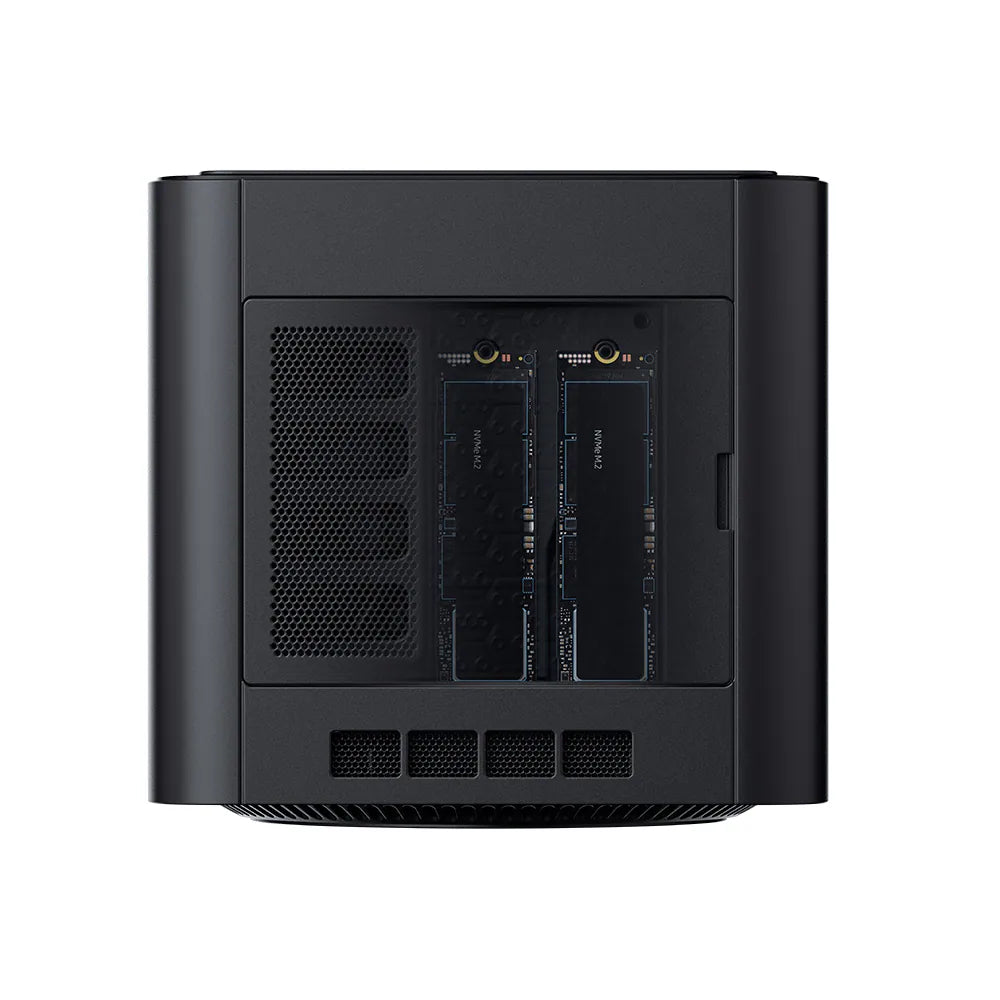

| Storage Expandability | 2 M.2 2280 PCIe 4.0 NVMe slots in total (1 slot reserved for expansion; each slot supports up to 2TB) |
🌐 Ports, Networking & Communications (Connectivity)
| Physical I/O Port Configuration |

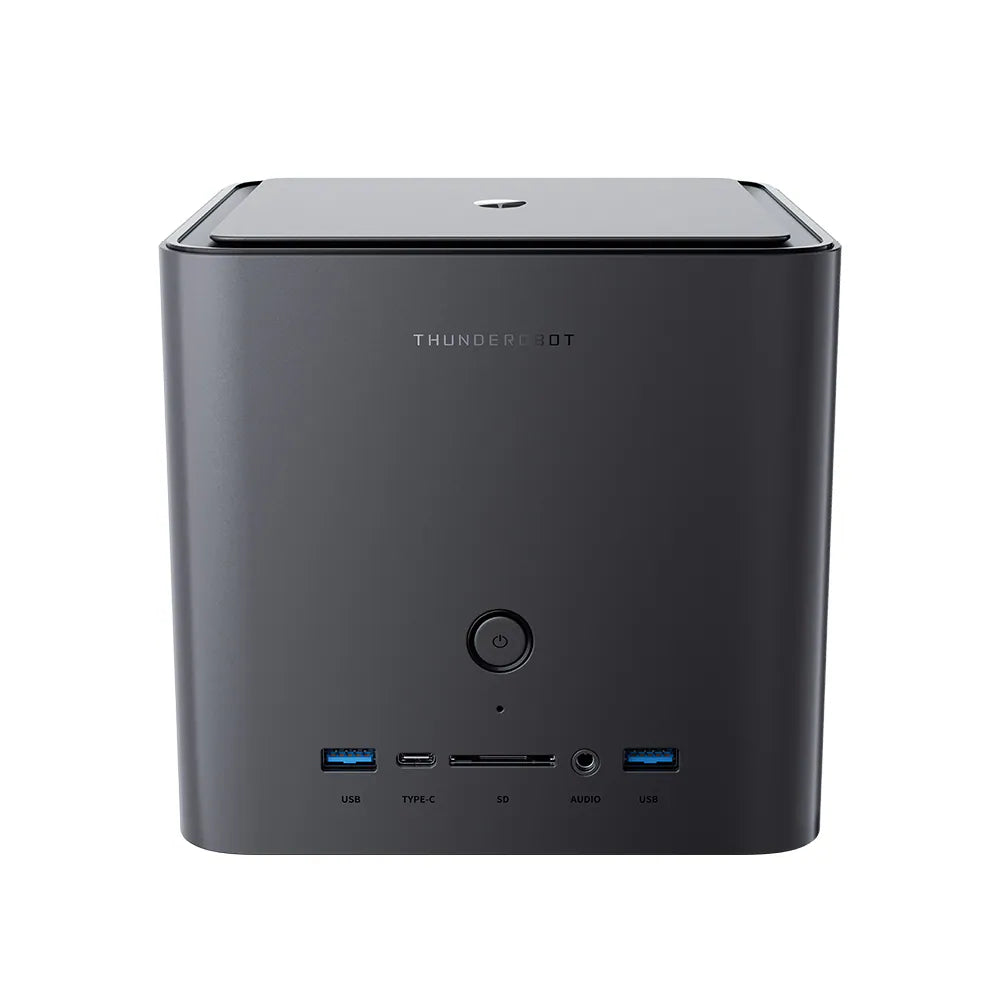

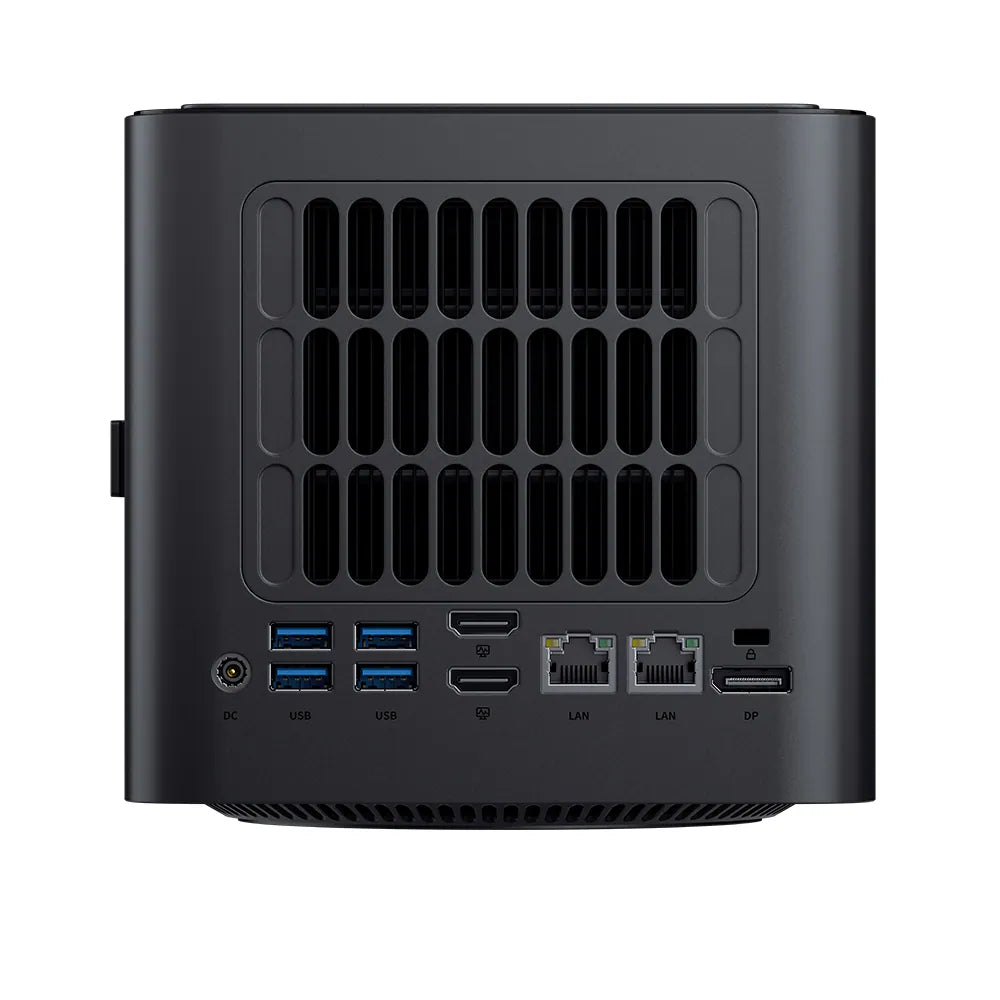

High-Speed Data Transfer / Audio & Video Output: • 1 × USB4 (40Gbps data transfer / supports DisplayPort video output; does not support USB Power Delivery (PD)) • 1 × HDMI 2.1 high-definition audio/video port • 1 × DisplayPort 2.0 video port USB Expansion Ports: • 4 × USB-A ports • 2 × USB-C ports Audio Interfaces: • 1 × Front 3.5mm 2-in-1 headset jack • 1 × Digital Microphone (DMIC) |
| Wired & Wireless Networking |
Wired LAN: Dual 2.5G high-speed Ethernet ports (2.5G Network Adapter × 2, 10/100/1000/2500 Mb/s) Wireless Networking: AzureWave AW-EB600NF M.2 wireless card, supporting Wi-Fi 7 (2.4GHz / 5GHz / 6GHz tri-band) Bluetooth: Bluetooth 5.4 |
⚙️ Cooling System & Power Supply
| Cooling System | Air-cooling system (Aircooler × 1 / Fan × 1) |
| Power Adapter | 300W DC high-power adapter |
