Description
Specifications
| CPU | 11th Gen Intel® Core™ i7-1185G7, 4 cores / 8 threads, 10nm, up to 4.8GHz, 12MB L3 Cache; Silent mode 28W, Balanced 35W, Performance 40W (peak 40W) |
|---|---|
| CPU Package | FCBGA1449, 45.5 × 25mm |
| GPU | Intel® Iris® Xe Graphics, 96 EUs, max dynamic frequency 1.35GHz |

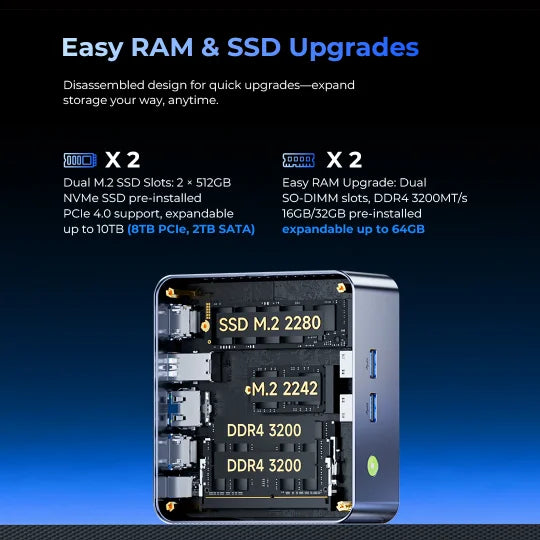

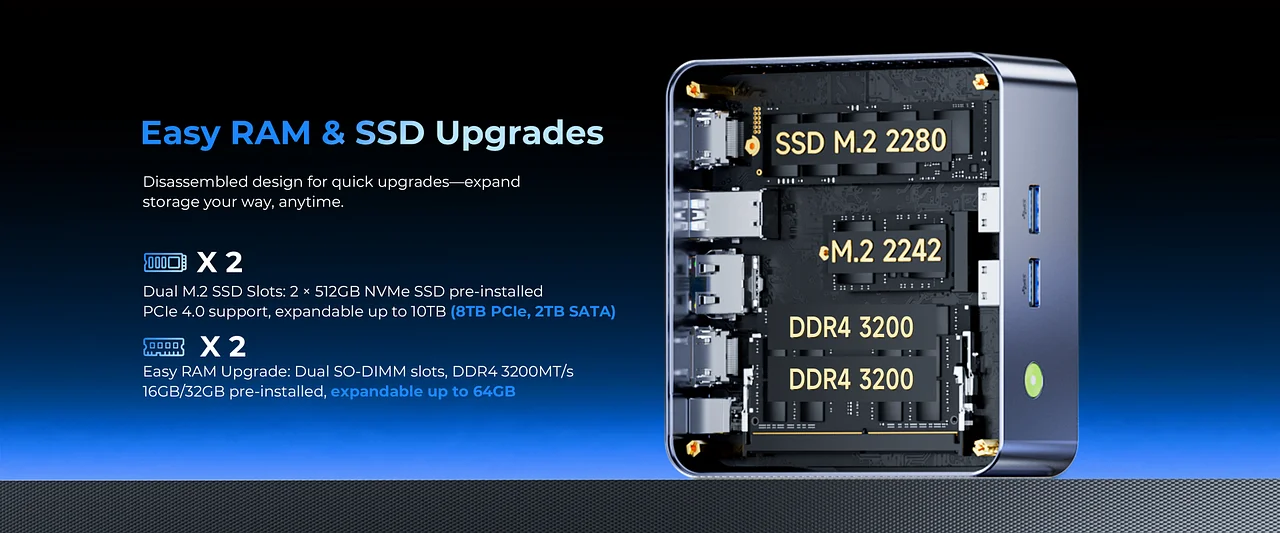

| Memory | 2×SO-DIMM DDR4 3200 MT/s, 16GB / 32GB pre-installed, up to 64GB |
| Storage | 2×M.2 SSD (1×2280 NVMe PCIe 3.0, 512GB included), motherboard supports PCIe 4.0 |
| Internal Expansion | 1×M.2 2280 PCIe4.0×4 up to 8TB (no SATA); 1×M.2 2242 SATA up to 2TB (no PCIe) |
| Graphics Output | Dual HDMI 2.0 + Type-C, up to 4K |

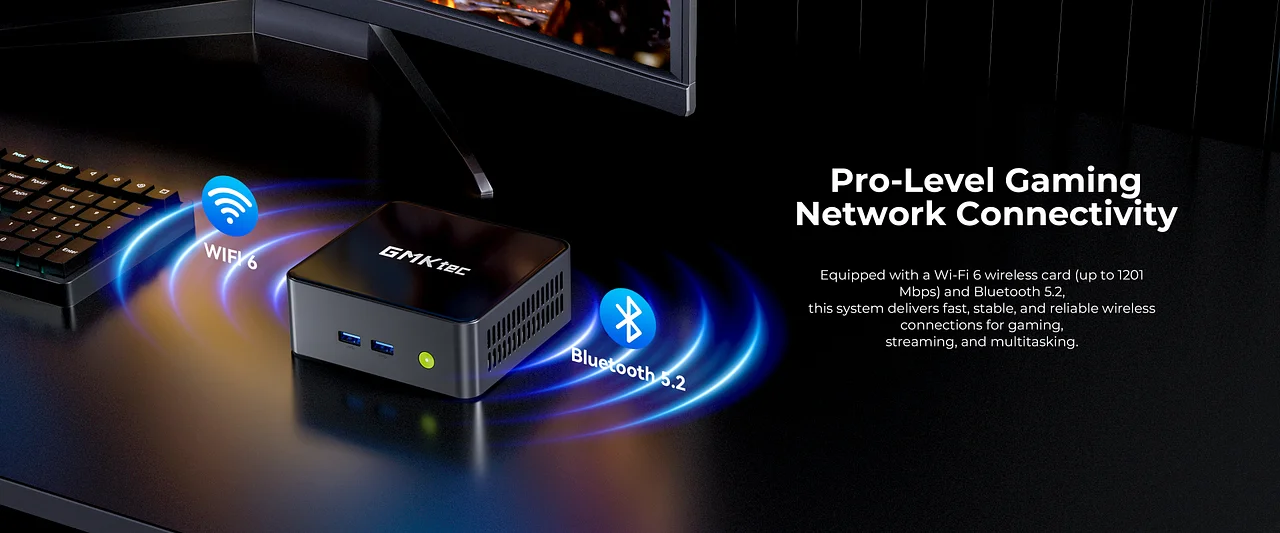

| Networking | WiFi 6 (Realtek 8852BE, up to 1201 Mbps), Bluetooth 5.2, Intel I226-V 2.5G LAN |
| Power | DC IN (5.5/2.5mm) 20V/5A 100W, built-in CMOS battery |

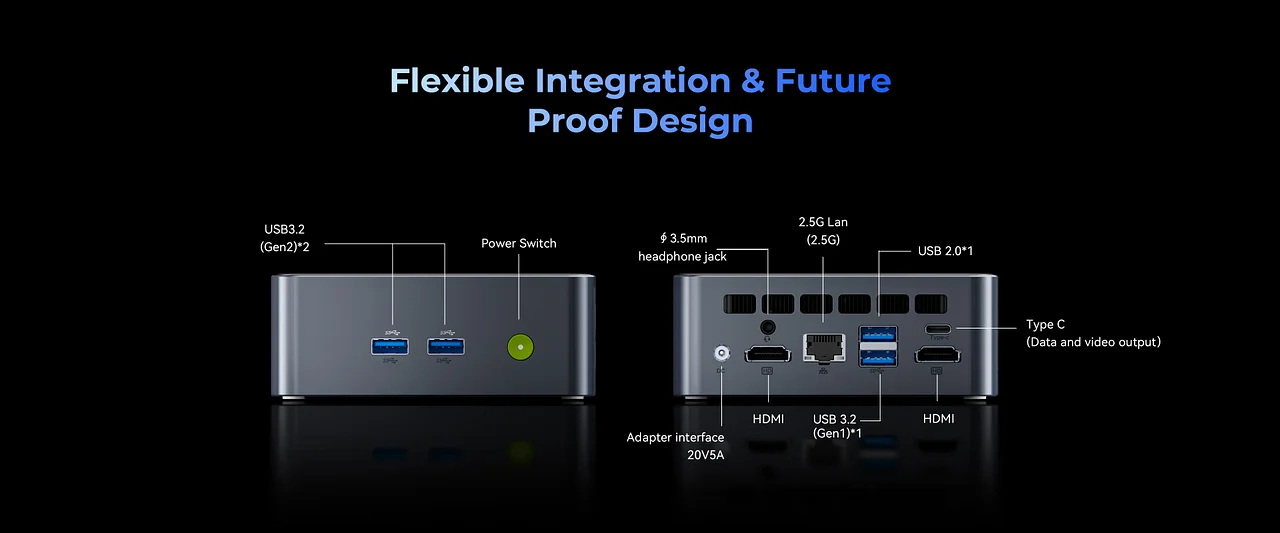

| Front I/O | • 2×USB 3.2 Gen2 (10Gbps) • Power / LED button |
| Rear I/O | • 1×USB 3.2 Gen1 (5Gbps) • 1×USB 2.0 • 2×HDMI 2.0 • 1×Type-C (DP/Data 5Gbps, 4K@60Hz) • 1×3.5mm audio jack • 1×RJ45 LAN (2.5Gbps) • DC IN |
| OS | Windows 11 Pro |
| Dimensions | 114 × 106 × 42.5 mm |
| Weight | 361g (bare), 1.4kg (package) |
| Package | Box size: 120 × 158 × 164 mm; 12 pcs per carton, 340 × 353 × 385 mm, 12kg |
| Included Accessories | Power adapter, HDMI cable, VESA mount, Manual, Warranty card |
