Description
| Parameter | Details |
|---|---|
| CPU Model | AMD Ryzen™ AI 9 HX 470 |

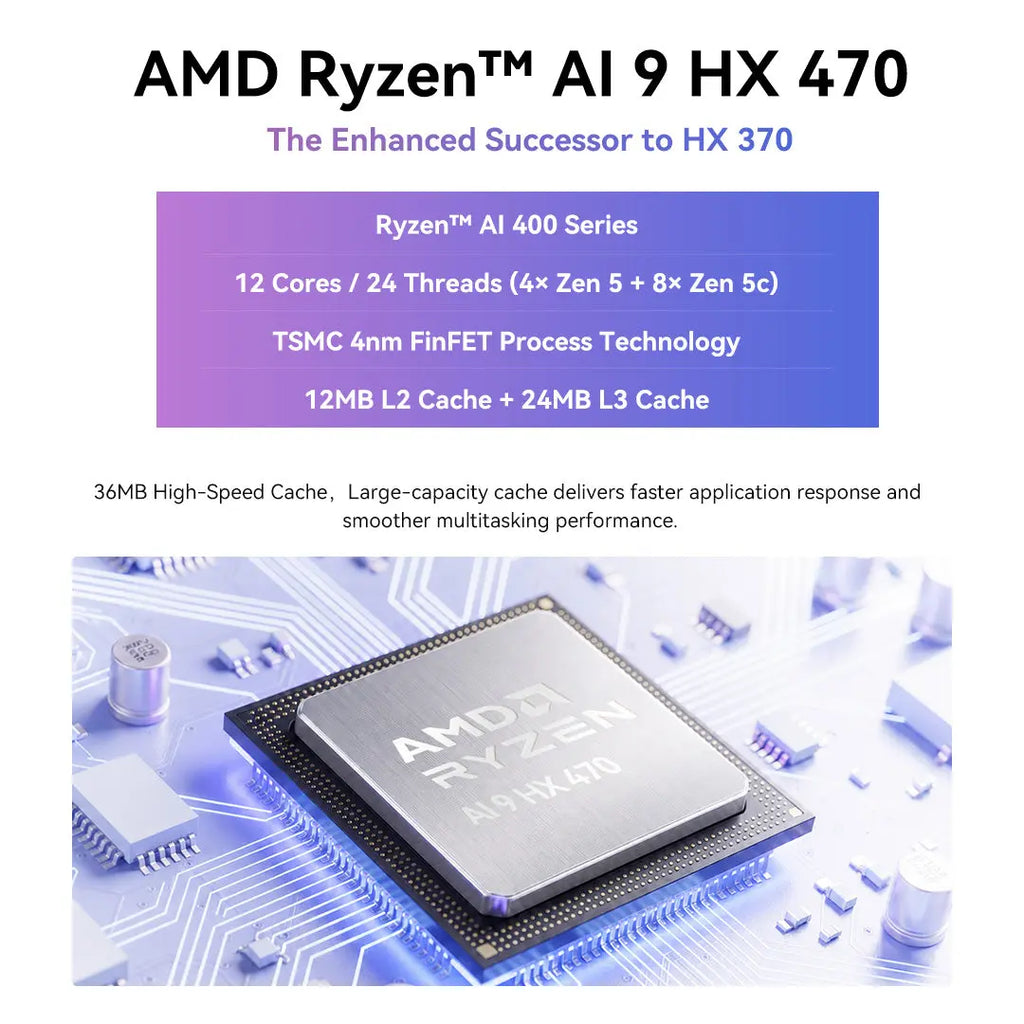

| CPU | AMD Ryzen™ AI 400 Series Processor 12 Cores / 24 Threads (4 × Zen 5 + 8 × Zen 5c) TSMC 4nm FinFET Process Base Clock: 2.0GHz Max Boost Clock: Up to 5.2GHz 12MB L2 Cache / 24MB L3 Cache |
| AI Engine | AMD Ryzen™ AI Dedicated NPU Performance: Up to 55 TOPS Total AI Performance: Up to 86 TOPS GMKtec Claw Pre-installed for Ready-to-use Local AI |
| GPU | AMD Radeon™ 890M Graphics 16 Compute Units Graphics Frequency: Up to 3.1GHz |
| Memory | 64GB Onboard LPDDR5 6400MT/s Memory Onboard, Non-upgradeable |
| Storage | Dual M.2 2280 PCIe 4.0 ×4 SSD Slots Standard Configurations: 1TB Supports PCIe 3.0 & PCIe 4.0 NVMe SSD Maximum Capacity: Up to 16TB (8TB per slot) SATA SSD Not Supported |
| Graphics Output | Triple Display Output 1 × HDMI 2.1 (Up to 8K@60Hz) 1 × DisplayPort 2.1 (Up to 8K@60Hz) 1 × USB4 Display Output (Up to 4K@60Hz) |
| Network | Wi-Fi 7 (AMD RZ717 / MediaTek MT7925) Maximum Wireless Speed: Up to 2.9Gbps Bluetooth 5.4 Dual 2.5G Ethernet (Intel I226-V ×2) |

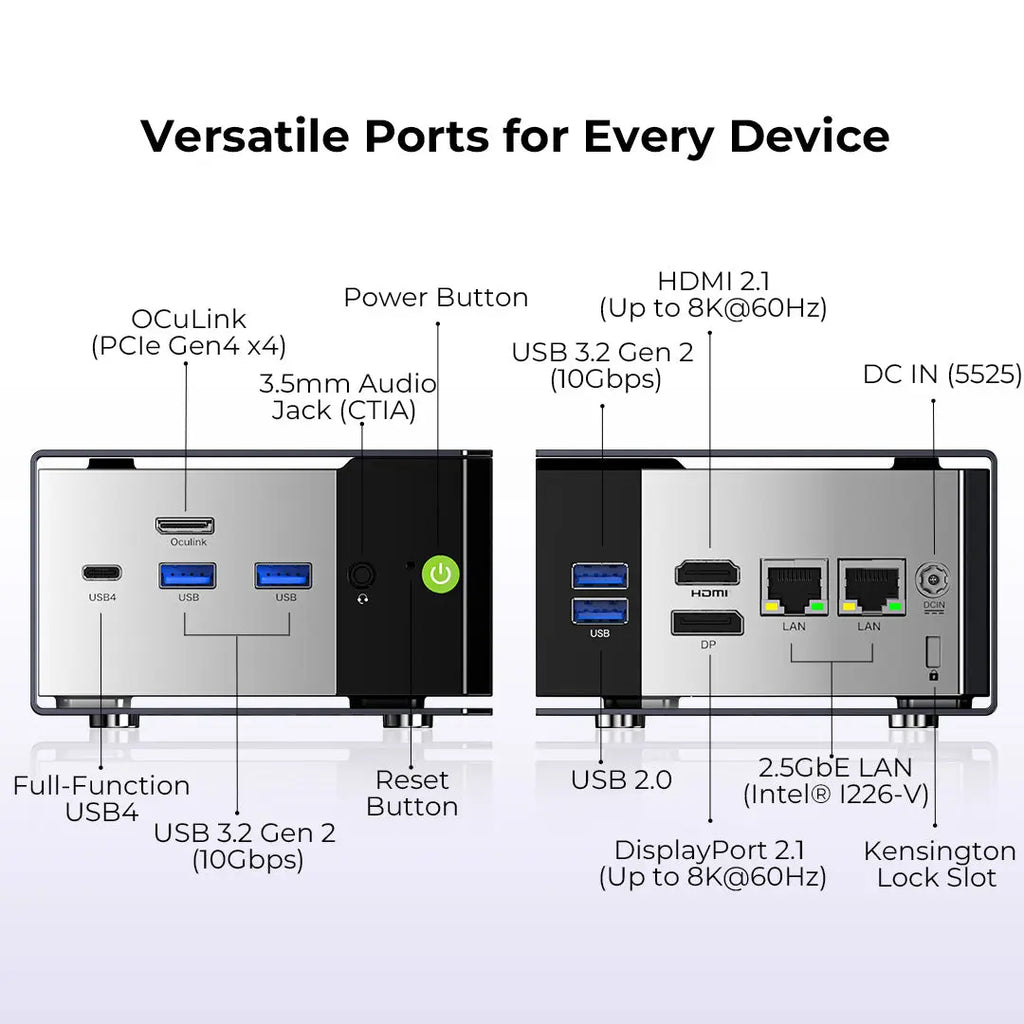

| Front I/O | 2 × USB 3.2 Gen2 Type-A (10Gbps) 1 × Full-featured USB4 (40Gbps, PD 3.0, Display Output) 1 × OCuLink (PCIe 4.0 ×4) 1 × 3.5mm CTIA Audio Jack 1 × Power Button (White LED) 1 × Reset Button |
| Rear I/O | 2 × USB 3.2 Gen2 Type-A (10Gbps) 1 × HDMI 2.1 (Up to 8K@60Hz) 1 × DisplayPort 2.1 (Up to 8K@60Hz) 2 × RJ45 2.5G Ethernet 1 × DC IN (5.5 × 2.5mm) 1 × Kensington Security Lock |
| OCuLink Notice | OCuLink does not support hot-plugging. Please connect or disconnect OCuLink devices only when the Mini PC is fully powered off. |
| Power | DC Input: 19V / 6.32A 120W Power Adapter Included USB4 Supports PD 3.0 Power Input (Up to 100W) Built-in CMOS Battery |
| Cooling System | Vapour Chamber Dual-fan Cooling System Dedicated System Fan with Integrated Lighting Silent Mode: 35W Balanced Mode: 54W Performance Mode: Up to 65W Peak |
| Operating System | Windows 11 Pro |
| Dimensions | 107 × 111 × 63mm |
| Weight | Approx. 590g |
