Description
XT12(1-PK)
IPv6
IPv4
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
AX11000 終極 AX 效能： 1148+4804+4804Mbps
WiFi 6 (802.11ax) (5GHz-2) : 最高 4804 Mbps
WiFi 6 (802.11ax) (5GHz-1) : 最高 4804 Mbps
WiFi 6 (802.11ax) (2.4GHz) ：最高 1148 Mbps
WiFi 5 (802.11ac)：最高 4333 Mbps
WiFi 5 (802.11ac)：最高 1000 Mbps
WiFi 4 (802.11n)：最高 600 Mbps
802.11g : 最高 54 Mbps
802.11b : 最高 11 Mbps
802.11a : 最高 54 Mbps
internal antenna x 10
5GHz-2 4x4
5GHz-1 4x4
2.4GHz 4x4
2.0 GHz quad-core 64bits processor
256 MB Flash
1GB RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
2.4G Hz, 5 GHz-1, 5 GHz-2
Wireless router mode
Repeater mode
Access point mode
Media bridge mode
RJ45 for 2.5G BaseT for WAN x 1, RJ45 for 2.5G BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 2
WPS Button, Reset Button, Power Switch
Power x 1
Status x 1
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current

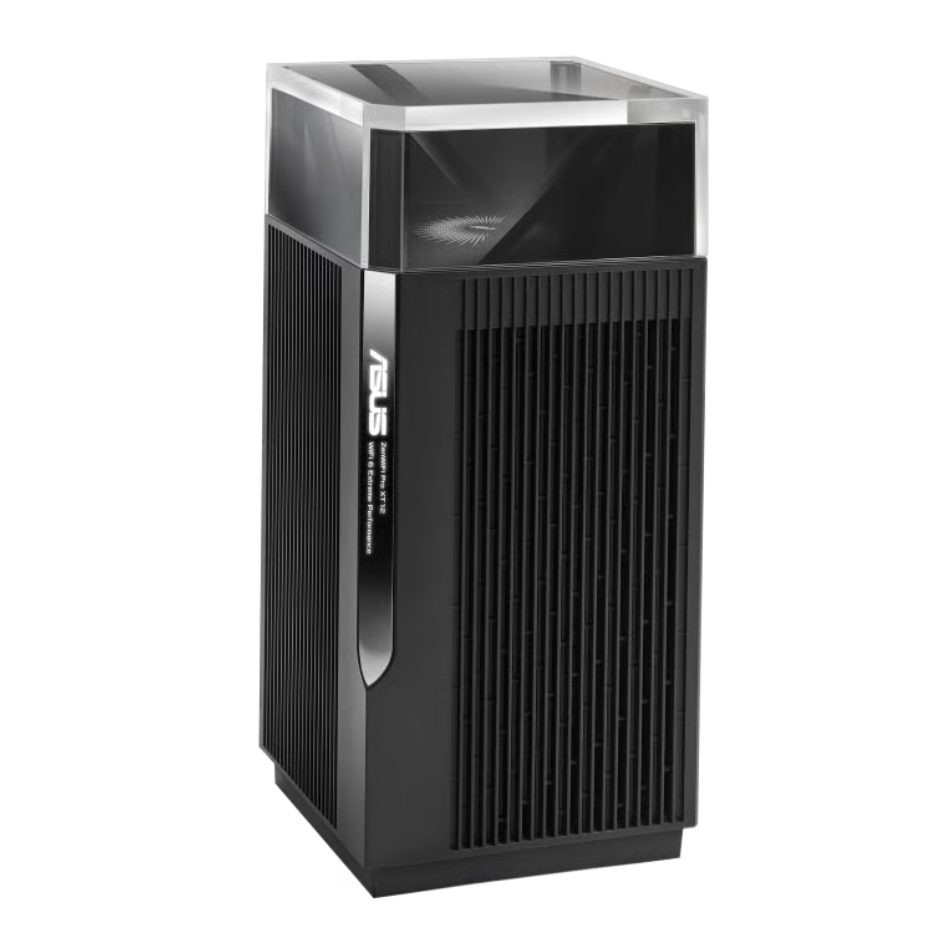

ZenWiFi Pro XT12
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
1500 g
115 x 115 x 241 mm
AiMesh, Primary AiMesh router, AiMesh node
Parental Control
有
Guest Network, • Maximum Guest Network Rule : Max 9 rules
WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPA3-Personal, WPS support, WPS, Let's Encrypt, Firewall, • Maximum Firewall Keyword Filter : Max 64 rules, • Maximum Firewall Network Service Filter : Max 32 rules, • Maximum Firewall URL Filter : Max 64 rules
AiProtection Pro, Malicious site blocking, Two-Way IPS, Infected Device Prevention and Blocking
VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP
Adaptive QoS, Traffic Monitor, Traffic Analyzer
Dual WAN, WAN Aggregation, DMZ, DDNS
IGMP snooping, IPTV, LAN Link Aggregation, Wake on LAN (WOL)
UTF-8 SSID, WiFi MAC address filter, • Maximum MAC Filters : Max 64 rules, Wireless scheduler, Airtime fairness, RADIUS Server, Universal beamforming, Explicit beamforming
Diagnosis tools, Feedback system, System log
