Description
- 三頻 WiFi 7，速度高達 18 Gbps，支援 6GHz WiFi、MLO 和 4K-QAM
- 搭載 AI 功能的 Smart AiMesh 覆蓋範圍可達170坪(雙入)，並提供進階安全性
- 八支內建天線和十個高功率前端模組，可消除 WiFi 訊號死角
- 透過商業級 AiProtection Pro 和進階 VPN 提供全天候點對點防護
- 透過 Smart Home Master 網路，為物聯網裝置及家長控管功能建立最多三組 SSID
- 具雙 10G WAN/LAN 乙太網路連接埠及具備自動偵測的彈性 WAN 或有線骨幹網路配置
- 4G LTE/5G 行動裝置熱點分享，可作備援以隨時確保網路連線
BT10(W-1-PK)
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6E (802.11ax)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
BE18000 ultimate BE performance : 688+5764+11529 Mbps
WiFi 7 (802.11be) (6GHz): up to 11529 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
Internal antennas x 8
6GHz 4x4
5GHz 4x4
2.4GHz 2x2
2.0GHz quad-core processor
RAM 2GB , Flash 256MB
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
6 GHz
5 GHz
2.4 GHz
Access Point Mode
AiMesh Node Mode
Wireless Router Mode
10G WAN/LAN x 1
10G LAN x 1
1G WAN/LAN x 1
USB 3.0 x1
WPS button, Reset button, Power switch
Power x 1
AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 3A current

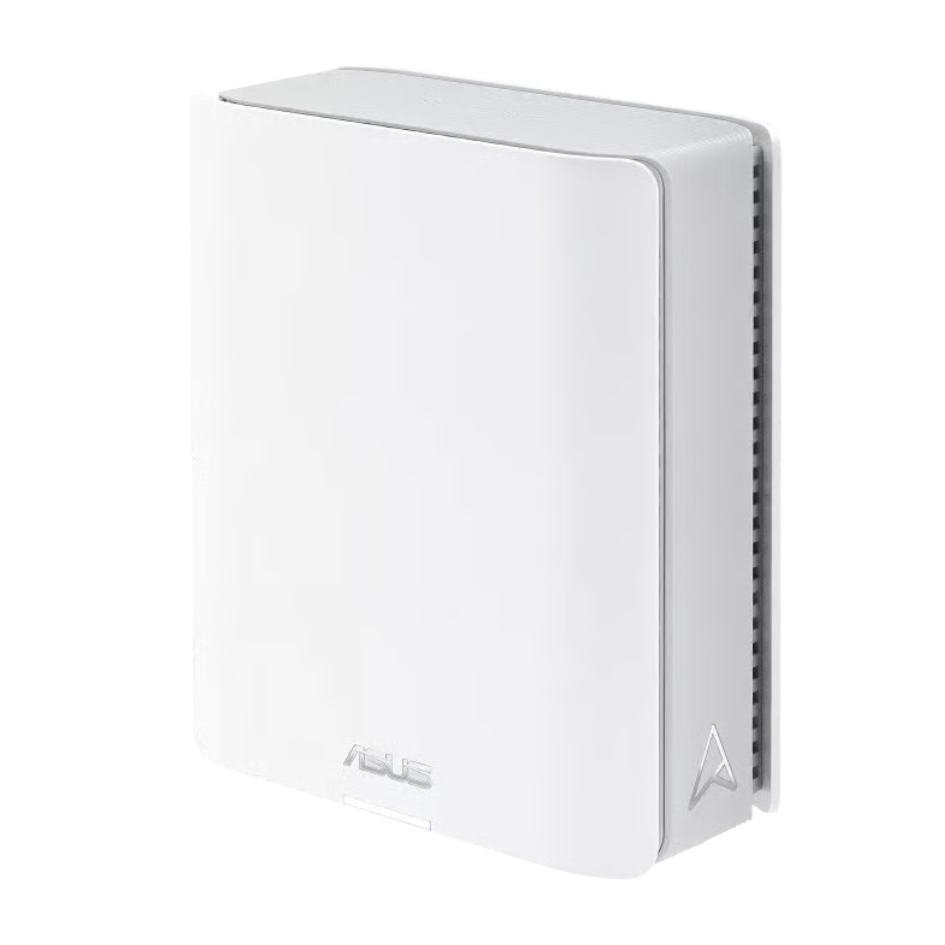

ZenWiFi BT10
RJ45 cable
Power adapter
Warranty card
Quick start guide
159 x 72 x 186 mm
Content may vary in different regions and packages.
AiMesh, Primary AiMesh router, AiMesh node
Parental Control, Web & Apps Filters, Time Scheduling, Reward, Parental Control - Safe Browsing, Parental Control Customized Internet schedule
ASUS Router APP
"The Guest Network provides Internet connection for guests but restricts access to your local network.", Guest Network
AiProtection, VPN, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, Security Scan, Firewall
AiProtection Pro, 有, Malicious site blocking, 有, Infected Device Prevention and Blocking
Instant Guard, VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
有, Bandwidth Monitor, Bandwidth limiter, Traditional QoS, 有, 有, 有
有, 有, Android tethering, Port forwarding, Port triggering, DMZ, DDNS
DHCP Server, IGMP snooping, IPTV, 有, Manually assign IP address, Wake on LAN (WOL)
MU-MIMO, UTF-8 SSID, 有, 有, 有, 有, 有, 有
Android tethering, 有, 有, 有, 有, 有, 有, 有, 有, 有
Diagnosis tools, Feedback system, System log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
Support Google Assistant
