Description
- 超高速 WiFi 7 –新一代 WiFi 7 路由器速度高達 3600 Mbps。
- 4K-QAM 調變 –全新的 4096-QAM 相比上一代產品，傳輸速度提高了 1.2 倍。
- 強大的運算能力 CPU –配備全新的四核心強勁 CPU，可輕鬆處理軟體和硬體相關的任務。
- ASUS AiMesh 支援 –支援 AiMesh 以建立全屋網狀網路。
- 經測試的耐用性和穩定運作－TUF Gaming BE3600 的設計著重於耐用性，並經過驗證測試，以確保可靠、穩定的運作。
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
BE3600 ultimate BE performance : 688+2882 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
External antenna x 4
5GHz 2x2
2.4GHz 2x2
2.0 GHz quad-core processor
256 MB Flash
1 GB RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
5 GHz
2.4 GHz
Wireless router mode
Access point mode
Media bridge mode
1x 2.5G for WAN/LAN,
1x 1G for WAN/LAN,
3 x 1G LAN,
USB 3.2 Gen 1 x 1
WPS Button, Reset Button, Power Button
Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current

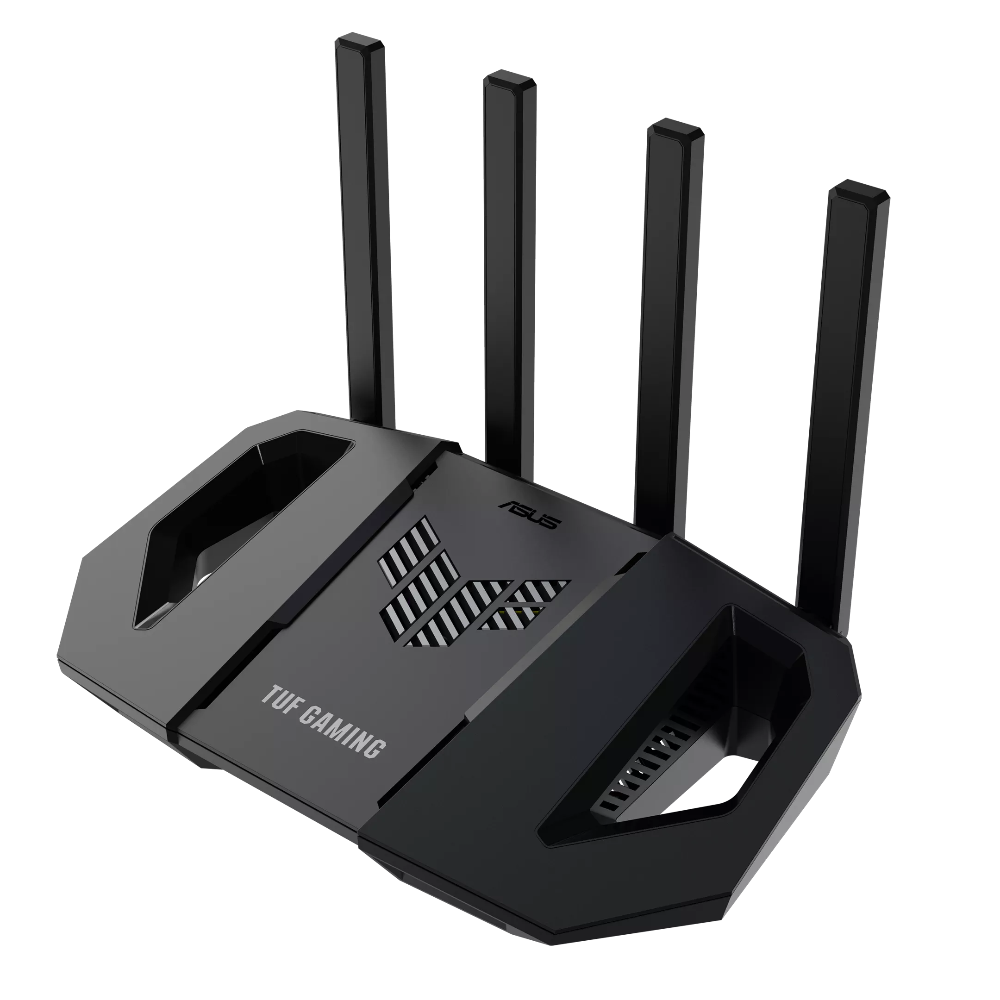

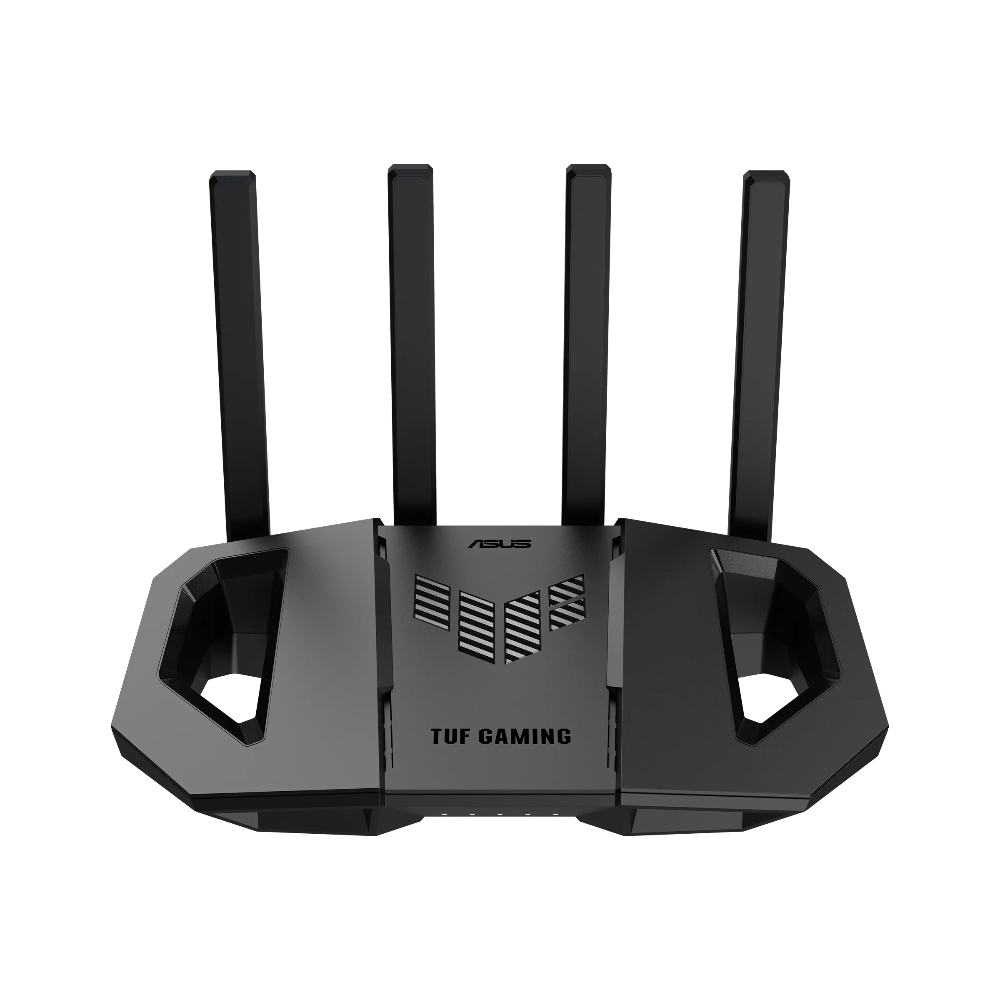

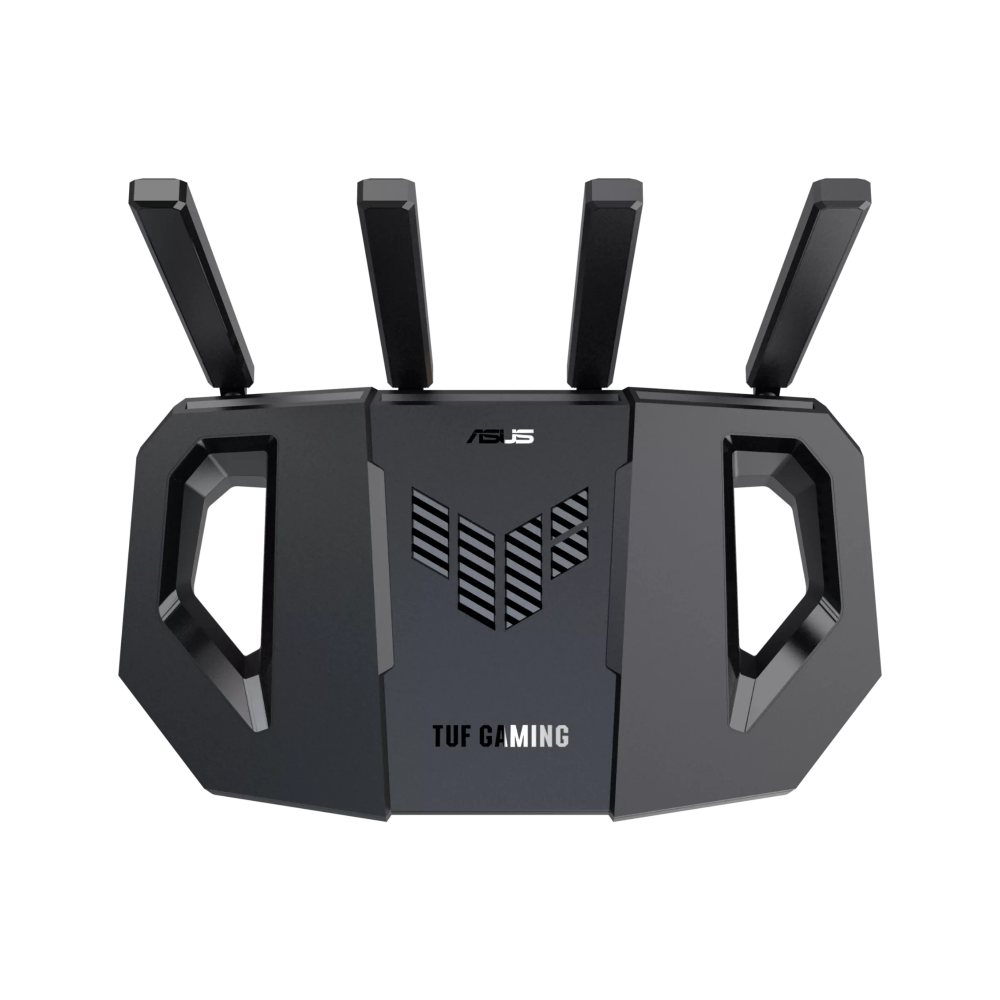

TUF Gaming BE3600 Dual Band WiFi 7 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
561g
274 x 168 x 205 mm
AiMesh, • Primary AiMesh Router, • AiMesh Node
Game Boost / Acceleration, Mobile Game Mode, Gaming Port
Time Scheduling, Safe Browsing, Customized Internet Schedule
"The Guest Network provides Internet connection for guests but restricts access to your local network.", • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3, Guest Network Connection Time Limit
AiProtection, VPN, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64
AiProtection, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, -- Maximum Traditional QoS Rule : 32, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, 3G / 4G LTE dongle, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)
UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove Disk, Download Master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges
Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
