Description
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
BE9400 ultimate BE performance : 688+2882+5764 Mbps
WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
External fixed antenna x 6
6GHz 2x2
5GHz 2x2
2.4GHz 2x2
1.5GHz Quad-core Processor
256 MB Flash and 1 GB RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
6 GHz
5 GHz
2.4 GHz
Repeater Mode
Media Bridge Mode
Access Point Mode
AiMesh Node Mode
Wireless Router Mode

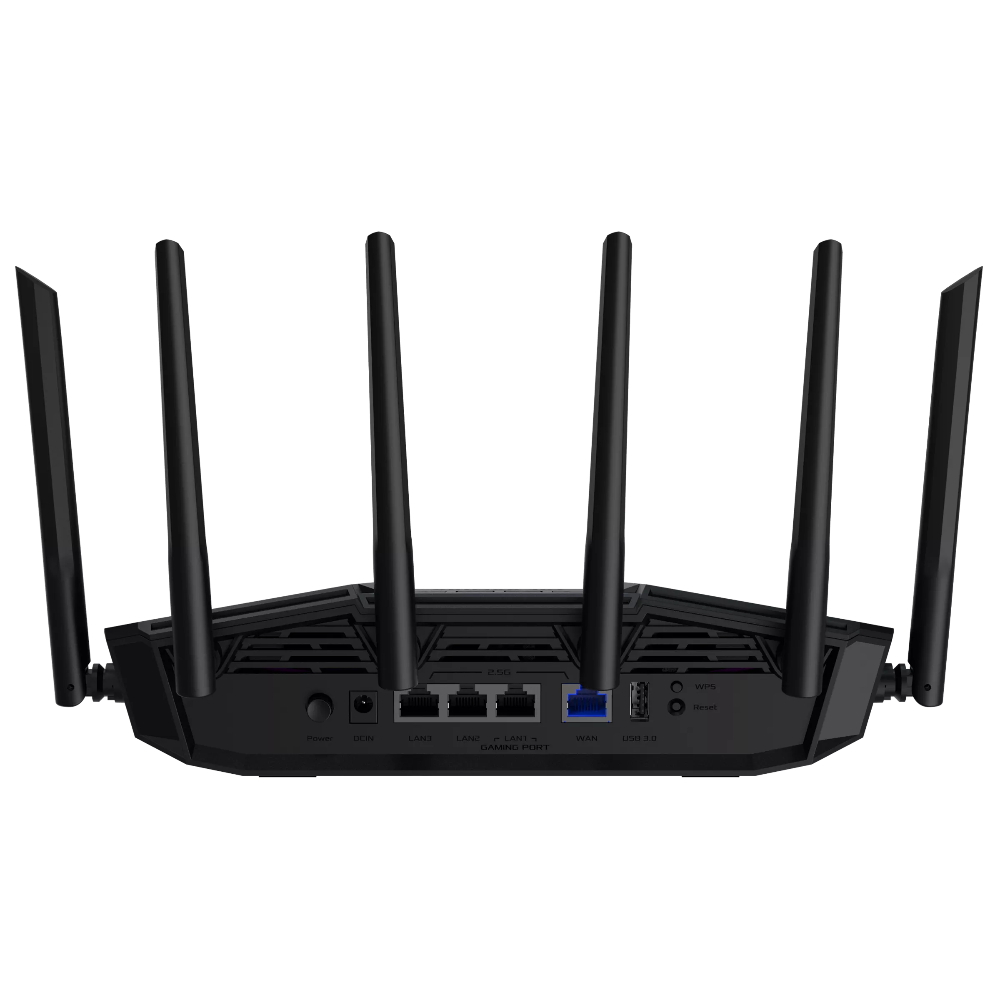

1 x 2.5Gbps for WAN
3 x 2.5Gbps for LAN
1 x USB 3.2 Gen1
WPS Button, Reset Button, Power Button
WAN(Internet) x1
6GHz x 1
5GHz x 1
2.4GHz x1
Power x1
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2.5 A current

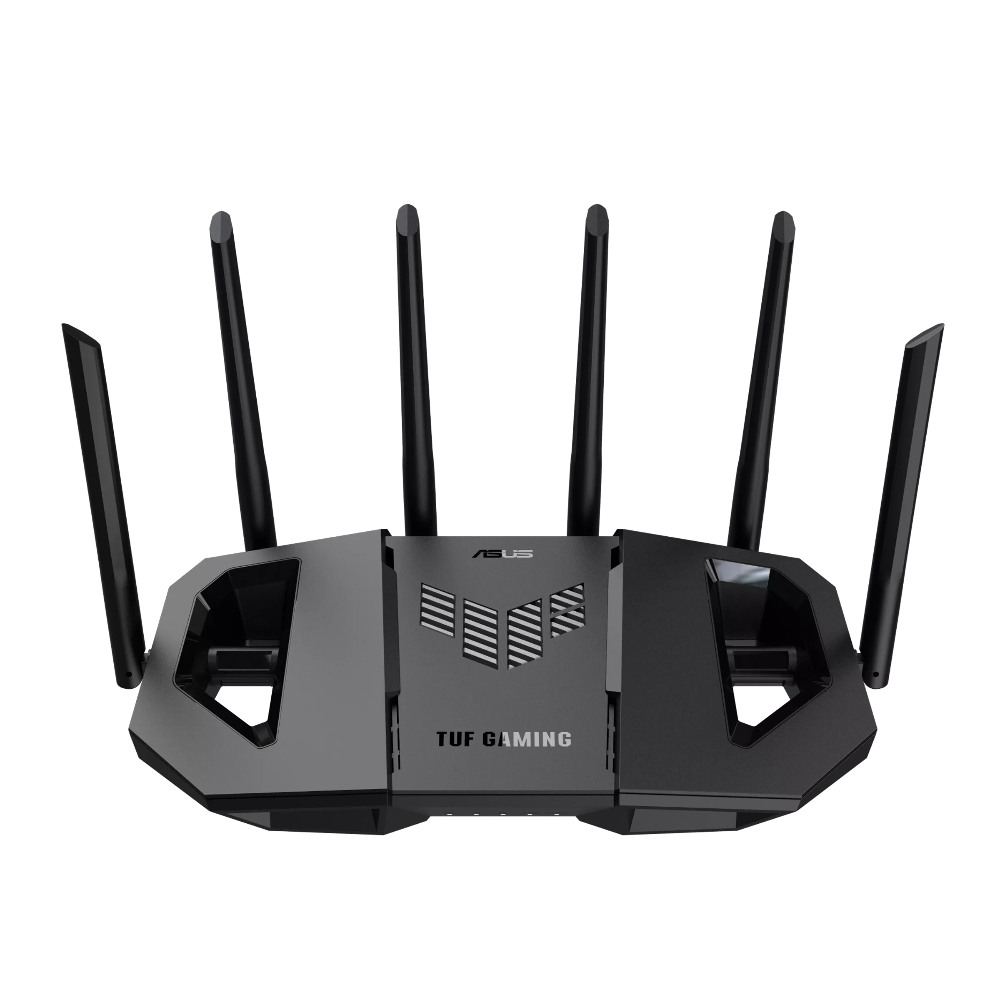

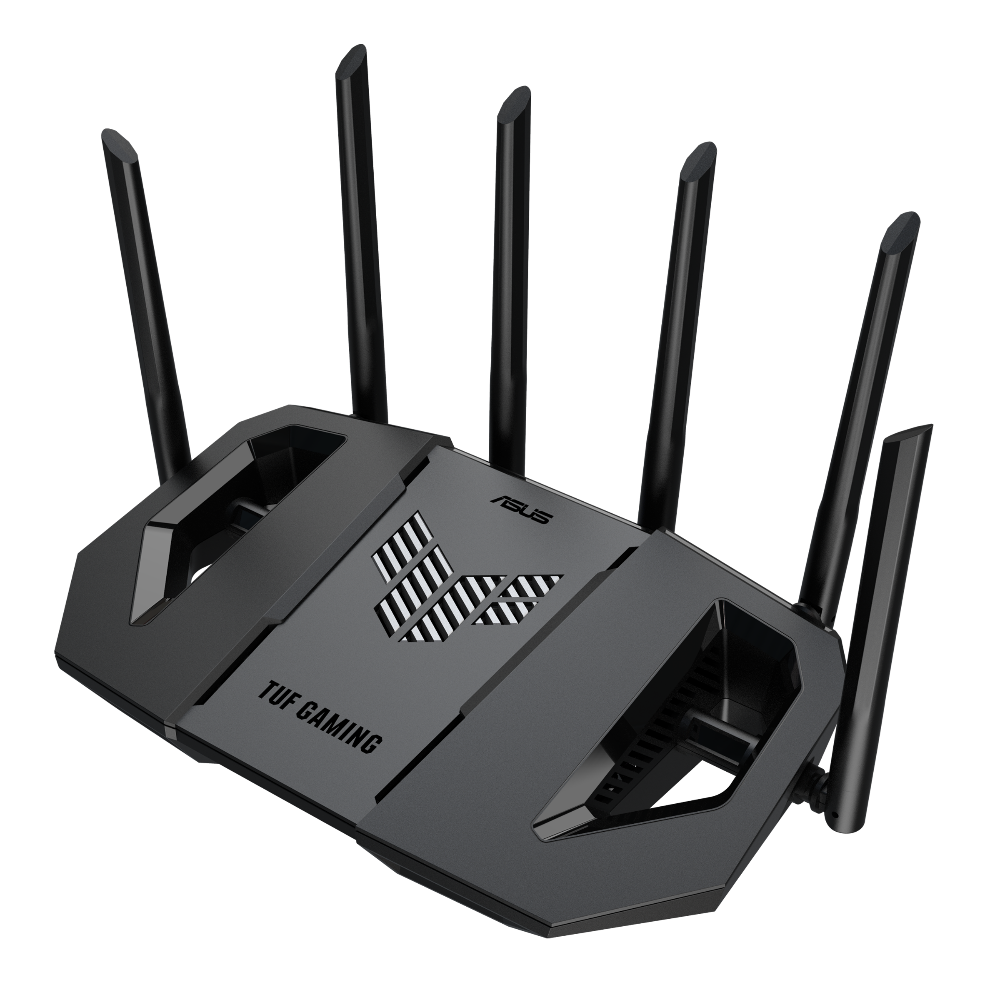

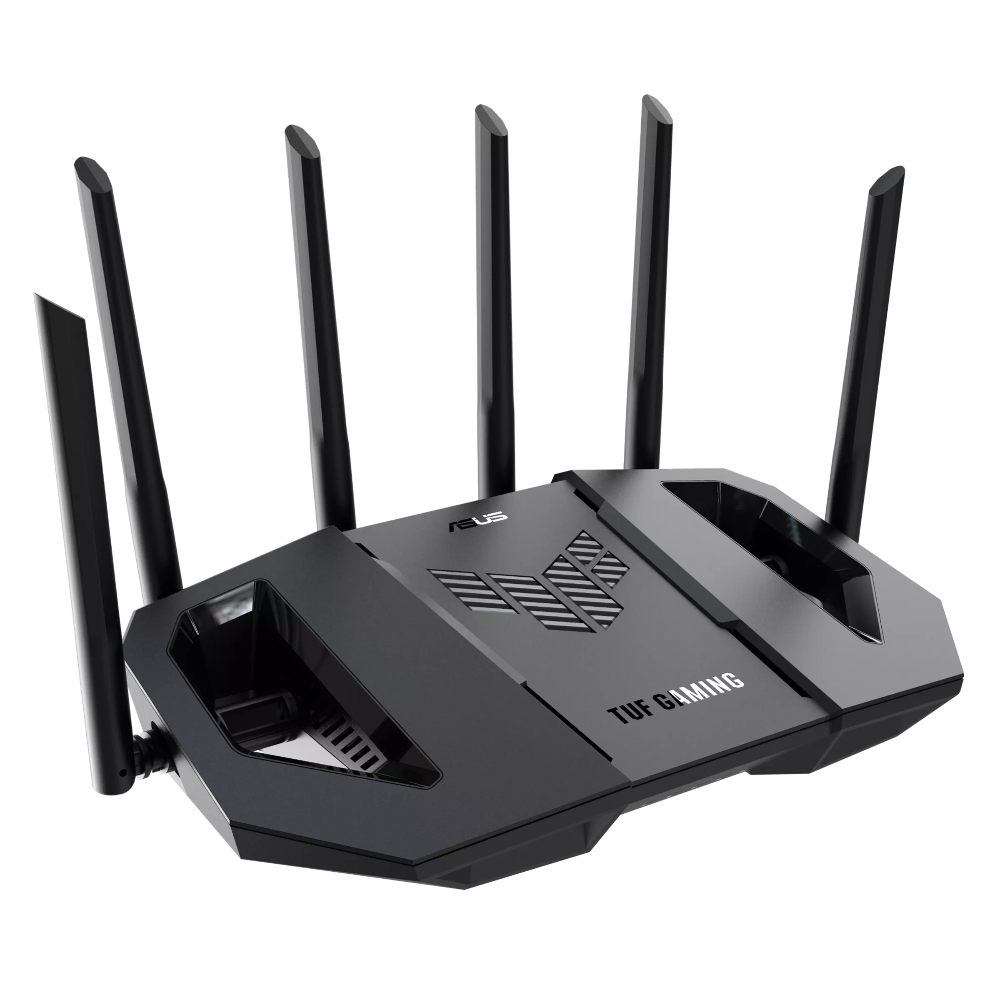

TUF-BE9400 Tri Band Gaming Router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
764 g
320 x 179 x 191 mm
AiMesh, • Primary AiMesh Router, • AiMesh Node
Game Boost / Acceleration, Mobile Game Mode, Gear Accelerator, OpenNAT (Game Profile), Gaming Port
Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64
"The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz: 3, Guest Network Connection Time Limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
AiProtection, VPN, WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64
AiProtection, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark, Support Nord VPN
Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History
• IPSec
• Static IP
• Automatic IP
• L2TP
• PPTP
• PPPoE
Internet Connection Type :, Dual WAN, 3G / 4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, • PPPoE Relay
• SIP Pass-Through
• H.323 Pass-Through
• RTSP Pass-Through
• IPSec Pass-Through
• L2TP Pass-Through
• PPTP Pass-Through
DHCP Server, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)
MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming
4G / 5G Auto Mobile Tethering, • FAT32
• ext4
• ext3
• ext2
• vFAT
• NTFS
• HFS+, Safely Remove Disk, Download Master, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges
WEB: ASUSWRT, APP: ASUS Router APP
Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
