Description

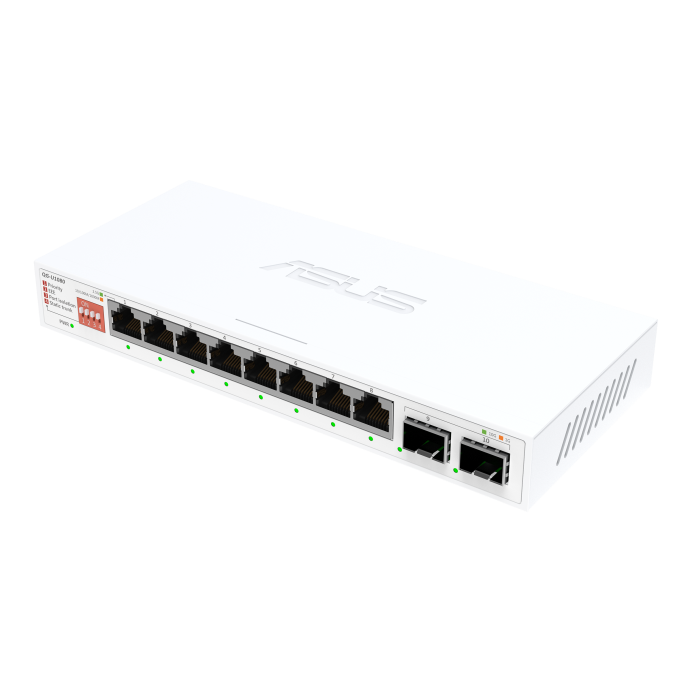

QG-U1080 8 埠 2.5G + 2 埠 10G SFP+ 無網管交換器，支援四種智慧模式、家用網路中樞、辦公室乙太網路交換器、隨插即用、簡易設定、桌上型、靜音運作
- 升級版 2.5G 連接埠與 10G SFP+ – 使用標準 CAT5e 網路線即可無縫升級至 2.5G，享受更高速的網路效能。
- 支援四種智慧功能 – 流量優先、EEE 節能、連接埠隔離與靜態鏈路聚合。一機滿足您保護及優化家庭或商用網路的所有需求。
- 隨插即用，設定毫不費力 – 建立網路從未如此簡單！只需連接您的裝置即可開始使用 — 無需任何複雜設定。
- 彈性的網路擴充 – 您可以連接各種相容於 2.5G/10G 的裝置，包括 NAS、無線基地台 (AP)、電競電腦及 4K 影音串流設備，實現更全面的網路佈局。
8 x 2.5G RJ45 ports
2 x 10G SFP+ ports
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3bz 2.5G BASE-T
IEEE 802.3-2012, IEEE 10GBASE-KR (10.3125 Gbps)
IEEE802.3az EEE
IEEE802.3x Flow control
White
MAC address Table: 16K
Packet buffer: 8Mbits
Jumbo Frame: 10K bytes
Forwarding Rate: 59.52Mpps (64-byte)
Power LED
Off: The switch is powered off or fails.
Green On: The switch is powered on.
Blinking: Loop detected.
Port 1-8 LED
Off: Devices are disconnected or the link has failed.
Green On: 2.5Gbps connection
Amber On: 10/100/1000Mbps connection
Blinking: Devices are connected and data is transmitting or receiving.
Blinking rapidly: Loop detected.
SFP+ Port 9-10 LED
Off: Devices are disconnected or the link has failed.
Green On: 10Gbps connection
Amber On: 1Gbps connection
Blinking: Devices are connected and data is transmitting or receiving.
Blinking rapidly: Loop detected.
External Power Adapter
Output: 12V/1A
Operating Temperature: 0 ~ 40℃
Storage Temperature: -40 ~ 70℃
Operating Humidity: 10% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 90% RH (non-condensing)
ASUS QG-U1080 Switch
Power Adapter
Quick Start Guide
Warranty Card
420 g
193 x 84.1 x 26 mm
